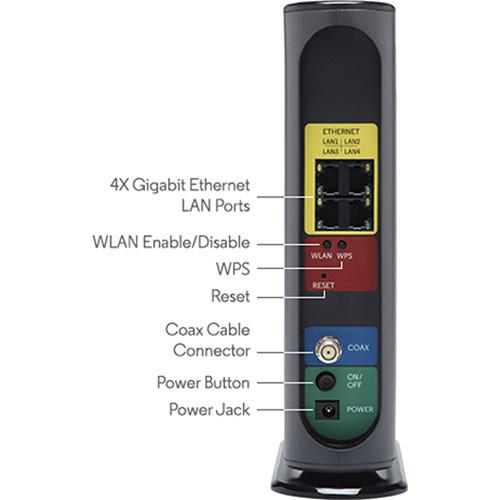

Product description Eliminate added monthly expenses incurred by renting a cable modem from your service provider with the MG7550 16x4 686 Mbps DOCSIS 3.0 Cable Modem with AC1900 Dual-Band Wi-Fi from Motorola. This cable modem comes compatible with a wide variety of cable Internet service providers including Comcast XFINITY, Time Warner Cable, and other providers. The modem features a single coax connector to receive the incoming cable Internet signal and four Gigabit Ethernet ports to connect Ethernet-enabled devices directly to your network. Additionally, users can take advantage of Wi-Fi connectivity, as this modem/router supports the 802.11ac Wi-Fi networking standard and operates on both the 2.4 GHz and 5 GHz frequencies.
Once connected, you benefit from 16 downstream channels offering a maximum download speed of 686 Mbps and 4 upstream channels supporting a maximum upload speed of 123 Mbps. Users can also monitor the status of the connection and power thanks to dedicated LED indicators for Ethernet link, connection status, upstream link, downstream link, and power. Should any modifications be needed to the connection settings a web-based utility simplifies the process of managing various aspects of the network. -
- Certified by CableLabs
- Certified by multiple cable providers including Comcast XFINITY, Charter Spectrum, Time Warner Cable, and Cox
- Full-Band Capture digital tuner for even higher speeds and a faster, more reliable Internet
- 16x4 DOCSIS 3.0 cable modem
- 16 downstream channels for speeds up to 686 Mbps
- 4 upstream channels for speeds up to 123 Mbps
- AC1900 Wi-Fi Gigabit Router with 4 Gigabit Ethernet ports
- 3 internal antennas support three send and three receive channels
- Beamforming technology
- Includes configuration manager with context-sensitive help
- Supports IPv4 and IPv6 network addressing
- Save on cable modem rental fees
- Ruggedized lightning and power surge circuits protect your investment
UPC: 855631006057 In the Box Motorola MG7550 16x4 686 Mbps DOCSIS 3.0 Cable Modem with AC1900 Dual-Band Wi-Fi Power Cube Ethernet Cable Hook and Loop Cable Organizer Coax Connection Tool Limited 2-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Motorola MG7550 16x4 686 Mbps DOCSIS 3.0 Cable Modem with AC1900 Dual-Band Wi-Fi in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMotorola MG7550-10 Specs | Cable Modem Standards | 16x4 DOCSIS 3.0 cable modem standard
16 x downstream channels for speeds up to 686 Mbps
4 x upstream channels for speeds up to 123 Mbps
Downloads 16 times faster than DOCSIS 2.0
Works with DOCSIS 3.0, 2.0, and 1.1 services
On-board direct connection to built-in Wi-Fi gigabit router | | Router | AC1900 Wi-Fi Gigabit Router with 4 Gigabit Ethernet ports
3 internal antennas support three send and three receive channels
Wi-Fi works with IEEE 802.11 n, ac, g, and b devices including smartphones, computers, HDTVs, and game stations
Wireless Power Boost to the FCC limit for extended speed and range
AnyBeam implicit beamforming at 2.4 GHz and 5 GHz focuses the signal on wireless clients to allow better performance and range
Comes with unique wireless security password for fast, easy setup (User can change the password easily)
4 Gigabit Ethernet (GigE) LAN ports for optional connection to computers, HDTVs, tablets, game stations, and other Ethernet-capable devices
Includes Configuration Manager with context-sensitive help
Advanced firewall for added security
Built-in Parental Control capability
Supports IPv4 and IPv6 for powerful, flexible network addressing
Provides high-speed shared Internet for up to 253 wireless and Ethernet devices | | LED Indicators | 7 x Status reporting LEDs | | Certifications | Certified by CableLabs
Certified by Comcast XFINITY, Charter Spectrum, Time Warner Cable, Cox, and other leading cable service providers
Wi-Fi Certified by the Wi-Fi Alliance
FCC 15B and 15C
Bureau Veritas 60950-1 ITE U.S. Safety | | Dimensions | 8.6 x 9.1 x 2.6" / 21.8 x 23.1 x 6.6 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 10.9 x 10.1 x 2.7" |
