Product description Connect to cable internet and create a wireless network at the same time with the MG7700 AC1900 Dual-Band DOCSIS 3.0 Cable Modem Router from Motorola. Capable of up to 1,900 Mb/s total Wi-Fi throughput, this dual-band DOCSIS 3.0 cable modem router boasts 24 download channels and eight upload channels, and it's compatible with most U.S. cable providers, including XFINITY. Equipped with four Gigabit Ethernet LAN ports, the MG7700 supports the Wi-Fi 5 (802.11ac) standard and features AnyBeam beamforming technology, which directs the router's Wi-Fi signal toward wireless devices; Wireless Power Boost, a technology designed to boost wireless speed and range; and IPv6 and IPv4 support. Note: This cable modem router does not have telephone jacks that support voice calls. - Fast Internet
- This 24 x 8 DOCSIS 3.0 cable modem offers 24-channel bonding for download speeds up to 1,000 Mb/s, plus 8-channel bonding for upload speeds up to 246 Mb/s. Full-band Capture Digital Tuning is designed to deliver even higher speeds and energy savings.
- Built-In Router
- Provides high-speed shared internet access to computers, HDTVs, smartphones, tablets, game stations, and other Ethernet and Wi-Fi devices.
- Wireless Power Boost
- Adds high-performance Wi-Fi power amplifiers to boost the wireless signals to the FCC limit, helping to boost speed and range.
- AnyBeam beamforming
- Focuses the signal on Wi-Fi devices for better wireless performance.
- Easy Setup
- Installs in minutes using easy Quick Start Quick setup. Comes with its own unique security password to simplify setup.
- Compatibility
- DOCSIS 3.0 cable modem is designed to work with most U.S. cable services. Support for IPv6 and IPv4 network addressing.
- System Requirements
- The cable modem must be connected to a cable modem service that uses DOCSIS 3.0, 2.0, or 1.1 standards. Directly connected devices, such as computers, HDTVs, and game stations, must have an Ethernet port. Devices connected wirelessly must have wireless 802.11ac/n/a/g/b capability.

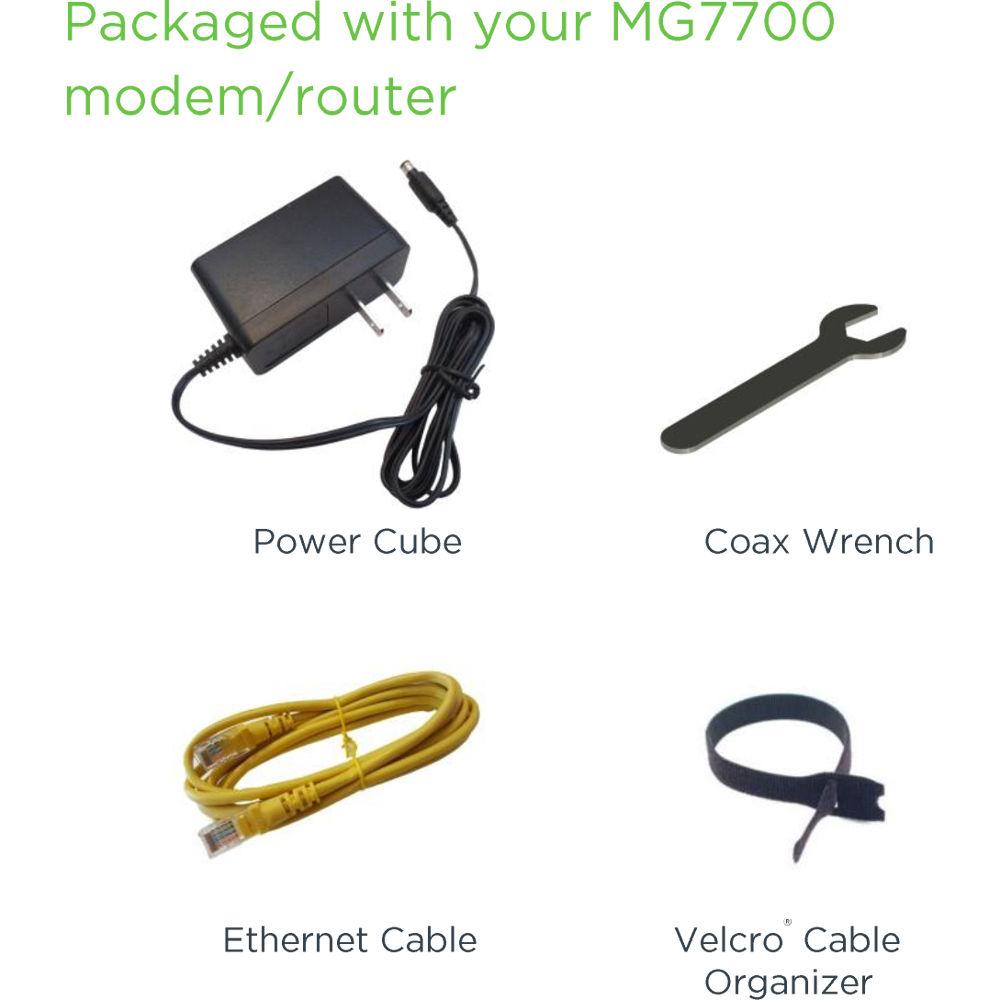

UPC: 855631006354 In the Box Motorola MG7700 AC1900 Dual-Band DOCSIS 3.0 Cable Modem Router Power Cube (UL listed) Ethernet Cable (Cat 5e) Cable Tie Coax Connection Tool Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Motorola MG7700 AC1900 Dual-Band DOCSIS 3.0 Cable Modem Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMotorola MG7700 Specs | Cable Modem Service Interface | F-Type Female 75 Ohms (Standard Coaxial Connector) | | Wi-Fi Technology | 802.11ac/n/g/b/a, 3 x 3 MIMO | | Wi-Fi Performance | 2.4 GHz: Up to 600 Mb/s
5 GHz: Up to 1300 Mb/s
AnyBeam at 2.4 GHz and 5 GHz for Implicit Beamforming with Most Wi-Fi-Compatible Devices
6 x SSIDs (3 per Radio) | | Antennas | 3 x Internal Dual Antennas
Power Boost Wireless Amplifiers | | Transmit Power | 2.4 GHz: Up to 29.55 dBm
5 GHz: Up to 27.54 dBm | | Ethernet Ports | 4 x 10/100/1000 Ethernet LAN ports with Auto-MDI/MDIX | | Router Mode | Dynamic DNS
DHCP Server and Client
NAT
Bridging
Port Forwarding/DMZ Support
RIP V1 and V2
Support for up to 253 Client Devices | | Security Features | Stateful Packet Inspection (SPI)
VPN Passthrough: PPTP, IPsec Tunneling
Parental Control
Attack Protection
IP/MAC/Port Filtering
Denial of Service Notification
Supports Baseline Encryption (BPI) Management
Wireless Functions: WMM/WME, Guest Network Access
Wireless Security: WPA-PSK/WPA2-PSK, WPA/WPA2, TKIP/AES, 802.1x Authentication
Password Protected System Management

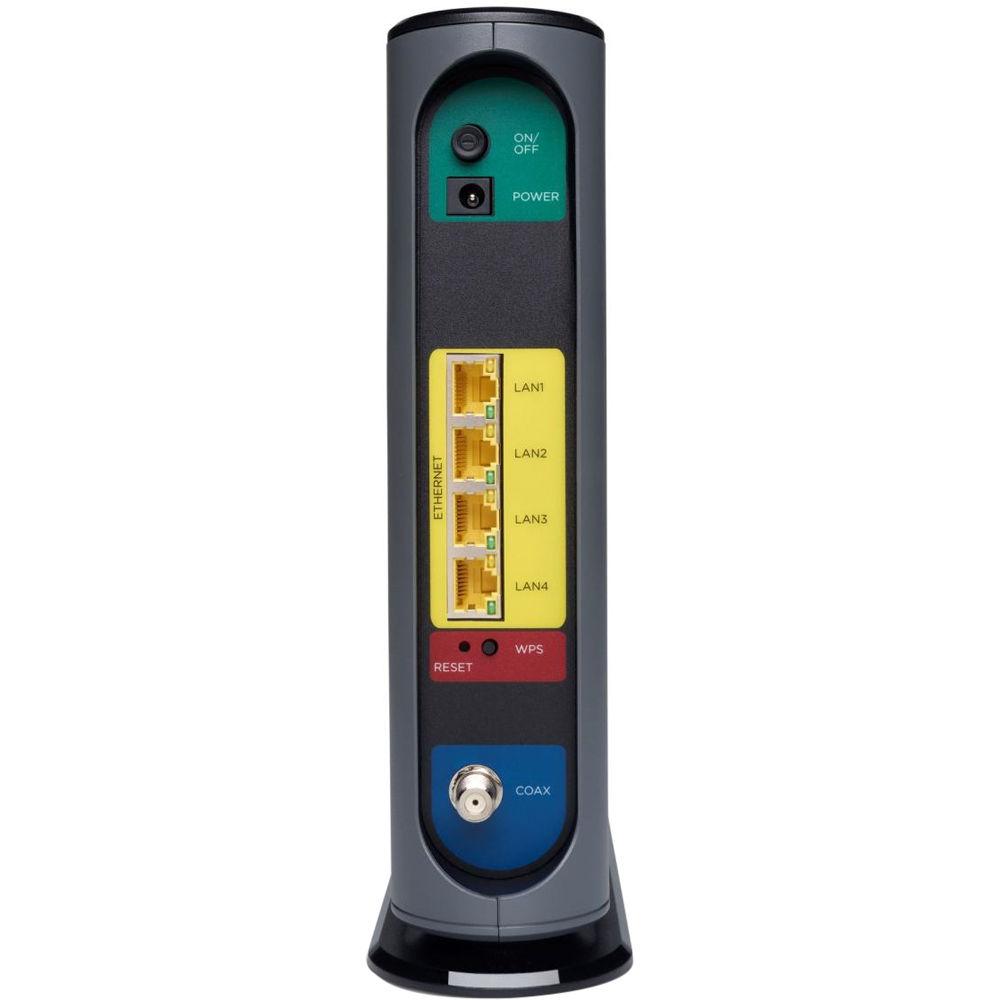

Cable Modem Diagnostic Log | | LEDs | Front Panel:
Power, Downstream Link, Upstream Link, Connection Status, 2.4 GHz Wireless Link, 5 GHz Wireless link, WPS
Rear Panel:
2 x LEDs per Ethernet Port Indicating Data Flow and LAN Connection Speed
Green Indicates 1 Gb/s; Amber Indicates 10/100 Mb/s; Blinking Indicates Data Flow | | Power Adapter | DoE-Compliant Level VI Energy-Saving, UL-Listed
Output: 12 VDC, 2.5 A
Input: 100-240 VAC
Plug: NEMA 1-15P | | Surge Protection | Ruggedized Cable and Power Lightning Protection | | DOCSIS Support | 3.0, 2.0, 1.1 | | Downstream | Data Rate: Up to 1029 Mb/s
Bonded Channels: Up to 24 SCQAM
Frequency Range: 108-1002 MHz
Modulation: 64 or 256 QAM
Operating Level Range: -15 to +15 dBmV | | Upstream | Data Rate: Up to 246 Mb/s
Bonded Channels: Up to 8 SCQAM
Frequency Range: 5-42 MHz
Modulation: QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM, 128 QAM, 256 QAM
Operating Level Range: +61 dBmV (64 QAM, Single Channel), +54 dBmV (64 QAM, 4-8 channels), +61 dBmV (16 QAM, single channel) | | Network Protocols | IPv4, IPv6, TCP, UDP, ARP, ICMP, DHCP, FTP, TFTP, SNMP, HTTP | | SNMP | SNMP v1, v2, v3 | | DHCP Client | Automatically Retrieves IP and DNS Server Address from DHCP Server through WAN Connection | | ToD (RF868) | ToD Support for Local and MSO Time Synchronization | | Management | Web-Based Management Interface Utility | | Operating Temperature | 32°-104°F / 0°-40°C | | Certifications | FCC 15B, 15C and 15E
FCC MPE
Bureau Veritas 60950-1 ITE Safety
CableLabs
Cable Service Providers | | Dimensions | 2.5 x 8.5 x 9" / 64 x 203 x 229 mm | | Weight | 24.7 oz / 701 g | | | | Package Weight | 2.73 lb | | Box Dimensions (LxWxH) | 12.1 x 11.5 x 2.8" |
