User Manual for Motorola MX1200 AC1200 Dual Band Wireless Range Extender Click to enlarge the picture
Contents of the user manual for the Motorola MX1200 AC1200 Dual Band Wireless
- Product category: Wireless Range Extenders Motorola
- Brand: Motorola
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Motorola Wireless Range Extenders
 |
User manual for the Motorola MX1200 AC1200 Dual Band Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Motorola product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Motorola user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Motorola product will considerably shorten its lifespan!
|

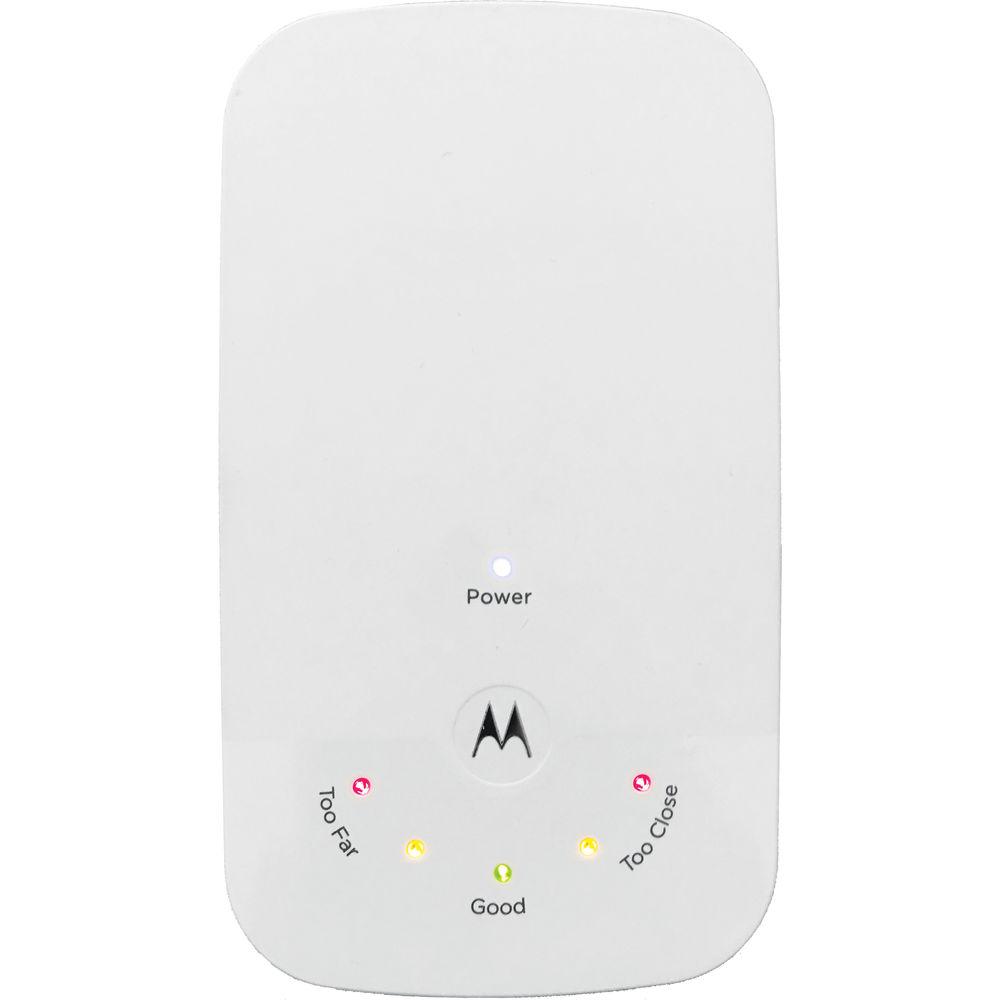

Product description Simply plug the MX1200 AC1200 Dual Band Wireless Range Extender from Motorola into an electrical outlet and extend the range of your existing Wi-Fi network to help eliminate dead zones. Setup is simple, thanks to built-in LED indicators designed to make sure you place the range extender in the proper location to obtain the best signal for optimal network performance.
Once configured, the MX1200 supports the 802.11ac Wi-Fi network standard and operates on both the 2.4 GHz and 5 GHz frequencies supporting data transfer rates of up to 1200 Mbps. In addition to wireless connectivity, this range extender also comes equipped with a single Gigabit Ethernet port offering a reliable wired connection to your network. Managing your network through the MX1200 has also been simplified thanks to the included web-based management interface utility. -
- Connects between router and rooms that need better Wi-Fi
- Links to your devices via Wi-Fi or its built-in Ethernet jack
- Enhances video streaming, gaming, Web, and more
- Features 2 internal antennas, 2.4 and 5 GHz bands, and beamforming
- Compatible with any router or gateway, regardless of your router's Wi-Fi speed
- Helpful, friendly support from our US support experts
UPC: 855631006255 In the Box Motorola MX1200 AC1200 Dual Band Wireless Range Extender Ethernet Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Motorola MX1200 AC1200 Dual Band Wireless Range Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMotorola MX1200-10 Specs | Wi-Fi Technology | 802.11ac/n/g/b/a
2x2 MIMO (Multiple Input Multiple Output) | | Performance | Simultaneous dual-band radios
Up to 300 Mbps at 2.4 GHz

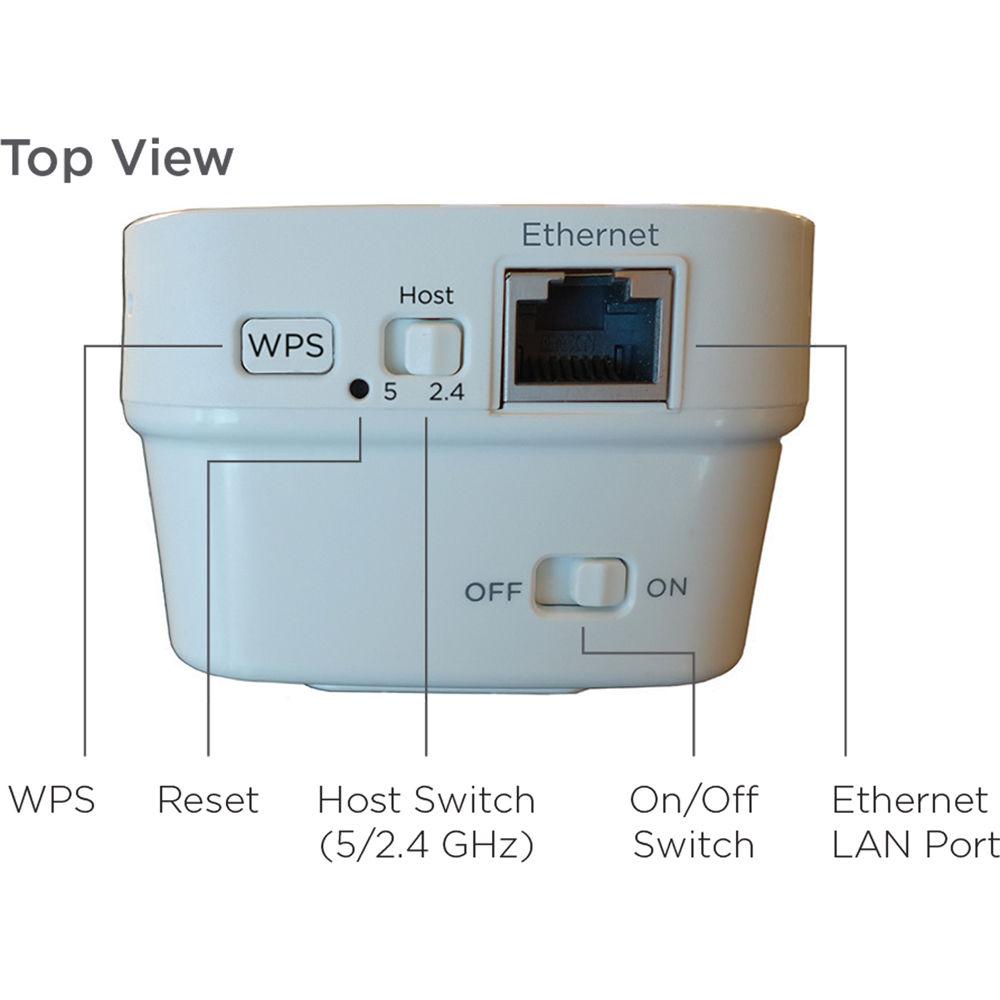

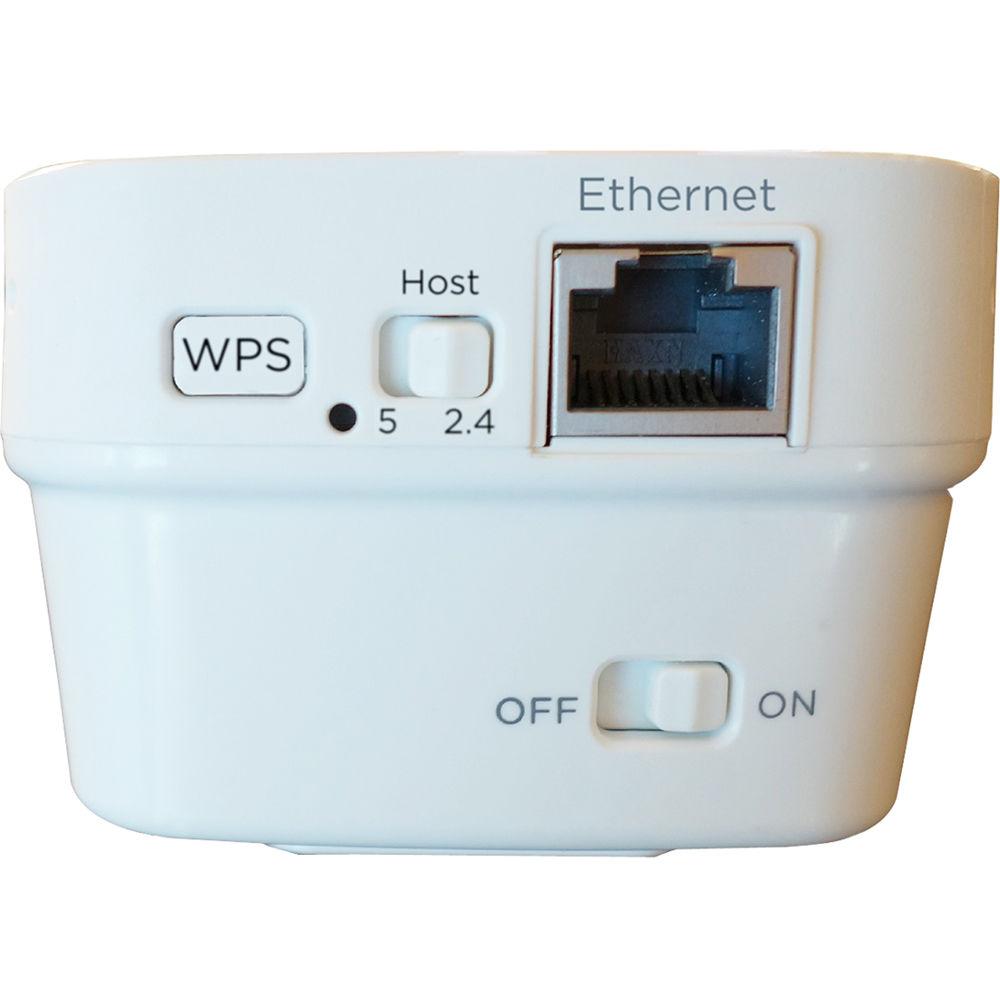

Up to 867 Mbps at 5 GHz | | Antennas | 2 x Internal antennas | | Ethernet Interface | 1 x Gigabit Ethernet LAN port with auto-MDI/MDIX | | Security | WPS
Wireless MAC address filtering
WPA-PSK/WPA2-PSK
WEP-64/128

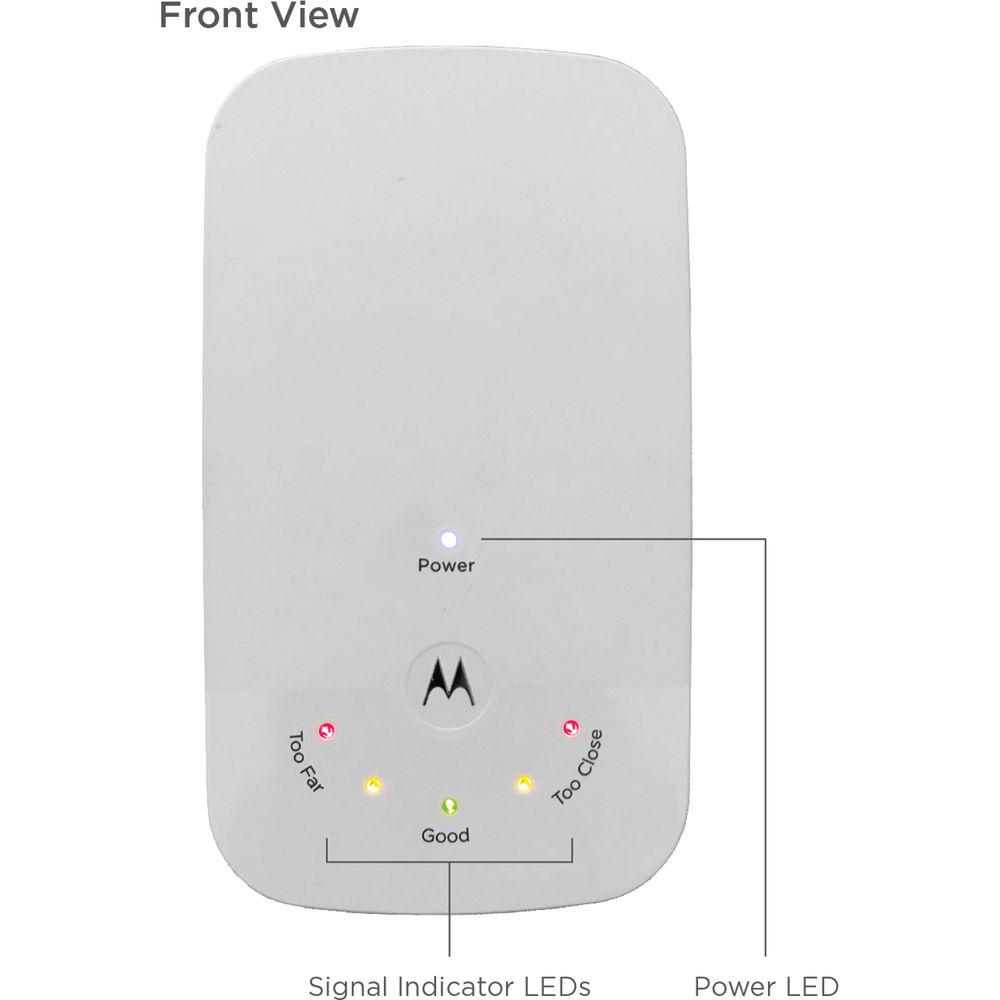

TKIP/AES | | LED Indicators | Power LED (white)
Signal Indicator LEDs: - Too close (red)
- A little too close (amber)
- Good (green)
- A little too far (amber)
- Too far (red) | | Management | Web-based management interface utility
Firmware upgradable | | Electrical | AC Power Adapter
100 to 240 VAC @ 50/60 Hz
Power Consumption
6.5 W or less | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Certifications | FCC 15B and 15C, FCC MPE, CE, Bureau Veritas 60950-1 ITE safety | | System Requirements | Works with any Wi-Fi router, gateway, or access point having 2.4 GHz, 5 GHz, or dual-band Wi-Fi
Devices connected wirelessly must have wireless ac, n, g, b, or a capability
A directly connected device, such as a computer, HDTV, or game station, must have an Ethernet port | | Dimensions | 2.75 x 4.75 x 3.00" / 120 x 121 x 75 mm | | Weight | 6.3 oz / 179 g | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 6.4 x 5.2 x 3.7" |
