User Manual for Motorola RDU4100 RDX Business Series Two-Way UHF Radio Click to enlarge the picture
Contents of the user manual for the Motorola RDU4100 RDX Business Series Two-Way
- Product category: 2-Way Radios Motorola
- Brand: Motorola
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Motorola 2-Way Radios
 |
User manual for the Motorola RDU4100 RDX Business Series Two-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Motorola product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Motorola user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Motorola product will considerably shorten its lifespan!
|

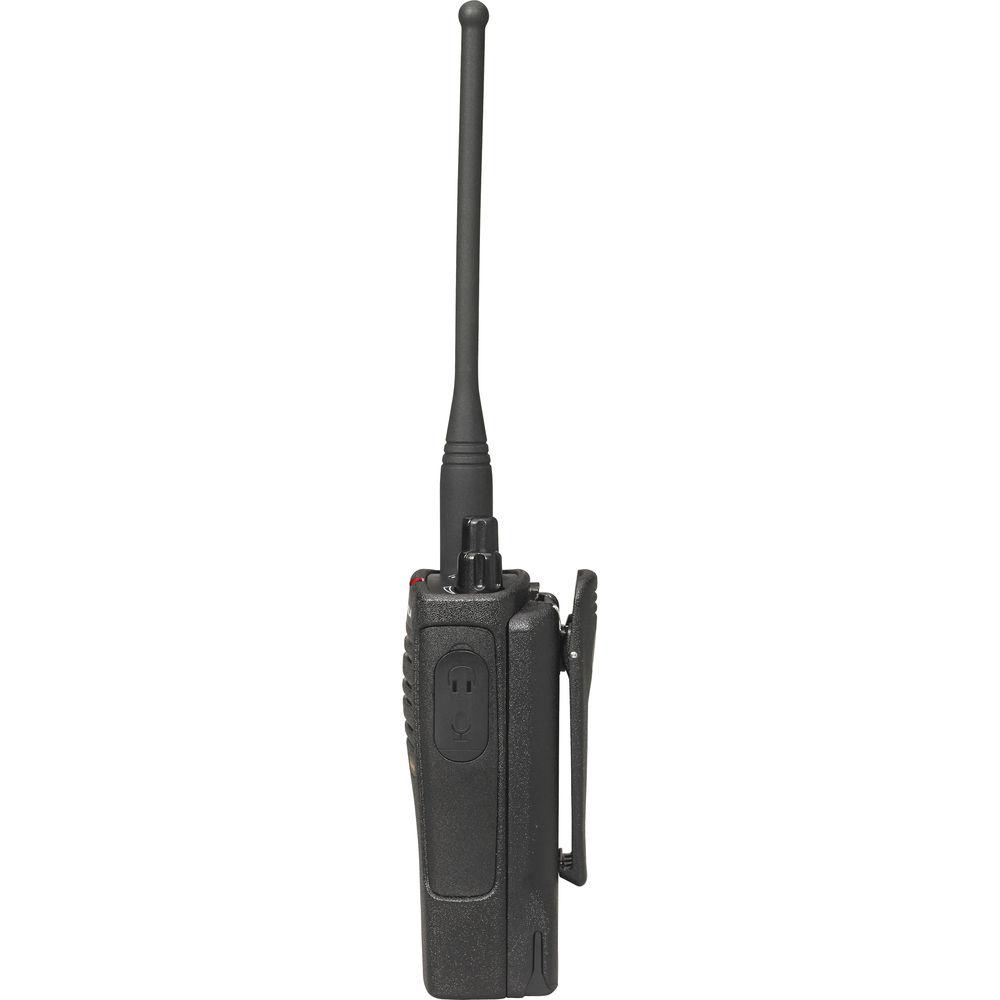

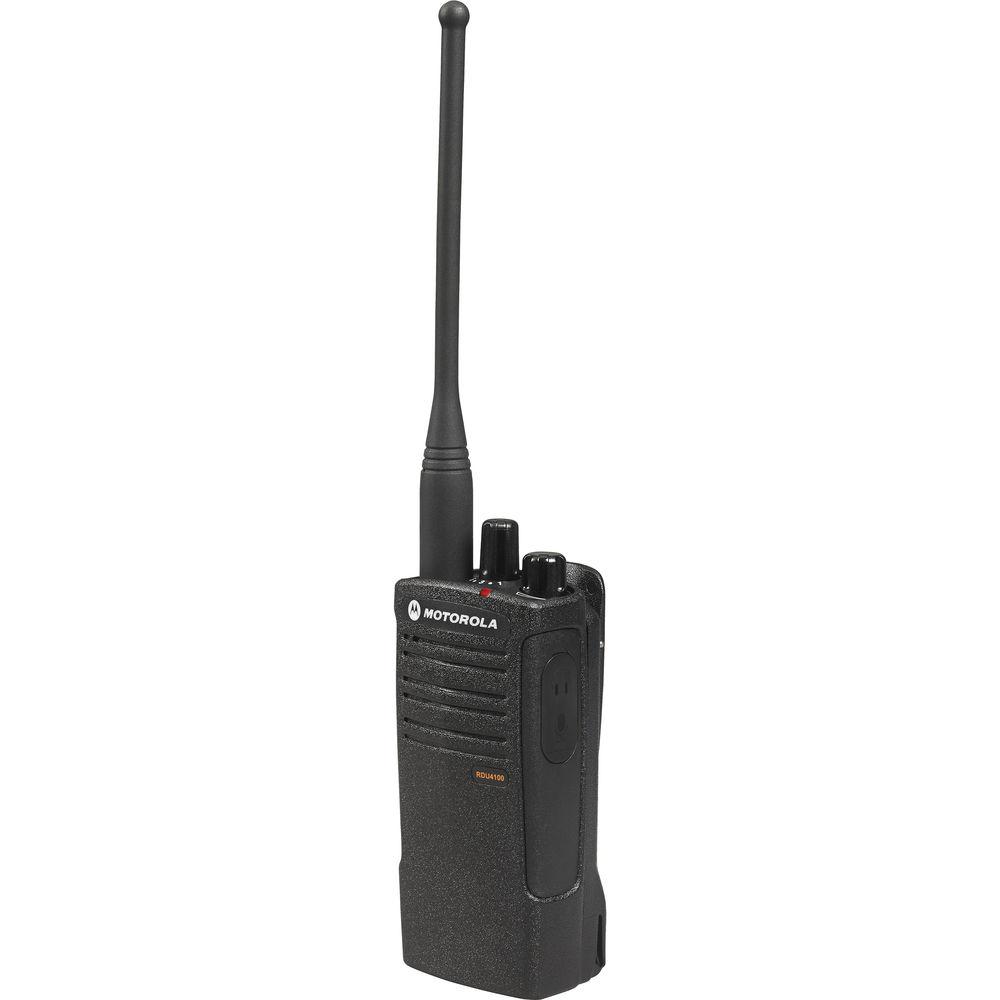

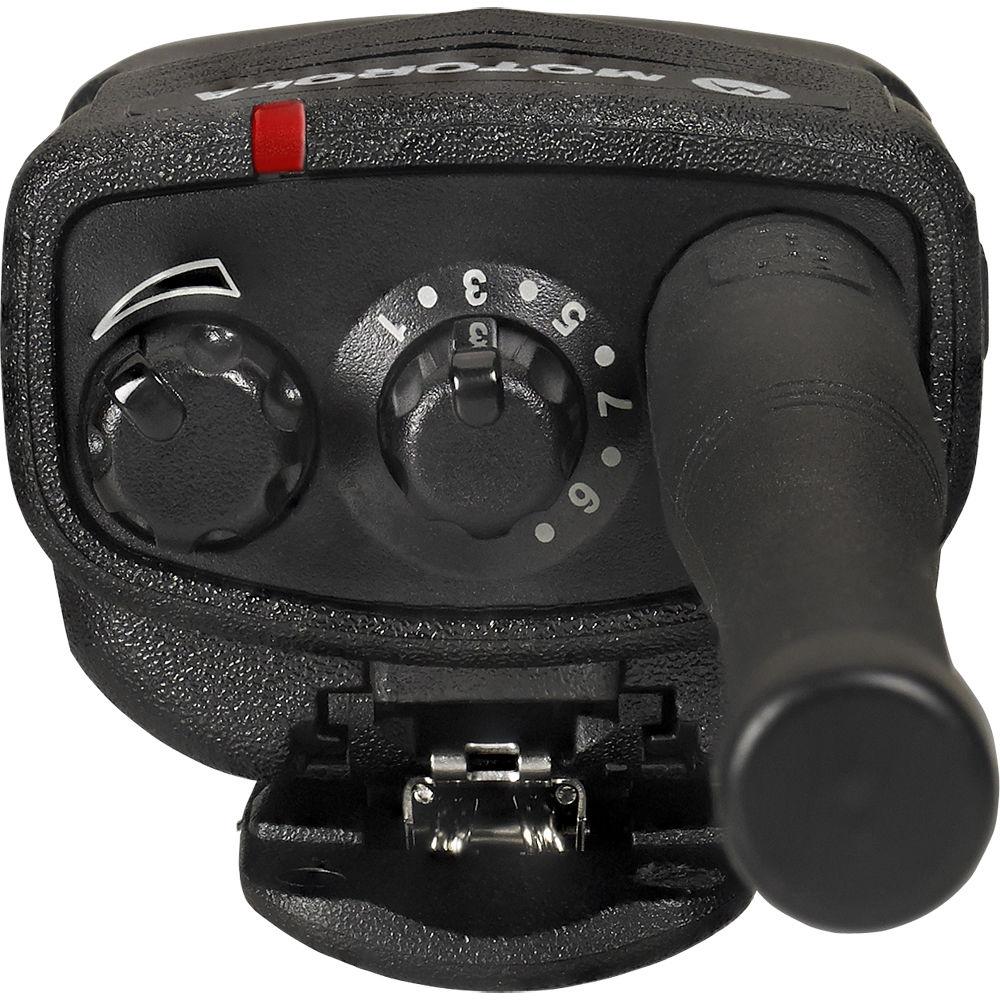

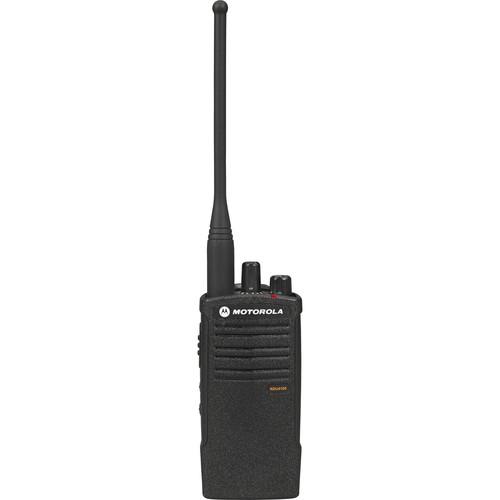

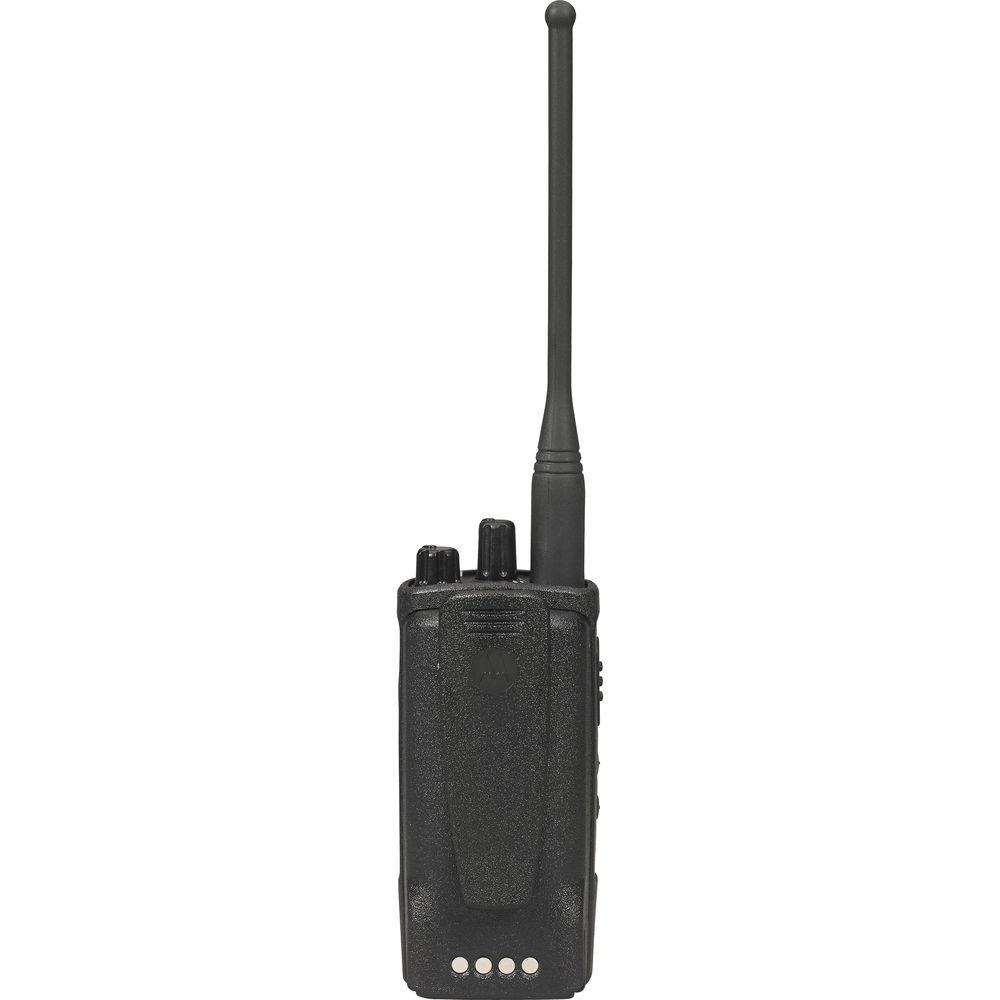

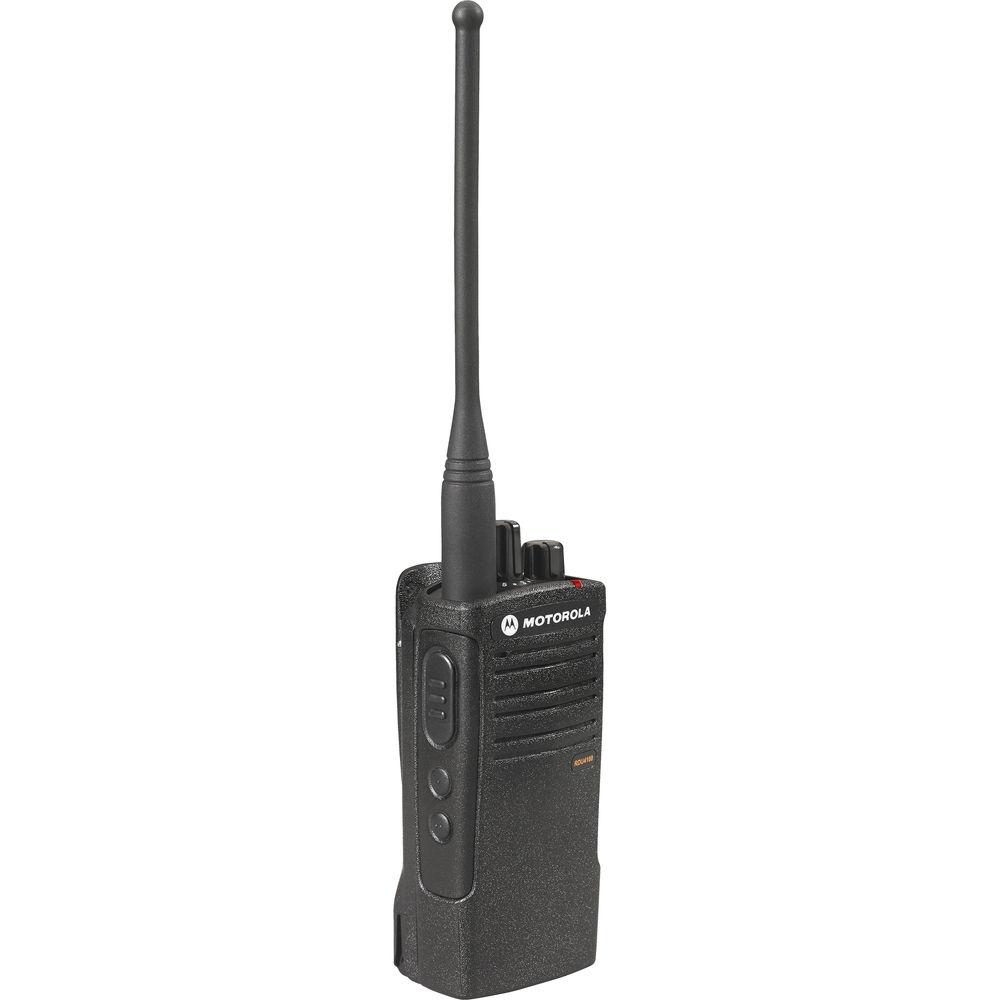

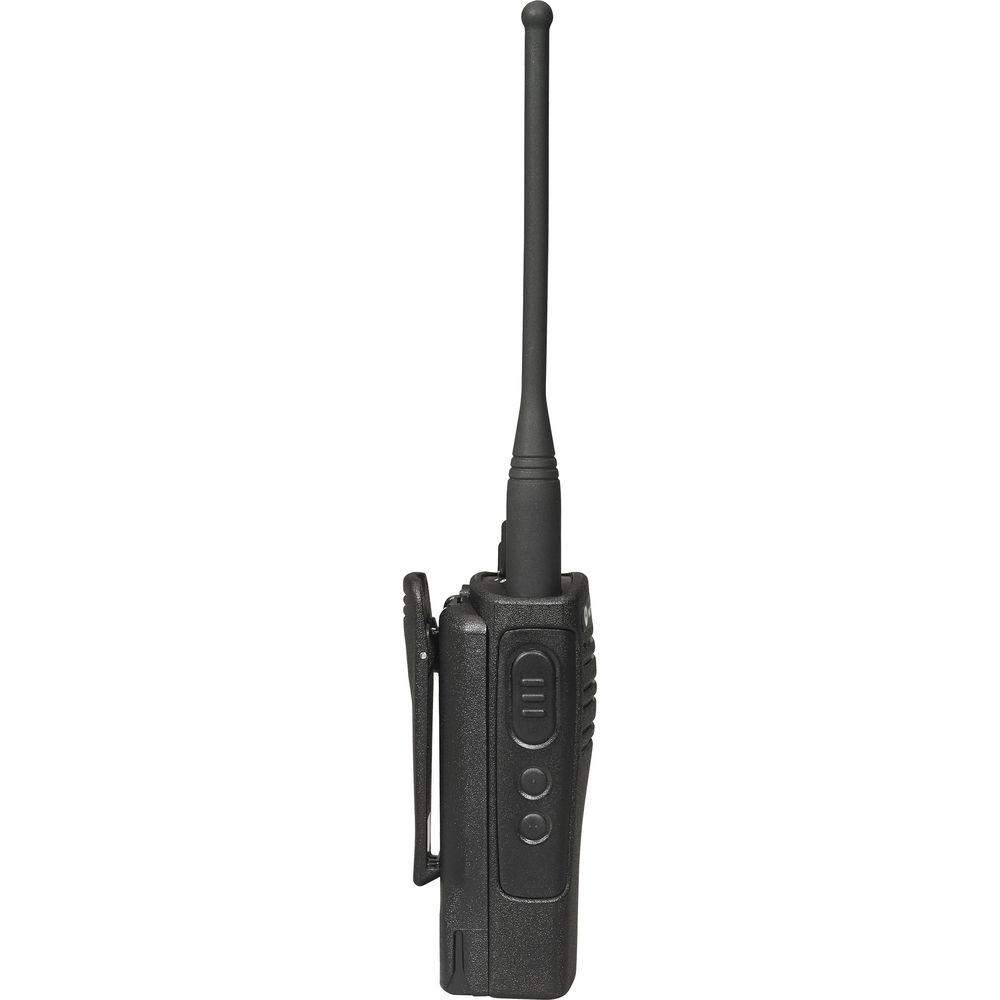

Product description The Motorola RDU4100 RDX Business Series Two-Way UHF Radio is just what you need on that job site. Whether indoor or outdoor, this radio delivers its crisp and audible signal with confidence. Versatile and rugged, the RDU4100 will not only provide clear audio transmission, but will also stand up to the most demanding physical conditions. Rain, wind, or fog - this unit will withstand them all. Motorola built this water-resistant unit with heavy-duty on-site work in mind.When profit is on the line and time cannot be wasted asking for repeated calls, you'll make good use of this radio's channel selection and multi-analog and digital code possibilities. And, with the optional CPS (Computer Programming Software) interface, internal settings can be tweaked to best suit your needs. This is a solidly built radio at a more than affordable business price. - Exceptional Audio Quality
- Wind noise reduction, speaker magnetic field reduction, and improved RF specifications
- Long Battery Life
- Standard Li-ion battery for up to 18 hours per charge, with optional ultra high capacity Li-ion battery available for up to 26 hours per charge, and an optional alkaline battery frame kit
- Business Exclusive Frequencies
- Operating on 99 UHF business exclusive frequencies and featuring many codes to help ensure a clear channel
- Customer Programming Software (CPS)
- Quickly identify radio details such as serial number, features, frequency range, and more (separate USB cable required)
- Superior Durability
- Meets military MIL-STD 810C, 810D, 810E, 810F, and IP54/IP55 specifications for shock, rain, humidity, salt, fog, vibration, sand, dust, temperature shock, and high/low temperature
- Other Features
- • Die cast metal chassis
• Power up announcement
• Customized voice prompt
• Busy lock
• Talk permit tone
• Silent mode
• Programming voice prompts
• Voice prompt volume level
• Predefined voice prompts
• Priority scan
• Scan list per channel
• Enhanced RF interference technology UPC: 723755540293 In the Box Motorola RDU4100 RDX Business Series Two-Way UHF Radio (Black) 2400mAh Li-Ion Rechargeable Battery 10-Hour Plug-In Charger Spring Belt Clip Antenna Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Motorola RDU4100 RDX Business Series Two-Way UHF Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMotorola RDU4100 Specs | Band | UHF
Bandwidth Range: N/A | | Output Power | 2000 MW
Selectable Power Output: 4 W | | Channels | 10
Channel Aliasing: N/A
Nuisance Channel Delete: Yes
Time Out Timer: No | | Coverage Area | Up to 30 floors or 350,000 ft² (32,516 m²) | | Frequencies | 99 UHF business-exclusive frequencies
219 interference eliminator codes
Frequency Range: 150-160 MHz | | Privacy Codes | 219 | | LED Display | Languages: N/A
Backlit: N/A | | Battery Type | Li-ion (up to 18 hours)
Charger: 100-240 VAC, 50/60 Hz
Low Battery Alert: LED blinking indicator
Power Select: Programmable via CPS
Alkaline Capable: AA battery compatible (requires optional 5 x AA cells and optional alkaline battery frame accessory) | | Microphone/Headphone Jack | Yes | | VOX | Yes, with accessory | | Call Alerts | Programmable via CPS | | Scanning | Auto Scan: Yes | | Cloning | Yes, via MUC (Multi-Unit Charger or cloning cable) | | Manager Lock | Programmable via CPS
Keypad Lock: Yes | | Single Button Presets | 2 | | Scrambling | 3 x Voice Scramble settings | | Roger Beep | Yes, 3 different call tones | | Military Specification | IP54/IP55 and MIL-STD 810C, 810D, 810E, and 810F | | Dimensions (WxHxD) | 4.5 x 2.2 x 1.6" (11.4 x 5.6 x 4 cm) | | Weight | 8.6 oz (244 g), including battery | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 10.2 x 6.75 x 2.4" |
