Motorola RDU4160D RDX Business Series Two-Way

Search your instruction manual in PDF to download

User Manual for Motorola RDU4160D RDX Business Series Two-Way UHF Radio with Display

Click to enlarge the picture
Motorola RDU4160D RDX Business Series Two-Way UHF Radio with Display Contents of the user manual for the Motorola RDU4160D RDX Business Series Two-Way
  • Product category: 2-Way Radios Motorola
  • Brand: Motorola
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Motorola 2-Way Radios

Motorola RDU4160D RDX Business Series Two-Way UHF Radio with Display Motorola RDU4160D RDX Business Series Two-Way UHF Radio with Display Motorola RDU4160D RDX Business Series Two-Way UHF Radio with Display Motorola RDU4160D RDX Business Series Two-Way UHF Radio with Display Motorola RDU4160D RDX Business Series Two-Way UHF Radio with Display Motorola RDU4160D RDX Business Series Two-Way UHF Radio with Display Motorola RDU4160D RDX Business Series Two-Way UHF Radio with Display Motorola RDU4160D RDX Business Series Two-Way UHF Radio with Display Motorola RDU4160D RDX Business Series Two-Way UHF Radio with Display
User manual for the Motorola RDU4160D RDX Business Series Two-Way contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Motorola product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Motorola user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Motorola product will considerably shorten its lifespan!



Product description

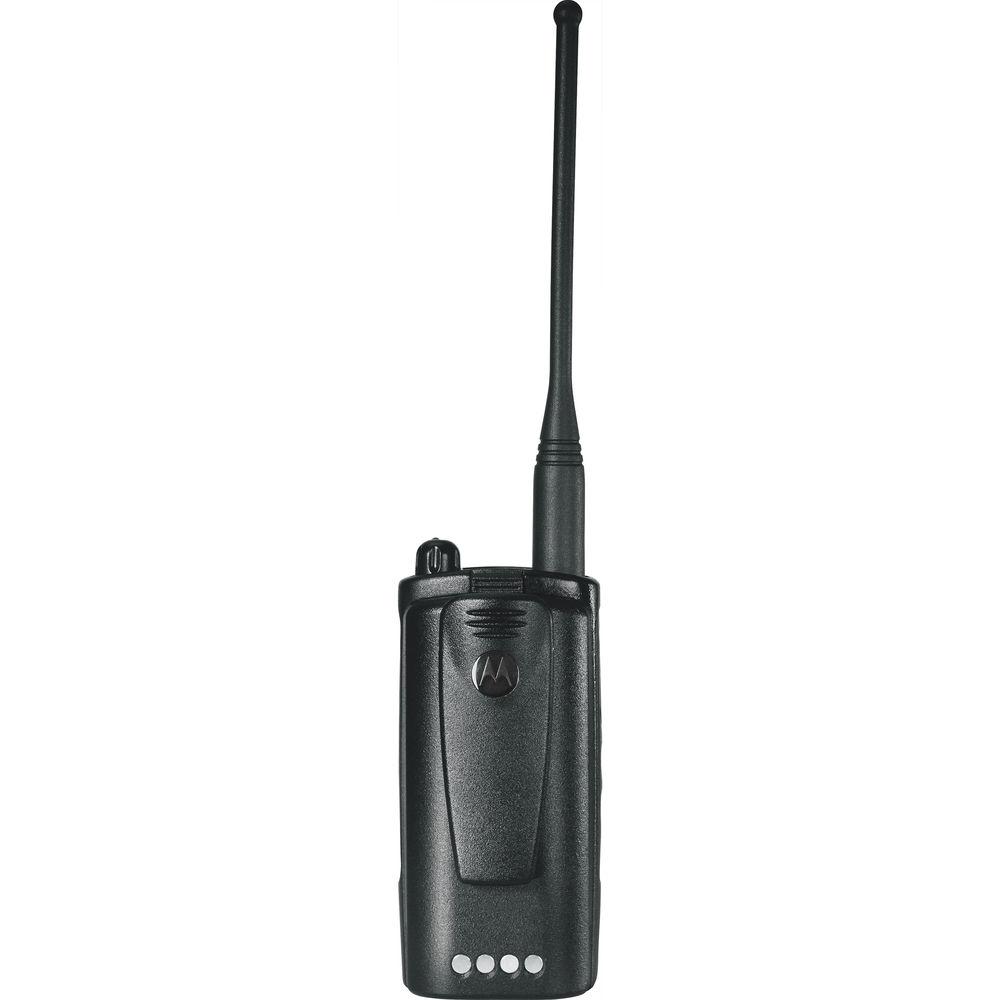

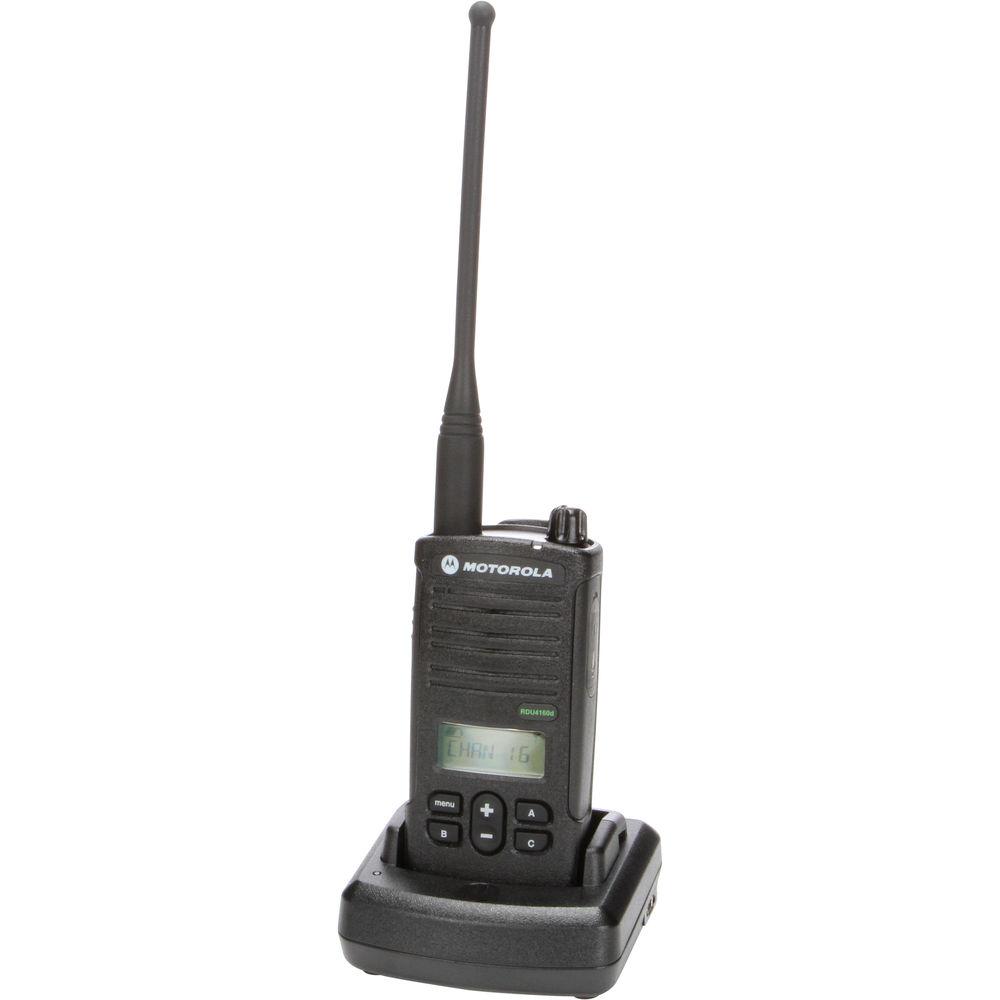

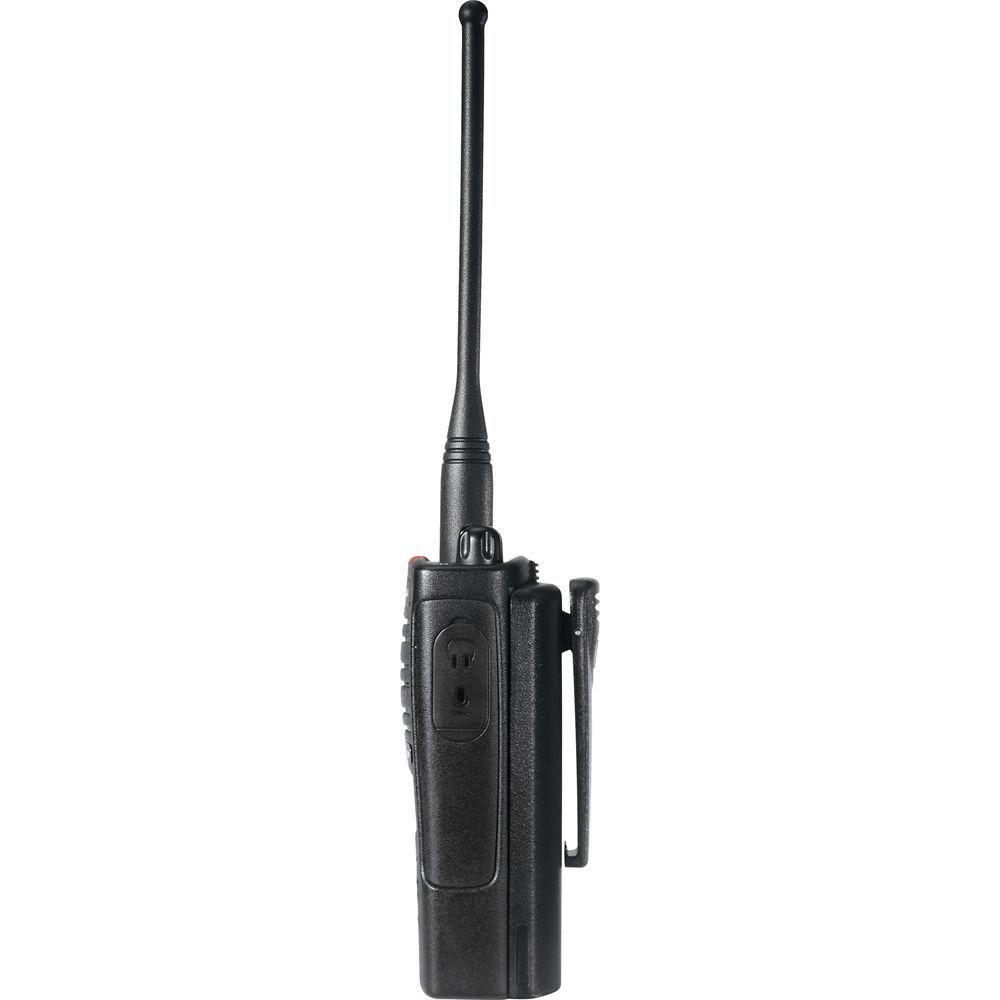

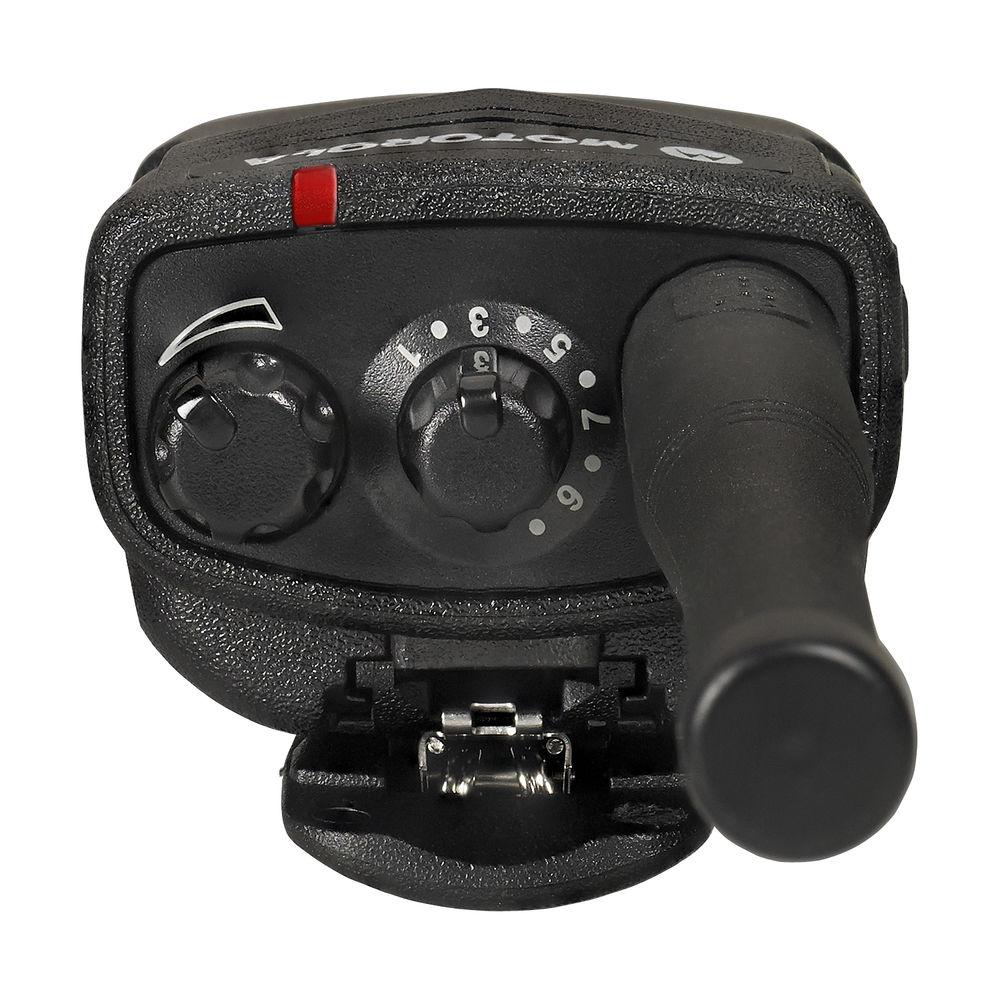

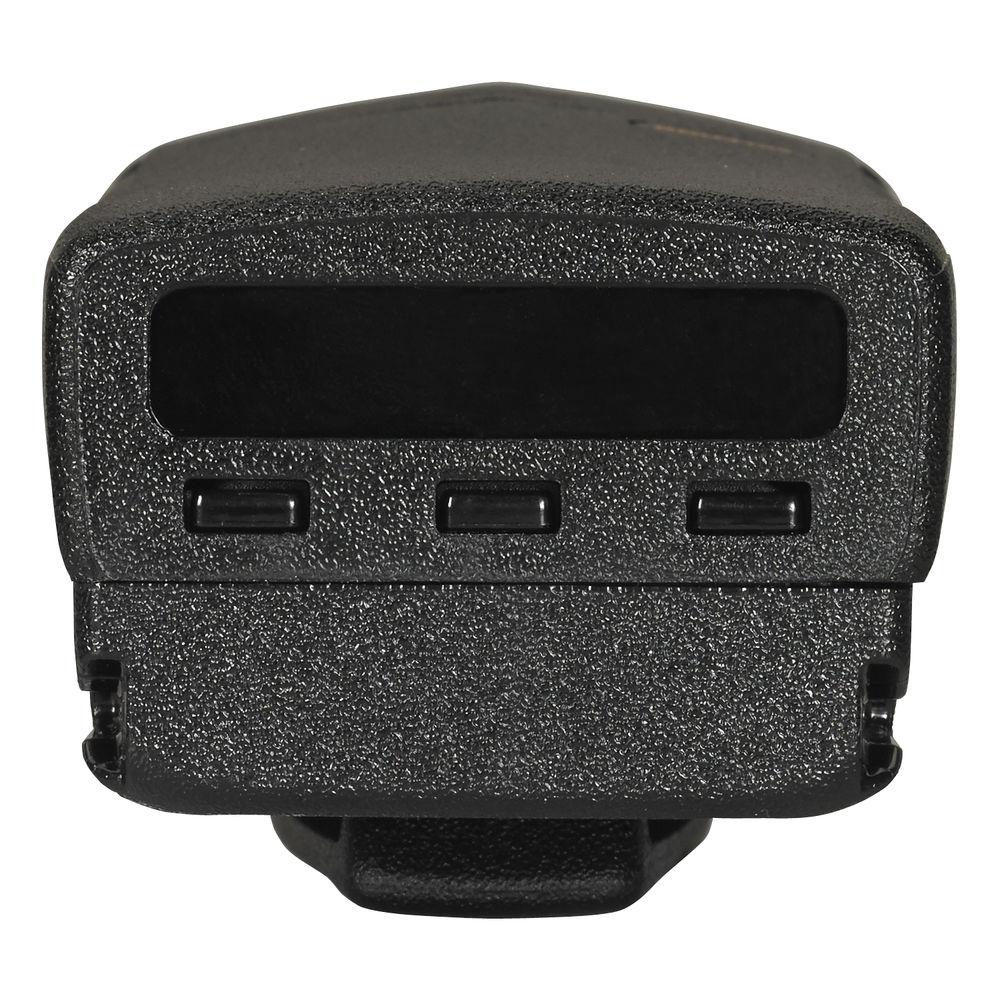

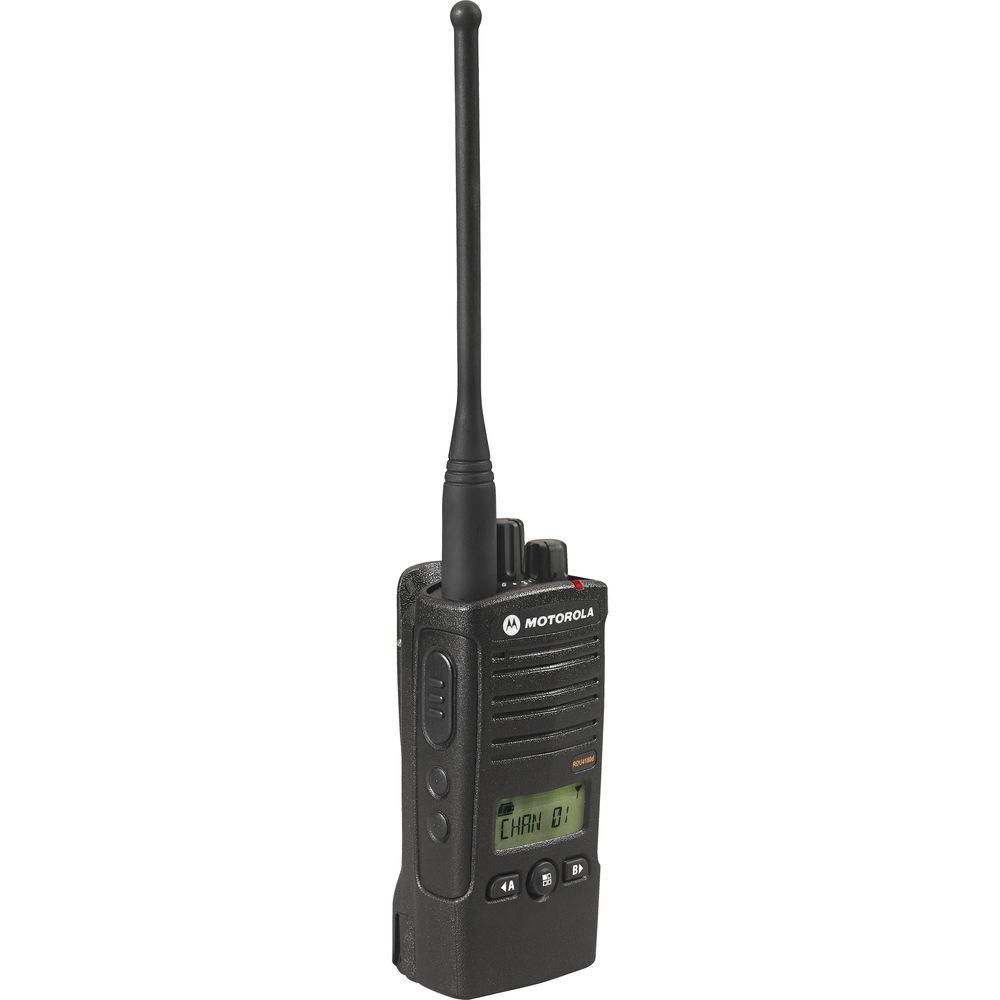

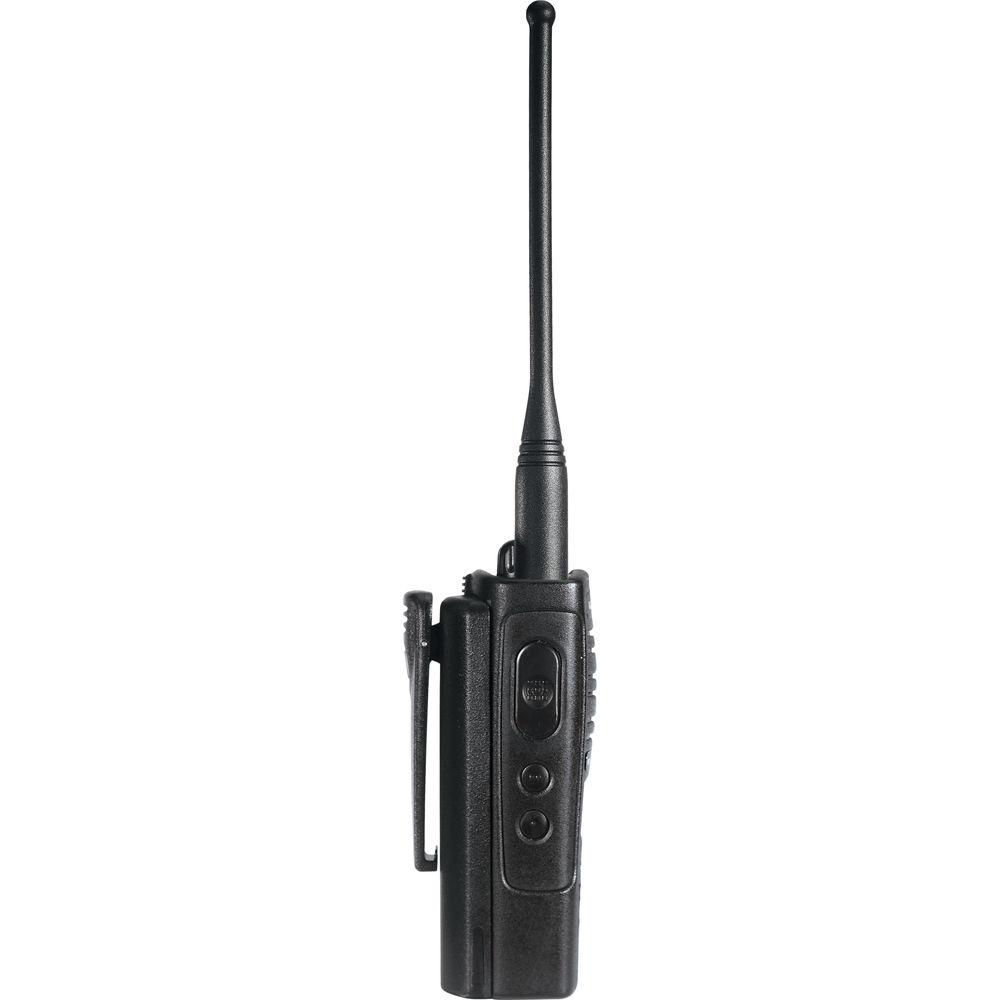

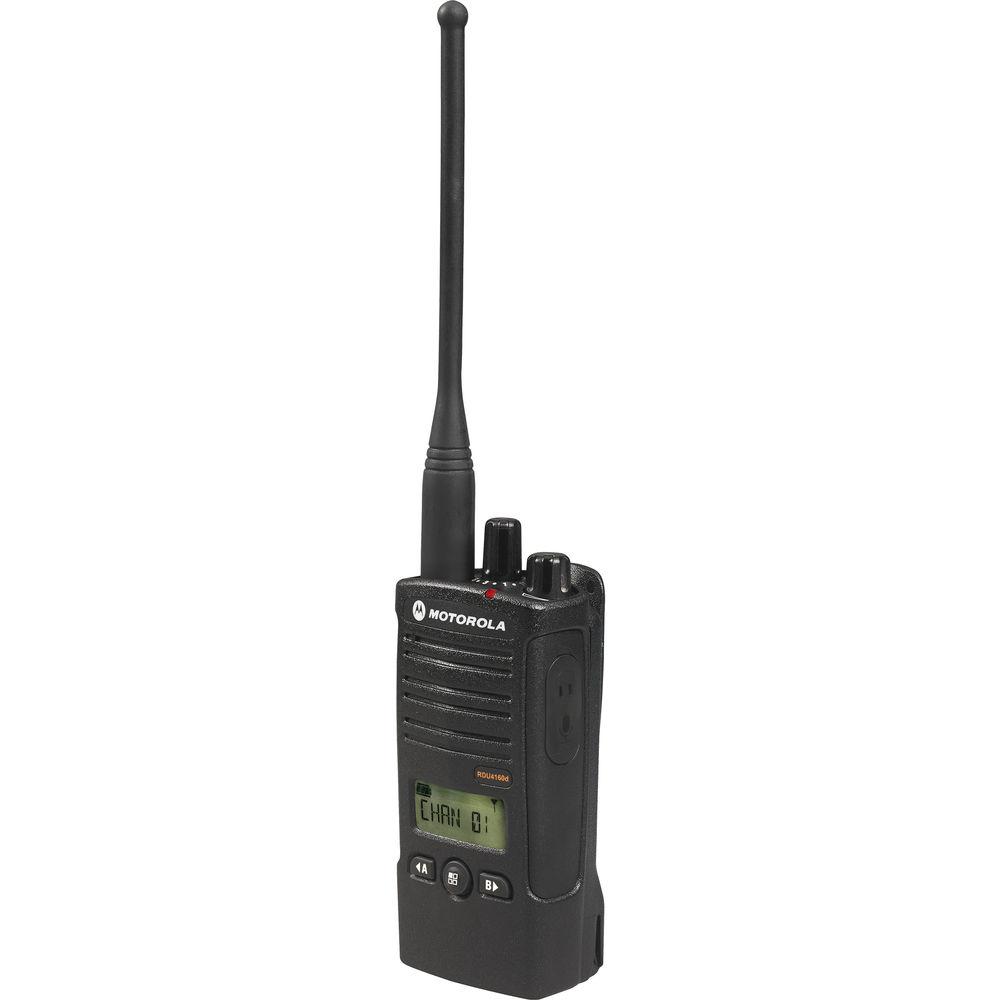

The Motorola RDU4160D RDX Business Series Two-Way UHF Radio with Display is just what you need on that job site. Whether indoor or outdoor, this radio delivers its crisp and audible signal with confidence. Versatile and rugged, the RDU4160D will not only provide clear audio transmission, but will also stand up to the most demanding physical conditions. Rain, wind, or fog - this unit will withstand them all. Motorola built this water-resistant unit with heavy-duty on-site work in mind.When profit is on the line and time cannot be wasted asking for repeated calls, you'll make good use of this radio's channel selection and multi-analog and digital code possibilities. And with the optional CPS (Computer Programming Software) interface, internal settings can be tweaked to suit your own needs. This is a solidly built radio at a more than affordable business price. A display and three buttons on the front of the radio provide quick access to options.
    Exceptional Audio Quality
  • Wind noise reduction, speaker magnetic field reduction, and improved RF specifications
    Long Battery Life
  • Standard Li-ion battery for up to 18 hours per charge, with optional ultra high capacity Li-Ion battery is available for up to 26 hours per charge, and an optional alkaline battery frame kit
    Business Exclusive Frequencies
  • Operating on 99 UHF business exclusive frequencies and featuring many codes to help ensure a clear channel
    Customer Programming Software (CPS)
  • Quickly identify radio details such as serial number, features, frequency range, and more (separate USB cable required)
    Superior Durability
  • Meets military MIL-STD 810C, 810D, 810E, 810F, and IP54/IP55 specifications for shock, rain, humidity, salt, fog, vibration, sand, dust, temperature shock, and high/low temperature
    Additional Features
  • • Die cast metal chassis
    • Power up announcement
    • Customized voice prompt
    • Busy lock
    • Talk permit tone
    • Silent mode
    • Programming voice prompts
    • Voice prompt volume level
    • Predefined voice prompts
    • Priority scan
    • Scan list per channel
    • Enhanced RF interference technology
UPC: 723755540309 In the Box Motorola RDU4160D RDX Business Series Two-Way UHF Radio with Display (Black)
  • 2400mAh Lithium-Ion Rechargeable Battery
  • 10-Hour Plug-In Charger
  • Spring Belt Clip
  • Antenna
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Motorola RDU4160D RDX Business Series Two-Way UHF Radio with Display in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Motorola RDU4160D Specs

    Band UHF
    Bandwidth Range: Either 12.5 kHz or 25 kHz
    Output Power 2000 MW
    Selectable Power Output: 4 W
    Channels 16
    Channel Aliasing: Yes
    Nuisance Channel Delete: Yes
    Time Out Timer: Yes
    Coverage Area Up to 30 floors or 350,000 ft² (32,516 m²)
    Frequencies 99 UHF business-exclusive frequencies
    219 interference eliminator codes
    Frequency Range: 435- 480 MHz
    Privacy Codes 219
    LED Display Backlit: Yes
    Battery Type Li-ion (up to 18 hours)
    Charger: 100-240 VAC, 50/60 Hz
    Low Battery Alert: Yes
    Power Select: Programmable via CPS
    Alkaline Capable: AA battery compatible (requires optional 5 x AA cells and optional alkaline battery frame accessory)
    Microphone/Headphone Jack Yes
    VOX Yes
    Call Alerts 3
    Scanning Auto Scan: Yes
    Cloning Yes, via MUC (Multi-Unit Charger or cloning cable)
    Manager Lock Yes
    Keypad Lock: Yes
    Single Button Presets 2 x Front panel buttons
    Scrambling 3 x Voice Scramble settings
    Roger Beep Yes, 3 different call tones
    Military Specification IP54/IP55 and MIL-STD 810C, 810D, 810E, and 810F
    Dimensions (WxHxD) 4.5 x 2.2 x 1.6" (11.4 x 5.6 x 4 cm)
    Weight 8.6 oz (244 g), including battery
    Package Weight 1.7 lb
    Box Dimensions (LxWxH) 10.2 x 6.7 x 2.3"
