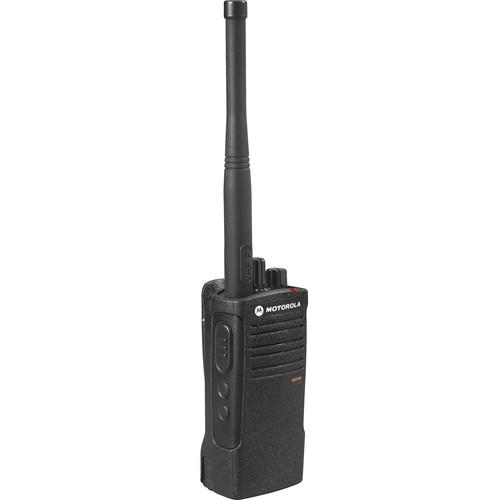

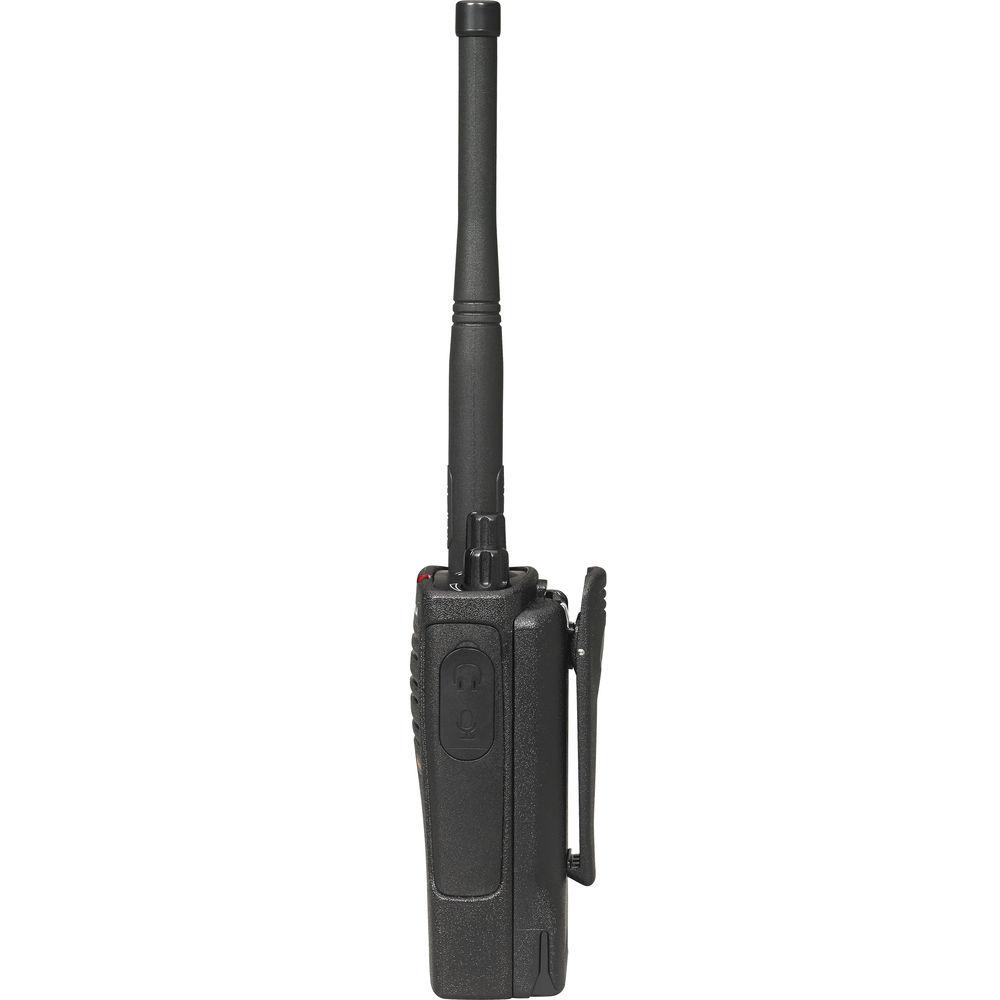

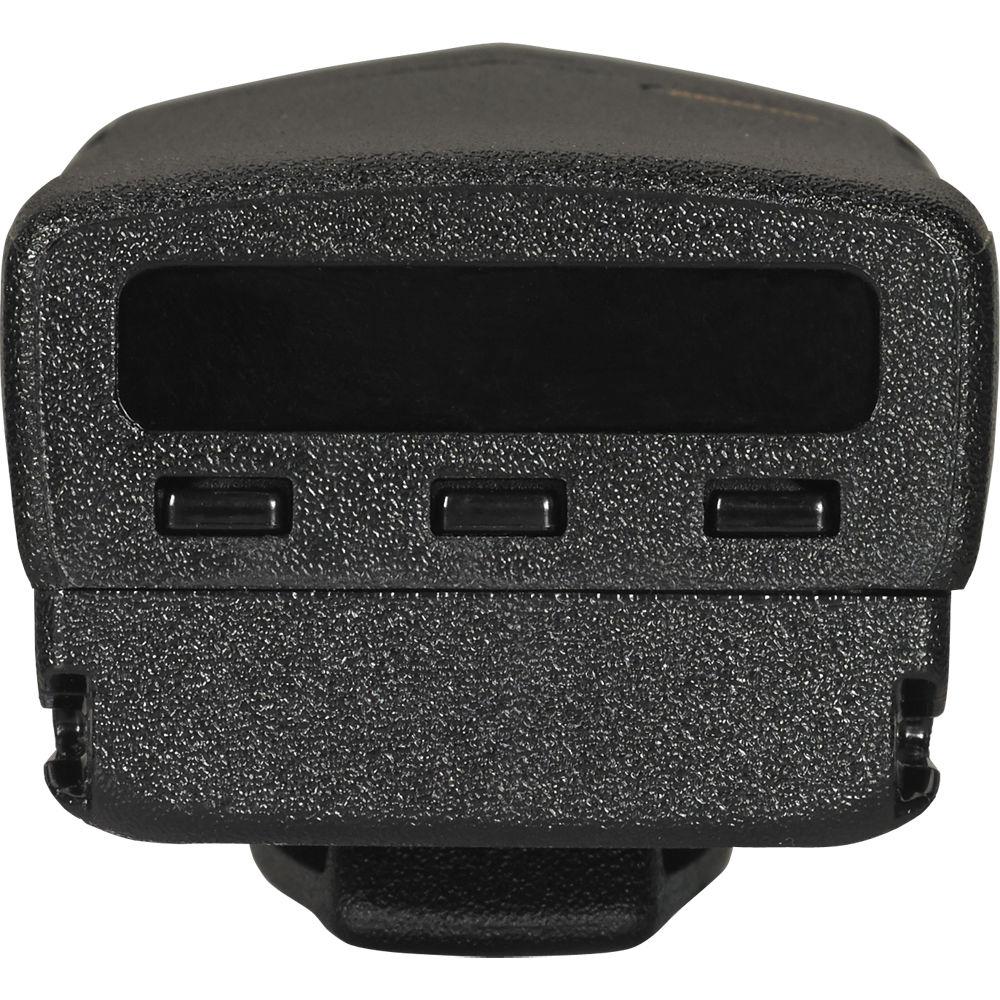

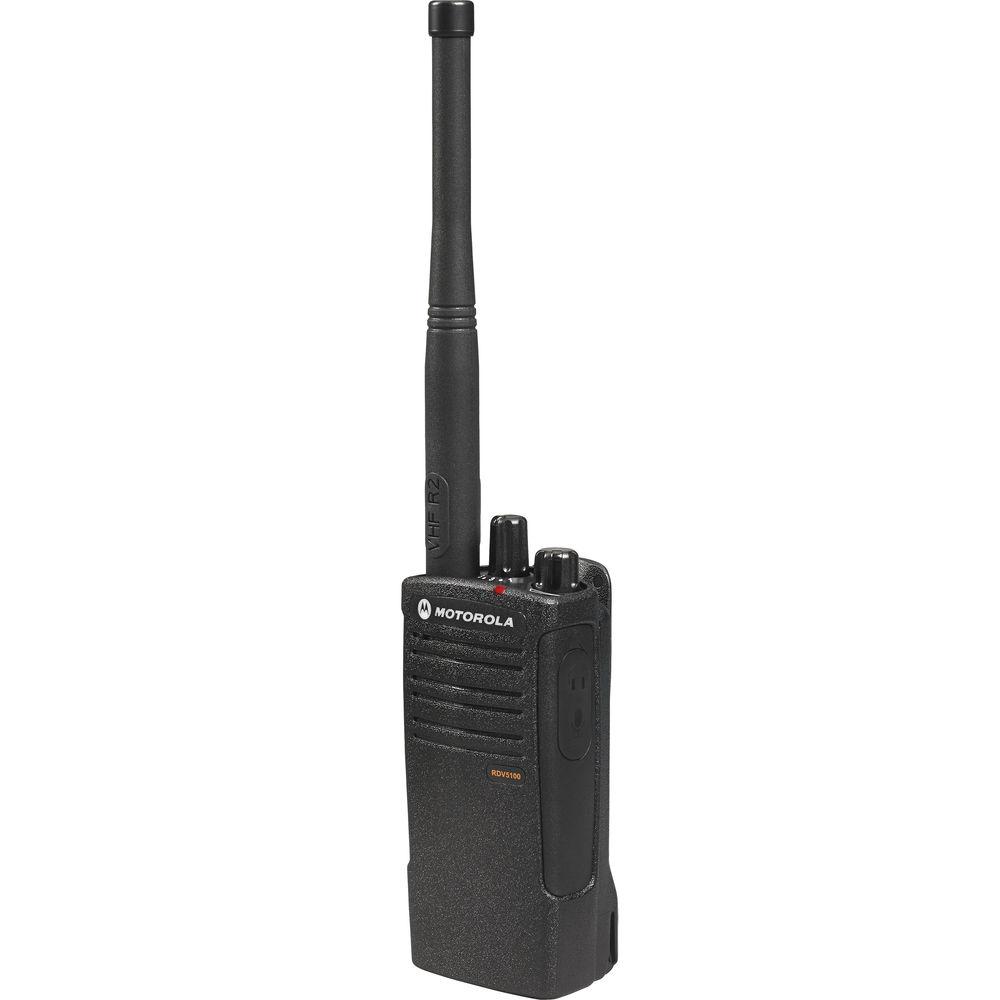

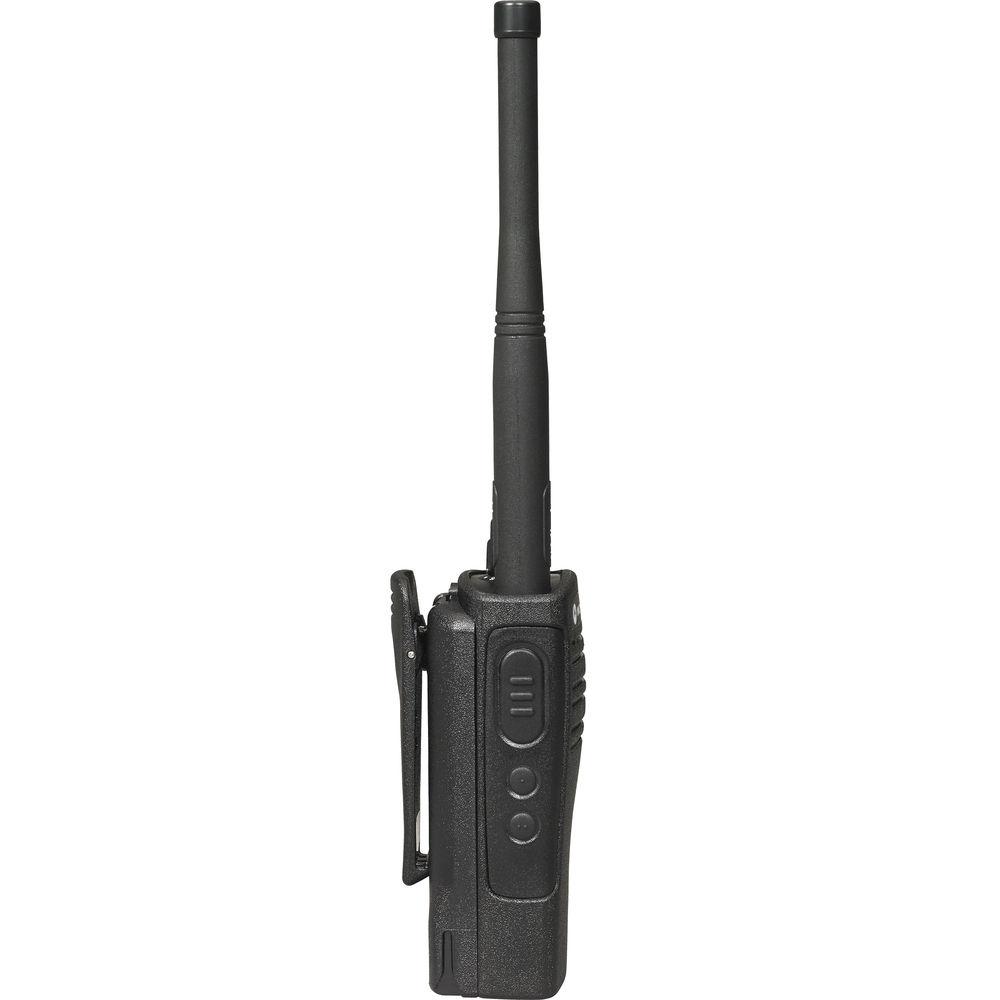

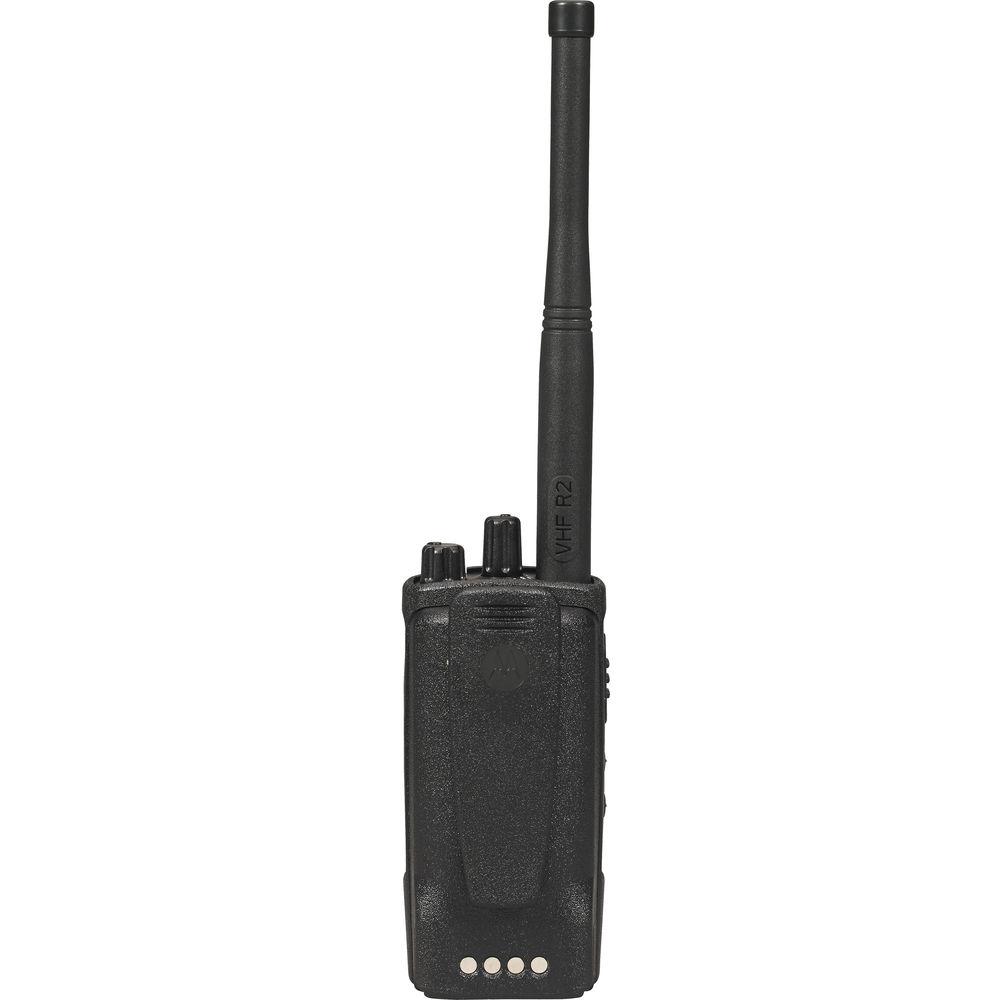

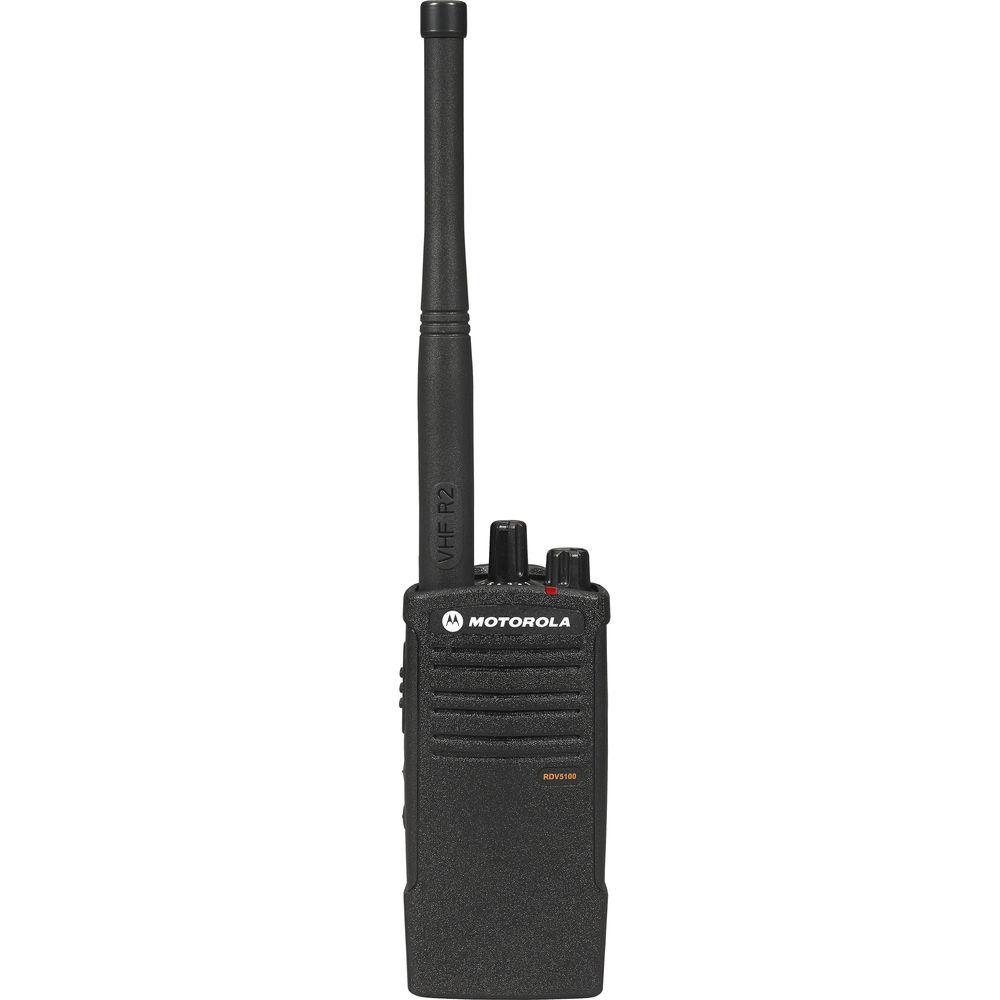

User Manual for Motorola RDV5100 RDX Business Series Two-Way VHF Radio Click to enlarge the picture
Contents of the user manual for the Motorola RDV5100 RDX Business Series Two-Way
- Product category: 2-Way Radios Motorola
- Brand: Motorola
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Motorola 2-Way Radios
 |
User manual for the Motorola RDV5100 RDX Business Series Two-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Motorola product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Motorola user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Motorola product will considerably shorten its lifespan!
|
Product description The Motorola RDV5100 RDX Business Series Two-Way VHF Radio is just what you need on that job site. Whether indoor or outdoor, this radio delivers its crisp and audible signal with confidence. Versatile and rugged, the RDV5100 will not only provide clear audio transmission, but will also stand up to the most demanding physical conditions. Rain, wind, and fog - this unit will withstand them all. Motorola built this water-resistant unit with heavy-duty, on-site work in mind.

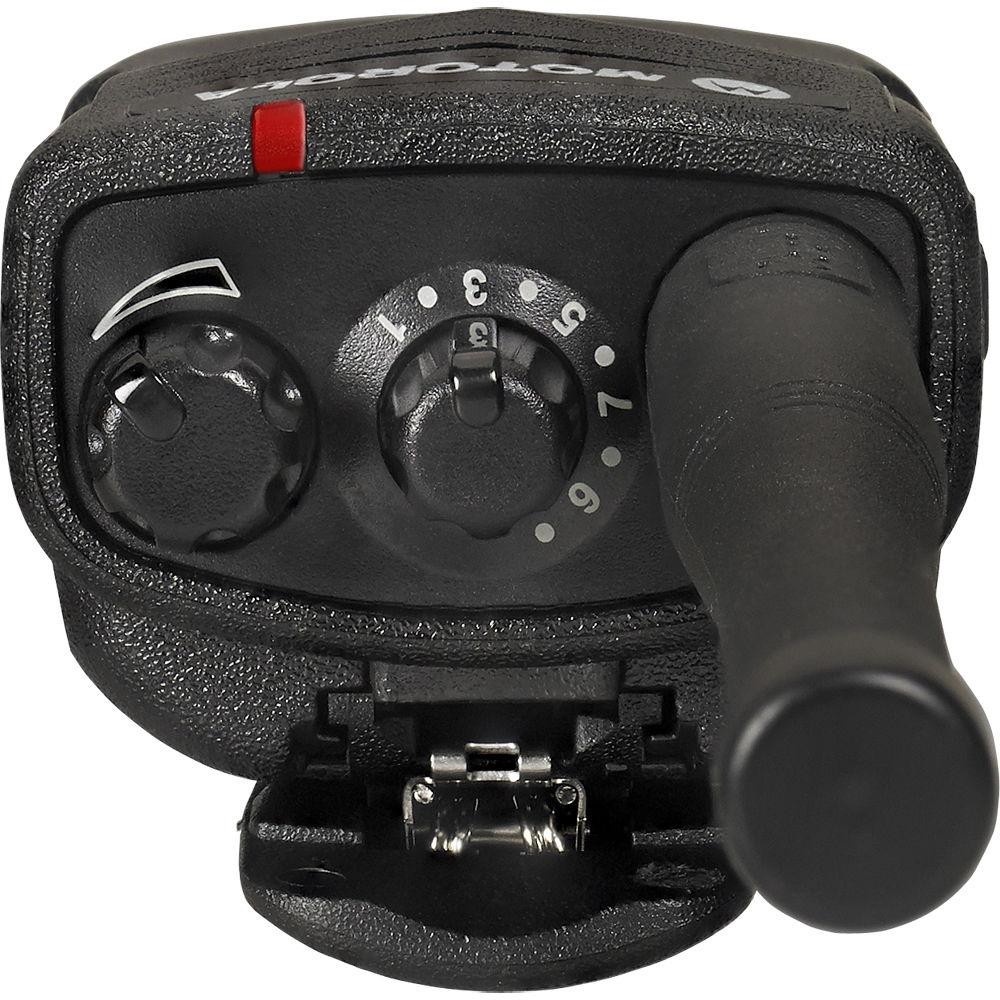

When profit is on the line and time cannot be wasted, you'll make good use of this radio's channel selection and multi-analog and digital code possibilities. And, with the optional CPS (Computer Programming Software) interface, internal settings can be tweaked to suit your own needs. This is a solidly built radio at a more than affordable business price. The channel and volume knobs make switching channels and adjusting the volume quick and easy. - Business-Exclusive Frequencies
- 27 VHF frequencies make signals secure and exceptionally clear, while 219 codes, including customized PL and DPL codes, help ensure a clear signal
- Exceptional Audio Quality
- Wind noise reduction, speaker magnetic field reduction, and improved RF specifications
- Long Battery Life
- Standard Li-ion battery for up to 18 hours per charge, with an optional ultra-high capacity Li-ion battery available for up to 26 hours per charge. An optional alkaline battery frame kit is also available
- Business Exclusive Frequencies
- Operating on business exclusive frequencies and featuring many codes to help ensure a clear channel
- Customer Programming Software (CPS)
- Quickly identify radio details such as serial number, features, frequency range, and more (separate USB cable required)
- Superior Durability
- Meets military 810C, 810D, 810E, 810F, and IP54/IP55 specifications for shock, rain, humidity, salt, fog, vibration, sand, dust, temperature shock, and high/low temperature
- Repeater Capability
- Compatible with duplex repeaters, so you can significantly extend your radio coverage area
- Disable Channel
- Allows users to disable and skip undesirable channels via the customer programming software (CPS)
- Bright Sensors
- Tricolor LED indicator shows feedback of calling or monitoring features
- Dynamic Talkaround Scan
- Allows the radio to automatically switch between repeater and talkaround modes to optimize communication
UPC: 723755540286 In the Box Motorola RDV5100 RDX Business Series Two-Way VHF Radio (Black) Detachable Antenna Lithium-Ion Rechargeable Battery Drop-In Charging Tray with Power Adapter 3" Spring Belt Clip Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Motorola RDV5100 RDX Business Series Two-Way VHF Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMotorola RDV5100 Specs | Band | VHF
Bandwidth Range: N/A | | Output Power | 2000 MW
Selectable Power Output: 5 W | | Channels | 10
Channel Aliasing: Yes
Nuisance Channel Delete: Yes
Scramble: Programmable via CPS
Time Out Timer: Programmable via CPS | | Coverage Area | Up to 18 floors or 300,000 ft² / 27,870 m² | | Frequencies | 27 | | Frequency Range | 146-174 MHz | | Privacy Codes | 219 | | LED Display | Languages: N/A
Backlit: N/A | | Battery Type | Li-Ion (up to 18 hours)
Charger: 100-240 VAC, 50/60 Hz
Low Battery Alert: LED blinking indicator
Power Select: Programmable via CPS
Alkaline capable, with optional accessory | | Microphone/Headphone Jack | Yes | | VOX | Yes, with accessory | | Call Alerts | Programmable via CPS | | Scanning | Auto Scan: Yes | | Cloning | Yes (via MUC) | | Manager Lock | No (programmable via CPS)
Keypad Lock: N/A | | Single Button Presets | 2 | | Scrambling | No (programmable via CPS) | | Roger Beep | Yes | | Military Specification 810/IP54 | IP-55 Certification
Military Durability Specs 810: C, D, E, F | | Dimensions (WxHxD) | 4.5 x 2.2 x 1.6" / 11.4 x 5.6 x 4 cm
Metal chassis | | Weight | 10.3 oz / 292 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 10.1 x 6.6 x 2.2" |
