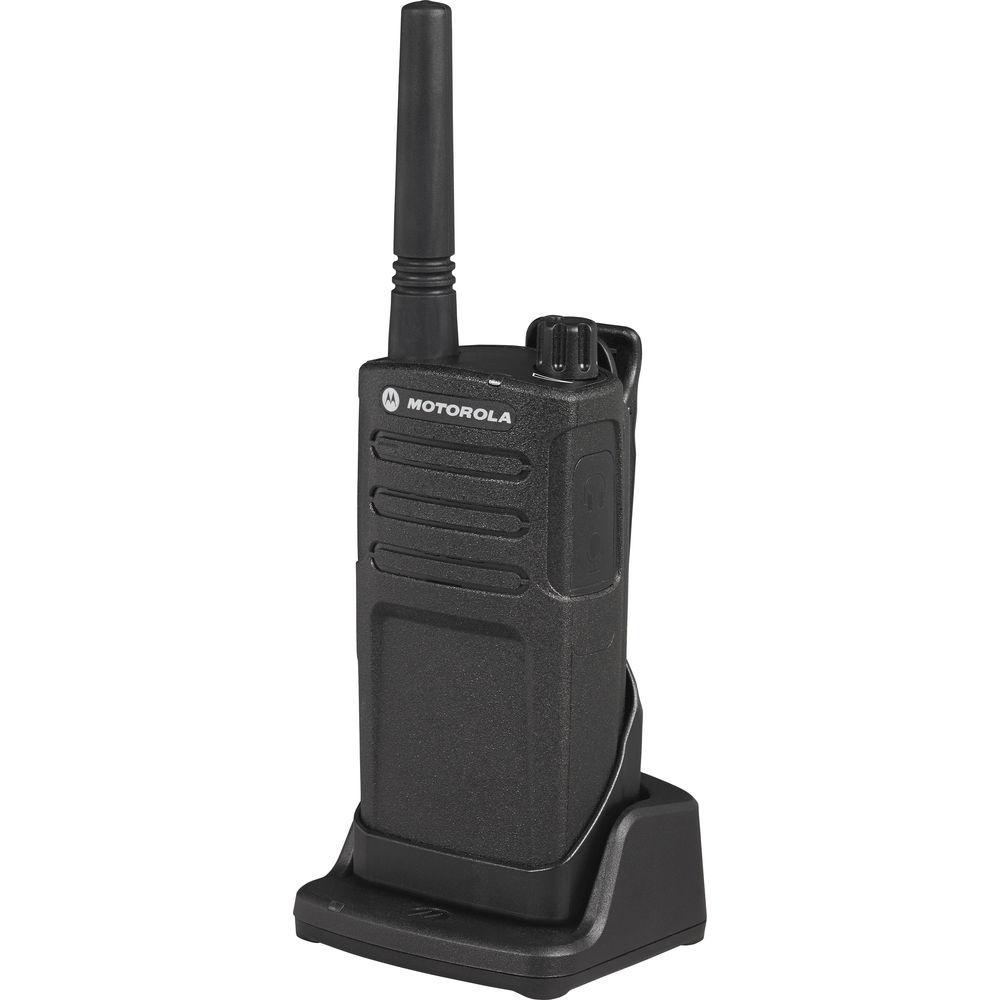

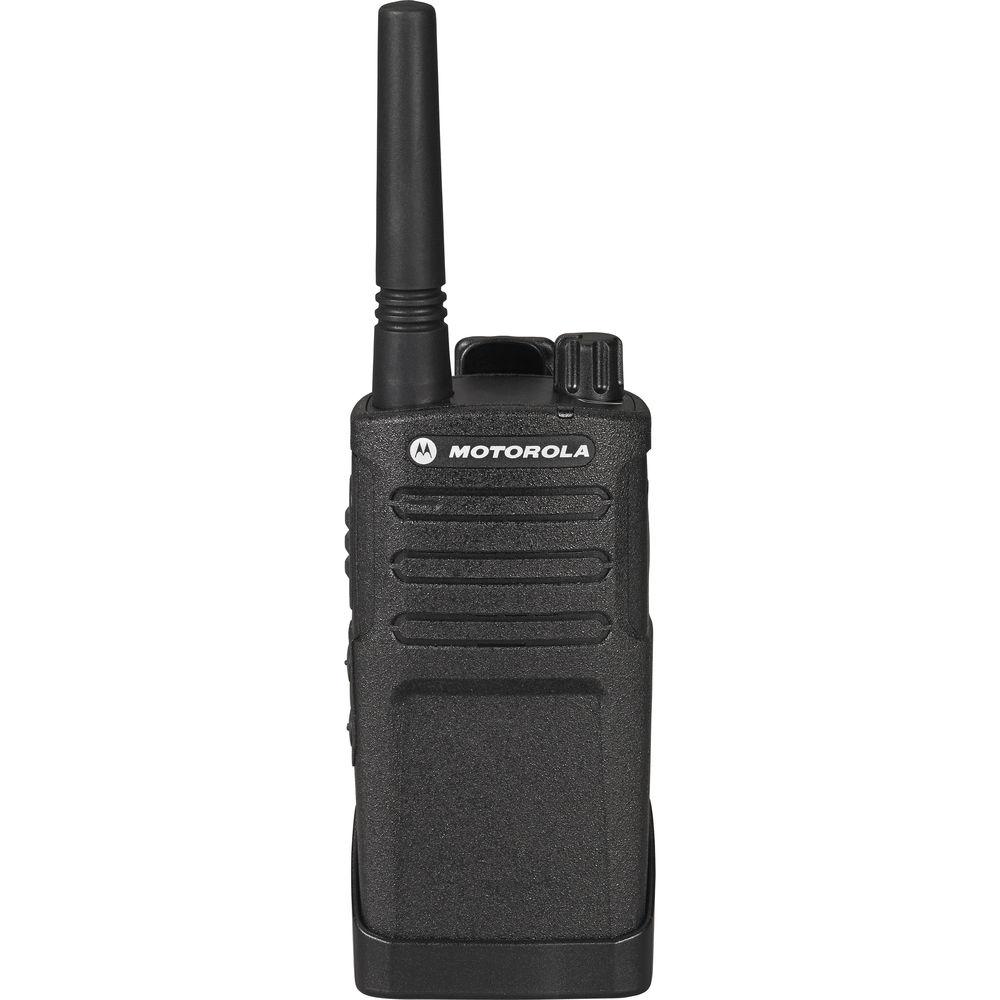

User Manual for Motorola RMU2040 On-Site 2-Way Radio Click to enlarge the picture
Contents of the user manual for the Motorola RMU2040 On-Site 2-Way Radio
- Product category: 2-Way Radios Motorola
- Brand: Motorola
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Motorola 2-Way Radios
 |
User manual for the Motorola RMU2040 On-Site 2-Way Radio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Motorola product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Motorola user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Motorola product will considerably shorten its lifespan!
|

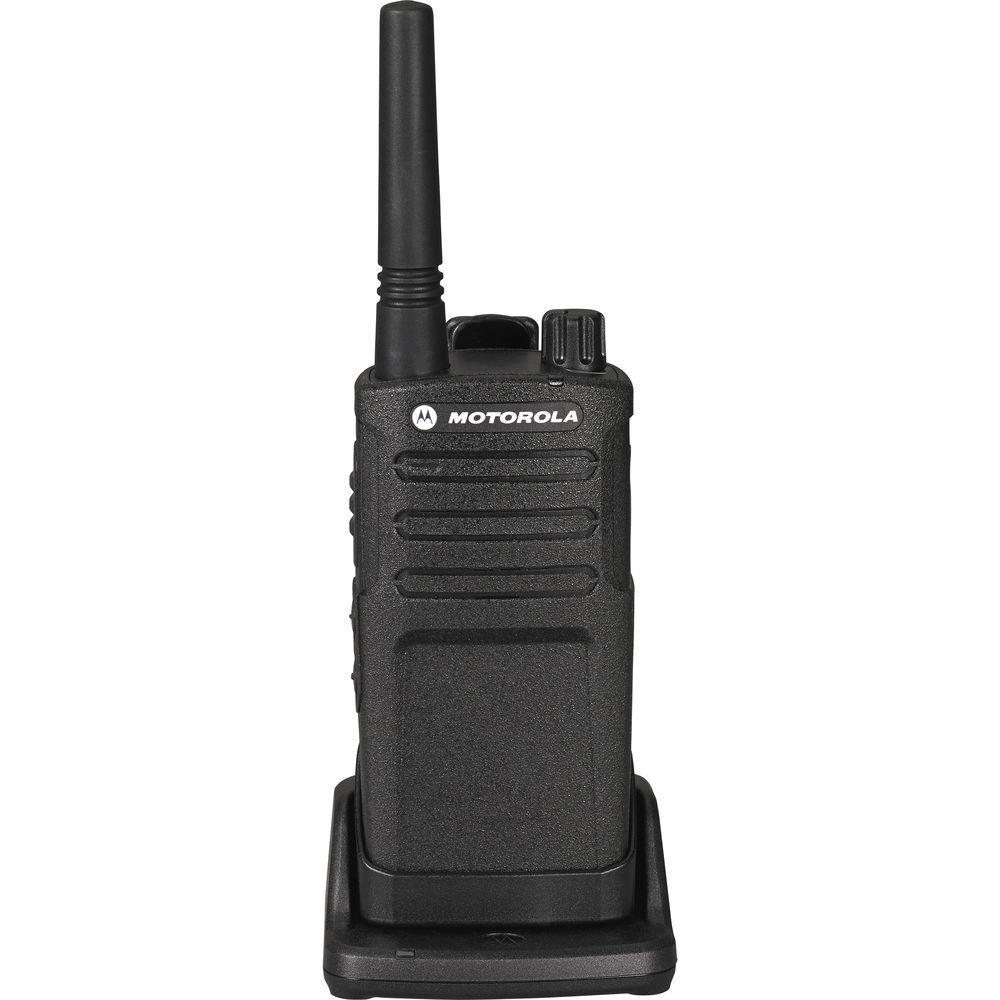

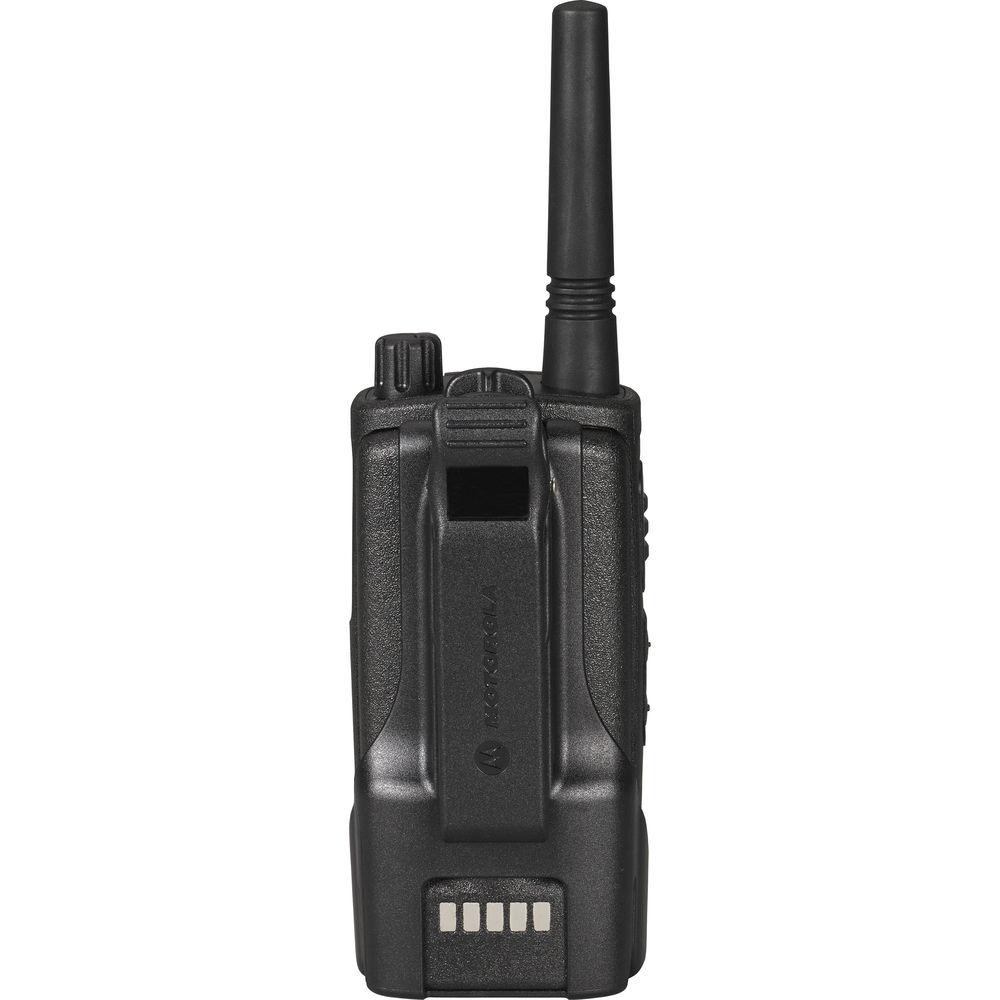

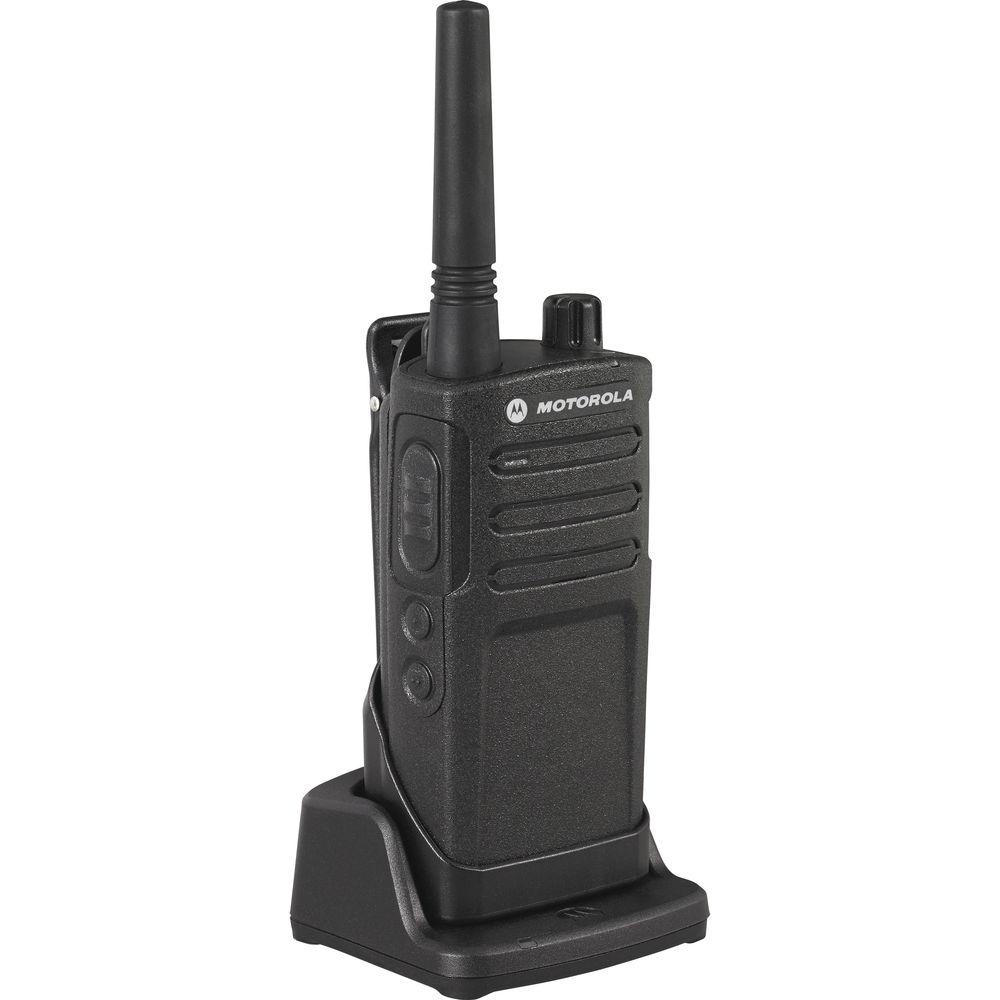

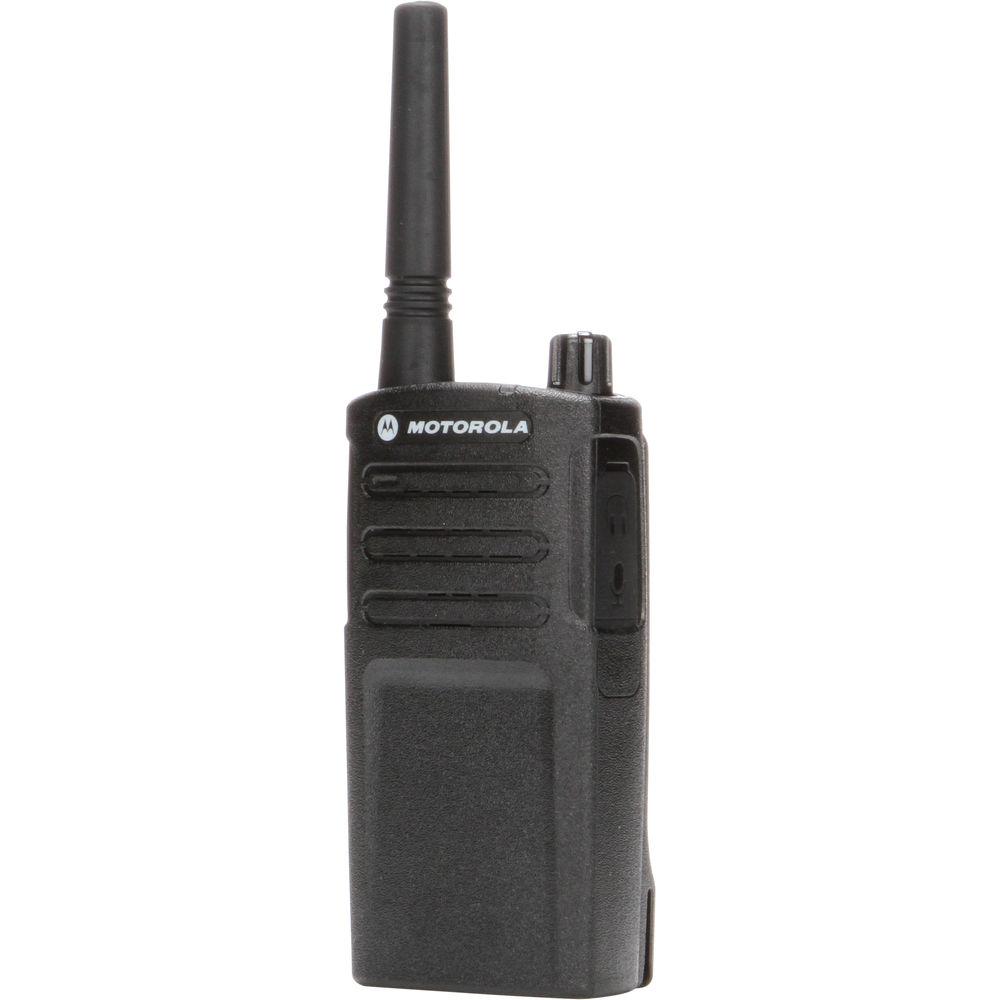

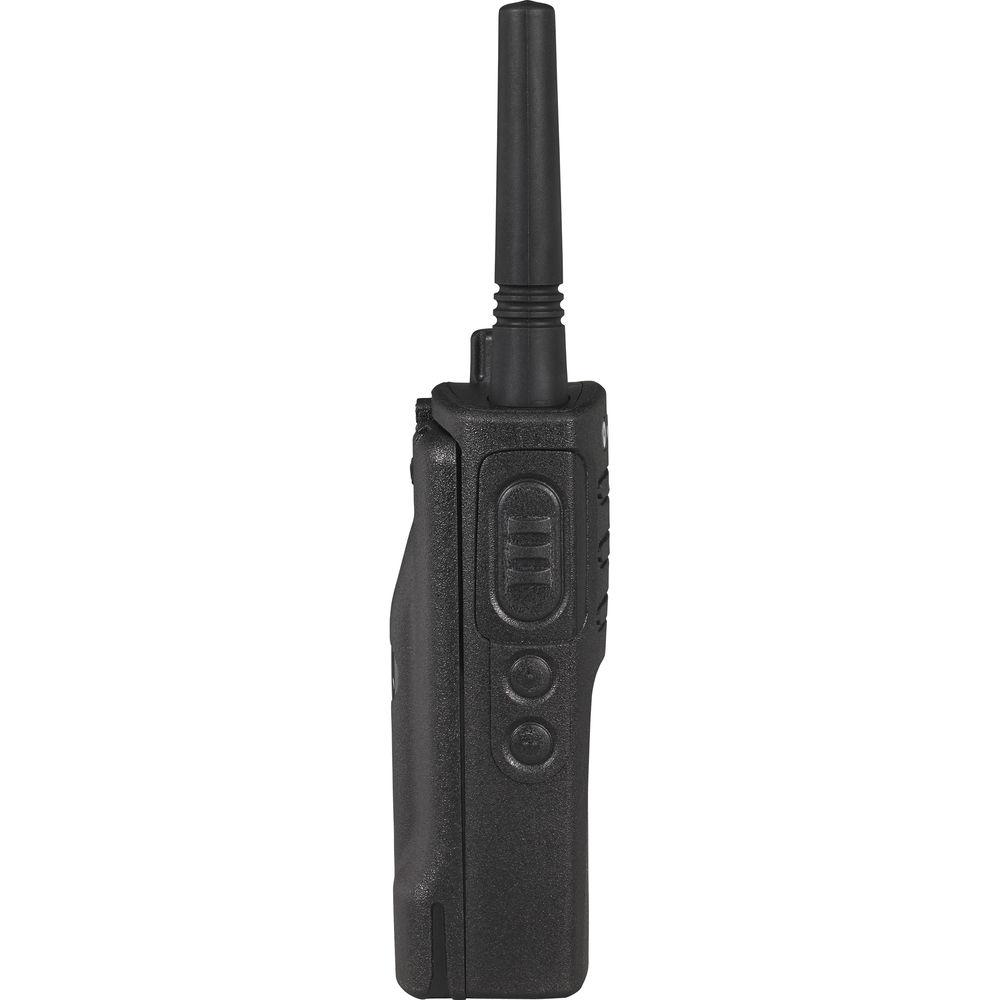

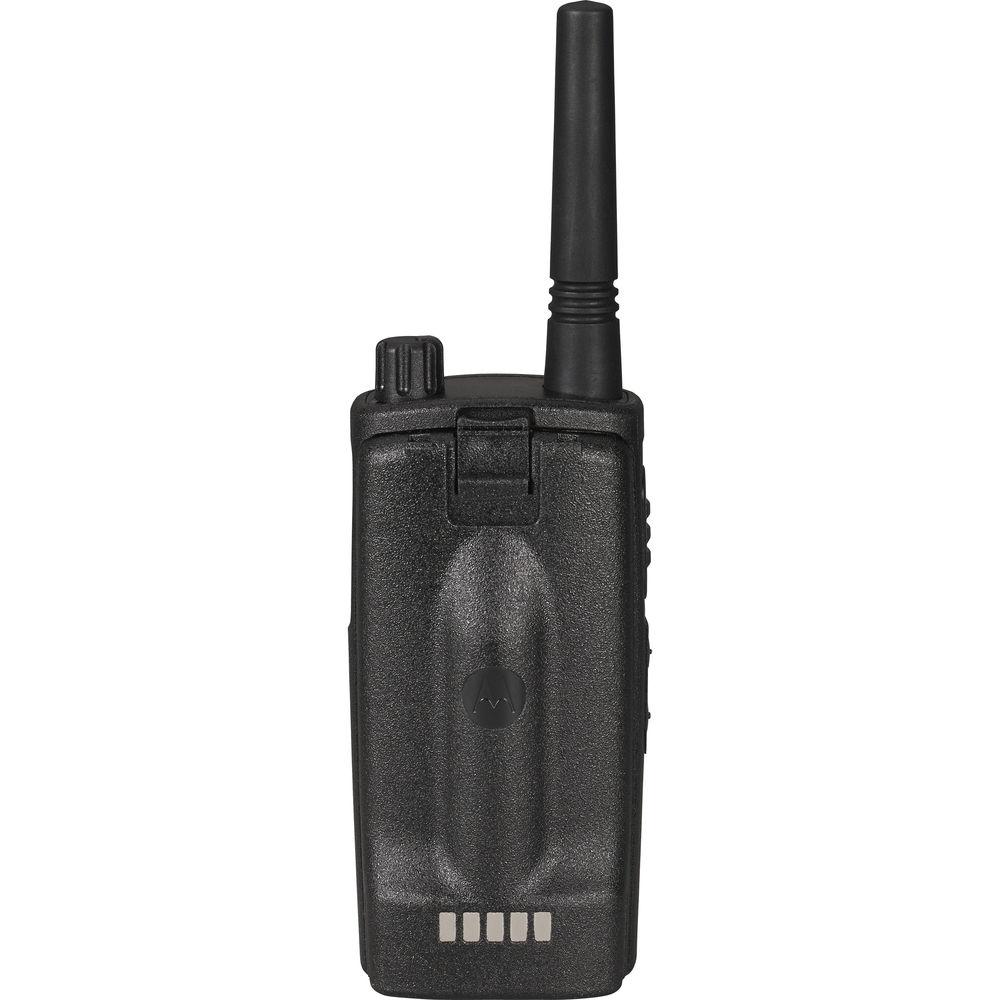

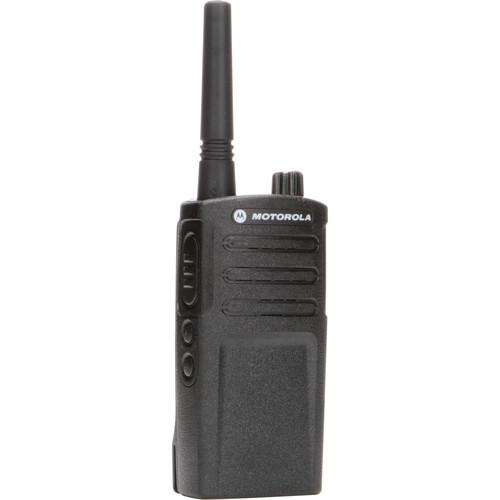

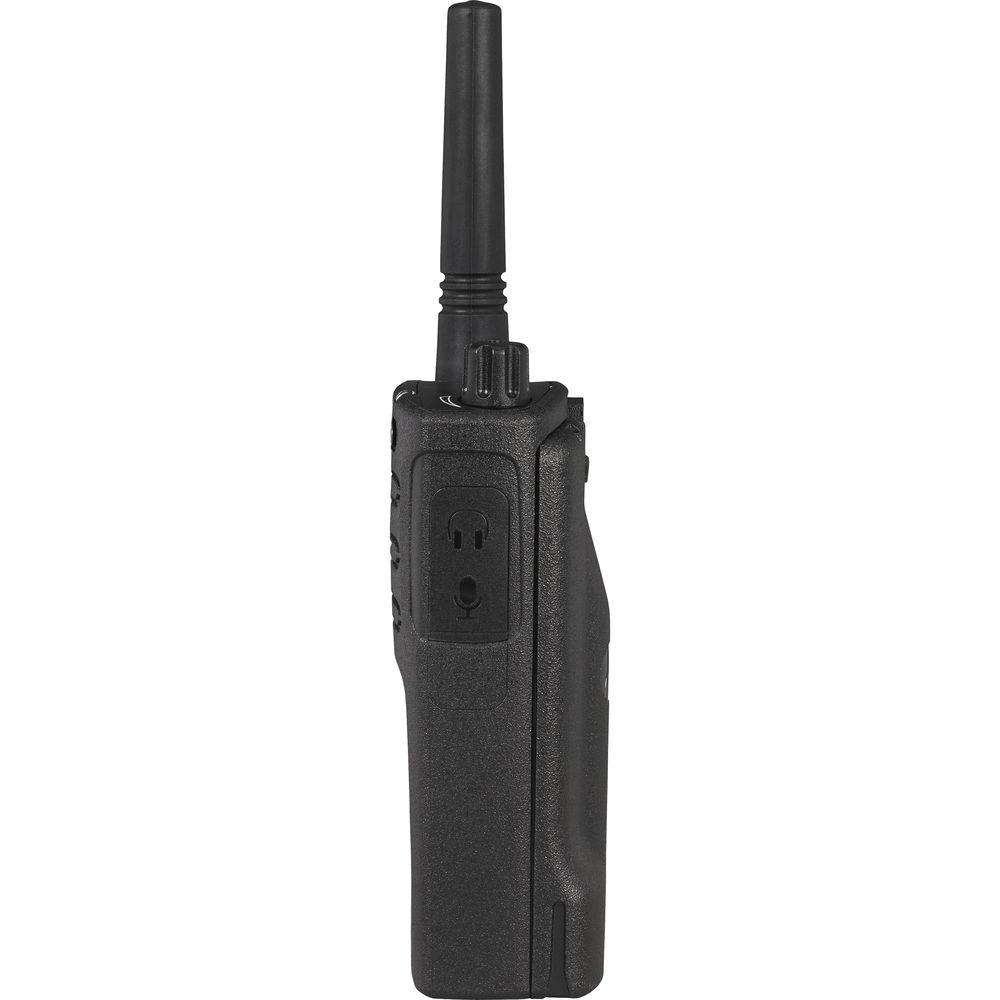

Product description The single RMU2040 On-Site 2-Way Radio from Motorola is designed to let you securely communicate in up to a 250,000 square-foot work environment. It operates on 99 UHF frequencies and has 219 PL/DPL codes, with up to six that are customizable. Its built-in 1500MW speaker is designed to provide enough output for use in noisy conditions, such as construction sites or manufacturing lines.
The RMU2040 includes a rechargeable lithium-ion battery as well as a drop-in tray charger. A holster and power supply are also included. - Business-Exclusive Frequencies
- Operates on 99 UHF business-exclusive frequencies and features 219 PL/DPL codes, including six customizable codes to help ensure a clear signal
- Audio Output
- The RMU2040 has a 1500MW speaker to ensure clear communication without distracting feedback in noisy conditions
- Rugged Design
- The radio meets military specifications for sealing against dust, wind, shock, vibration, and other adverse conditions. It also undergoes Motorola's exclusive Accelerated Life Testing (ALT) that simulates up to five years of field use
- Channel Announcement with Voice Alias
- Leave your radio on your belt and know exactly what channel you are communicating on. Customize your list of channels by selecting from 16 pre-recorded work functions, such as security, customer service, cashier, etc
- Advanced Voice Activation (VOX)
- Enables hands-free operation with the use of optional accessories
- Power and Coverage
- 2W UHF radio provides coverage up to 250,000 square feet/20 floors, based on terrain and conditions
- Antimicrobial Coating
- Helps prevent the growth of mold and germs on the surface of the radio
- Customer Programming Software (CPS)
- CPS software provides a graphical user interface, allowing access to advanced features. Adding RM Series radios to your existing radio fleet is easier than ever. (CPS is available as free Internet download. Separate programming cable required)
- Cloning
- Copy settings from radio to radio (between RM series radios, or between RM and RDX series radios). Cloning is done with radio-to-radio cloning cable, or through the multi-unit charger
- Tricolor LED Interface
- Allows you to identify radio features and status
UPC: 748091000249 In the Box Motorola RMU2040 On-Site 2-Way Radio (Single) Holster Lithium-Ion Battery Power Supply Drop-In Tray Charger Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Motorola RMU2040 On-Site 2-Way Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMotorola RMU2040 Specs | | | Frequency Range | UHF (450 to 470 MHz) | | Audio Output | 1500 MW | | Channels | Capacity: 4
Bandwidth: 12.5 kHz | | Battery Life | Up to 15 hours with battery save
Up to 12 hours without battery save | | Battery Voltage | 3.7 V Li-ion | | Operating Temperature | -22 to 140°F (-30 to 60ºC) | | Dust and Humidity | Satisfied EIA 603 | | Shock and Vibration | Polycarbonate housing passes EIA 603 | | Dimensions (HxWxD) | With Standard Li-ion Battery: 4.5 x 2.2 x 1.6" (11.4 x 5.6 x 4.1 cm)
With High-Capacity Li-ion Battery: 4.5 x 2.2 x 1.6" (11.4 x 5.6 x 4.1 cm) | | Weight | With Standard Li-ion Battery: 8.6 oz (254 g)
With High-Capacity Li-ion Battery: 8.7 oz (247 g) | | | | Sensitivity | -122 dBm (0.18 μV)
12 dB SINAD | | Adjacent Channel Selectivity | 70 dB @ 12.5 kHz
75 dB @ 25 kHz | | Intermodulation Rejection | 70 dB | | Spurious Rejection | 90 dB (blocking 1 MHz) | | Distortion | < 5% | | Sealing | IP55 | | Hum and Noise | CSQ @ 12.5 kHz: -50 dB
PL @ 12.5 kHz: -50 dB
DPL @ 12.5 kHz: -45 dB | | Spurious Emission | < 1 GHz: < -54 dBm
> 1 GHz: < -52 dBm | | Audio Output | @ < 5% Distortion: 1.5 W @ 8 Ohms | | | | RF Output | High: 2 W
Low: 1 W | | Frequency Stability | < 1.5 ppm | | Spurious & Harmonics | < -45 dBc | | Hum and Noise | FM:
-36 dBm for f < 1 GHz
-30 dBm for f > 1 GHz | | Modulation | Limiting:
±2.5 kHz @ 12.5 kHz
±5.0 kHz @ 25.0 kHz | | Adjacent Channel Power | 70 dBc | | Spurious Emission | @ 12.5 kHz:
36 dBm for f < 1 GHz
-30 dBm for f > 1 GHz
@ 25 kHz:
-36 dBm for f < 1 GHz
-30 dBm for f > 1 GHz | | Frequency Response | 0.3 to 3.0 kHz (+1 to -3 dB) | | Distortion | < 2% | | | | Package Weight | 1.22 lb | | Box Dimensions (LxWxH) | 10.15 x 6.7 x 2.35" |
