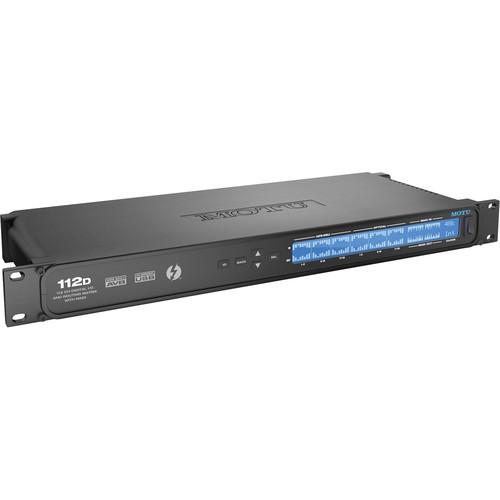

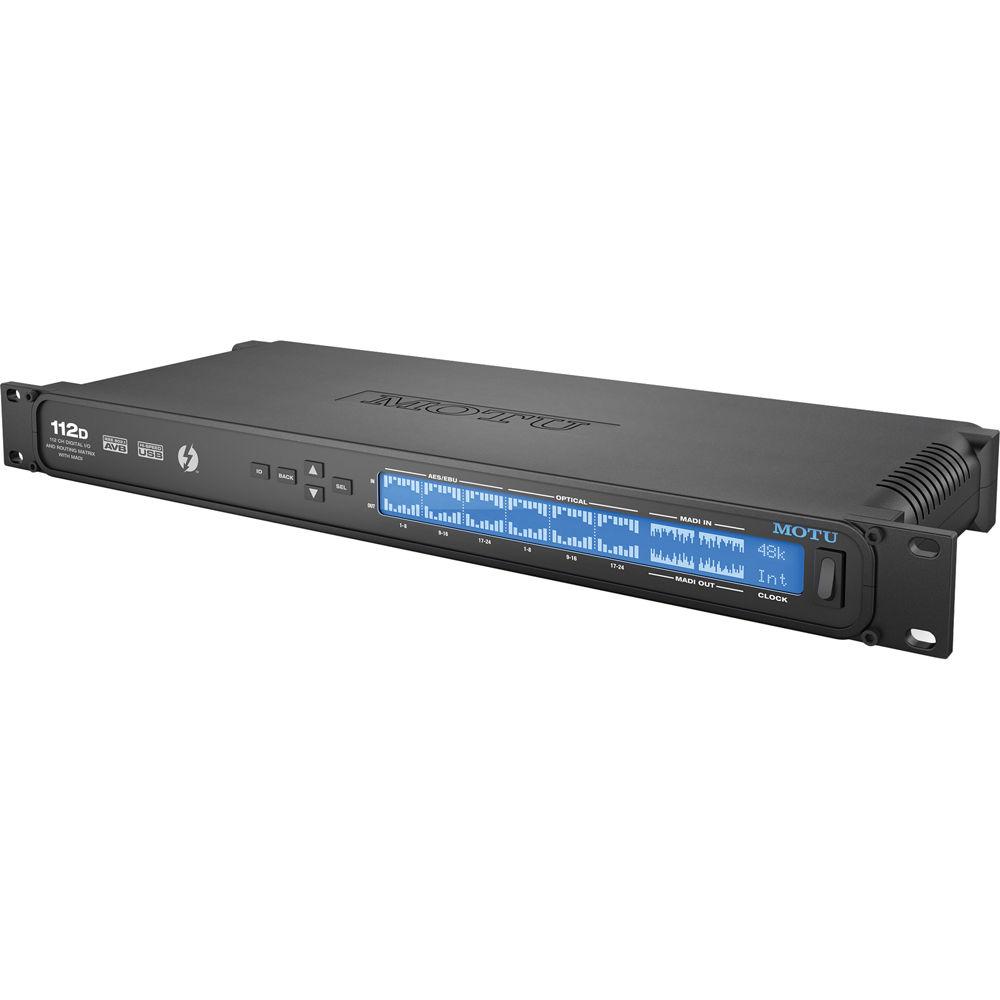

Product description The D112 from MOTU is a digital audio interface, router, format converter, and stand-alone mixer offering 224 channels of simultaneous inputs and outputs with Thunderbolt, AVB Ethernet, and USB connectivity. The 1U 19" rackmountable device features 24 channels of AES/EBU I/O and 24 channels of ADAT optical I/O, plus 64 channels of MADI I/O. Additional I/O can be added to the system through AVB networking.
The audio interface serves as a flexible 64-channel MADI interface, router, and converter with low-latency and flexible routing/splitting to and from the AVB network, computer, AES/EBU, and optical formats. Three 8-channel D-sub connectors supply 24 channels of AES/EBU, while six banks of ADAT support up to 24 channels of optical I/O at 96 kHz.
Using Thunderbolt connectivity, the audio interface can stream 128 audio channels in and 128 channels out to the interface's physical outputs, the DSP-powered 48-channel mixer, or AVB audio network streams. The interface can also use high speed USB 2.0 (3.0 compatible) using class compliant drivers to work with most digital audio workstations.
The 48-channel digital mixer can mix physical inputs on the interface, audio channels from your host computer software, AVB audio network streams, or mixer outputs. It features seven stereo auxiliary busses, three groups, a reverb bus that can serve as an alternate 4th group, a main mix bus, and a separate monitor bus that can function as a solo buss.
The mixer includes 32-bit floating point precision DSP-powered models of three British analog console EQ profiles, a classic compressor module with optional peak/RMS operation, and a model of the legendary Teletronix LA-2A optical leveling amplifier with automatic gain control (AGC) characteristics. Each input channel strip features a high-pass filter, a gate, a four-band parametric EQ, and a compressor.
The device's digital routing matrix allows you to route any source signal including digital interface input, computer channel, mixer bus output, or network stream to any destination such as an interface output, host software input, mixer input, or any other device (or computer) on the AVB network. A single input or stereo pair can also be split and sent to multiple destinations.
This interface features an AVB Ethernet port that adopts the AVB industry networking standard for transporting high-bandwidth, low-latency audio and video over Ethernet. It was developed by the IEEE and enables connection to a second MOTU AVB audio interface (1248, 8M, or 16A) via a CAT-5E or CAT-6 Ethernet cable. The standard is open meaning it is not proprietary and will allow for open interoperability across different devices and brands.
The system can be further expanded through connection to a MOTU AVB Switch (sold separately), for five total devices and the capacity to stream over 512 channels on the network. Sixteen 8-channel network streams may be broadcast while simultaneously listening to sixteen 8-channel network streams. The AVB network provides its own network-wide time base for phase locking all connected devices and also allows one of the connected devices to be assigned as the master clock. An added benefit of the AVB network standard is the automatic device discovery for self-configuration, 100 meter cable runs, as well as the system's Stream Reservation Protocol which provides guaranteed Quality of Service (QoS) and an uninterrupted point-to-point network connection.
The audio interface's on-board DSP, mixing, device settings, and network audio routing can all be controlled through a web application running on a web browser from a laptop, tablet, or smartphone connected by wire or Wi-Fi to your local area network. This allows the interface to be controlled using Mac, Windows, Linux, iOS, and Android devices provided they share the same network. By connecting an Apple Airport or other Wi-Fi router directly to the interface with a standard Ethernet cable, the mixing and DSP controls of the interface can be managed using a smartphone or tablet, without the need for a computer. This is useful for situations such as mixing live sound. A total of up to 12 independent stereo mixes can all be independently controlled by different engineers or musicians via Wi-Fi connected iPhones or iPads.
The device includes a collection of quick setup presets designed for different applications in the studio, on stage, or for installed sound such as a recording interface or network snake. Presets can be customized using the digital routing matrix as well as saved for future recall. - 112 Simultaneous Digital Audio Channels
- 24 channels of AES/EBU, plus 24 channels of ADAT optical, plus 64 channels of MADI, for 112 total channels digital audio I/O. All input and output channels can be active simultaneously
- 64 Channels of MADI
- Serves as a 64-channel MADI interface, router and converter with near-zero latency and flexible routing and splitting to/from the AVB network, computer, AES/EBU and optical. Supports 56-channel mode, 32-channel mode and 1x/2x/4x clock modes
- 24 Channels of AES/EBU and ADAT Optical Up to 96 kHz
- Three 8-channel (D-sub) banks of AES/EBU at sample rates up to 96 kHz. Three 8-channel banks of ADAT optical at rates up to 48 kHz; six banks of ADAT at 2x sample rates (24 channels)
- Flexible Routing, Splitting and Format Conversion
- Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the AVB network. Convert any format to any other
- Universal Connectivity
- Connects to computer with Thunderbolt or high-speed USB 2.0 (compatible with USB 3.0) with class-compliant firmware and industry standard drivers to work with any audio software
- On-Board DSP With Mixing And Effects
- Provides flexible 48-input digital mixer modeled after large format mixing consoles with 12 stereo busses and DSP effects including reverb, 4-band EQ, gate, and compression
- 32-Bit Floating Point Processing
- Provides ample headroom for mixing and effects DSP
- Modeled Vintage Effects Processing
- Provides classic reverb, compression modeled after historic LA-2A compressor, and EQ modeled after analog console EQs
- System Expansion and Audio Networking
- Allows you to add a 2nd MOTU AVB interface (1248, 8M, or 16A) with a Cat-5e or Cat-6 Ethernet cable and up to five devices using a MOTU AVB Switch (sold separately). Multiple interfaces can be networked together with over 100 meter cable runs to stream audio between devices and computers on the network
- Matrix Routing and Splitting
- Provides flexible digital matrix routing and splitting for any analog or digital input, computer channel or network stream to any computer, output, or network devices. A single input can be split to multiple output destinations
- 256 Channels of Network Audio I/O To Host Computer
- Allows monitoring and recording of up to 128 network audio channels in and 128 network channels out through a Thunderbolt connection to a host computer
- Web App Control
- Controls on-board DSP, mixing, device settings, and network audio routing from web app software running in a web browser on a computer, laptop, tablet, or smartphone connected by a wire or Wi-Fi to your local area network
- Stand-alone Mixing With Wireless Control
- Allows you to connect an Apple Airport or other Wi-Fi router directly to the audio interface with a standard Ethernet cable and control the device's mixing and DSP effects from a smartphone or tablet, without a computer such as in live sound mixing applications
- Comprehensive Metering

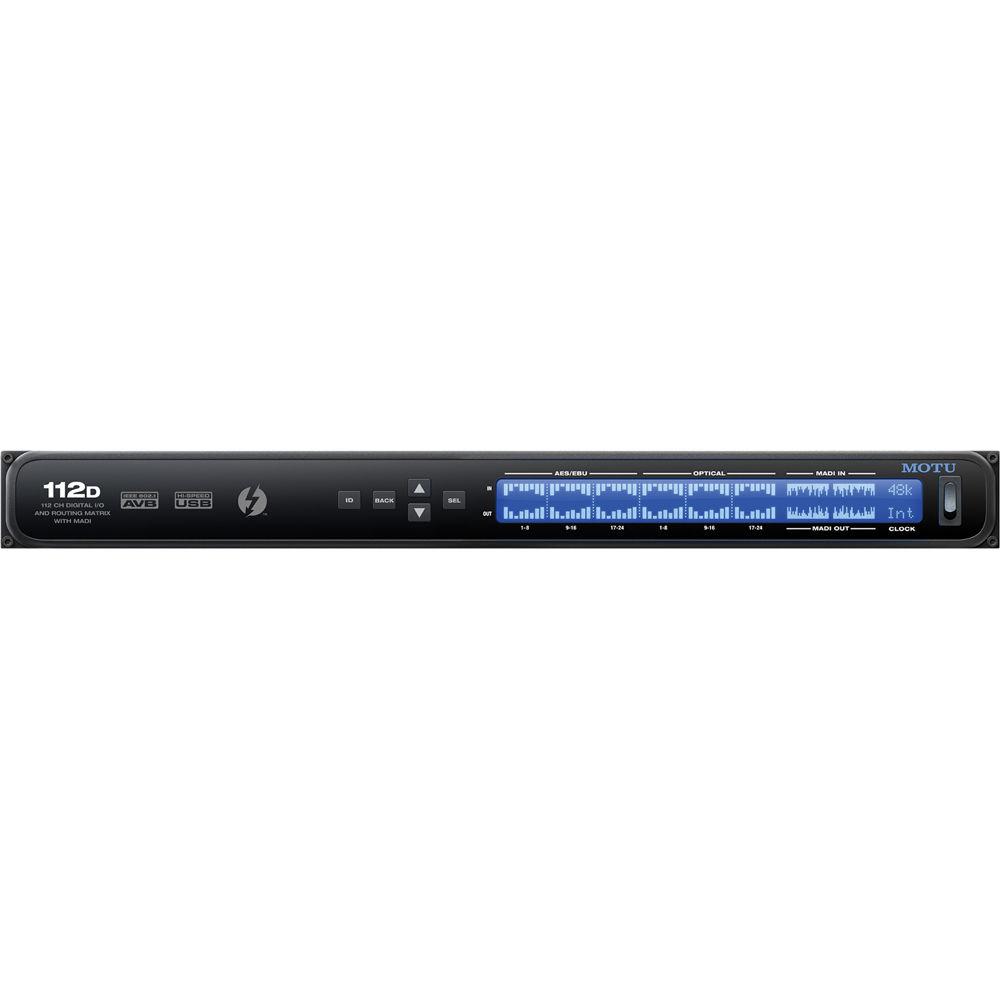

- Features large backlit 324 x 24 LCD that allows you to view all signal activity at a glance with detailed metering of analog and digital I/O, as well as access to hardware settings from font panel GUI
- AudioDesk
- Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering
UPC: 839128005976 In the Box MOTU 112D Thunderbolt and USB Audio Interface With AVB Networking and DSP (112 x 112) Power Cord Limited 2-Year Warranty Manual PDF 4.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the MOTU 112D Thunderbolt and USB Audio Interface With AVB Networking and DSP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

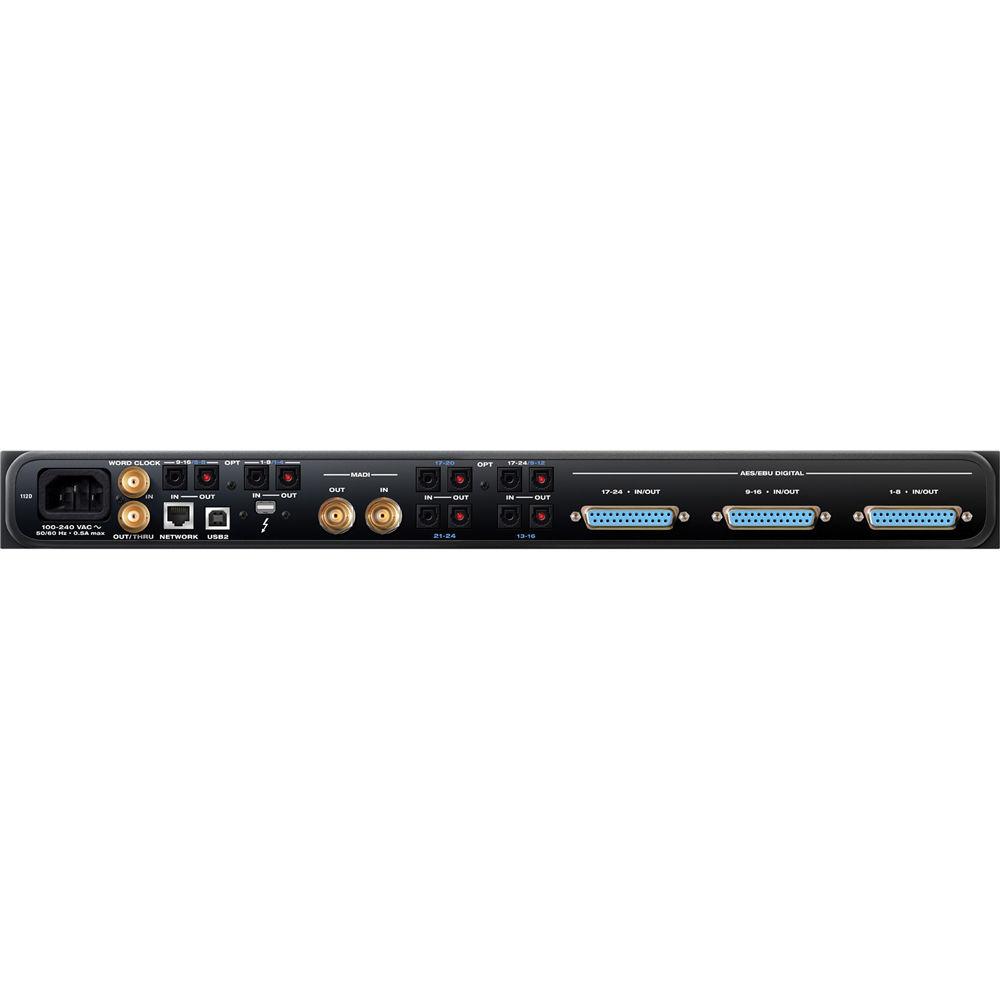

Technical parametersMOTU 112D Specs | Sample Rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz | | Digital I/O | 3x 8-ch banks (24 ch) of ADAT optical at 1x sample rates
6x 4-ch banks (24 ch) of SMUX optical at 2x sample rates
3x 8-ch banks (24 ch) of AES/EBU on 25-pin D-sub
1x BNC MADI in/out (64/56 ch @ 1x, 32 @ 2x, 16 @ 4x) | | Total I/O Channels | 112 inputs and 112 outputs (224 total) at 1x sample rates
80 inputs and 80 outputs (160 total) at 2x sample rates
16 inputs and 16 outputs (32 total) at 4x sample rates | | Computer I/O | 1x Thunderbolt (compatible with 1 and 2)
1x USB 2.0 audio class compliant (USB 3.0 and iOS compatible)
1x AVB Ethernet (requires OS X Yosemite) | | Sync | 1x word clock in
1x word clock out/thru | | Front Panel | 5x switches • menu navigation
324 x 24 pixel LCD for level meters / menu nav
1x AC power switch | | Mac Requirements | 1 GHz Intel-based Mac or faster
2 GB RAM, 4 GB or more recommended
Mac OS X version 10.8 or later
Available Thunderbolt or high-speed USB 2.0 port
A large hard drive (at least 500 GB for recording)
*AVB Ethernet audio interface operation requires OS X Yosemite | | Windows Requirements | 1 GHz Pentium-based PC compatible or faster
2 GB RAM, 4 GB or more recommended
Windows 7 or later
Available USB 2.0 or 3.0 port
Available Ethernet port for firmware updates
A large hard drive (at least 500 GB for recording) | | Web App Support | Any Web Client Platform: Mac, Windows, Linux, iOS, Android
Any Web Browser: Safari, Firefox, Chrome, Opera, Explorer
Web client must be connected to the same network as the MOTU AVB interface by wire or Wi-Fi. | | Operating Systems | For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
For web app control: Mac, Windows, Linux, iOS, Android | | Mac Compatible | Core Audio Drivers for Mac OS X
MOTU Digital Performer
Avid Pro Tools (version 9 or later)
Apple Logic Pro
Apple Logic Express
Apple Garage Band
Apple SoundTrack Pro
Ableton Live
Propellerhead Record and Reason
Steinberg Cubase
Cockos Reaper
Native Instruments Kontakt
Waves Stand-Alone Apps (and plug-ins via compatible host) | | Windows Compatible | WAVE and ASIO drivers for Windows 7 and 8
MOTU Digital Performer
Avid Pro Tools (version 9 or later)
Ableton Live
Cakewalk Sonar
Steinberg Cubase
Propellerhead Record and Reason
Image Line FL Studio
Sony Vegas Pro
Sony Sound Forge
Sony Acid
Cockos Reaper
Native Instruments Kontakt
Waves stand-alone apps (and plug-ins via compatible host) | | Power | International 100 to 240 VAC autoswitching supply 50/60 Hz
0.5 A max | | Current Draw | 0.5 A max | | Rackmountable | 1U | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 6.85 lb | | Box Dimensions (LxWxH) | 23.5 x 11.5 x 5.4" |
