User Manual for MOTU 8pre 16x12 USB Audio Interface with 8 Mic Inputs and Optical Expansion Click to enlarge the picture
Contents of the user manual for the MOTU 8pre 16x12 USB Audio Interface
- Product category: Audio Interfaces & Systems MOTU
- Brand: MOTU
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOTU Audio Interfaces & Systems
 |
User manual for the MOTU 8pre 16x12 USB Audio Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOTU product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOTU user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOTU product will considerably shorten its lifespan!
|

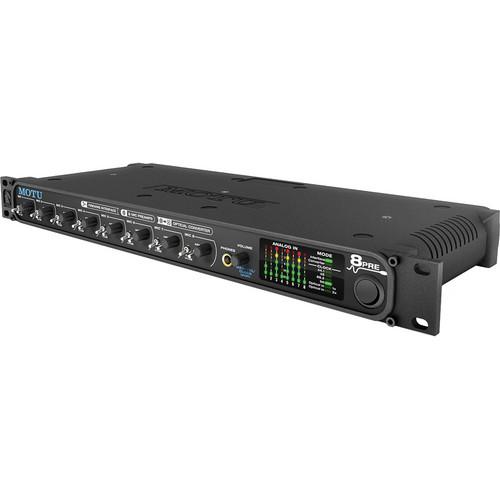

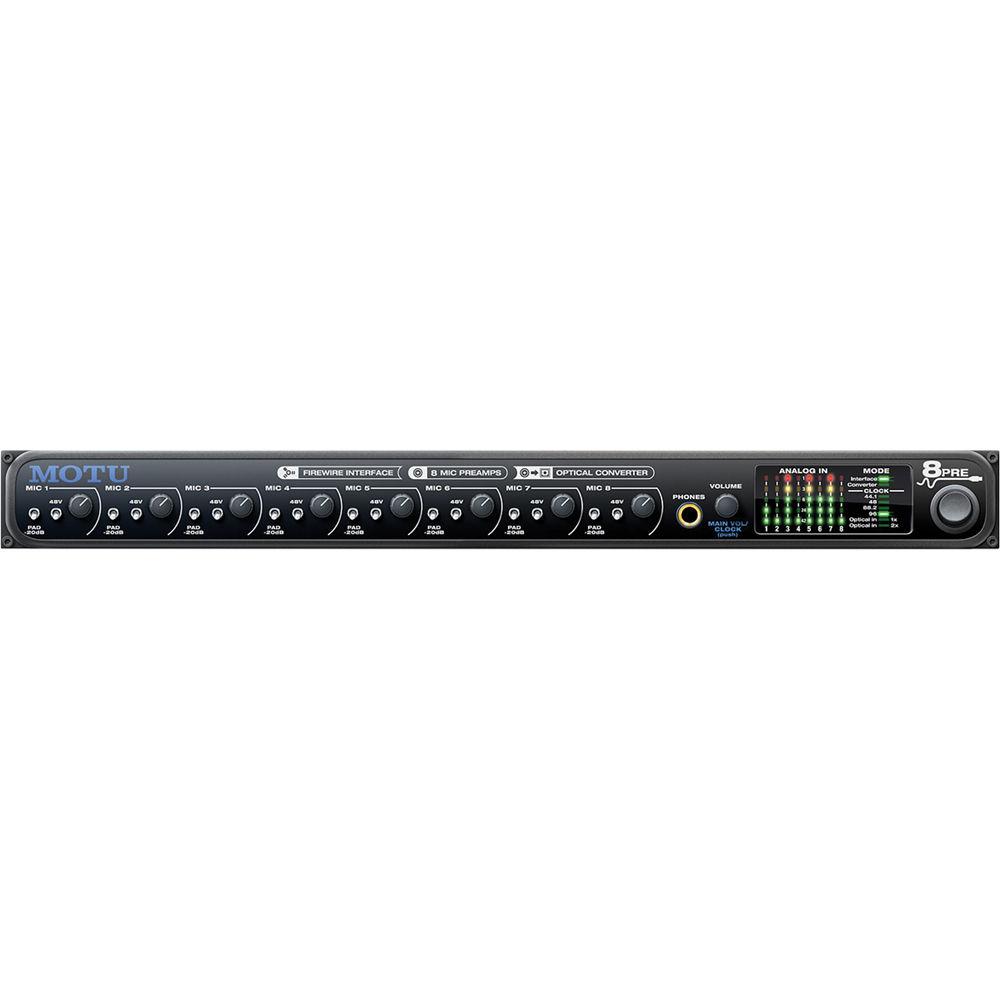

Product description The MOTU 8pre 16x12 USB Audio Interface with 8 Mic Inputs is designed for studio recording with a digital audio workstation. The audio interface features eight microphone/instrument preamplifiers with switchable +48V phantom power, front panel trim knobs, and a 20 dB pad.

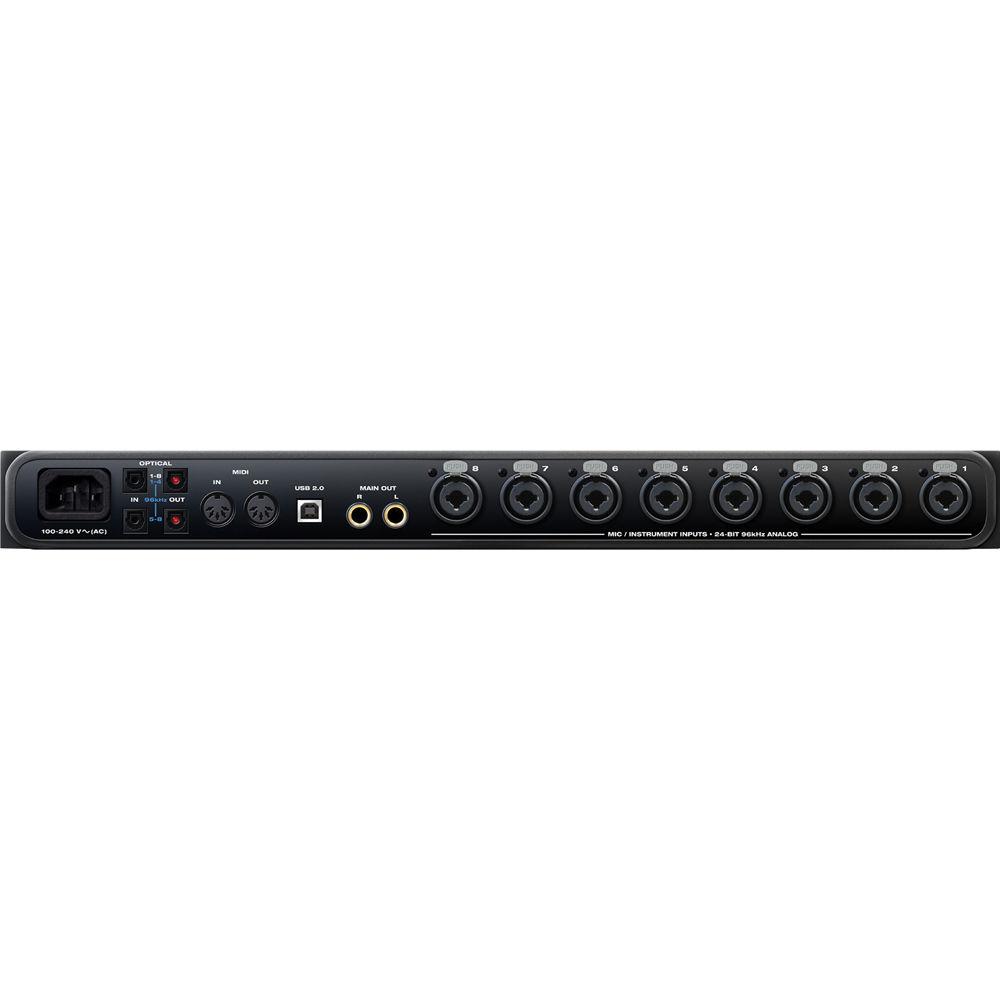

For I/O the device also includes eight channels of ADAT optical expansion inputs for connecting to an existing interface, eight channels of ADAT optical expansion outputs, a stereo pair of balanced or unbalanced TRS outputs, and a stereo headphone output. For recording and playback, the interface's audio engine is capable of up to 24-bit 96 kHz resolution recorded over USB 2.0. - MIDI
- Provides 16 channels of sample-accurate MIDI control over USB 2.0 for connecting MIDI keyboards, sound modules, or control interfaces to the audio interface
- Front-Panel Metering
- Provides five-segment LED visual feedback for audio levels and status lights for clock and interface/expander mode
- ADAT Expansion
- Provides additional eight channels of digital audio for connecting to another ADAT optical compatible interface such as the MOTU 8pre, 828, UltraLite, or Traveler
- Outputs
- Provides separate 1/4" TRS phone main outs and front-panel headphone output jack with independent volume controls
- SMPTE
- Allows you to slave your 8pre to SMPTE time code over analog input or generate SMPTE time code and send it over analog to synchronize with another device
- CueMix DSP
- Enables up to four separate stereo monitor mixes sent to any analog or digital output pair
- Cuemix Optical Expander Mode
- Routes each analog input to a corresponding optical output channel
- Talkback
- Allows engineers and musicians to dim audio and communicate using the built-in microphone inputs
- Mac and Windows Compatibility
- Includes 32- and 64-bit drivers for Mac OS X (10.6 or higher) and Windows 8/7/Vista
- AudioDesk
- Provides full featured sample accurate workstation with editing, mixing, and real-time 32-bit effect processing for Mac
UPC: 839128005884 In the Box MOTU 8pre 16x12 USB Audio Interface with 8 Mic Inputs and Optical Expansion Set of Removable Rack Ears 6-Pin to 6-Pin IEEE 1394 FireWire Cable Power Cord Limited 2-Year Warranty User Manual PDF 2.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the MOTU 8pre 16x12 USB Audio Interface with 8 Mic Inputs and Optical Expansion in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOTU 8pre Specs | | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | | | Host Connection | USB Type-B (USB 2.0) | | Analog I/O | 8 x Combo XLR / 1/4" TRS Input
2 x 1/4" (6.3 mm) TRS Monitor Output
1 x 1/4" (6.3 mm) TRS Headphone Output | | Digital I/O | 2 x TOSLINK / ADAT Input
2 x TOSLINK / ADAT Output | | MIDI I/O | None | | | | Sample Rates | Up to 96 kHz | | Bit Depth | Up to 24-Bit | | | | Rackmount Size | 1RU | | Dimensions | 19 x 7 x 1.75" / 48.26 x 17.78 x 4.45 cm Without Rack Ears | | | | Package Weight | 7.45 lb | | Box Dimensions (LxWxH) | 23.5 x 11.4 x 5.5" |
