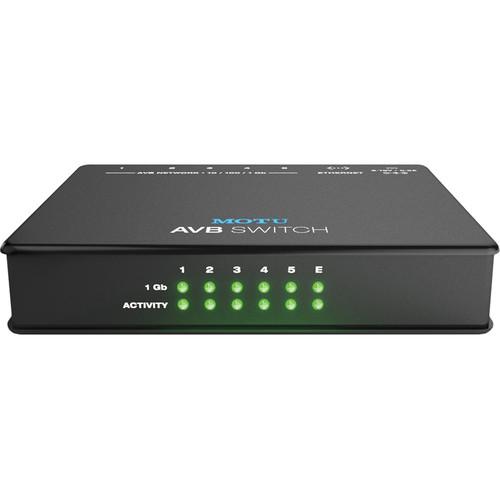

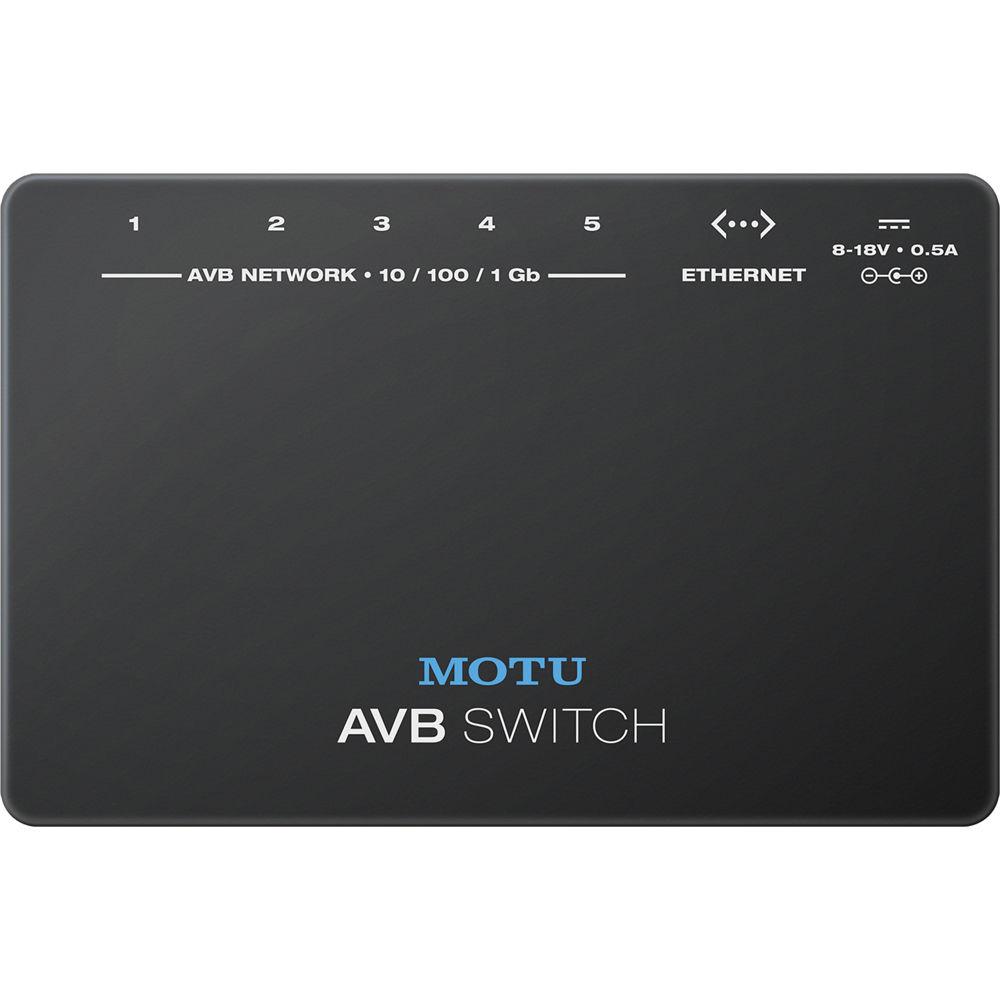

Product description The MOTU AVB Switch - Five-Port AVB Ethernet Switch is designed to connect up to five AVB Audio, Video, or Switch interfaces into a network using the IEEE 802.1 AVB standard and CAT-5e or CAT-6 Ethernet cables up to 100 meters in length. This networking standard provides real-time, low-latency, fully synchronized streaming of audio and video over Ethernet.

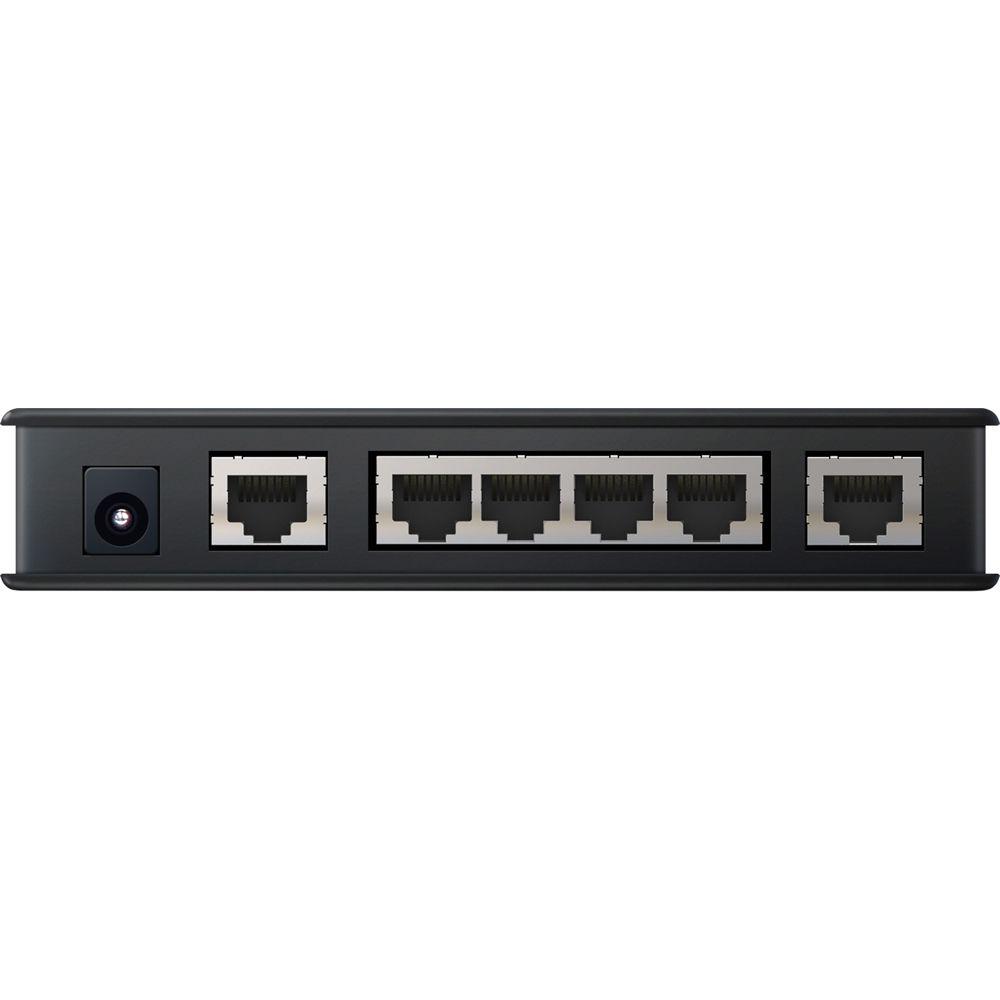

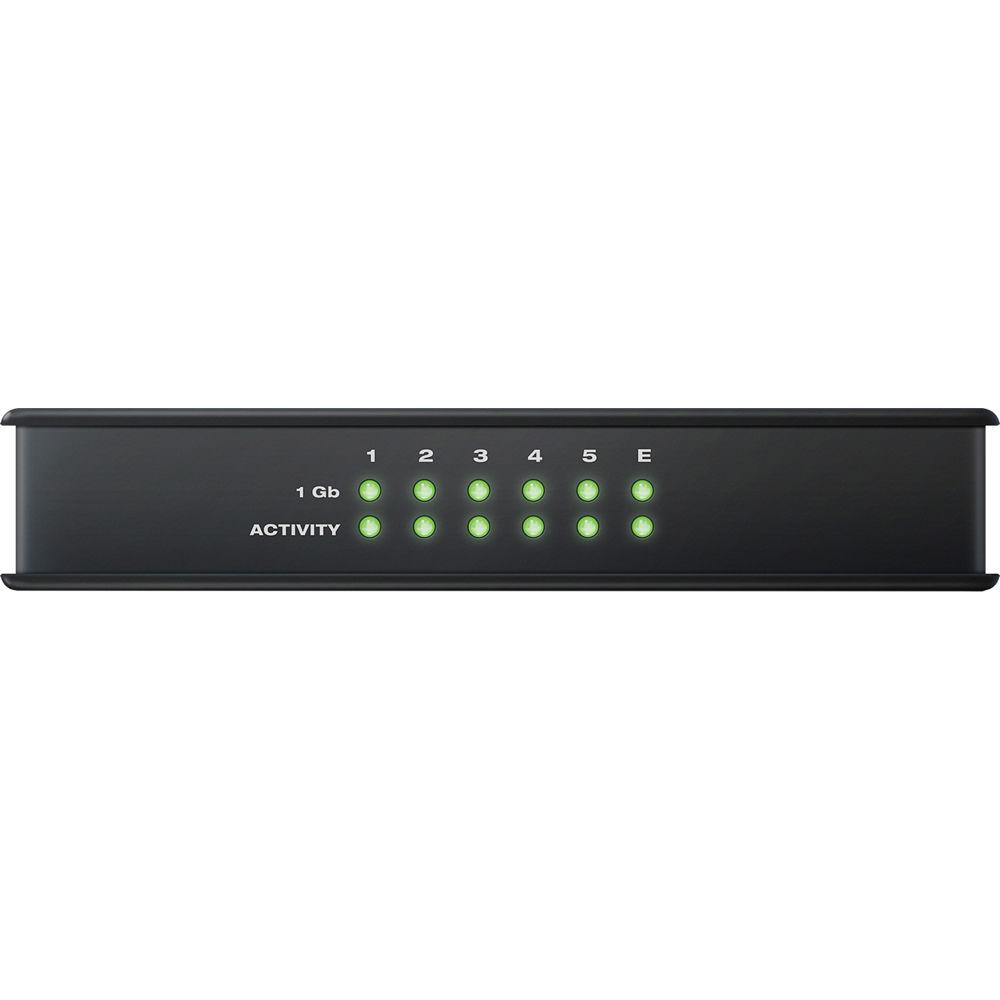

The back panel of the switch features five 1-Gigabit AVB Ethernet ports as well as one standard Ethernet port for connecting the device to the Internet or a Wi-Fi router. The five AVB ports can also be used for standard Ethernet. Two front panel rows of LEDs provide visual feedback of the network connections and status of each port.
For convenience and reliability, the system features automatic device discovery so no IT experience is required and implements AVB's Stream Reservation protocol to provide guaranteed Quality of Service and ensure uninterrupted connections. The system also provides a network-wide time bass for synchronizing all connected devices within one sample phase lock and with timing accuracy within the nanosecond. - Standard AVB Switch
- Uses standard IEEE 802.1 AVB Ethernet switch
- Plug and Play
- Supports automatic device discovery and network bandwidth management among connected AVB devices with no IT expertise required
- Standard Cabling
- Uses standard CAT-5e or CAT-6 Ethernet cables up to 100 meters in length
- 1-Gigabit Operation
- Supports high audio channel counts and low latency operation
- Guaranteed Quality of Service (QoS)
- Maintains all existing audio and video streams regardless of network traffic
- Unified Clocking and Sync
- Uses network-wide clock to keep devices sync accurate to within nanoseconds of one another
- Support for Ethernet
- Bridges standard Ethernet for Wi-Fi and Internet connectivity
UPC: 839128005938 In the Box MOTU AVB Switch - Five-Port AVB Ethernet Switch Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOTU AVB Switch - Five-Port AVB Ethernet Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOTU 9305 Specs | Ports | 5x AVB
1x Ethernet
Note: the five AVB ports can be used for Ethernet | | Operational Bandwith | 10/100/1 Gigabit | | Front Panel | 12x Activity LED | | Voltage | 8 to 18 VDC, tip positive | | Current | 0.5 A | | Standard | IEEE 802.1 AVB Ethernet switch | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 1.42 lb | | Box Dimensions (LxWxH) | 10.35 x 5.55 x 2.5" |
