Product description

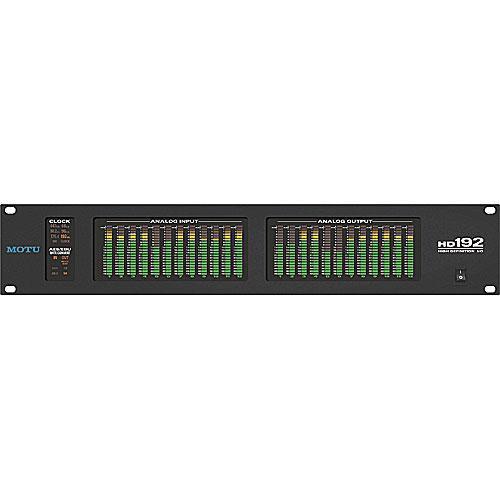

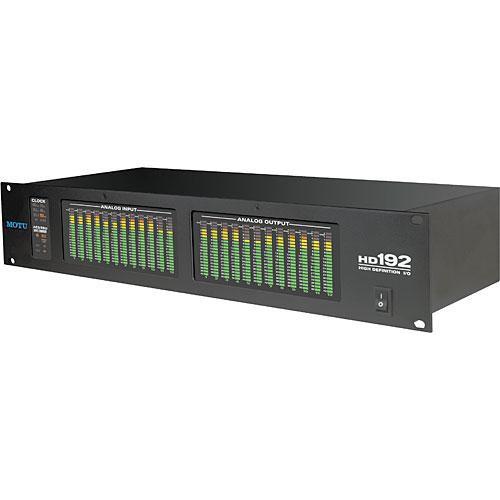

The HD192 hard disc recording system from MOTU provides an interface with twelve, high-quality, 24-bit/192kHz analog inputs and outputs. The interface is designed with the latest generation 24-bit, enhanced multi-bit, 128x oversampling 192kHz converters, which deliver a remarkable A-weighted signal-to-noise ratio of 120dB. In addition to the interface the system includes a PCIe card (PCI Express) and Audiodesk workstation software. Audio activity for every input and output is represented on the front panel by dedicated nineteen-segment LED bar graph. The twelve analog inputs and outputs are on XLR connectors operating at +4dB. AES/EBU digital input and output is also provided with the added ability of delivering sample rate conversion both on input and output. Two "over" meters are included - a temporary over meter and an over/hold meter that is re-settable via software. Comprehensive clock status LEDs are also included that show at a glance the current sampling rate and clock source. Wordclock sync is provided on BNC connectors. The HD192 uses the second generation AudioWire protocol, a high-bandwidth digital audio format capable of carrying up to twenty-four channels of 96kHz or twelve channels of 192kHz digital audio in and out of the computer at the same time. The included PCIe card features a powerful DSP chip dedicated to creating a custom tailored monitor mix of up to ninety-six channels of audio. Because the mixing takes place on the card itself, the system provides near-zero latency performance. Up to four audio interfaces (which are hot swappable) can be connected to a PCIe in any combination.
  • Expandable hard disc recording system
  • Up to four HD192 units can be connected to a PCIe card for a total of 48 inputs and outputs
  • User can have as many simultaneous channels as the host software and computer allow
  • Compatible with all MOTU AudioWire interfaces
  • Includes ASIO drivers for Mac OS and Windows
  • Multi-channel WDM driver provides simultaneous inputs/outputs for all Windows audio applications that support standard WDM and multi-channel Wave drivers
  • Fully compatible with VST, MAS, Premiere, DirectX, and all other host-based native plug-in formats
  • Includes Audiodesk workstation software
UPC: 839128005457 In the Box MOTU HD192 (PCIe) - 12 Input / 12 Output High Resolution Hard Disc Recording System with PCIe Card for Mac and Windows
  • PCIe Host Card
  • HD192 Audio Interface
  • AC Power Cable
  • AudioWire Cable
  • AudioDesk Software
  • Limited 2-Year Warranty
  • Guides & Manuals Table of Contents




    Upload User Manual

    Have you got an user manual for the MOTU HD192 - 12 Input 12 Output High Resolution Hard Disc Recording System with PCIe Card for Mac and Windows in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for MOTU HD192 - 12 Input 12 Output High Resolution Hard Disc Recording System with PCIe Card for Mac and Windows can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for MOTU HD192 - 12 Input 12 Output High Resolution Hard Disc Recording System with PCIe Card for Mac and Windows can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the MOTU HD192 - 12 Input 12 Output High Resolution Hard Disc Recording System with PCIe Card for Mac and Windows can be downloaded in PDF format at the link stated below.
    Download PDF user manual - MOTU HD192 - 12 Input 12 Output High Resolution Hard Disc Recording System with PCIe Card for Mac and WindowsDownload PDF User Manual - MOTU HD192 - 12 Input 12 Output High Resolution Hard Disc Recording System with PCIe Card for Mac and Windows
    (PDF file, 0 MB)


    Technical parameters

    MOTU HD192 Specs

    Converters 24-bit
    Sample Rates 44.1, 48, 88.2 and 96kHz

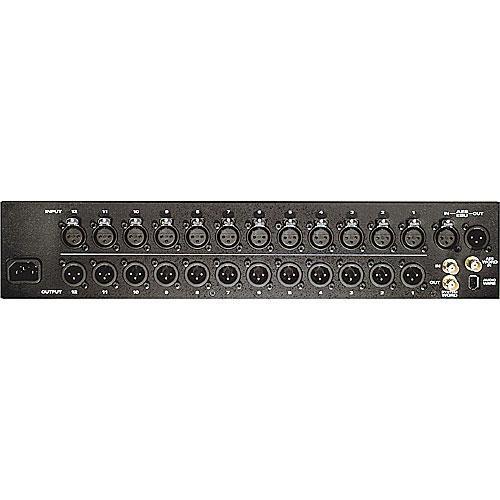

    Analog In 12 x XLR, balanced
    Analog Outputs 12 x XLR, balanced
    Digital Input Connectors 1 x XLR, AES/EBU (stereo)
    Digital Output Connectors 1 x XLR, AES/EBU (stereo)
    MIDI In/Out No
    Sync In/Out Word clock, AES sync
    Headphone Output No
    THD + N 0.00056% (-106dB)
    Dynamic Range 120dB, A-weighted
    Frequency Response Not specified by manufacturer
    Minimum System Requirements Mac:
    G4 Power Mac or faster
    OS 9, OS X
    128MB RAM
    Available PCIe slotPC:
    Pentium III processor or faster
    Windows 98SE/Me/2000/XP
    64MB RAM
    Available PCIe slot
    Package Weight 13.3 lb
    Box Dimensions (LxWxH) 24.5 x 14.9 x 9.0"
