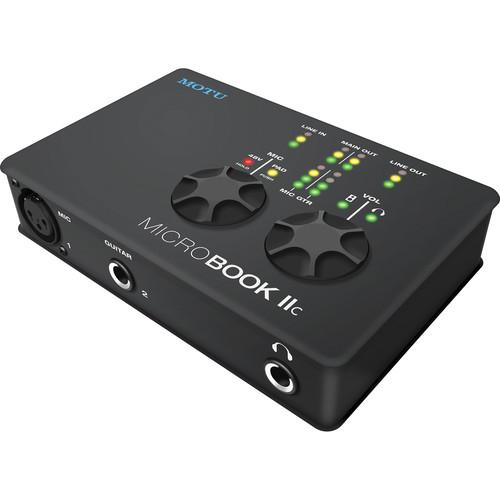

Product description The MicroBook IIc from MOTU is a reincarnation of the company's popular MicroBook, once again delivering a complete personal recording solution with simultaneous inputs for a microphone, a guitar, and a keyboard or other stereo line level devices. The microphone preamps deliver a neutral (no coloration) signal and are fitted with a -20 dB pad, digitally controlled analog trim, and 48V phantom power for use with condenser microphones. Programmable balanced and unbalanced outputs provide flexible monitoring options.
The unit also functions as an eight-bus digital mixer that allows for mixing live inputs with each other, with or without host software tracks. The included CueMix FX software for Mac OS X and Windows provides graphic, on-screen control of the on-board audio mixer, with up to four separate stereo mixes available. AudioDesk workstation software for Mac OS X and Windows features recording, editing, mixing, processing, and mastering functionality. Being USB audio class compliant allows the interface to connect to an iPad using a standard camera connection kit cable (sold separately) for recording and monitoring audio with a preferred iOS app. -
- Four input, six output bus-powered "plug-and-play" USB 2.0 audio interface for Mac and Windows (6 x 8 physical in/outs)
- Eight-bus digital mixer to route and mix live inputs with computer tracks

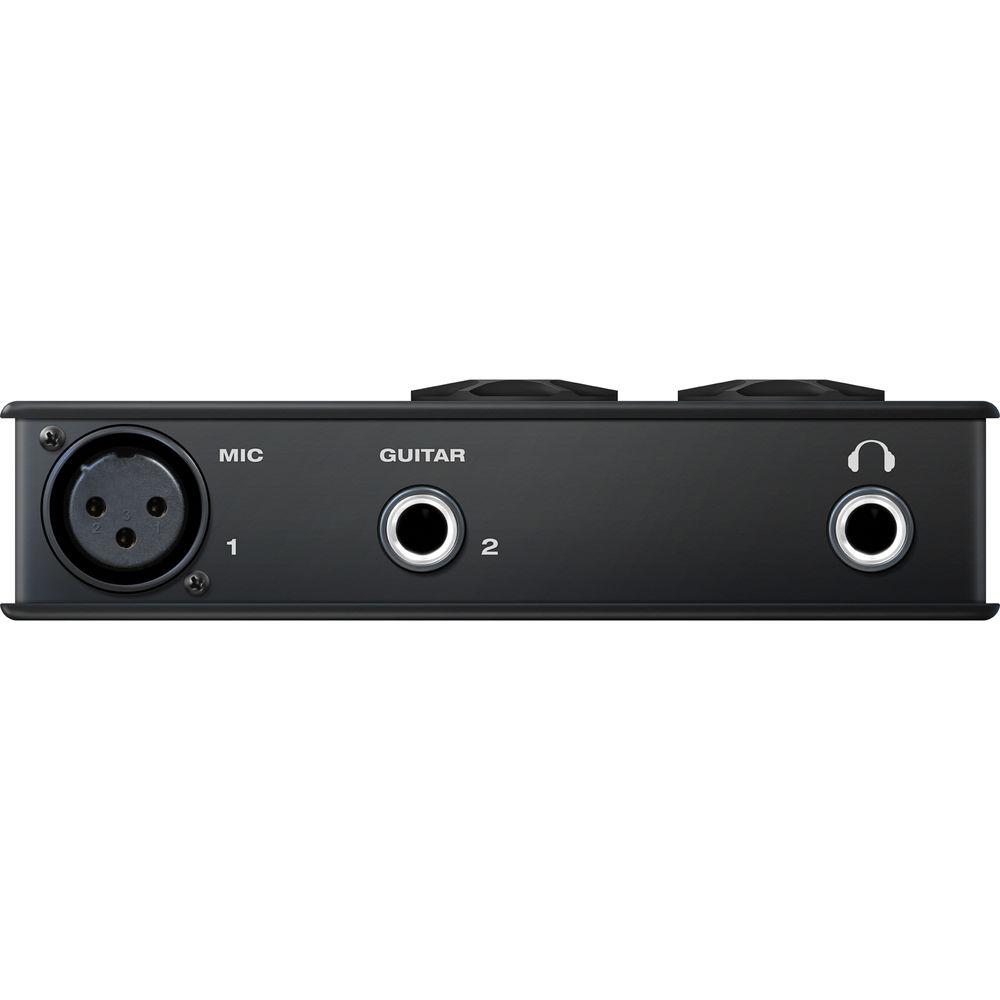

- Preamp-equipped microphone input with Precision Digital Trim, 48V phantom power, and -20 dB pad
- Hi-Z guitar input with -20 dB pad and Precision Digital Trim

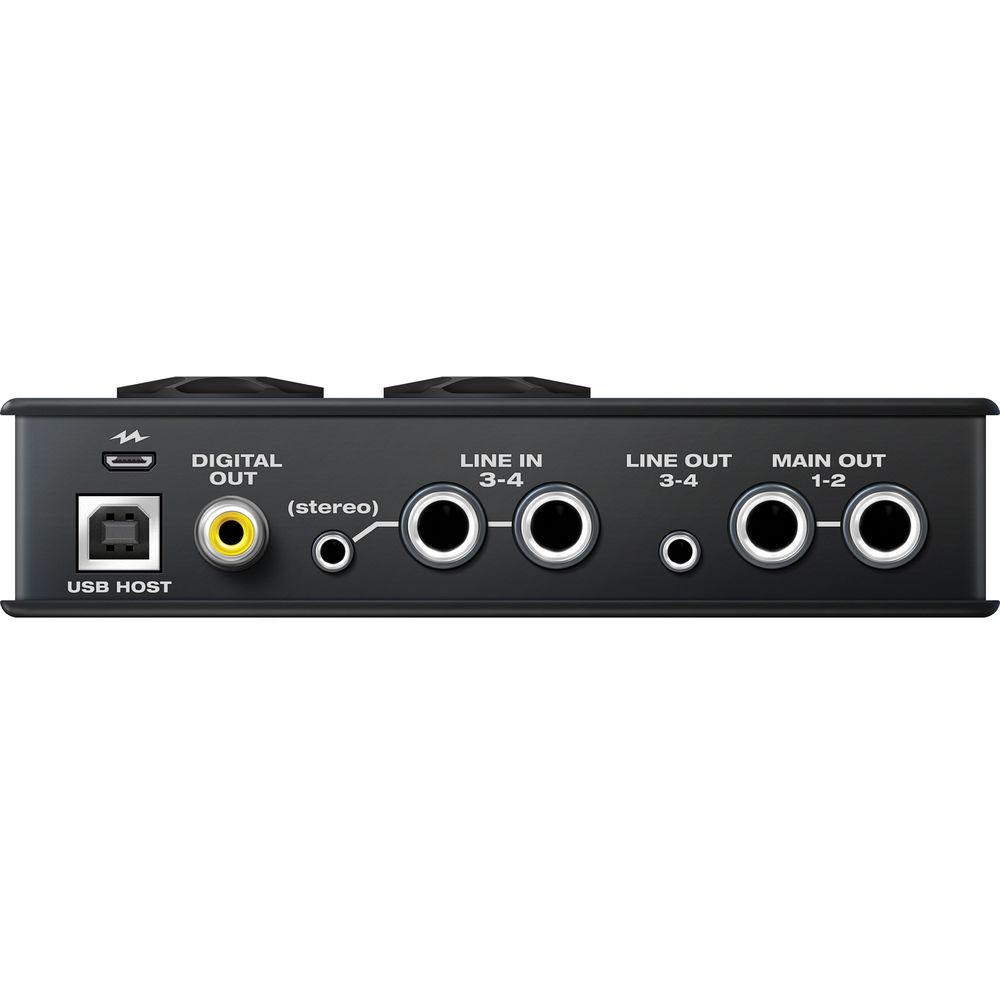

- Stereo line level analog input (balanced 1/4" TRS or stereo mini)
- Stereo balanced 1/4" TRS line level main outs
- Stereo 1/8" mini line level out
- S/PDIF digital out (duplicates main out)
- Headphone output on 1/4" stereo jack with independent volume control
- Digitally controlled analog trim for all analog inputs
- Digital trim for all outputs

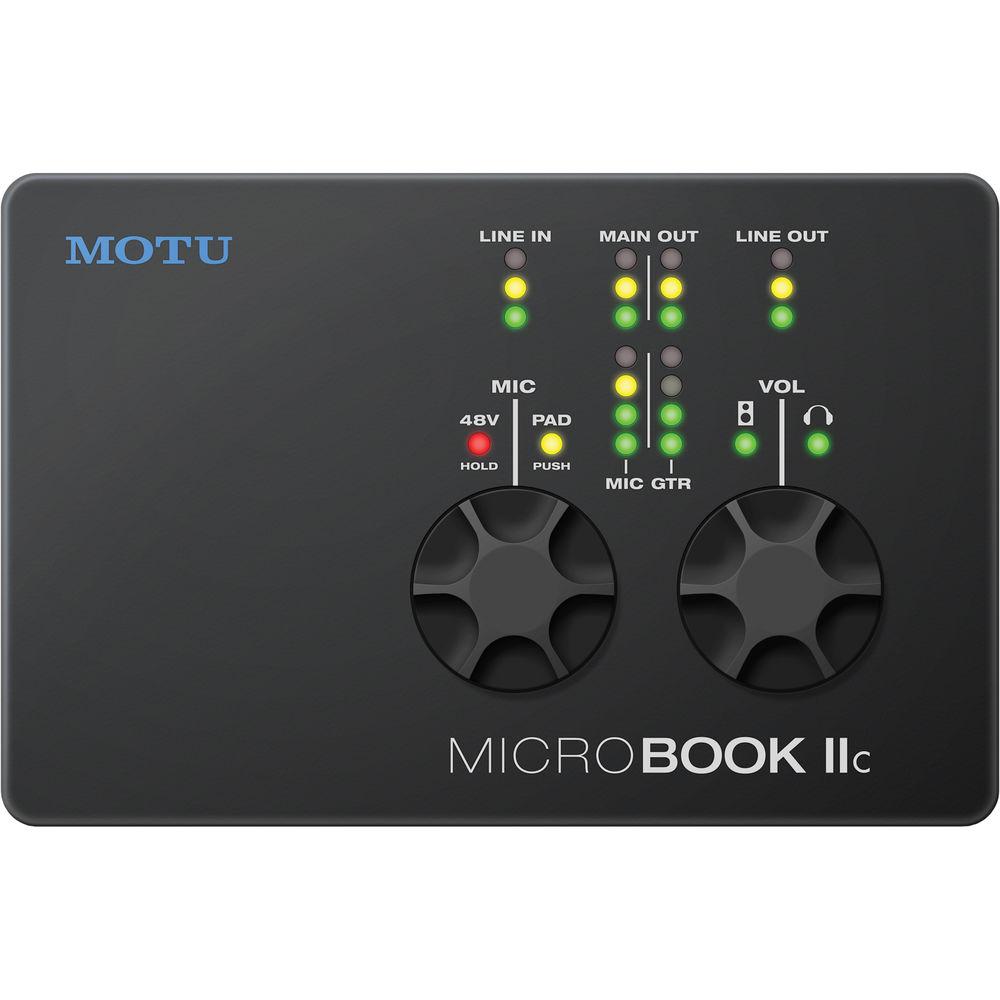

- Output volume digital rotary encoder - push to cycle among three modes - main out, phones, or both
- Microphone input digital rotary encoder for adjusting trim level, 48V and pad
- Dedicated 3- or 4-segment LED meters for all inputs and outputs
- Support for recording and playback at 2x sample rates (88.2 and 96 kHz)
- CueMix FX no-latency mixing and monitoring with EQ and dynamics processing
- 7-band parametric EQ and compression
- Instrument tuner
- Test tone and white/pink noise generator
- Advanced audio analysis software tools, including FFT display, spectrogram "waterfall" display, oscilloscope, X-Y plot, and phase analysis
- 100% compatible with all host-based effects processing in today's popular audio programs
- Industry standard Mac and Windows audio drivers (Core Audio, Wave, and ASIO) for across-the-board compatibility
- Compatible with all current and recent generation Macs and PCs
- Support for Apple iPad and other iOS devices with camera connection kit (sold separately)
- Includes AudioDesk full-featured audio workstation software for Mac OS X and Windows
UPC: 839128006027 In the Box MOTU MicroBook IIc - USB 2.0 Audio Interface for Personal Recording USB Cable USB Power Cable Power Adapter Installer Disc Limited 2-Year Warranty on Hardware User Manual PDF 5.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the MOTU MicroBook IIc - USB 2.0 Audio Interface for Personal Recording in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOTU 8432 Specs | | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | Display and Indicators | 3 x Multi-Segment LED Meter (Output Level)
3 x Multi-Segment LED Meter (Input Level)
1 x LED (+48V)
1 x LED (Pad)
2 x LED (Output Level) | | | | Host Connection | 1 x USB Type-B (USB 2.0)
1 x Micro-USB | | Analog I/O | 1 x XLR 3-Pin Mic Input
1 x 1/4" (6.3 mm) TS Hi-Z Input
2 x 1/4" (6.3 mm) TRS Balanced/Unbalanced Line Input
1 x 1/8" (3.5 mm) TRS Unbalanced Line Input
2 x 1/4" (6.3 mm) TRS Monitor Output
1 x 1/8" (3.5 mm) TRS Unbalanced Output
1 x 1/4" (6.3 mm) TRS Headphone Output | | Digital I/O | 1 x RCA Coaxial / S/PDIF Output | | MIDI I/O | None | | | | Sample Rates | 44.1, 48, 88.2, and 96 kHz | | Bit Depth | 24-Bit | | | | OS Compatibility | iOS 7 or Later
macOS 10.6.8 or Later
iOS 7 or Later
Windows 7
Windows 8
Windows 10 | | Processor Requirement | Mac:
Intel
PC:
1 GHz Intel Pentium 4 | | RAM Requirements | 4 GB | | Storage Requirements | 250 GB | | Required Hardware | Available USB 2.0 Port | | | | Power Requirements | USB Bus-Power | | | | Dimensions | 5.5 x 3.6 x 1.25" / 140 x 92 x 32 mm | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 7.4 x 5.4 x 3.4" |
