User Manual for MOTU Traveler-mk3 - FireWire Audio Interface Click to enlarge the picture
Contents of the user manual for the MOTU Traveler-mk3 - FireWire Audio Interface
- Product category: Audio Interfaces & Systems MOTU
- Brand: MOTU
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOTU Audio Interfaces & Systems
 |
User manual for the MOTU Traveler-mk3 - FireWire Audio Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOTU product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOTU user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOTU product will considerably shorten its lifespan!
|

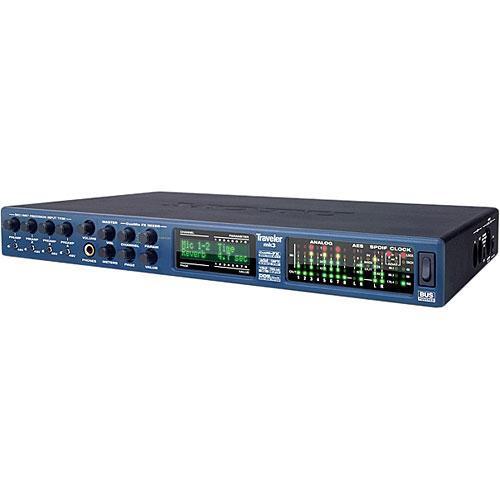

Product description The Traveler-mk3 from MOTU can function as both a FireWire audio interface or stand-alone mixer, and is primarily engineered for high-end mobile recording applications. Equally suited to any other audio situation, the unit delivers 4 high quality microphone inputs, and can be powered from either a computer's FireWire bus or via optional battery packs. It also features internal DSP-driven mixing and effects processing. As an interface or stand-alone mixer, the Traveler-mk3 provides 28 separate inputs and 30 separate outputs, including 4 combo microphone/instrument analog inputs equipped with pre-amps, individual 48V phantom power switches and Digital Precision Trim controls adjustable from the front panel or CueMix FX software. DSP effects include a 60-second reverb, 7-band parametric EQ and various flavors of compression/limiting. - Compact, fully featured FireWire interface
- Microphone, line and digital inputs and outputs are all discrete - no channel sharing
- 4 combo jacks provide either XLR microphone input or Hi-Z 1/4" guitar input using transparent preamps with phantom power, pad and 53dB of gain per channel
- High-resolution recording with the ability to operate all analog inputs and outputs at sample rates of up to 192kHz
- 16 channels of ADAT Lightpipe, 8 channels of SMUX (96 kHz) or two pairs of stereo TOSLink with the ability to mix and match formats between the two banks
- Stereo 24-bit/96kHz AES/EBU and stereo 24-bit/96kHz S/PDIF inputs and outputs
- On board CueMix FX is a flexible 28 input/16 bus mixer with on-board DSP effects, including classic reverb with sends/returns, plus modeled EQ and vintage compression on every input and output
- Multiple CueMix FX mixes can be created for monitoring or to add send/return loops for external processing with no added latency
- CueMix FX software provides real-time FFT and spectrogram "waterfall" displays for visual analysis of individual signals and entire mixes
- Can function in standalone mode
- Built-in SMPTE time code sync can resolve to, and generate time code without the need for an additional synchronizer

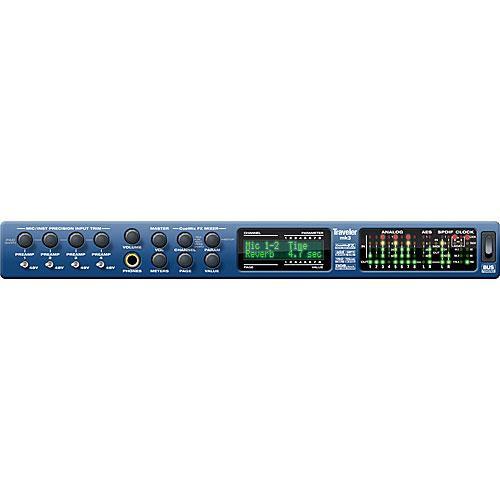

- Front panel volume control for monitoring with stereo, quad, 5.1, 7.1 and user-defined surround monitoring setups available
- Front panel meters or activity LEDs for all analog, digital and MIDI I/O, plus SMPTE sync, tach and lock LEDs
- Powered via the FireWire bus or using optional battery power packs
UPC: 839128005594 In the Box MOTU Traveler-mk3 - FireWire Audio Interface FireWire Cable AudioDesk Software Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOTU Traveler-mk3 - FireWire Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

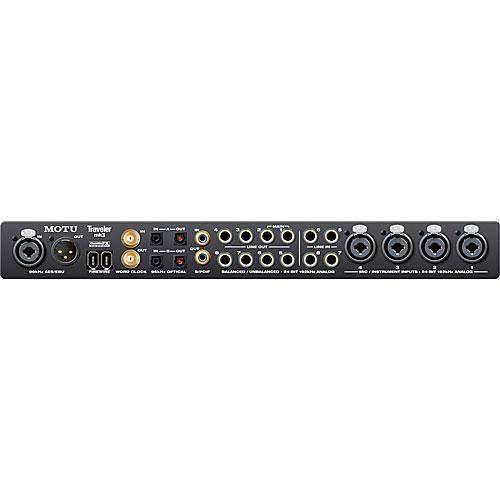

Technical parametersMOTU Traveler-mk3 Specs | Converters | 24-bit | | Sample Rates | Up to 192kHz | | Analog Input | 4 x 1/4" TRS/XLR
4 x 1/4" TRS phone Line, balanced or unbalanced | | Analog Output | 8 x 1/4" TRS phone, balanced or unbalanced
1 x 1/4" TRS phone Headphone | | Digital Input | 2 x TOSLink ADAT (96kHz SMUX supported)
1 x XLR AES/EBU
1 x RCA coaxial S/PDIF | | Digital Output | 2 x TOSLink ADAT (96kHz SMUX supported)
1 x XLR AES/EBU

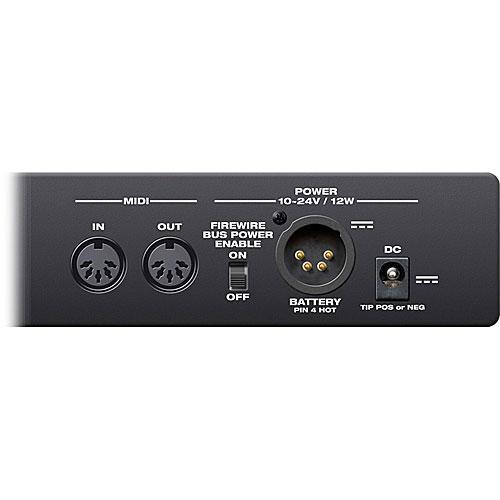

1 x RCA coaxial S/PDIF | | MIDI In/Out | 2 x 5-pin DIN MIDI I/O | | Sync In/Out | 2 x BNC Wordclock I/O | | Headphone Output | Yes | | THD + N | Not specified by manufacturer | | Dynamic Range | Not specified by manufacturer | | Frequency Response | Not specified by manufacturer | | Power Requirements | FireWire
10-24V/12W via optional battery or optional external power supply | | System Requirements | Supports all popular Mac and Windows audio software | | Dimensions (WxDxH) | 14.8 x 9 x 1.7" (376 x 229 x 43mm) | | Weight | Not specified by manufacturer | | Specialties | Built-in SMPTE time code sync | | | | Package Weight | 6.85 lb | | Box Dimensions (LxWxH) | 19.0 x 12.9 x 5.4" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
