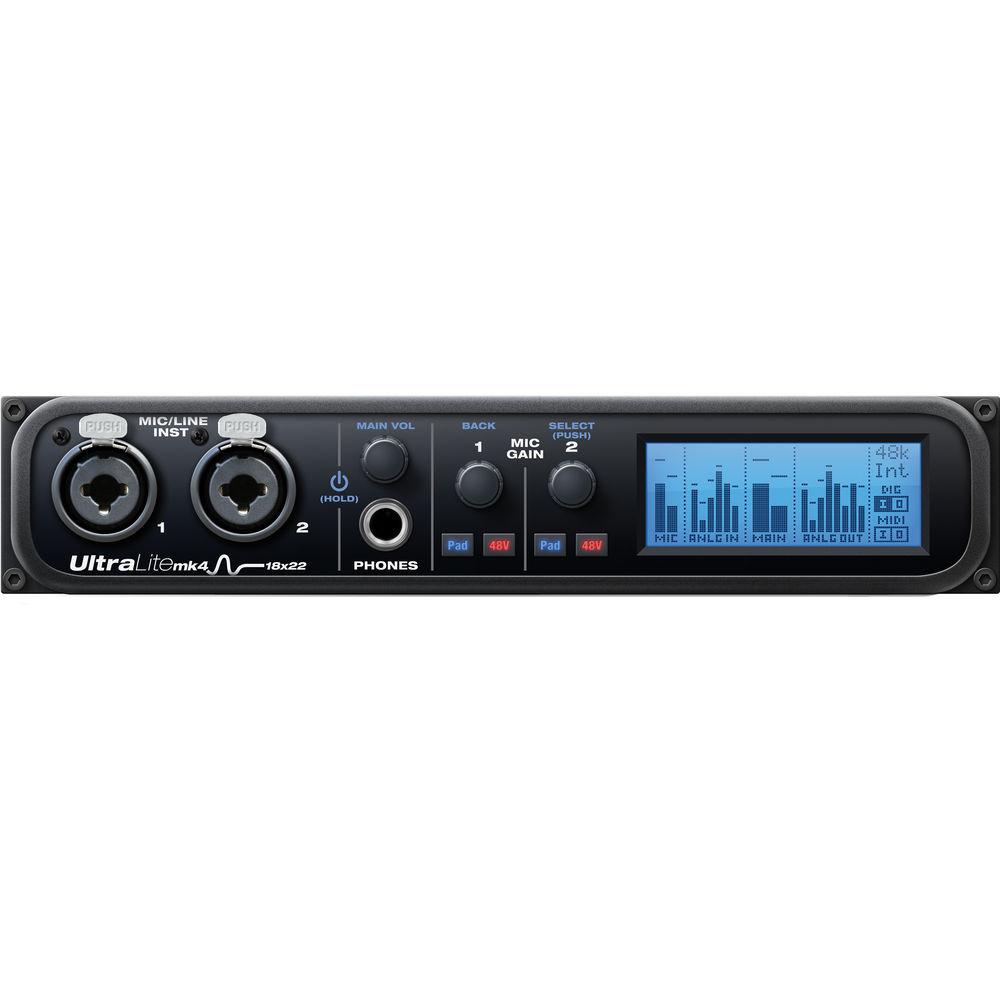

Product description Designed for the road or for use in studios, the MOTU UltraLite-mk4 expands on previous iterations to give you 18 inputs and 22 outputs in a class-compliant, high-speed USB-2 interface. From the device itself, you can monitor inputs and outputs, while a web-control app allows you to control signal routing, tweak levels, and apply onboard effects utilizing a laptop, iOS device, or smartphones over a closed Wi-Fi network. This means that in live scenarios, you can use the UltraLite-mk4 as a standalone digital mixer.

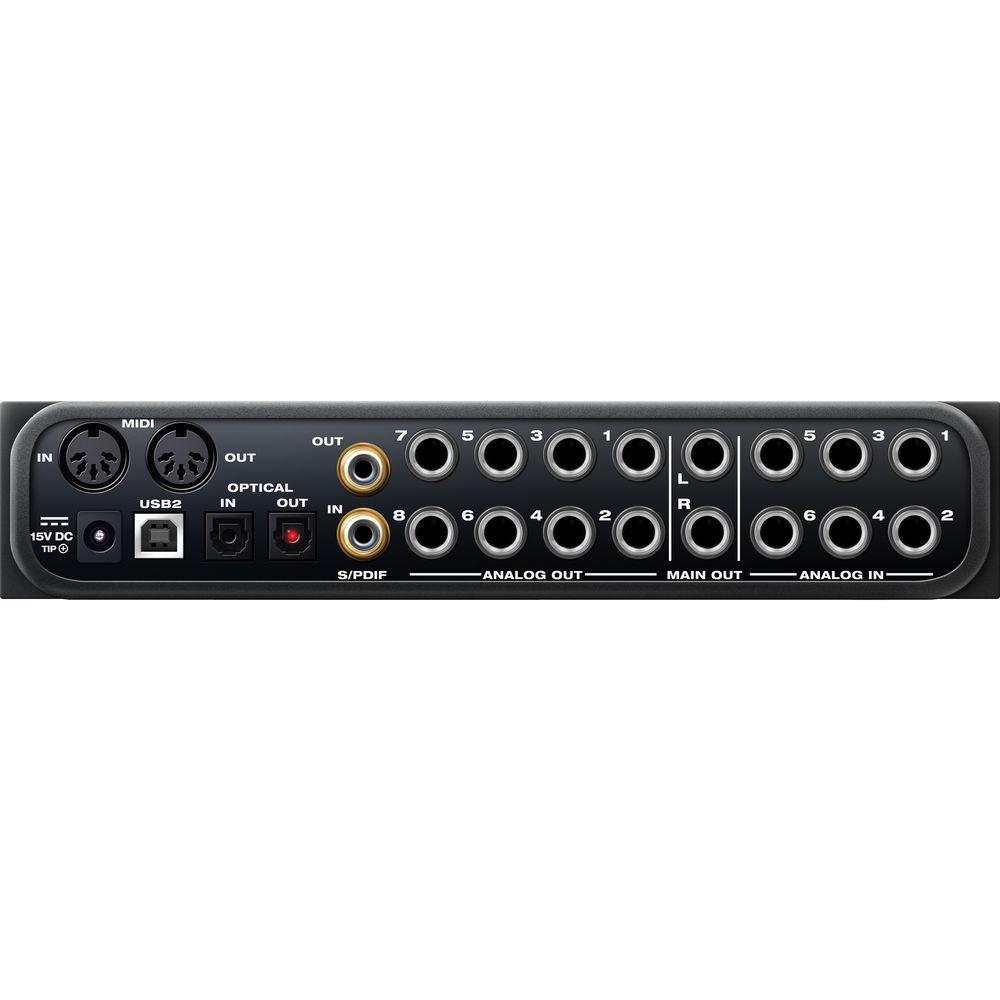

In conjunction with a DAW, the device can record audio at up to 192 kHz / 24-bit. It can do so via two combination XLR/1/4" jacks, as well as six 1/4" jacks on the back panel. Eight output jacks allow you to patch in outboard gear, while two main 1/4" outputs and a headphone jack give you monitoring capabilities. An optical I/O section allows you to connect eight channels of compatible inputs and outputs: a pair of S/PDIF connections afford you digital I/Os; MIDI can also be routed via two 5-pin DIN jacks.
In addition to the built-in 32-bit DSP effects provided by the UltraLite-mk4, the device ships with AudioDesk, a digital audio workstation for Mac and Windows which provides 24-bit recording, sample-accurate editing, and the ability to mix and master. The interface is class compliant—meaning no drivers are required in most cases—and can record audio at very low latencies. - Low-Latency Audio for Mobile or Studio Use
- The UltraLite-mk4 provides mobile USB 2.0 audio connectivity to your computer with low latency at sample rates up to 192 kHz in both Studio and Mobile settings.
- Comprehensive I/O
- This device provides multiple ins and outs including two mic/guitar inputs, six line-level analog inputs, ten analog outputs, 8-channels of optical digital I/O, S/PDIF digital I/O, MIDI I/O, and a headphone output.
- Studio and Stage Use

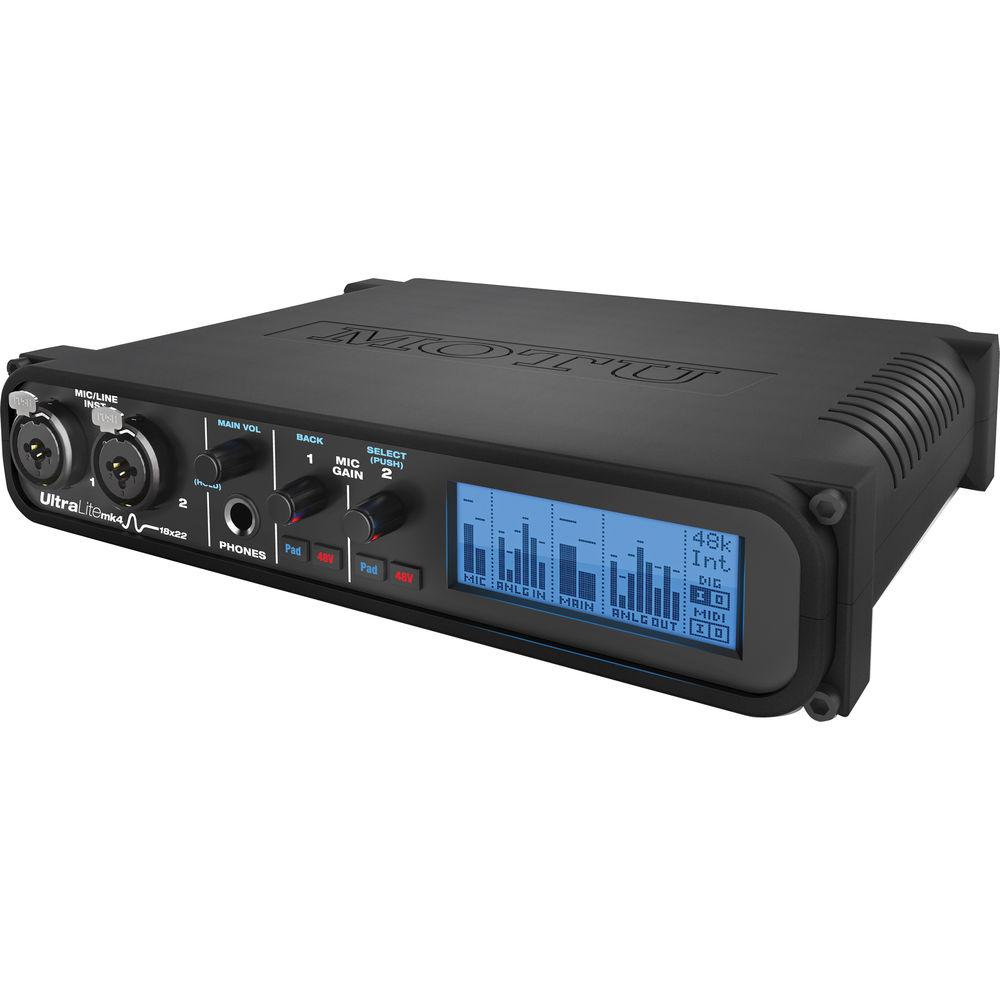

- Housed in a compact, aluminum-alloy enclosure, the UltraLite-mk4 is equally suited for studio and stage, either with or without a computer. As an interface or stand-alone mixer, the UltraLite-mk4 provides 18 inputs and 22 outputs, giving you enough real-estate to connect speakers, headphones, mics, guitars, synths, keyboards, drum machines, effects processors, and MIDI devices.
- Mixing via Graphic User Interface
- Record, monitor, route and process all live inputs using the onboard 48-channel mixer with no latency and no processor strain on your computer. This mixer can be utilized via the front panel's graphic user interface.
- DSP-Driven Effects Processing
- The UltraLite-mk4 ships with hardware-based, DSP-driven effects to liven up your mix, all of it independent of your host computer. Included is a reverb with decays up to 60 seconds in length, a 4-band parametric EQ, a model of the LA-2A optical compressor, and more.
- Analysis and Scope
- Analyze and scope your audio with diagnostic tools, including a full-screen, real-time FFT display, spectrogram waterfall display, oscilloscope, X-Y plot, and phase analyzer.
- Other Notable Features
-
- Using Web app control, you can tweak everything from your web browser on a laptop or a mobile device (table or smartphone) through a shared Wi-Fi network.
- This device connects to any computer with hi-speed USB 2.0, is audio class compliant, and compatible with USB 3.0 and iOS. Also, it's compatible with all audio software.
- Large backlit LCD lets you view all signal activity at a glance with detailed metering for all analog and digital I/O.
- Included is the AudioDesk workstation software for Mac and Windows, with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering.
UPC: 839128006058 In the Box MOTU UltraLite-mk4 18x22 USB Audio Interface with DSP AudioDesk Digital Audio Workstation for Mac & Windows Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOTU UltraLite-mk4 18x22 USB Audio Interface with DSP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOTU 8452 Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | 1 x USB Type-B (USB 2.0) | | Analog I/O | 2 x Combo XLR / 1/4" Input
6 x 1/4" (6.3 mm) Input
1 x 1/4" (6.3 mm) TRS Headphone Output
2 x 1/4" (6.3 mm) Monitor Output
8 x 1/4" (6.3 mm) Output | | Phantom Power | +48 V | | Digital I/O | 1 x TOSLINK / ADAT Input
1 x TOSLINK / ADAT Output
1 x RCA Coaxial / S/PDIF Input
1 x RCA Coaxial / S/PDIF Output | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out | | | | AC/DC Power Adapter | 15 VDC (Included) | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 15.0 x 11.4 x 5.5" |
