User Manual for Moultrie M-40 Trail Camera Click to enlarge the picture
Contents of the user manual for the Moultrie M-40 Trail Camera
- Product category: Trail/Wildlife Cameras Moultrie
- Brand: Moultrie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Moultrie Trail/Wildlife Cameras
 |
User manual for the Moultrie M-40 Trail Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Moultrie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Moultrie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Moultrie product will considerably shorten its lifespan!
|

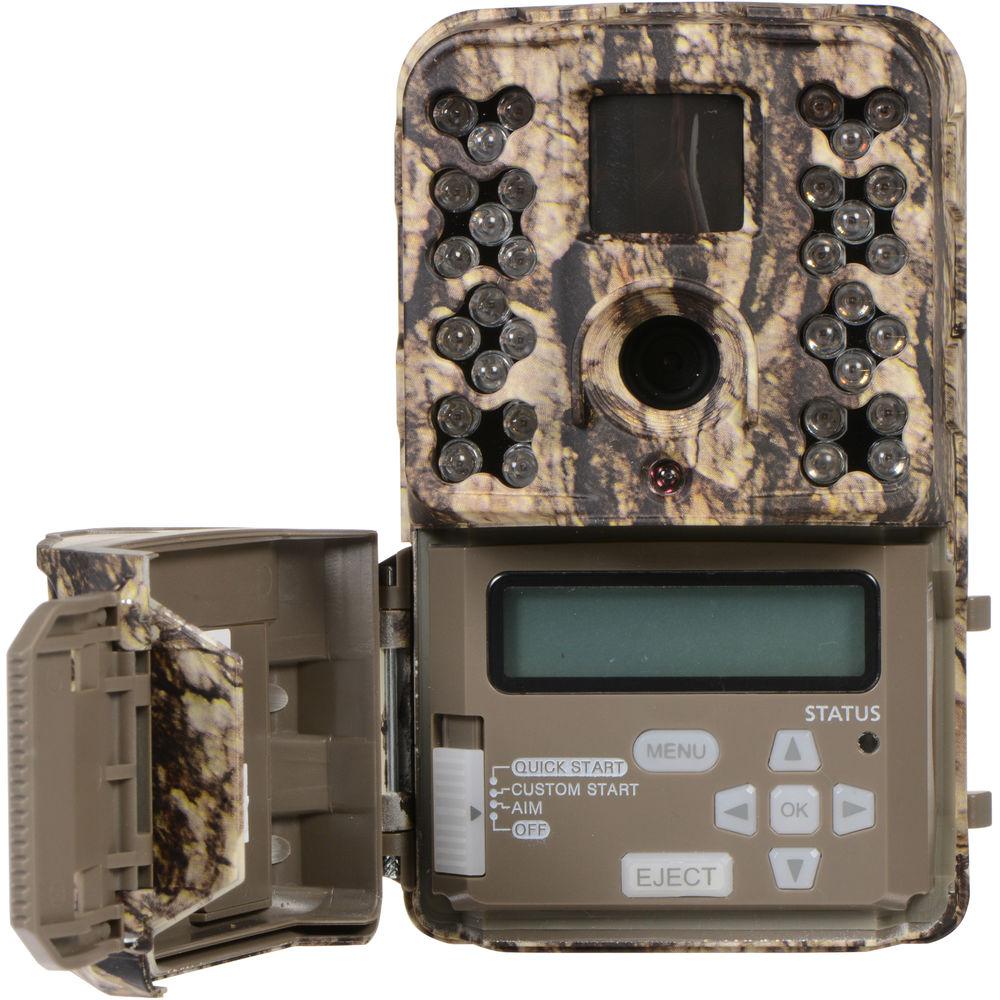

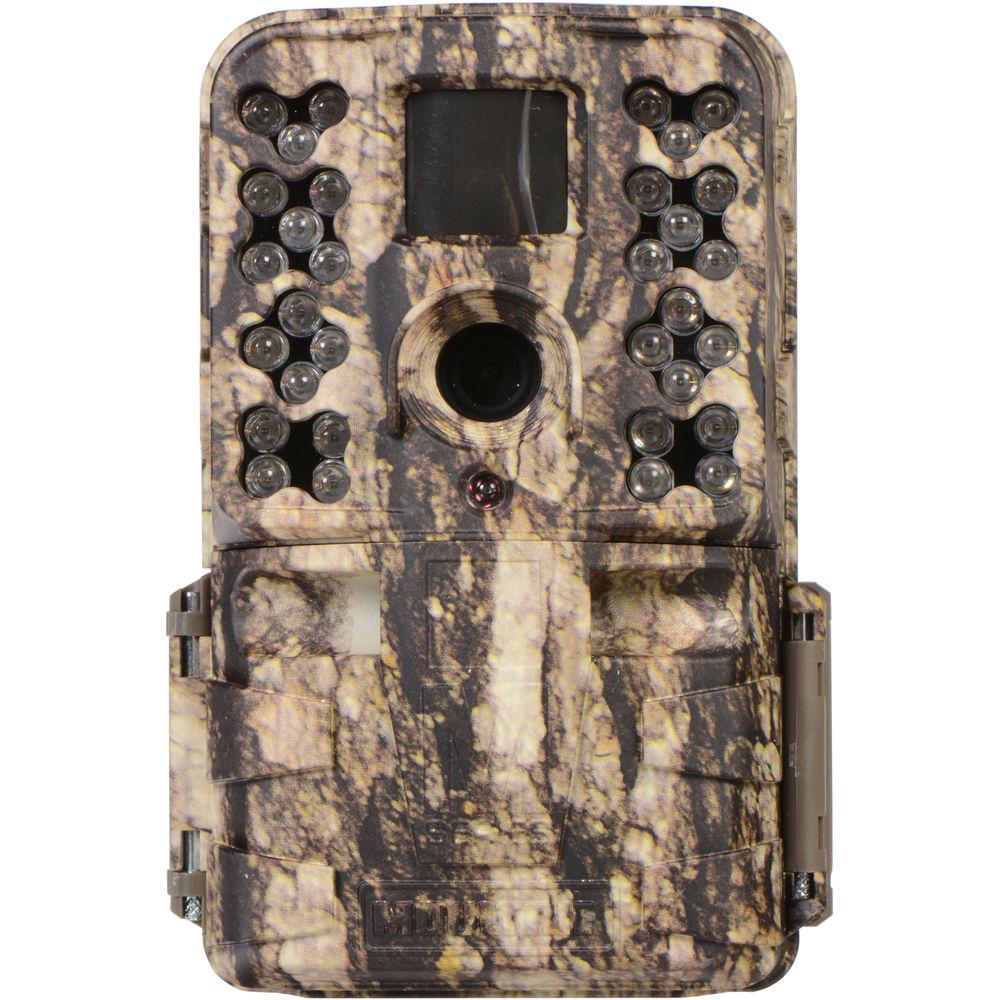

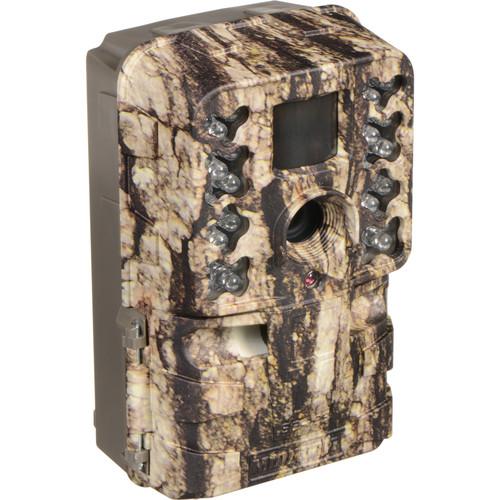

Product description Capture 16MP photos and HD 1080p video of wildlife and people with the Moultrie M-40 Trail Camera in Moultrie Pine camo. This trail cam's PIR motion sensor has an 80-foot range and a trigger speed of just 0.3 seconds, and you can program it to operate in time-lapse mode at selectable intervals so you can see patterns and changes over time. Benefit from an infrared flash with 32 LEDs and a 100-foot range for discreet nighttime illumination. To aid your night shots further, the camera uses fast shutter speeds after dark to reduce subject motion blur for optimal clarity. The M-40 records photos and videos to optional SD/SDHC memory cards up to 32GB. Power is provided by 8 optional AA batteries or an external power supply. - Photo and Video Resolution
-
- Maximum still image resolution: 16MP
- HD 1920 x 1080 video with sound
- Motion Sensor
-
- Passive infrared (PIR) motion sensor detects the changes in temperature that occur when subjects move, and captures images in response
- Motion detection range: 80'
- Trigger speed: 0.3 sec
- Interval Recording
-
- Can be programmed to operate in time-lapse mode at selectable intervals, such as every 30 sec or every 1 min for a duration of 1 or a few hours, allowing you to see patterns and change over time
- Time-lapse mode can be scheduled at different times of day to allow for monitoring dusk and dawn activity
- Hybrid Mode
-
- Enables camera to be triggered by both motion sensor and time-lapse function
- If an animal or trespasser moves into detection zone in between time-lapse intervals, motion sensor will pick up movement so camera won't miss the shot
- Flash
-
- Nighttime infrared flash with 32 LEDs and 100-foot range in total darkness for covert nighttime illumination
- Offers illumination while remaining discreet, so wildlife and humans will most likely not be able to notice it and be spooked/alerted
- Motion Blur Reduction
-
- Utilizes fast shutter speeds to minimize subject motion blur for clear nighttime images
- Setup, Display, and Options
-
- Small black-and-white text screen for menu navigation and settings selection
- Quick Start and Custom Start options available
- Memory
-
- Records photos and videos to optional SD/SDHC memory cards up to 32GB
- Managed Memory feature: If set to "Overwrite Oldest," camera will erase your oldest photos and videos to free up space for new ones when card reaches full capacity
- Enhanced compression technology for up to 2.5x more image storage than previous Moultrie cameras

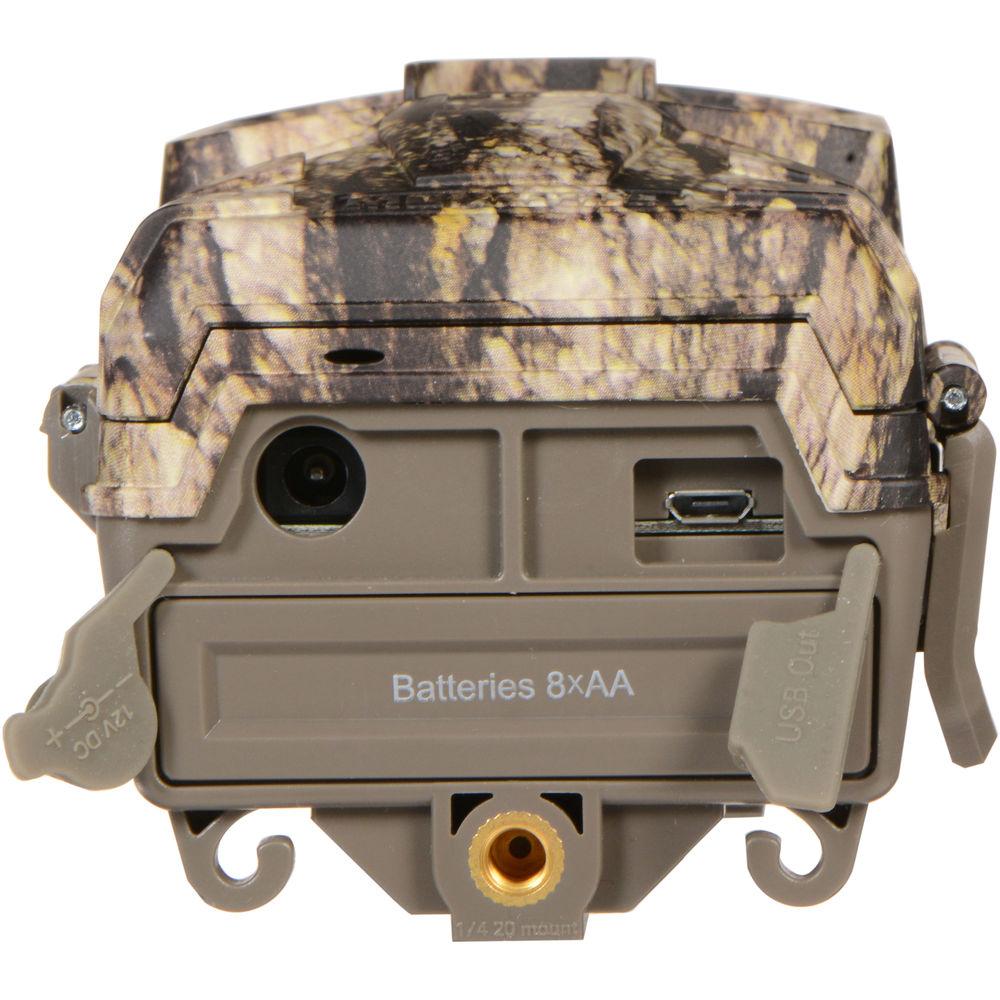

- Power
-
- Runs on 8 optional AA batteries, which allow for up to 17,000 images depending on usage and settings
- Compatible with any optional Moultrie 12 VDC external power source or an AC power supply

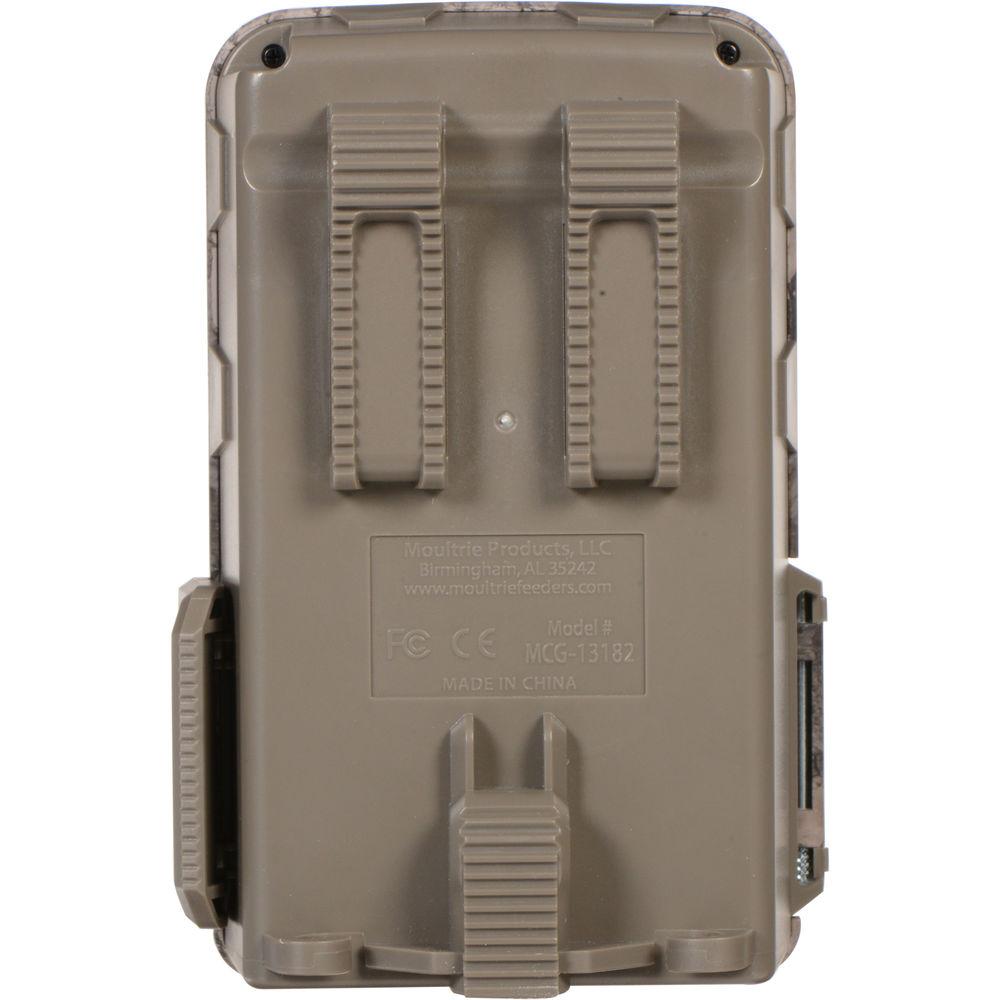

- Mounting
-
- Standard 1/4"-20 threaded hole on bottom for connection to optional tree/post mounts
- Slots in back for included nylon strap or optional Python lock cable
- Durability
-
- Rugged, weather-resistant housing protects camera from the elements over extended periods of outdoor use
UPC: 053695131818 In the Box Moultrie M-40 Trail Camera Nylon Mounting Strap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Moultrie M-40 Trail Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Moultrie M-40 Trail Camera can be downloaded in PDF format at the link stated below.
Technical parametersMoultrie M40 Specs | Camera Type | Surveillance/Trail/Wildlife | | | | Image Resolution | 16 MP | | Image File Format | JPEG | | Built-In Flash | 32 x IR LEDs | | Effective Flash Range | 100' / 30.5 m | | | | Sensor Type | Passive Infrared (PIR) | | Detection Range | 80' / 24.4 m | | Trigger Speed | 0.3 Seconds | | | | Burst Capability | 2 Images per Trigger (Min)
3 Images per Trigger (Max) | | Interval Delay | 5 Seconds | | | | Audio Recording | Yes | | Video Recording | Yes | | Video Format | 1920 x 1080p | | | | Wireless Connectivity | Wi-Fi | | | | Memory Card Type | SDHC (Up to 32 GB) | | Battery Type | 8 x AA (Not Included) | | External Power Source Capable | Yes, 12 VDC (Not Included) | | Display | Yes, Grayscale | | Playback | No | | Mounting | 1/4"-20 Female | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 9.2 x 5.45 x 3.3" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
