Moultrie M-40i Trail Camera

Search your instruction manual in PDF to download

User Manual for Moultrie M-40i Trail Camera

Click to enlarge the picture
Moultrie M-40i Trail Camera Contents of the user manual for the Moultrie M-40i Trail Camera
  • Product category: Trail/Wildlife Cameras Moultrie
  • Brand: Moultrie
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Moultrie Trail/Wildlife Cameras

Moultrie M-40i Trail Camera Moultrie M-40i Trail Camera Moultrie M-40i Trail Camera Moultrie M-40i Trail Camera Moultrie M-40i Trail Camera
User manual for the Moultrie M-40i Trail Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Moultrie product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Moultrie user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Moultrie product will considerably shorten its lifespan!



Product description

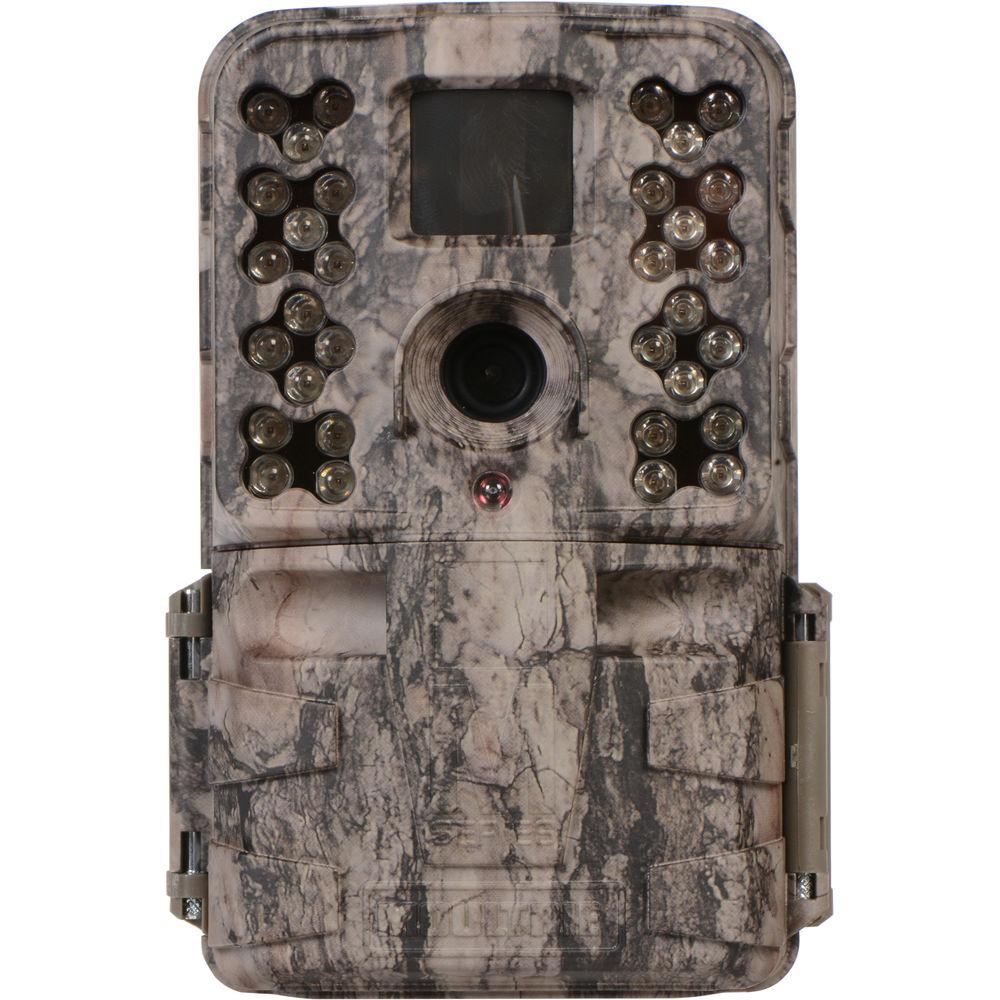

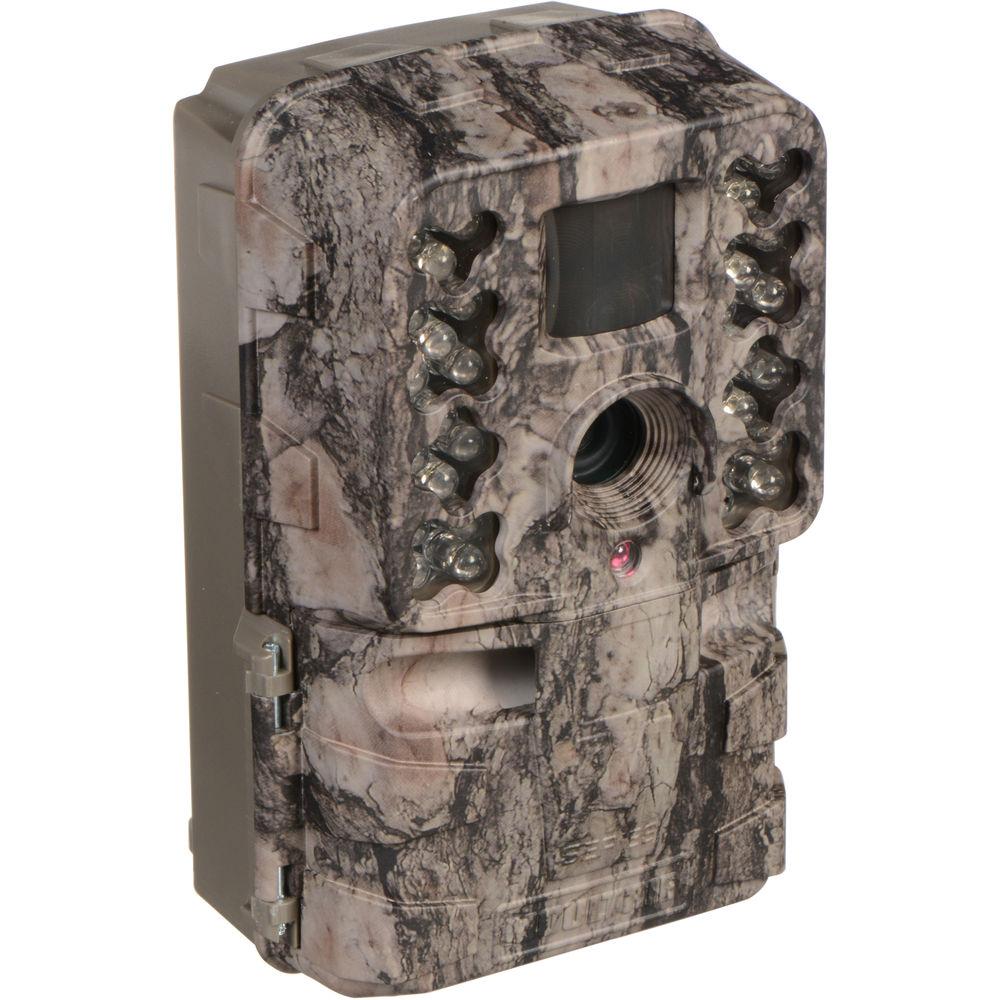

Capture 16MP photos and HD 1080p video of wildlife and people with the Moultrie M-40i Trail Camera in Moultrie Pine camo. This trail cam's PIR motion sensor has an 80-foot range and a trigger speed of just 0.3 seconds, and you can program it to operate in time-lapse mode at selectable intervals so you can see patterns and changes over time. Benefit from an invisible infrared flash with 32 LEDs and a 80-foot range for discreet nighttime illumination. To aid your night shots further, the camera uses fast shutter speeds after dark to reduce subject motion blur for optimal clarity. The M-40i records photos and videos to optional SD/SDHC memory cards up to 32GB. Power is provided by 8 optional AA batteries or an external power supply.
    Photo and Video Resolution
    • Maximum still image resolution: 16MP
    • HD 1920 x 1080 video with sound
    Motion Sensor
    • Passive infrared (PIR) motion sensor detects the changes in temperature that occur when subjects move, and captures images in response
    • Motion detection range: 80'
    • Trigger speed: 0.3 sec
    Interval Recording
    • Can be programmed to operate in time-lapse mode at selectable intervals, such as every 30 sec or every 1 min for a duration of 1 or a few hours, allowing you to see patterns and change over time
    • Time-lapse mode can be scheduled at different times of day to allow for monitoring dusk and dawn activity
    Hybrid Mode
    • Enables camera to be triggered by both motion sensor and time-lapse function
    • If an animal or trespasser moves into detection zone in between time-lapse intervals, motion sensor will pick up movement so camera won't miss the shot
    Flash
    • Invisible infrared flash with 32 LEDs and 80-foot range in total darkness for covert nighttime illumination
    • Offers illumination while remaining discreet, so wildlife and humans will most likely not be able to notice it and be spooked/alerted
    Motion Blur Reduction
    • Utilizes fast shutter speeds to minimize subject motion blur for clear nighttime images
    Setup, Display, and Options

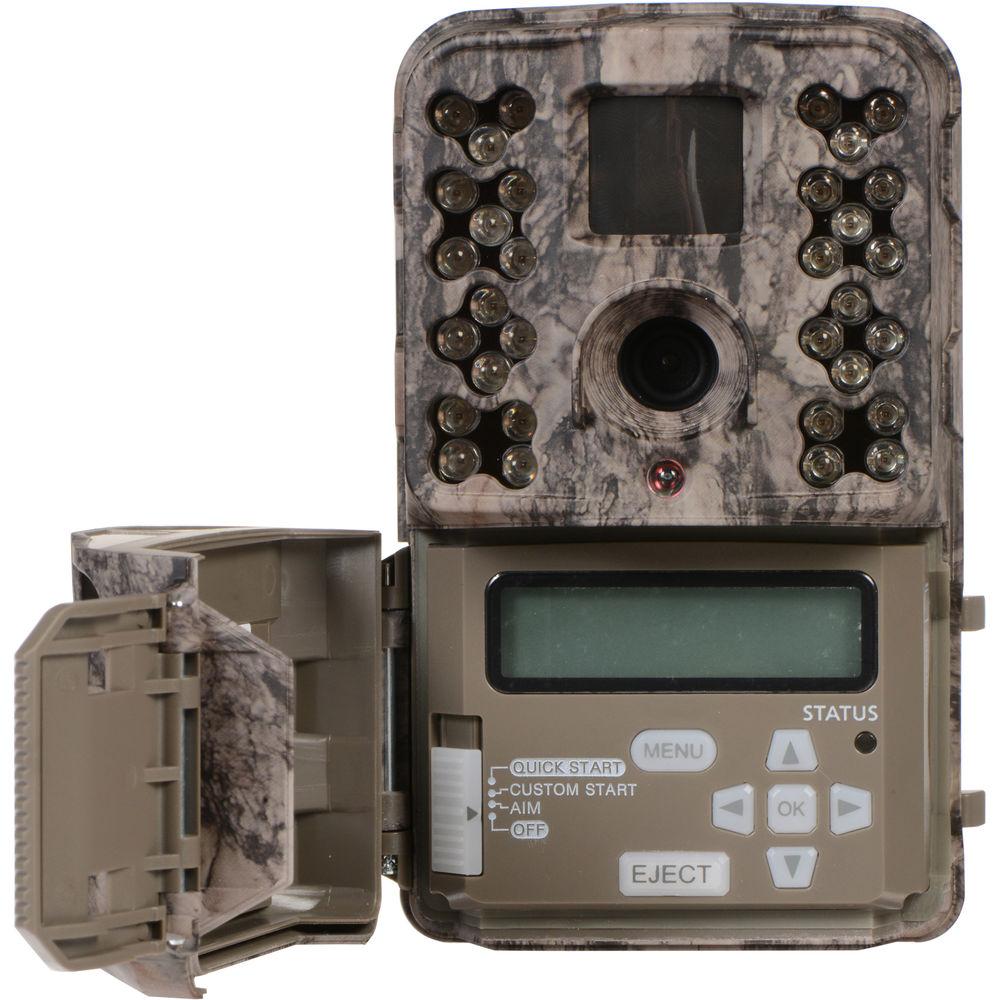

    • Small black-and-white text screen for menu navigation and settings selection
    • Quick Start and Custom Start options available
    Memory
    • Records photos and videos to optional SD/SDHC memory cards up to 32GB
    • Managed Memory feature: If set to "Overwrite Oldest," camera will erase your oldest photos and videos to free up space for new ones when card reaches full capacity
    • Enhanced compression technology for up to 2.5x more image storage than previous Moultrie cameras

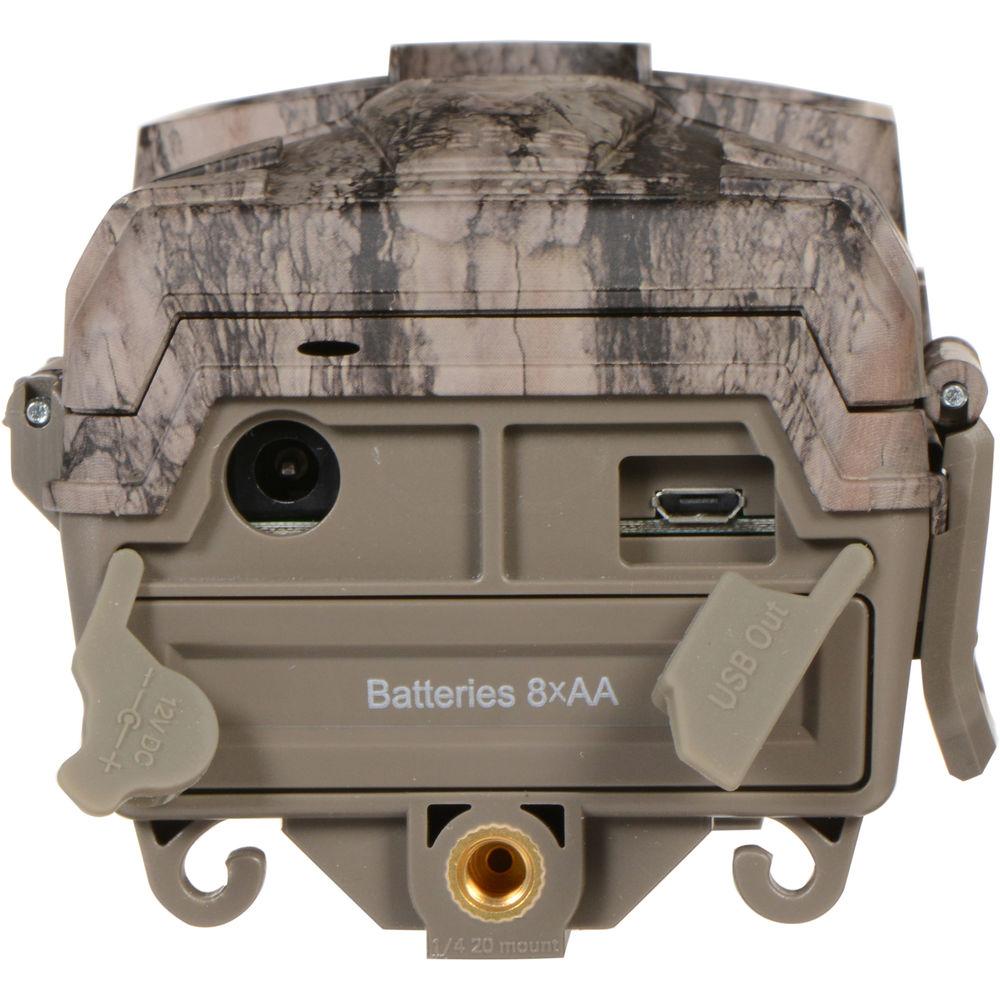

    Power
    • Runs on 8 optional AA batteries, which allow for up to 17,000 images depending on usage and settings
    • Compatible with any optional Moultrie 12 VDC external power source or an AC power supply

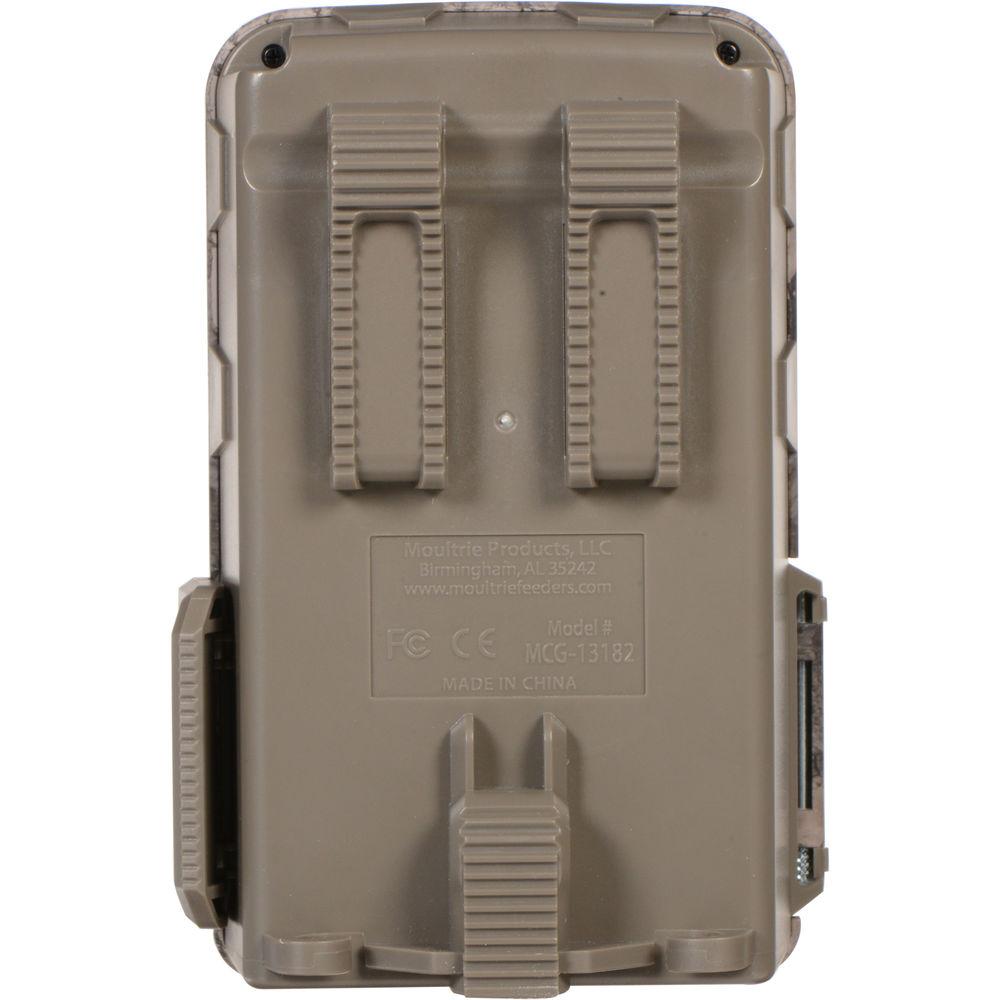

    Mounting
    • Standard 1/4"-20 threaded hole on bottom for connection to optional tree/post mounts
    • Slots in back for included nylon strap or optional Python lock cable
    Durability
    • Rugged, weather-resistant housing protects camera from the elements over extended periods of outdoor use
UPC: 053695131825 In the Box Moultrie M-40i Trail Camera
  • Nylon Mounting Strap
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Moultrie M-40i Trail Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Moultrie M40i Specs

    Camera Type Trail/wildlife/surveillance
    Resolution Maximum: 16 MP
    Sensor Motion Sensor: passive infrared
    Detection Range: 80'
    Trigger Speed: 0.3 sec
    File Formats JPEG
    Burst Capability Yes, multi-shot mode captures 2-3 images per trigger
    Delay Approx. 5.0-sec delay between triggers
    Interval Recording Yes, time-lapse mode captures images at selectable intervals
    Built-in Flash Invisible infrared flash with 32 LEDs
    IR Wavelength: 940 nm
    Effective Flash Range 80' / 24.4 m
    Memory Card Type SD/SDHC Class 4 or higher cards up to 32 GB (not included)
    Video Recording Yes
    Video Resolution HD 1920 x 1080
    Display Small black-and-white text screen for menu navigation and settings selection
    Playback No
    Durability Weather-resistant housing
    Battery Type 8 x AA batteries (not included)
    Power Adapter Compatible with any optional Moultrie 12 VDC external power source or an AC power supply
    Mounting Standard 1/4"-20 threaded hole on bottom
    Dimensions Not specified by manufacturer
    Package Weight 1.2 lb
    Box Dimensions (LxWxH) 8.9 x 5.4 x 3.3"
