Moultrie P-120i Trail Camera

Search your instruction manual in PDF to download

User Manual for Moultrie P-120i Trail Camera

Click to enlarge the picture
Moultrie P-120i Trail Camera Contents of the user manual for the Moultrie P-120i Trail Camera
  • Product category: Trail/Wildlife Cameras Moultrie
  • Brand: Moultrie
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Moultrie Trail/Wildlife Cameras

Moultrie P-120i Trail Camera Moultrie P-120i Trail Camera Moultrie P-120i Trail Camera Moultrie P-120i Trail Camera Moultrie P-120i Trail Camera Moultrie P-120i Trail Camera Moultrie P-120i Trail Camera Moultrie P-120i Trail Camera Moultrie P-120i Trail Camera
User manual for the Moultrie P-120i Trail Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Moultrie product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Moultrie user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Moultrie product will considerably shorten its lifespan!

Product description

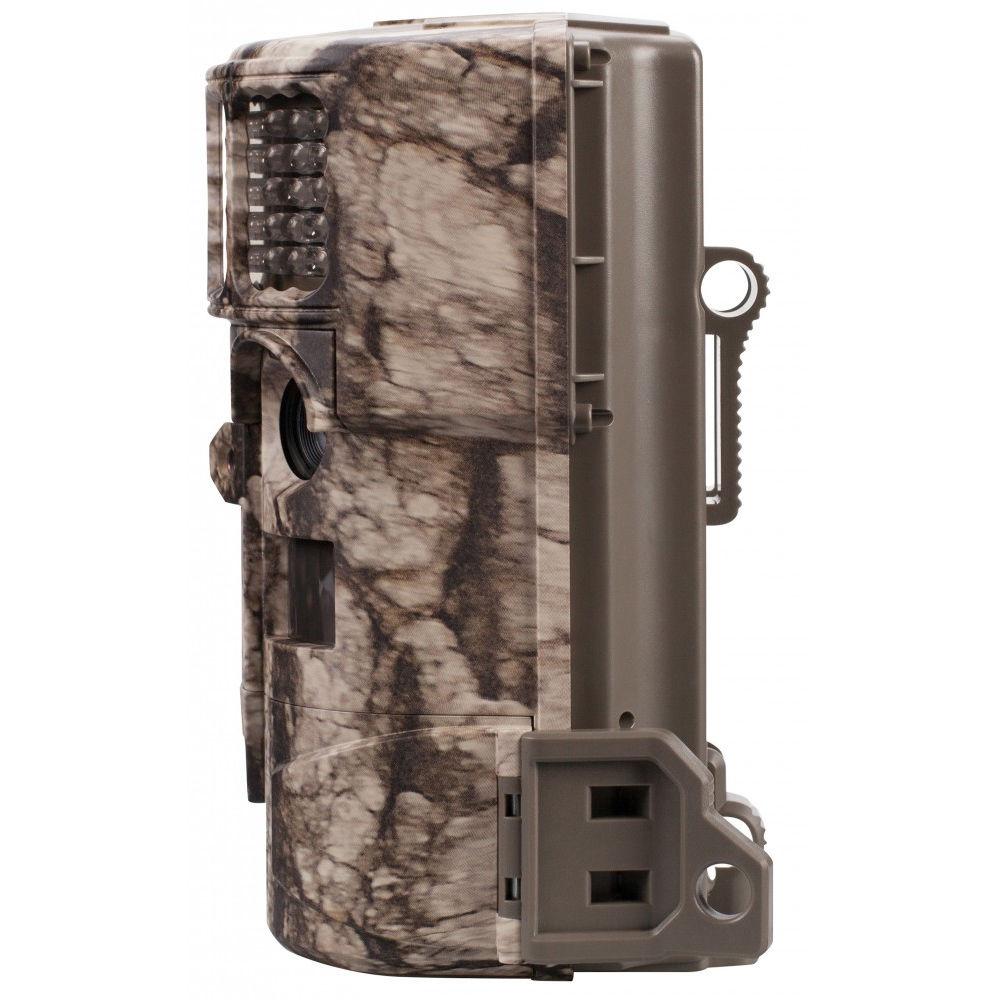

Capture 20MP photos and Full HD 1080 video in wide 120° coverage with the Moultrie P-120i Trail Camera. Dual cameras with invisible infrared flash capture panoramic photos of game (or human) activity on your property or hunting grounds. Trigger speed is a fast 0.5 seconds, and the flash and motion detector both have a 70' range. In addition to motion-detection mode, the camera can also operate in time-lapse mode, taking photos at intervals, or in both modes at once. The P-120i records photos and videos to user-supplied SD/SDHC class 4 or higher memory cards, up to 32GB. Power is provided by 8 user-supplied AA batteries or an optional external power supply. The camera is compatible with Moultrie Mobile cellular service when paired with a separately sold Moultrie MV1 Field Modem.
    Photo/Video Performance
    • Maximum still image resolution: 20MP
    • Full HD 1920 x 1080p video
    • Dual cameras for 120° field of view
    • Three-photo burst capability (4MP max)
    • Delay between shots when detected animal remains in range: 10, 30 sec / 1, 5, 10, or 30 min
    • Time, date & temperature stamp on images
    Motion Detection
    • Detection range: 70'
    • Trigger speed: 0.5 sec
    Time Lapse
    • Automatically takes pictures at programmable intervals over a given period of time
    • Selectable intervals: 10, 30 seconds / 1, 5, 10, 15, or 30 minutes / 1, 2, 3, 6, 12 hours / 1 day
    • Time lapse and motion detection modes can be used simultaneously
    • Invisible infrared
    • Range: 70'

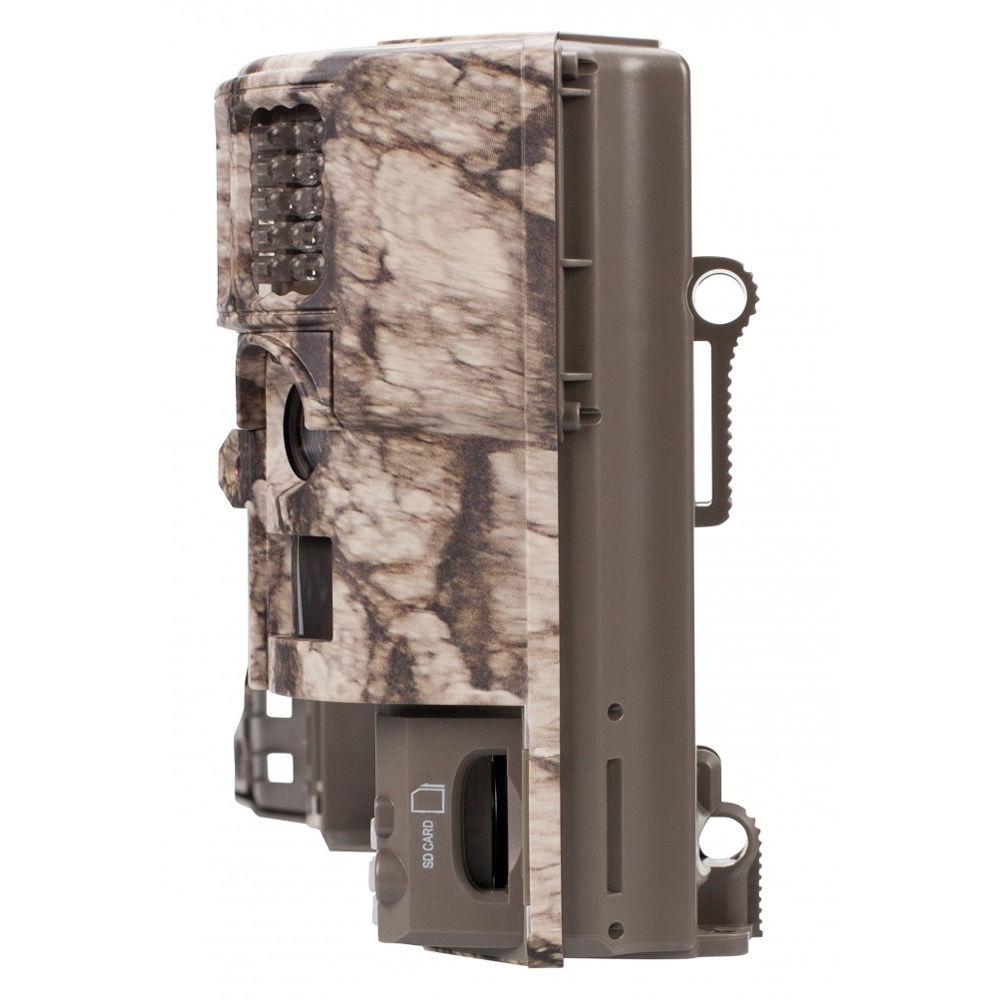

    • Records images & video to user-supplied SD/SDHC Class 4 or higher memory cards up to 32GB
    • Runs on 8 user-supplied AA batteries, which allow you to capture about 15,000 images depending on usage and settings

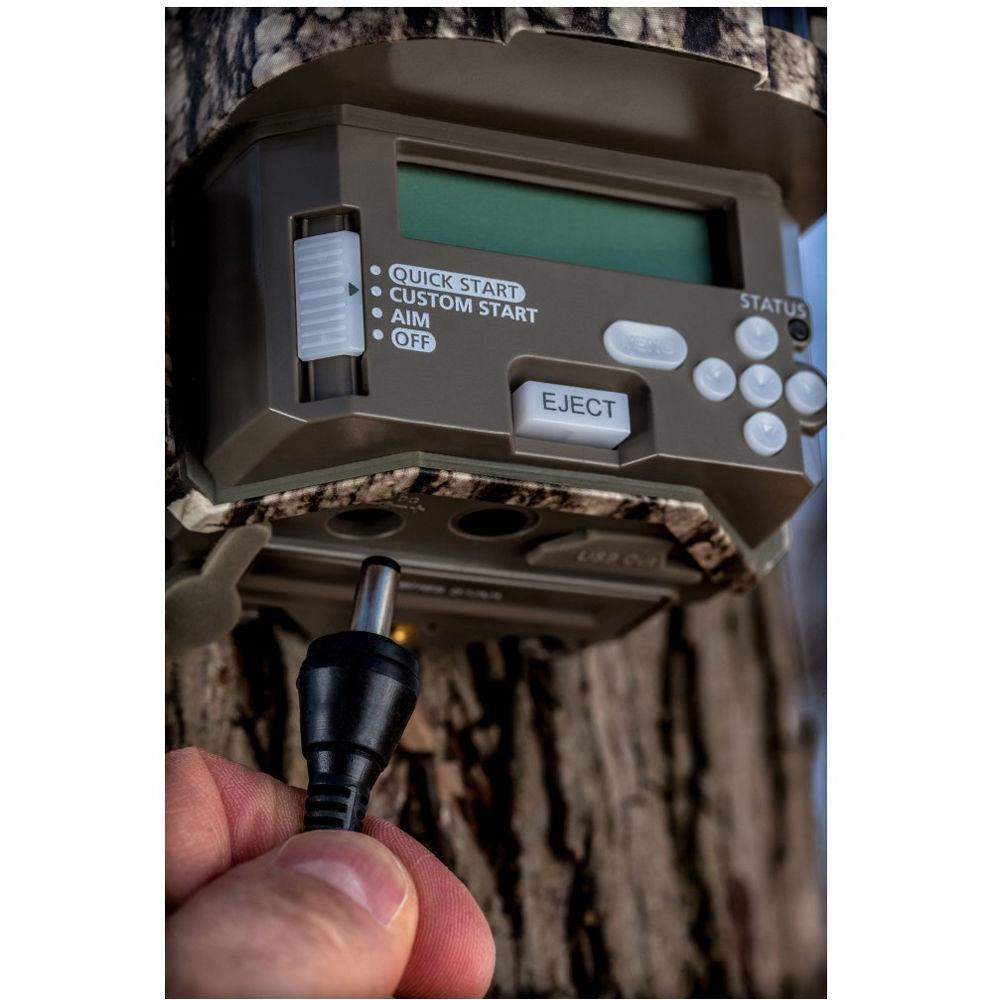

    • Compatible with any Moultrie 12 VDC external power source
    • Can also run on optional AC power supply
    • Compatible with Moultrie Mobile Wireless Modem MV1, which grants you remote access to camera via Verizon Wireless network
    • Standard 1/4"-20 threaded hole on bottom for connection to optional tree/post mounts

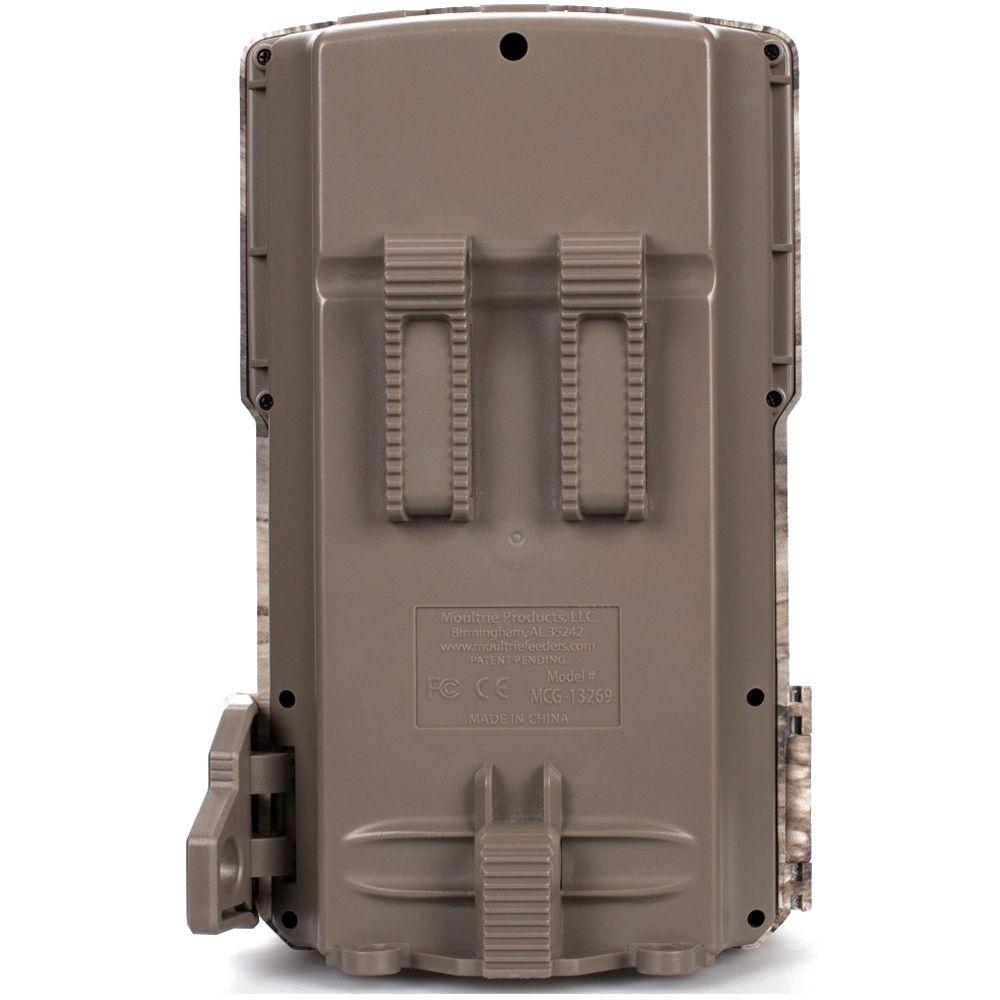

    • Slots in back for included nylon strap or optional Python lock cable

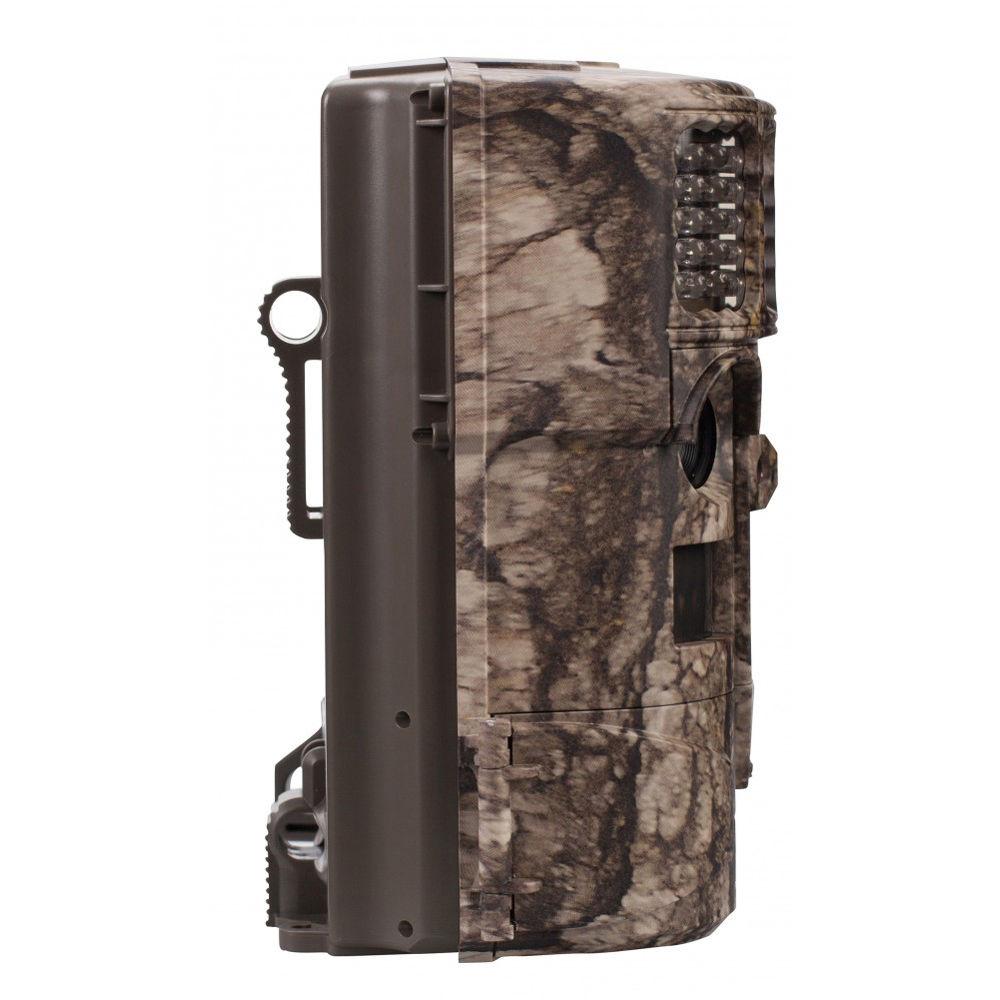

    • Rugged, weatherproof plastic housing protects camera from the elements over extended periods of outdoor use
UPC: 053695132693 In the Box Moultrie P-120i Trail Camera (Moultrie Bark Camo)
  • Mounting Strap
  • Limited 2-Year Warranty
  • Table of Contents

    Upload User Manual

    Have you got an user manual for the Moultrie P-120i Trail Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)


    Technical parameters

    Moultrie P-120i Specs

    Camera Type Surveillance/Time Lapse/Trail/Wildlife
    Image Resolution 20 MP
    Additional Resolutions 14 MP x
    9 MP x
    4 MP x
    2 MP x
    Built-In Flash IR LEDs
    Effective Flash Range 70' / 21.3 m
    Time/Date Stamp Yes
    Sensor Type Passive Infrared (PIR)
    Detection Range 70' / 21.3 m
    Trigger Speed 0.5 Seconds
    Burst Capability 3 Images per Trigger
    Audio Recording Yes
    Video Format 1280 x 720p
    1920 x 1080p
    Video Clip Length 5, 10, 30, 60, 90 Seconds
    30 Seconds (Nighttime Max)
    Wired Connectivity USB
    Waterproof Yes
    Memory Card Type SDHC (Up to 32 GB)
    Battery Type 8 x AA (Not Included)
    External Power Source Capable Yes, 12 VDC (Not Included)
    Security Holed for Locking
    Mounting 1/4"-20 Female
    Mounting Strap (Included)
    Package Weight 1.61 lb
    Box Dimensions (LxWxH) 9.5 x 5.5 x 4.35"


    90% users recommend this product to others. And what about you?
    Rating: 4.5 of 5

    This product has already been rated by 84 owners. Add your rating and experience with the product.


    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Moultrie P-120i Trail Camera

    Subject: Moultrie P-120I
    Date: 25.11.2021 16:36:36Name: Tom B
    My camera's flash on one side quit working n you can't see any night pictures on one side because they are to dark.

    Any suggestions?
