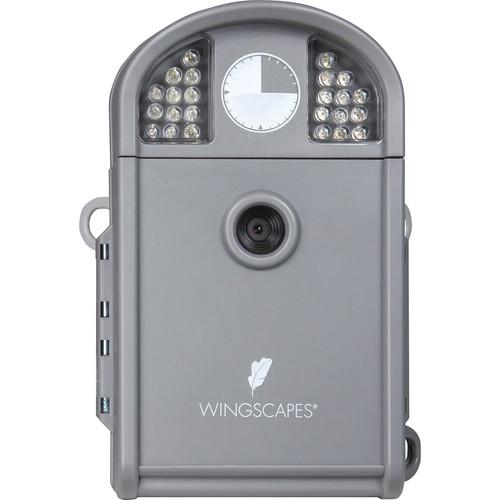

User Manual for Moultrie Wingscapes TimelapseCam Pro Digital Camera Click to enlarge the picture
Contents of the user manual for the Moultrie Wingscapes TimelapseCam Pro Digital Camera
- Product category: Trail/Wildlife Cameras Moultrie
- Brand: Moultrie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Moultrie Trail/Wildlife Cameras
|
User manual for the Moultrie Wingscapes TimelapseCam Pro Digital Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Moultrie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Moultrie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Moultrie product will considerably shorten its lifespan!
|
Product description Capture 20MP photos and Full HD 1080p video of projects, environments, or animals over time, and then see days, weeks, or months of activity in fast-forward mode with the Wingscapes TimelapseCam Pro Digital Camera from Moultrie. It automatically takes pictures at regular intervals and allows you to combine them into time-lapse videos using downloadable software, so you can see all that has transpired over a given period. The camera's close minimum focus distance of 6" makes it well-suited for birding, though it is effective for myriad applications ranging from construction development to security/surveillance.
The TimelapseCam Pro offers a 24-LED white flash with an effective range of 25' for ample nighttime illumination. It records images to optional SD/SDHC memory cards up to 32GB, including Wi-Fi enabled cards. Power is provided by 8 AA batteries or an optional 12 VDC or AC external power source. Built for durability, the camera features a lockable, weatherproof plastic exterior capable of withstanding the elements over long periods of outdoor use. As an added bonus, a mounting bracket and strap are included for mounting onto a tree or post. - Photo and Video Resolution
-
- Maximum still image resolution: 20MP (6080 x 3420)
- Three other image resolution settings available, with minimum being 2.5MP (2115 x 1188)
- Full HD 1920 x 1080p video recording with sound during day and night
- Interval Recording
-
- Automatically takes pictures at regular, programmable intervals over a given period of time that you select
- Available intervals: 10 sec, 30 sec, 1 min, 5 min, 10 min, 15 min, 30 min, 1 h, 2 h, 3 h, 6 h, 12 h, and 1 day
- See days, weeks, or months of activity in fast-forward mode when you combine captured images into time-lapse movies via downloadable software
- Ideal for showing project development, environments, animals, and more
- Flash
-
- Equipped with 24-LED white flash featuring a 25' range
- Focus
-
- Variable-focus camera with range of 6" to infinity
- Close minimum focus distance of 6" makes it well-suited for birding
- Focus can be adjusted by turning dial manually
- Setup, Display, and Options
-
- 2.0" TFT color display screen for setup/menu and image playback
- Time, date, and location stamping on images
- Memory
-
- Records photos and videos to optional SD/SDHC Class 4 or higher cards up to 32GB, including Wi-Fi enabled cards
- Managed Memory feature: If set to "Overwrite Oldest," TimelapseCam Pro will erase your oldest photos and videos to free up space for new ones when memory card reaches full capacity
- Power
-
- Runs on 8 AA batteries, which provide an average run time of about 6 months
- Compatible with any optional Moultrie 12 VDC external power source, or an optional AC power supply
- Connectivity
-
- Compatible with Moultrie Mobile Wireless Modem MV1, which grants you remote access to camera via Verizon Wireless network
- View, send, and manage images from PC, tablet, or smartphone using Moultrie's free mobile app
- Receive email or text alerts when new images are captured
- Mounting
-
- Standard 1/4"-20 threaded hole on bottom for connection to included mounting bracket or optional tripod
- Slots on back for included, weather-resistant nylon strap or optional Python lock cable
- Durability
-
- Compact, rugged case with a weatherproof plastic exterior to withstand elements over extended periods of outdoor use
UPC: 858381001297 In the Box Moultrie Wingscapes TimelapseCam Pro Digital Camera Mounting Bracket Weather-Resistant Nylon Mounting Strap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Moultrie Wingscapes TimelapseCam Pro Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMoultrie WCT-00126 Specs | Camera Type | Surveillance/Time Lapse/Wildlife | | | | Image Resolution | 20 MP | | Additional Resolutions | 2.5 MP x | | Image File Format | JPEG | | Focus Type | Fixed (Adjustable) | | Focus Range | 6' / 1.8 m to Infinity | | Built-In Flash | 24 x Black Low-Glow 850 nm Wavelength IR LEDs | | Effective Flash Range | 25' / 7.6 m | | | | Interval Recording | 10, 30 Seconds
1, 5, 10, 15, 30 Minutes
1, 2, 3, 6, 12, 24 Hours | | Exposure Modes | Day
Night | | | | Audio Recording | Yes | | Video Recording | Yes | | Video Format | 1920 x 1080p | | | | Memory Card Type | SDHC (Up to 32 GB) | | Battery Type | 8 x AA | | External Power Source Capable | Yes, 12 VDC (Not Included) | | Display | Yes, 2" / 5.1 cm Color | | Playback | Yes | | Security | Holed for Locking | | Mounting | 1/4"-20 Female | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 10.3 x 6.1 x 3.8" |
