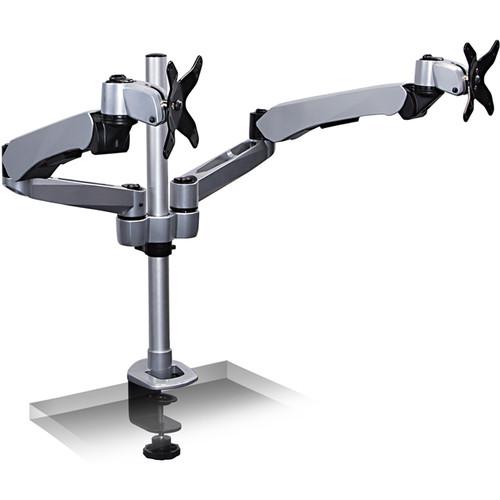

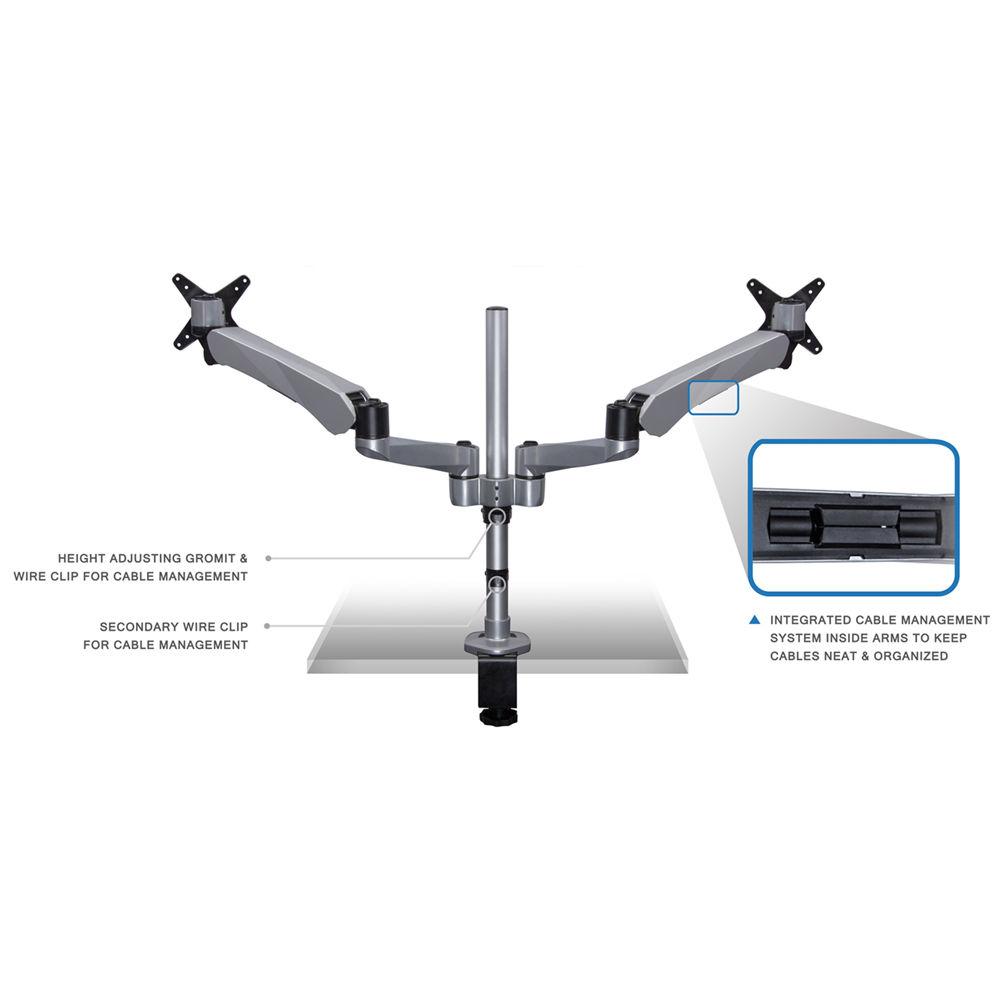

Product description Save desk space and position your monitors just how you like them with the Quick Connect Dual Monitor Desk Mount with Articulating Spring Arms from Mount-It!. Compatible with VESA 75 x 75 and 100 x 100mm standards, the mount will support any two flat screen displays between 13 and 24" and no heavier than 19.8 lb. Its adjustable settings enable a comfortable and productive viewing position that helps reduce eye fatigue, neck, and back strain. Integrated cable management keeps your cables untangled and out of the way. No drilling is required; the mount attaches either onto your work surface with a secure dual c-clamp mechanism, or through your desk with the included grommet. All hardware needed for installation is included, as are setup instructions. - Adjustable Position
-
- Adjust the height of your monitors by sliding the arm up and down the 19.8" pole.

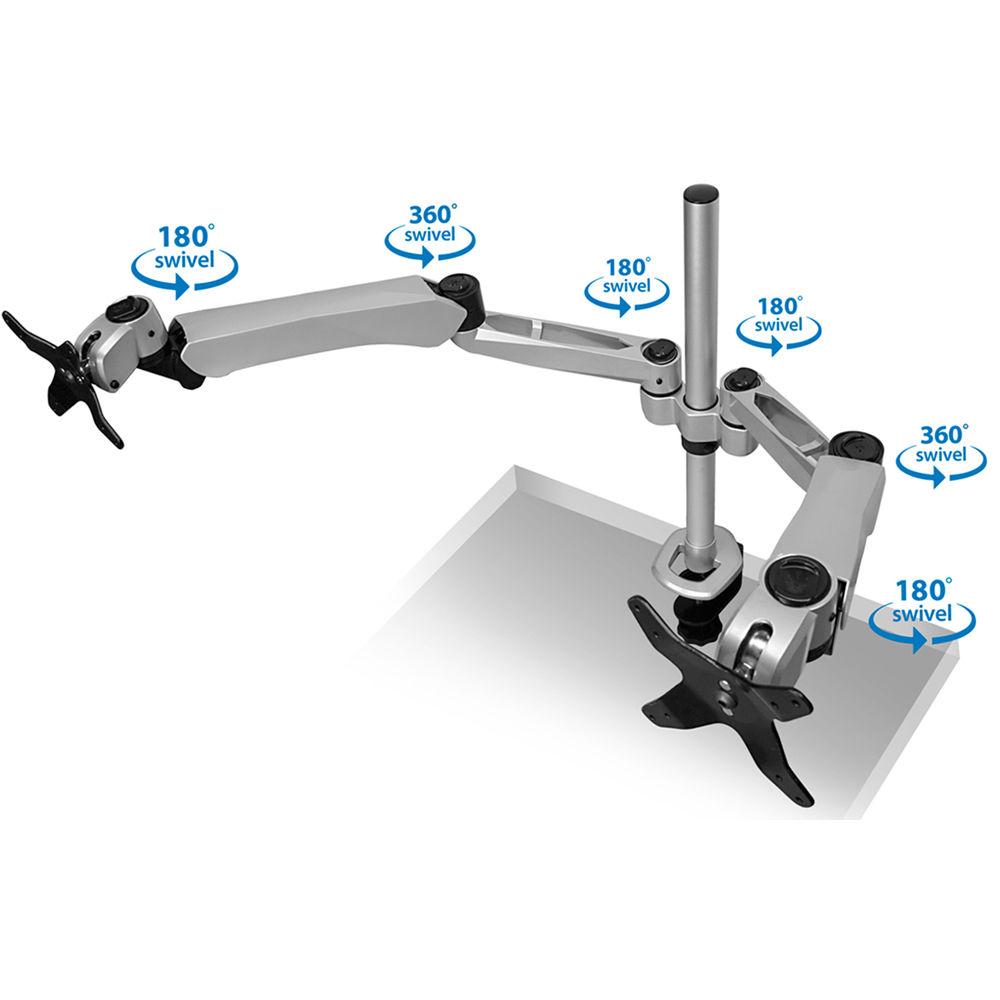

- The mount heads that connect the monitors to the arms can swivel 345° side to side.

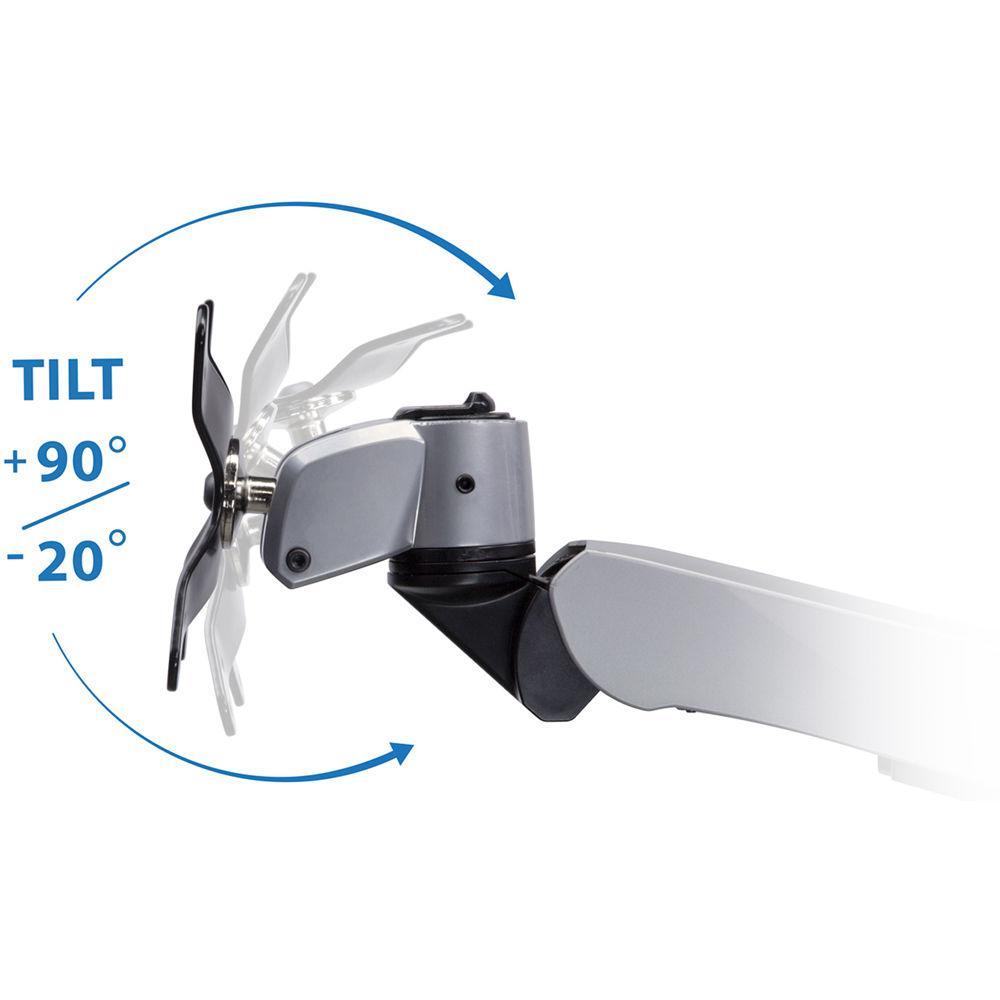

- Customize your viewing angle by tilting the monitors up 90° and down 20°.

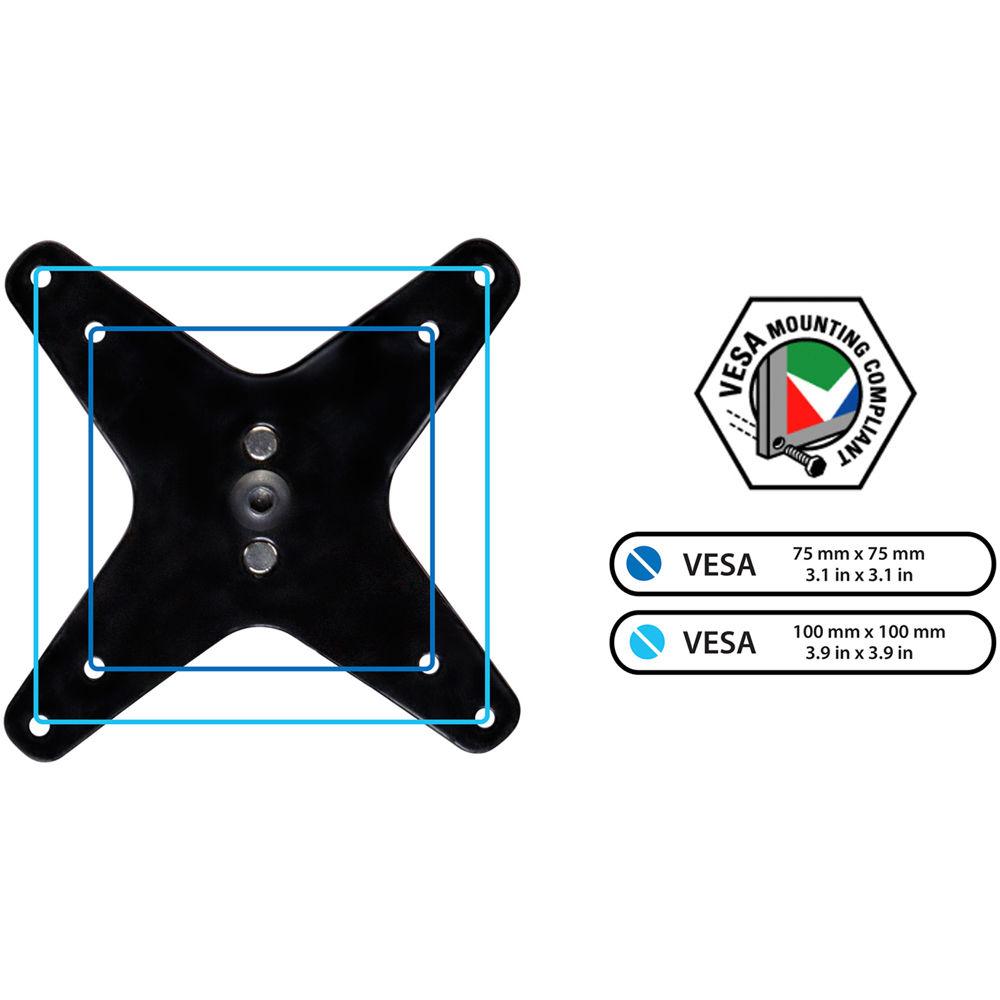

- The VESA mounts that hold your monitors can rotate 360° to switch easily from Portrait to Landscape orientation.

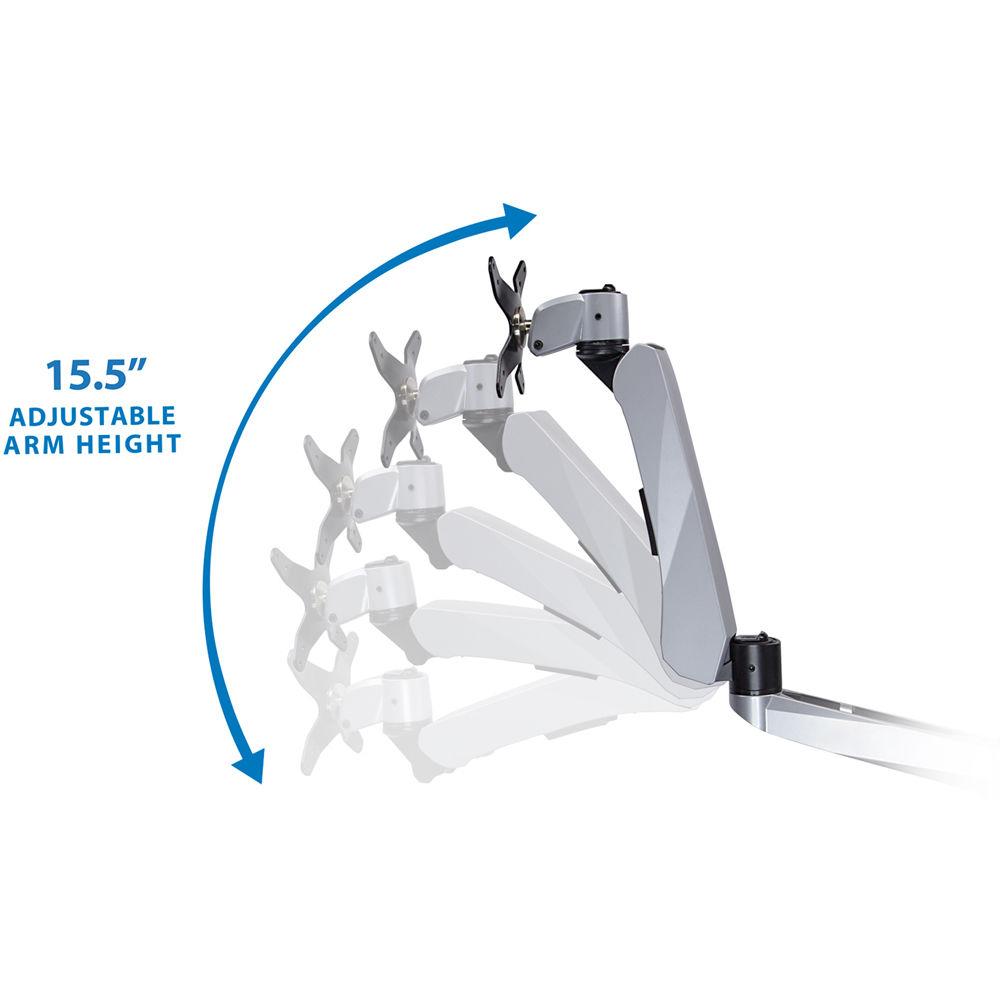

- The spring arms swing 15.5" up or down to allow you to adjust the height of your monitors without sliding the mount up or down the pole.
- The arms rotate 360° around the pole to allow others to view presentations and other media from any direction.
- The joint between the two parts of the arm can swivel 360°.
In the Box Mount-It! Quick Connect Dual Monitor Desk Mount with Articulating Spring Arms C-Clamp Attachment Grommet Attachment Nuts, Bolts, & Washers for Installation Hardware Kit Installation Instructions Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mount-It! Quick Connect Dual Monitor Desk Mount with Articulating Spring Arms in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMount-It! MI-4511-SIL-COMBO Specs | Number of Monitors Supported | 2 | | Screen Size Supported | 13.0 to 24.0" / 33.0 to 61.0 cm | | Monitor Weight Supported | 19.8 lb / 9.0 kg, each | | VESA Standard | 75 x 75 mm

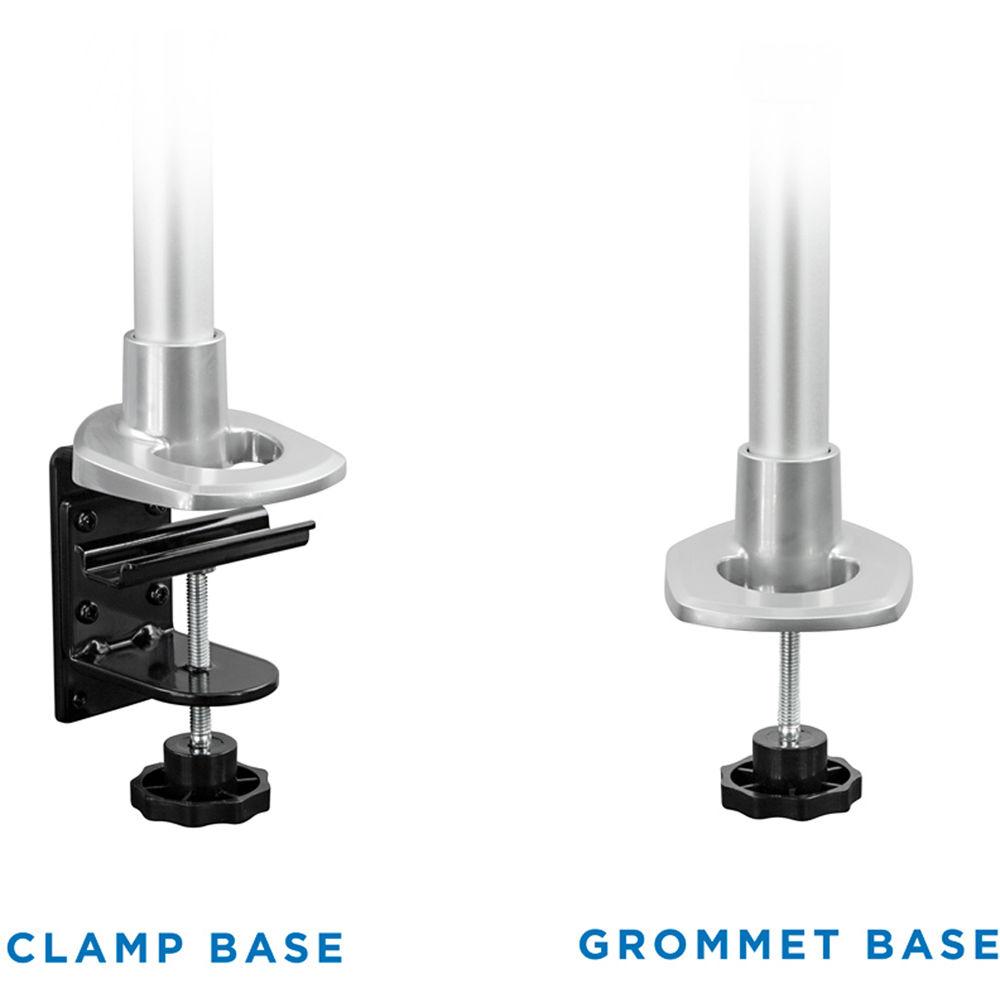

100 x 100 mm | | Attachment Method | Grommet or clamp | | Required Surface Thickness | For Grommet Attachment: 2.3" / 5.8 cm
For Clamp Attachment: 2.5" / 6.4 cm | | Material of Construction | Die-cast aluminum | | Range of Motion | Monitor Tilt: -20 ~ 90°
Monitor Swivel: 345°
Arm Swivel: 360°
Monitor Rotation: 360°

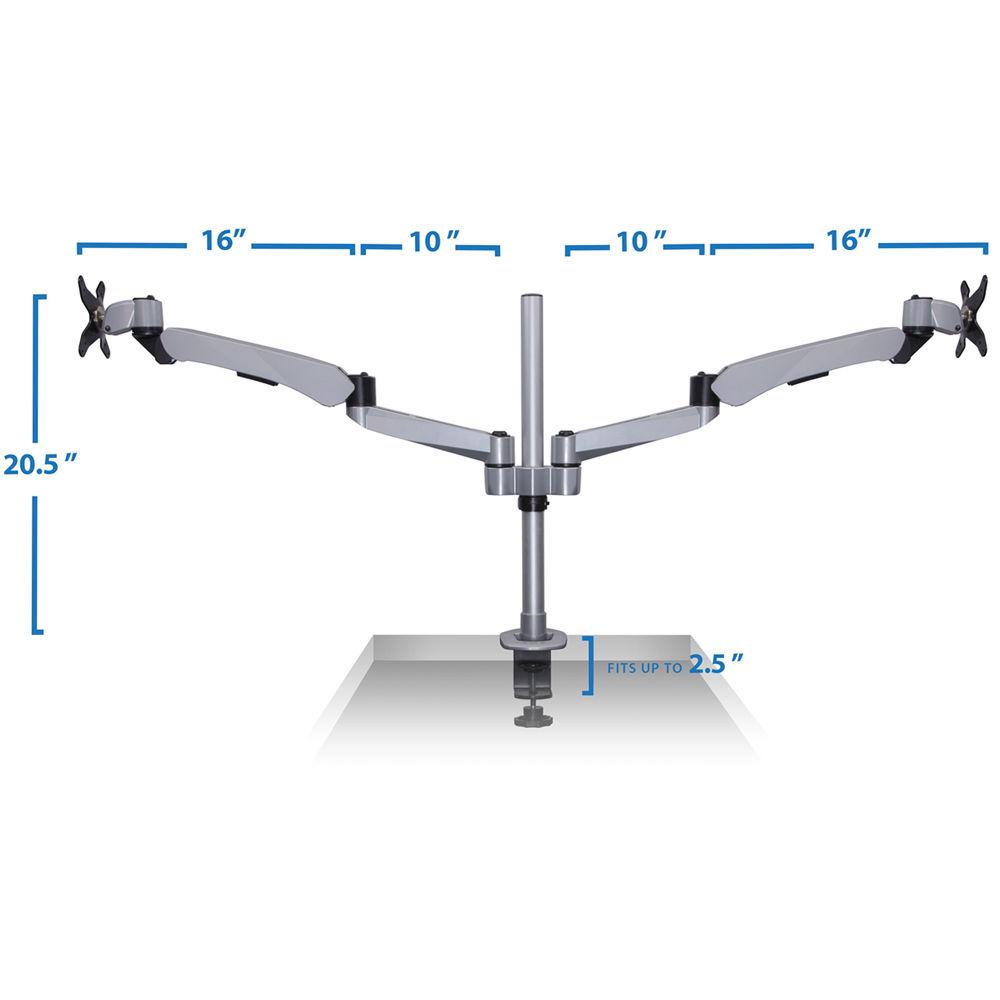

Spring Arm Swing: 15.5" / 39.4 cm | | Dimensions | Pole Height: 19.8" / 50.2 cm
Arm Length: 16.0" / 40.6 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 16.5 lb | | Box Dimensions (LxWxH) | 29.6 x 17.35 x 7.6" |
