User Manual for Mount-It! Quick Connect Single Monitor Desk Mount Click to enlarge the picture
Contents of the user manual for the Mount-It! Quick Connect Single Monitor Desk
- Product category: Monitor Table Top Stand Mounts Mount-It!
- Brand: Mount-It!
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mount-It! Monitor Table Top Stand Mounts
 |
User manual for the Mount-It! Quick Connect Single Monitor Desk contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mount-It! product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mount-It! user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mount-It! product will considerably shorten its lifespan!
|

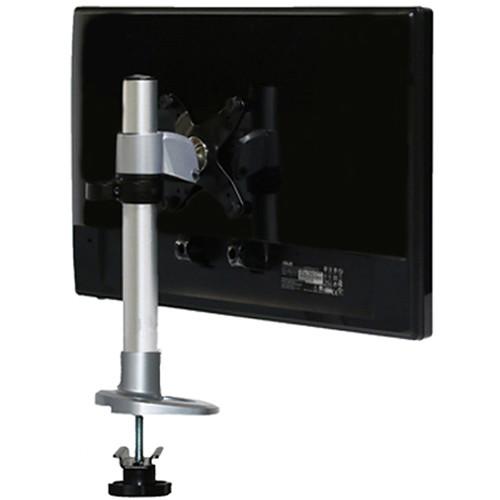

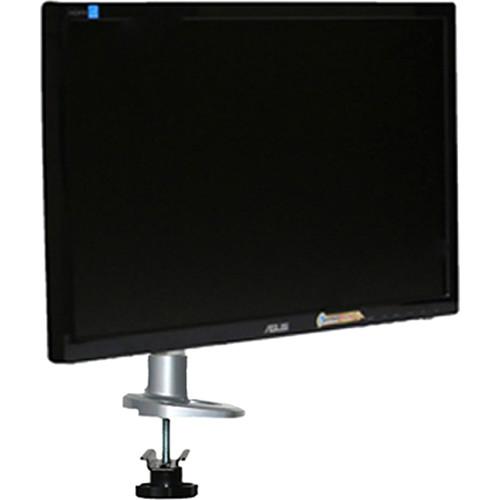

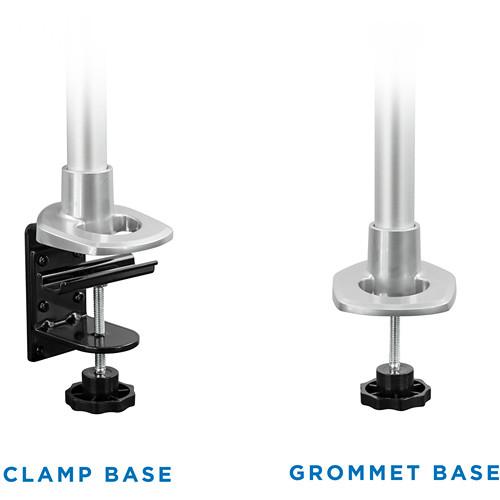

Product description Save desk space and position your monitor just how you like it with the Quick Connect Single Monitor Desk Mount from Mount-It!. Compatible with VESA 75 x 75 and 100 x 100mm standards, the mount will support any flat screen display between 13 and 24" and no heavier than 19.8 lb. Its adjustable settings enable a comfortable and productive viewing position that helps reduce eye fatigue, neck, and back strain. Integrated cable management keeps your cables untangled and out of the way. No drilling is required; the mount attaches either onto your work surface with a secure dual c-clamp mechanism, or through your desk with the included grommet. All hardware needed for installation is included, as are setup instructions. - Adjustable Position
-
- The monitor attachment rotates 360° around the pole to allow others to view presentations and other media from any direction.

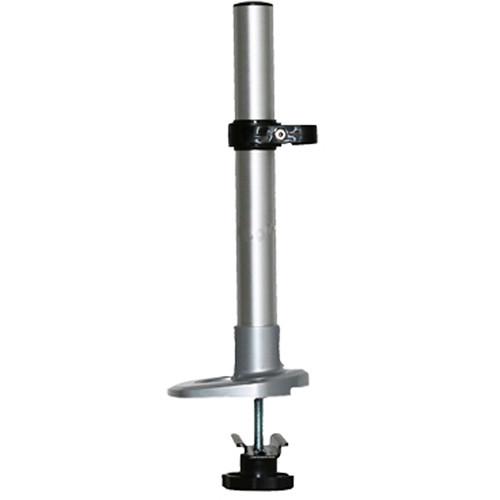

- Adjust the height of your monitor by sliding it up and down the 11.9" pole.

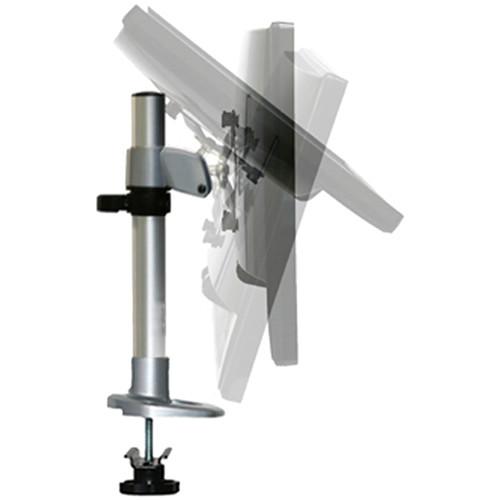

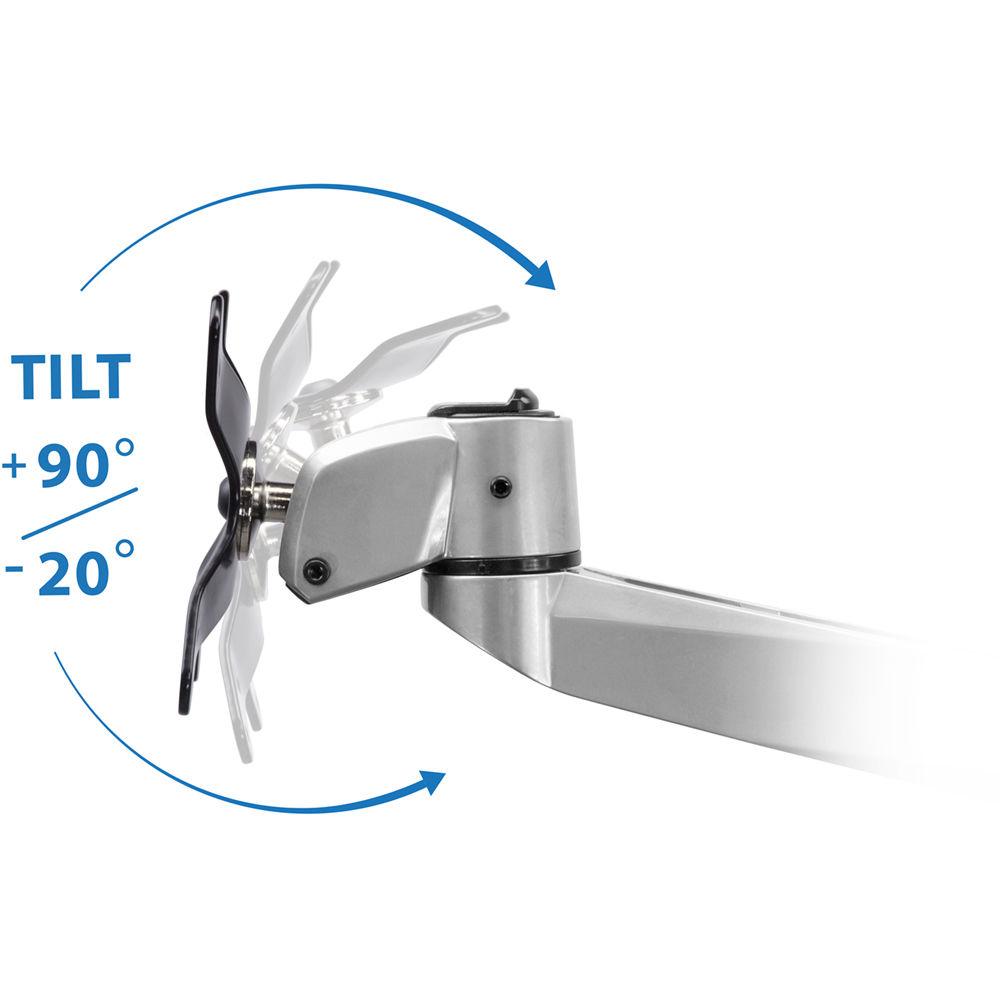

- Customize your viewing angle by tilting the monitor up 90° and down 20°.
- The mount head can swivel 345° side to side.

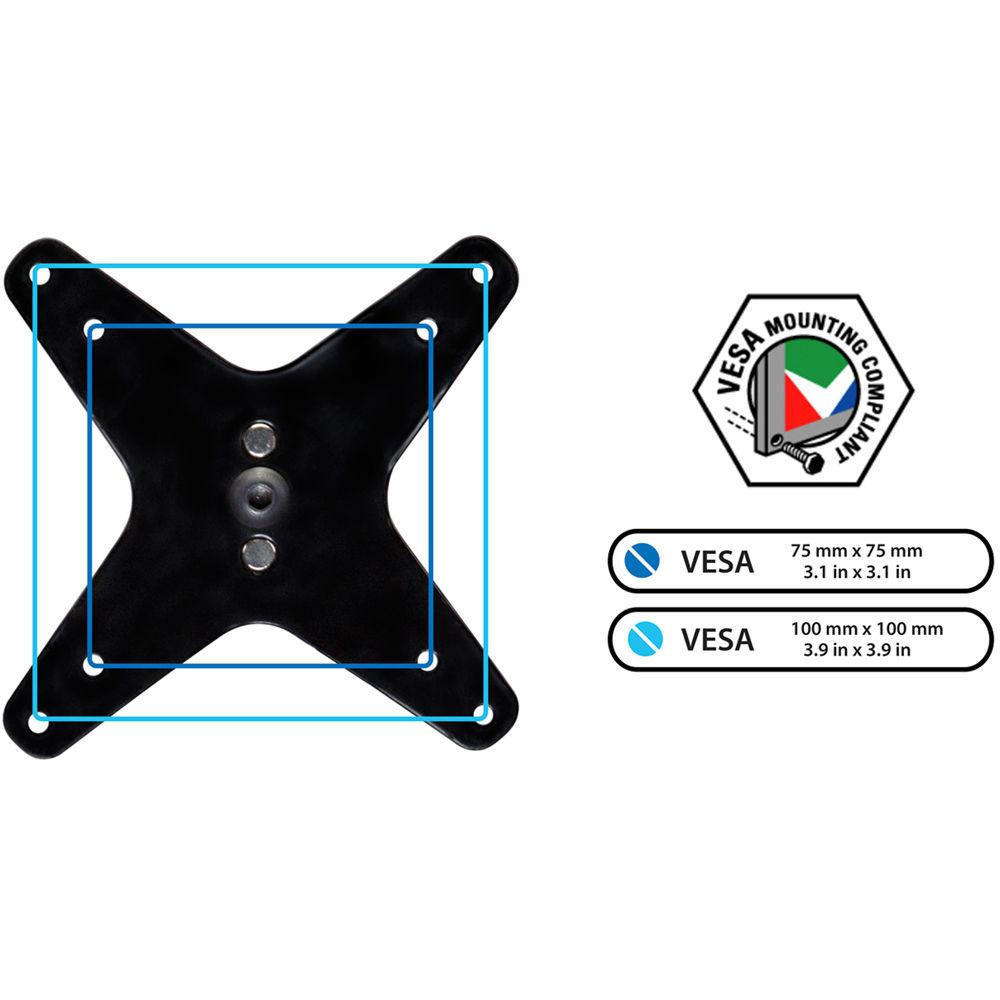

- The VESA mount that holds your monitor can rotate 360° to switch easily from Portrait to Landscape orientation.
In the Box Mount-It! Quick Connect Single Monitor Desk Mount C-Clamp Attachment Grommet Attachment Nuts, Bolts, & Washers for Installation Hardware Kit Installation Instructions Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mount-It! Quick Connect Single Monitor Desk Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMount-It! MI-3111-SIL-COMBO Specs | Number of Monitors Supported | 1 | | Screen Size Supported | 13.0 to 24.0" / 33.0 to 61.0 cm | | Monitor Weight Supported | 19.8 lb / 9.0 kg | | VESA Standard | 75 x 75 mm
100 x 100 mm | | Attachment Method | Grommet or clamp | | Required Surface Thickness | For Grommet Attachment: 2.3" / 5.8 cm
For Clamp Attachment: 2.5" / 6.4 cm | | Material of Construction | Die-cast aluminum | | Range of Motion | Monitor Tilt: -20 ~ 90°
Monitor Swivel: 345°
Monitor Rotation: 360° | | Dimensions | Pole Height: 11.9" / 30.2 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 16.2 x 16.0 x 6.8" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
