Movcam 3-Axis Wireless Lens Control System

User Manual for Movcam 3-Axis Wireless Lens Control System

• Product category: Wireless Lens Control Systems Movcam
• Brand: Movcam
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Movcam Wireless Lens Control Systems

Product description

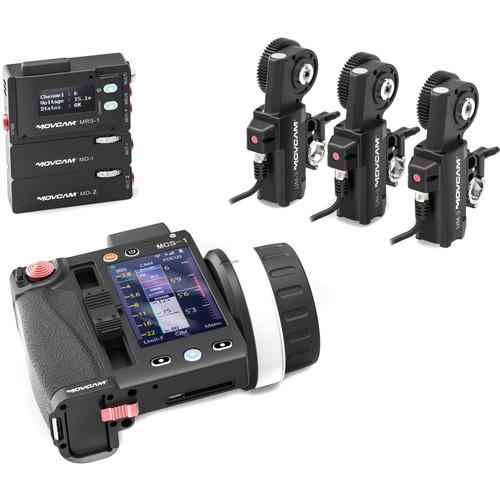

• MCS-1 Hand Control Unit for 3-Axis System At the heart of the Movcam 3-Axis System sits the MCS-1 Hand Control Unit. Focus, iris, and zoom can be controlled independently with the handwheel, slider, and pressure-sensitive rocker. Using the license-free 2.4 GHz band, the hand unit can communicate with the receiver from up to 660' away in ideal line-of-sight situations. Dominating the front surface of the unit is a 3.7" touchscreen which shows real-time lens data and is also used for lens data entry and menu settings. Lens data for popular lenses is already programmed into the unit. Information for lenses not already built-in can be manually programmed into the unit by the user using the touchscreen and stored on an SD card for instant recall on any compatible device.
  • Daylight-viewable 3.7" OLED touchscreen for data entry and real-time display of lens and system data
  • 3D function mode
  • Wireless start/stop control for ARRI, Sony, and RED, as well as cameras compatible with the LANC protocol
  • EF lens control with RED cameras using an electronic EF mount
  • Pre-programmed lens data and custom lens mapping, store lens data on an SD card for instant recall
  • Hardware remote cable connection for wired operation
  • Pressure-sensitive zoom control
  • Programmable lens end-stops
  • Dampened focus handwheel
  • Backlit handwheel and function buttons
  • Operates on separately available Sony NP-F550 or NP-F570 batteries
• MRS-1 Receiver Module for Movcam Wireless Lens Control System Movcam's MRS-1 Receiver Module for Movcam Wireless Lens Control System is a single-axis wireless receiver that coupled with the Movcam SCU-1 or MCS Handset and a compatible motor allows you to control the focus, iris, or zoom rings of your lens. The receiver includes a 15mm rod adapter, and it features a mounted quick release mechanism that allows you to mount and dismount the receiver quickly yet securely. The receiver can operate Movcam lens motors as well as a variety of 3rd party motors.
  Adding two additional MRS-1 receiver modules allows you to control focus, zoom, and iris with additional motors and controllers. Please note additional controllers, motors, and receiver-to-motor cables are required for multiple lens function control; however, they are not included. The module has an OLED screen that displays information and is readable in exterior settings. The system as a whole has a transmission delay of less than 12ms and a wireless range of about 100 feet indoors and 650 feet outdoors.
  • FCC-approved wireless module with ISM 2.4M frequency range
  • Transmission Delay: less than 12ms
  • On-board .48" OLED screen, visible in sunlight
  • Indoor transmission distance: 98.4'
  • Outdoor transmission distance: 656.2'
  • Receives a signal from SCU-1 Handset or MCS Handset to control lenses
  • Works with existing Movcam motors and other 3rd party systems. Please check with Movcam for updated compatibility
• MD-I Iris Motor Drive Module Expand your Movcam wireless lens control system with the MD-I Iris Motor Drive Module to enable wireless adjustment of your lens' iris by connecting to a compatible lens motor. The MD-I stacks right onto the separate MRS-1 Receiver Module for a scalable, yet unified solution depending on the number of axes required. The compact form factor of the expanded system won't bulk up smaller rigs. If using the separately available MCS-1 hand unit, the system can be further expanded with the MD-Z to assemble a full 3-axis FIZ control system. The MD-I is compatible with the same Movcam and 3rd party motors as the MRS-1 main unit. Note: MD-I module will only respond to iris demands from the controller and will not interface with other modules. A full FIZ system requires the MRS-1, MD-I, and MD-Z units.
• MD-Z Zoom Motor Drive Module Expand your Movcam wireless lens control system with the MD-Z Zoom Motor Drive Module to enable wireless adjustment of your lens' zoom by connecting to a compatible lens motor. The MD-Z stacks right onto the separate MRS-1 Receiver Module for a scalable, yet unified solution depending on the number of axes required. The compact form factor of the expanded system won't bulk up smaller rigs. If using the separately available MCS-1 hand unit, the system can be further expanded with the MD-I to assemble a full 3-axis FIZ control system. The MD-Z is compatible with the same Movcam and 3rd party motors as the MRS-1 main unit. Note: MD-Z module will only respond to zoom demands from the controller and will not interface with other modules. A full FIZ system requires the MRS-1, MD-I, and MD-Z units.
• UM-3 Digital Motor The Movcam UM-3 Digital Motor interfaces with Movcam's wireless follow focus systems. Its relatively slight form factor lends itself to use on rigs both large and small. The integrated rod mount is compatible with 19mm rods, and with the included adapter, 15mm rods as well. The rod mount can be secured to the bottom or the side of the unit itself, granting flexible positioning along the side of your lens.
• D-Tap Power Cable (21.6") The D-Tap Power Cable from Movcam measures 21.6” and is designed for use with the Movcam Wireless Lens Control System.
  Compatibility
  • Movcam Wireless Lens Control System
• Remote Hardware Cable (55") The Remote Hardware Cable from Movcam measures 55” and is designed for the Movcam Wireless Lens Control System.
  Compatibility
  • Movcam Wireless Lens Control System
• Carry Case for Movcam 3-Axis Wireless Lens Control System The Carry Case from Movcam can be used with the separately available Movcam 3-Axis Wireless Lens Control System.

• Limited 1-Year Warranty

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 19mm To 15mm Rod Mount Reducer

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MCS-1 Hand Control Unit for 3-Axis System

  Screen Size	3.7" / 9.4 cm
  Battery Mount	Sony NP-F (L-series)
  Operating Frequency	2.4 GHz
  Operating Range	Up to 660' / 200 m (line-of-sight)

  Box Dimensions (LxWxH)	10.35 x 8.45 x 6.9"

• MRS-1 Receiver Module for Movcam Wireless Lens Control System

  Frequency	ISM2.4M
  Dimensions	3.1 x 3.27 x 1.16" / 79 x 83 x 29.5 mm
  Weight	Approx. 0.4 lb / 175 g

• MD-I Iris Motor Drive Module

  Dimensions	3.2 x 1.2 x 1.0" / 82 x 30 x 26 mm
  Weight	1.8 oz / 50 g

• MD-Z Zoom Motor Drive Module

  Dimensions	3.2 x 1.2 x 1.0" / 82 x 30 x 26 mm
  Weight	2.6 oz / 75 g

• UM-3 Digital Motor

  Torque	Up to 1.2 nm
  Rotation Speed	Up to 3.1 r/s
  Noise	25 dB
  Weight	9.3 oz / 264 g

  Box Dimensions (LxWxH)	14.0 x 7.3 x 1.55"

• D-Tap Power Cable (21.6")

  Length

  21.6" (55 cm)

  Box Dimensions (LxWxH)	4.4 x 3.8 x 0.6"

• Remote Hardware Cable (55")

  Length

  55" (140 cm)

• Carry Case for Movcam 3-Axis Wireless Lens Control System

  Compatibility	Movcam 3-Axis Wireless Lens Control System
  Dimensions	Not specified by the manufacturer
  Weight	Not specified by the manufacturer
