User Manual for Movcam Base Kit for Alexa Mini Click to enlarge the picture
Contents of the user manual for the Movcam Base Kit for Alexa Mini
- Product category: Camcorder Supports & Rigs Movcam
- Brand: Movcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Movcam Camcorder Supports & Rigs
|
User manual for the Movcam Base Kit for Alexa Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Movcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Movcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Movcam product will considerably shorten its lifespan!
|

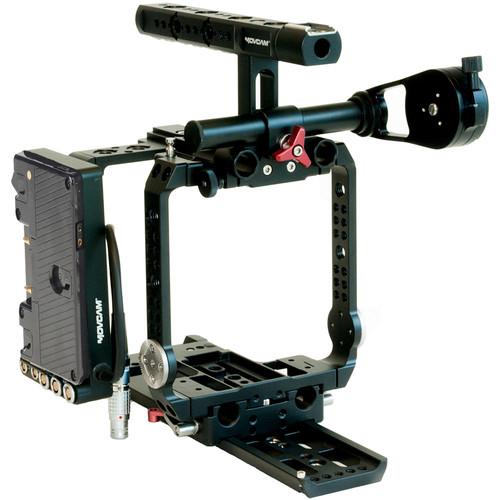

Product description The Movcam Base Kit for Alexa Mini is a modular camera rig designed for the ARRI Alexa Mini that adds essential mounting points, accessory support, and a Gold Mount battery distribution box. To construct a camera cage, the kit includes two adapter plates (for top and bottom) and two side arms that features ARRI standard rosettes and accessory mounting threads. A quick-release baseplate is included that lets you mount the entire rig onto an ARRI standard dovetail, while also providing 15mm LWS rod ports.
Attaching to the top of the cage is a top handle and a 15mm rod clamp, with the latter supporting a pair of included 8" rods and an included EVF mounting bracket. To power the Alexa Mini, the kit includes a power distribution box with a Gold Mount battery plate. In addition to an integrated power output cable to connect to the camera, the box also features four regulated power outputs, while the battery plate itself provides two D-tap outputs. The distribution box attaches the top and bottom adapter plates of the cage via included mounting brackets. Completing the kit are two pairs of 8" long 15mm rods. - Universal Quick Release Base Plate The Universal Quick Release Base Plate from Movcam is a baseplate compatible with Arri BP8 and Arri BP9 Bridgeplates.
- 15mm Aluminum Rod - 8" Long The 15mm Aluminum Rod - 8" (203.2mm) Long from Movcam is a single rod made of aluminum and is 8" (203.2mm) in length.
- Top Adapter Plate or Bottom Spacer for Alexa Mini Camera
- Side Bracket for Alexa Mini Camera
- VF 15mm Clamp for Alexa Mini Camera
- Viewfinder Bracket for Alexa Mini Camera
- Alexa Mini 3-Stud Mount Distribution Box
In the Box Bundle Items Universal Quick Release Base Plate edfrverxaffyfqssbc 2 x Top Adapter Plate or Bottom Spacer for Alexa Mini Camera 2 x Side Bracket for Alexa Mini Camera VF 15mm Clamp for Alexa Mini Camera Viewfinder Bracket for Alexa Mini Camera Alexa Mini 3-Stud Mount Distribution Box 4 x 15mm Aluminum Rod - 8" Long Table of Contents
|
Upload User Manual
Have you got an user manual for the Movcam Base Kit for Alexa Mini in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Universal Quick Release Base Plate
| Compatibility | Arri BP8 and Arri BP9 Bridgeplates | | Dimensions | 3.3 x 3.7 x 1" (85 x 94 x 27 mm) | | Weight | 0.5 lb (0.25 kg) | | | | Box Dimensions (LxWxH) | 6.1 x 3.7 x 1.2" | - Viewfinder Bracket for Alexa Mini Camera
| | | Box Dimensions (LxWxH) | 5.8 x 1.8 x 1.5" | - 15mm Aluminum Rod - 8" Long
| Material | Aluminum | | Rod Diameter | 15 mm | | Rod Length | 8" (203.2 mm) | | | | Box Dimensions (LxWxH) | 9.0 x 1.0 x 1.0" | - Top Adapter Plate or Bottom Spacer for Alexa Mini Camera
- Side Bracket for Alexa Mini Camera
- VF 15mm Clamp for Alexa Mini Camera
- Alexa Mini 3-Stud Mount Distribution Box
