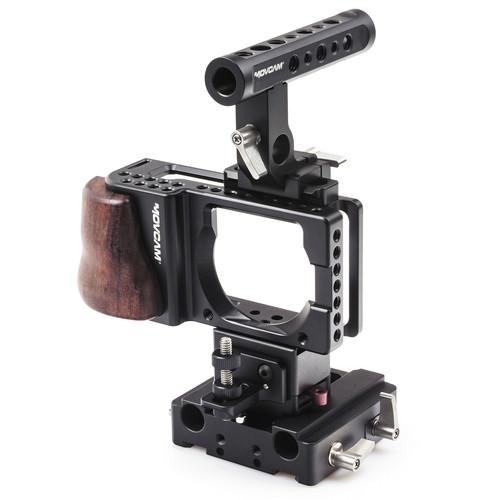

User Manual for Movcam Cage Kit for Blackmagic Pocket Cinema Camera Click to enlarge the picture
Contents of the user manual for the Movcam Cage Kit for Blackmagic Pocket
- Product category: Camcorder Supports & Rigs Movcam
- Brand: Movcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Movcam Camcorder Supports & Rigs
|
User manual for the Movcam Cage Kit for Blackmagic Pocket contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Movcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Movcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Movcam product will considerably shorten its lifespan!
|
Product description Providing a complete package of body cage and accessories for your Blackmagic Design Pocket Cinema Camera, this Movcam Cage Kit with top handle, rod support, riser, and lens support, allows you to mount your camera on a tripod, use optional rod mounted lens accessories, or attach optional accessories to the cage without stressing your camera's body.
The Top Handle expands the functionality of the Body Cage, giving you an additional handhold and accessory mounting. The included Riser Block provides the correct lens center to rod height when used in conjunction with the included Rod Support and available, but not included, 8" support rods. This allows you to use industry standard rod-mounted accessories with your camera. The included Lens Support mounts directly to the riser block creating a solid support that protects your camera's lens mount from the weight of heavy lenses. - Top Handle for Blackmagic Pocket Cinema Camera The Movcam Top Handle for Blackmagic Pocket Cinema Camera clamps onto a NATO-compatible rail and features 1/4"-20 and 3/8"-16 mounting holes for adding accessories, as well as a single 15mm rod port. It is designed for use with the Movcam Body Cage for Pocket Camera when an optional NATO rail is added, but will work with any NATO-compatible rail.
-
- Designed for use with Movcam Body Cage for Blackmagic Pocket Cinema Camera
- NATO-compatible rail clamp
- 1/4"-20 and 3/8"-16 threaded holes
- Single 15mm rod port
- Body Cage for Blackmagic Pocket Cinema Camera The Movcam Body Cage For Blackmagic Pocket Cinema Camera is a black, anodized, full body, protection cage for your Blackmagic Pocket Camera. You slide your camera into the cage and use the two included mounting screws to secure the camera into the cage, which features a mounted wood handgrip and 1/4"-20 accessory mounting holes so you can mount accessories to your camera without stressing the body.
The cage protects your camera body, while allowing full access to your camera's connection ports, LCD screen, and battery compartment. The front of the cage is relieved where it is covered by the wood handle to reduce weight, and a rubber pad cushions the camera where it contacts the front of the cage. Machined into the cage are two slots for optional accessory straps. On the bottom of the cage is Movecam's Lightweight Support System, which allows the cage to mount to an optional Movecam Camera Spacer. - Lightweight at only 9 ounces, the cage is made from anodized aluminum for corrosion resistance and durability.
- Nineteen accessory mounting holes are distributed on the side and top of the cage. This allows you to add optional accessories without stressing your camera's body.
- A removable wood handgrip is fitted to the cage, providing you with a more comfortable way to hold your camera/cage than holding onto metal.
- Slots above the handgrip allow you to attach optional accessory wrist straps.
- Spacer Block for Blackmagic Pocket Cinema Camera The Spacer Block from Movcam adapts MOV-303-2102 BMPCC camera cage to the MOV-303-2106 15mm rod support base for proper lens alignment to center mattebox.
- Lens Mount Support for Blackmagic Pocket Cinema Camera The Lens Mount Support from Movcam is an add-on piece for a pre-existing Blackmagic Pocket Cinema Camera rig. When used with the required spacer, the support relieves pressure from the camera's lens mount by reinforcing the lens from below. The support is adjustable in height and is designed to fit most lenses compatible with the Blackmagic Pocket Cinema Camera.
- LIGHTWT SPRT f/BLKMGC POCKT CINEMA CAM
In the Box Bundle Items Top Handle for Blackmagic Pocket Cinema Camera ysubtaybcrcxvbbryxrtsazyrdxwr Body Cage for Blackmagic Pocket Cinema Camera - 2 x 1/4"-20 Camera Mounting Screws
Spacer Block for Blackmagic Pocket Cinema Camera Lens Mount Support for Blackmagic Pocket Cinema Camera LIGHTWT SPRT f/BLKMGC POCKT CINEMA CAM ysubtaybcrcxvbbryxrtsazyrdxwr
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Movcam Cage Kit for Blackmagic Pocket Cinema Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Top Handle for Blackmagic Pocket Cinema Camera
| Compatibility | NATO rail | | Accessory Mounting | 1/4"-20
3/8"-16
15mm rod port | | | | Box Dimensions (LxWxH) | 6.4 x 5.5 x 1.5" | - Body Cage for Blackmagic Pocket Cinema Camera
| Mounting | Camera: 1/4"-20 mounting holes
Cage: Movcam Lightweight Support System | | Mounting Holes | 19 x 1/4"-20 accessory mounting holes
2 x 1/4"-20 front accessory mounting holes | | Handgrips | 1 x Built-in handgrip | | Dimensions | 6.25 x 2.5 x 3" (15.88 x 6.35 x 7.6 cm) | | Weight | 9 oz (255.2 g) | | | | Box Dimensions (LxWxH) | 6.5 x 4.1 x 1.9" | - Spacer Block for Blackmagic Pocket Cinema Camera
| Used with | MOV-303-2102 BMPCC Camera Cage | | Weight | 0.33 lb (0.15 kg) | | | | Box Dimensions (LxWxH) | 3.2 x 2.8 x 0.6" | - Lens Mount Support for Blackmagic Pocket Cinema Camera
| | | Box Dimensions (LxWxH) | 1.5 x 1.5 x 0.5" | - LIGHTWT SPRT f/BLKMGC POCKT CINEMA CAM
