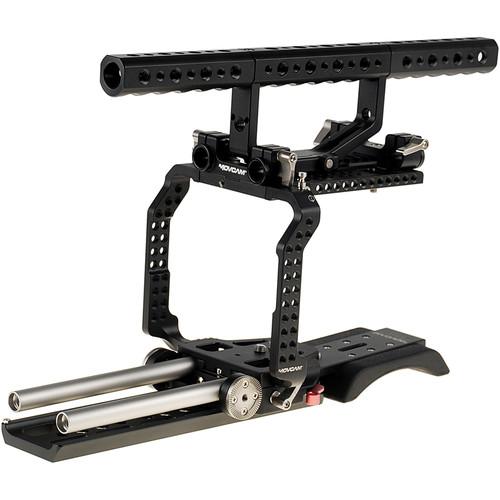

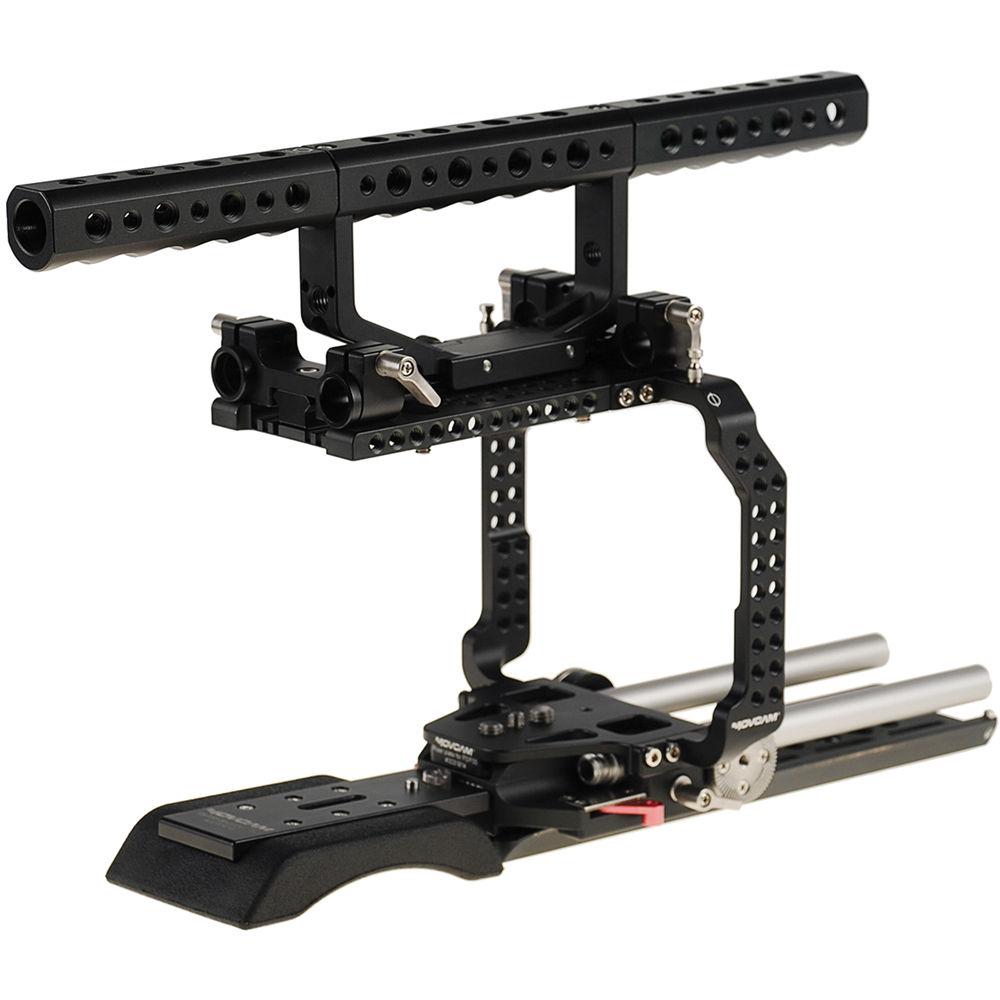

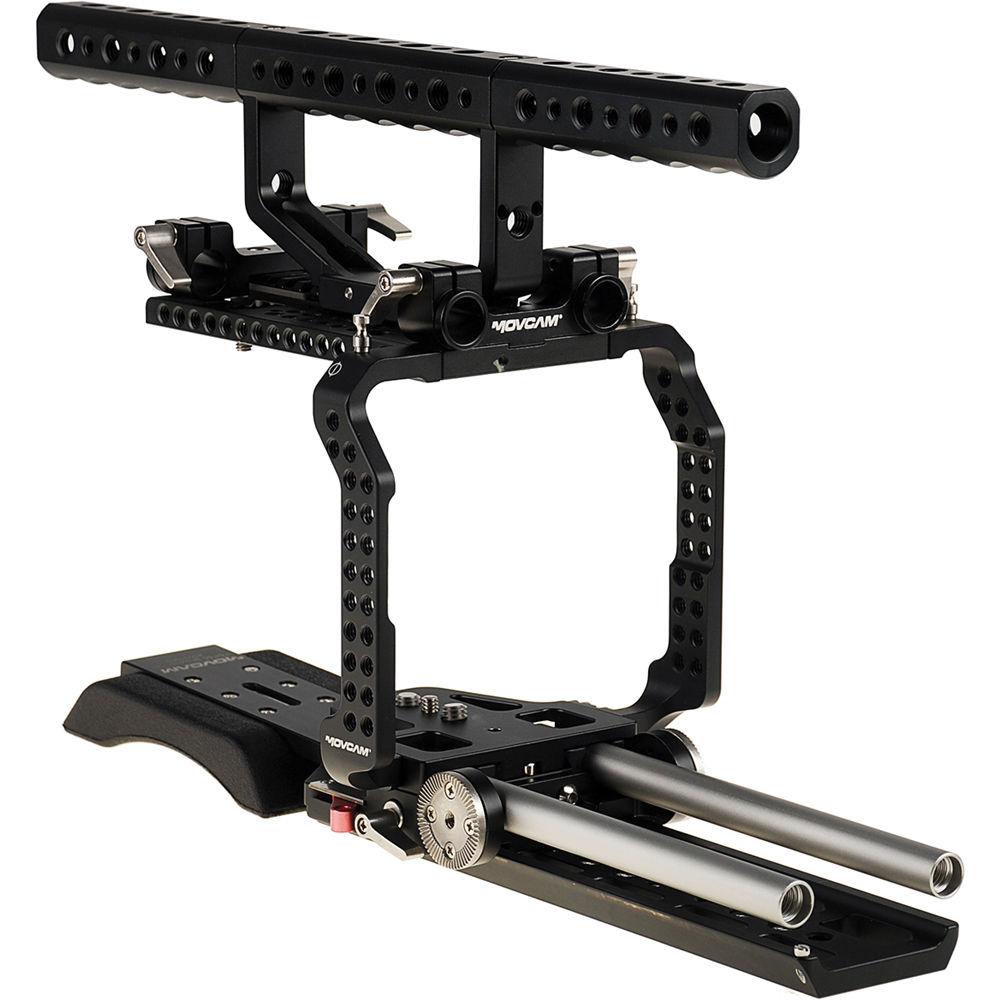

Movcam Cage Kit for Sony F5

User Manual for Movcam Cage Kit for Sony F5 F55

• Product category: Camcorder Supports & Rigs Movcam
• Brand: Movcam
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Movcam Camcorder Supports & Rigs

Product description

• Top Handle with Extensions for Sony PMW-F5/-F55 4K Camcorders The Top Handle with Extensions from Movcam is designed for use with Sony PMW-F5 and PMW-F55 4K camcorders. The top handle comes with front and rear extensions, and requires the Top Plate (sold separately) for mounting.
• Top Plate for Sony F5/F55 Cameras The Movcam Top Plate directly attaches to the top of the Sony F5/F55 after the camera's original hand grip is removed. The plate features multiple 1/4" and M4 threads to mount various accessories. A Weaver rail mount on top allows mounting of the MOV-303-1306 or MOV-303-1901 top handle (available separately). A pair of 15mm rods (available separately) can be attached to the front and rear rod clamps of the top plate to mount accessories such as a battery bracket, follow focus, or matte box.
• Left Side Bracket for Sony PMW-F5/-F55 4K Camcorders The Left Side Bracket from Movcam is designed for use with Sony PMW-F5 and PMW-F55 4K camcorders.
• Right Side Bracket for Sony PMW-F5/-F55 4K Camcorders The Right Side Bracket from Movcam is designed for use with Sony PMW-F5 and PMW-F55 4K camcorders.
• Camera Spacer for Sony F5/F55 The Camera Spacer from Movcam is designed for mounting the Sony F5/F55 camera. It is installed below the camera body and can also work with the 303-1125 Universal Quick-Release Baseplate (available separately). This spacer allows you to raise the camera's height in order to align the lens with accessories such as a matte box and follow focus. It features a quickly detachable design and comes with 1/4” and 3/8” screws.
• Universal Shoulder Pad for Sony F5/F55 Camera The Universal Shoulder Pad from Movcam is designed to be used with the Sony F5/F55 camera.
• Universal Quick Release Base Plate The Universal Quick Release Base Plate from Movcam is a baseplate compatible with Arri BP8 and Arri BP9 Bridgeplates.
• Rosette Bracket Made to attach to the Universal Baseplate, the Movcam Rosette Bracket adds two rosette mounts for handgrips and accessories.
• Universal LWS Dovetail Plate The Movcam Universal LWS Dovetail Plate is a baseplate compatible with Arri BP8 and Arri BP9 Bridgeplates.
• 15mm Aluminum Rod - 8" Long The 15mm Aluminum Rod - 8" (203.2mm) Long from Movcam is a single rod made of aluminum and is 8" (203.2mm) in length.

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Top Handle with Extensions for Sony PMW-F5/-F55 4K Camcorders

  Box Dimensions (LxWxH)	15.2 x 4.4 x 2.2"

• Top Plate for Sony F5/F55 Cameras

  For Use with	Sony F5/F55 camera
  Compatible with	MOV-303-1306 and MOV-303-1901 top handles
  Threads	1/4" and M4
  Material	Aluminum alloy
  Dimensions	6.54 x 4.01 x 1.5" (166 x 103 x 37 mm)
  Weight	0.77 lb (0.35 kg)

  Box Dimensions (LxWxH)	6.9 x 4.1 x 1.4"

• Left Side Bracket for Sony PMW-F5/-F55 4K Camcorders

  Box Dimensions (LxWxH)	8.0 x 6.0 x 1.0"

• Right Side Bracket for Sony PMW-F5/-F55 4K Camcorders

  Box Dimensions (LxWxH)	7.5 x 3.3 x 0.9"

• Camera Spacer for Sony F5/F55

  Dimensions	3.7 x 3.3 x 0.5" (9.4 x 8.5 x 1.2 cm)
  Weight	3.5 oz (100 g)

  Box Dimensions (LxWxH)	5.7 x 3.8 x 0.7"

• Universal Shoulder Pad for Sony F5/F55 Camera

  Compatibility

  Sony F5/F55 camera

  Box Dimensions (LxWxH)	5.4 x 4.1 x 1.7"

• Universal Quick Release Base Plate

  Compatibility	Arri BP8 and Arri BP9 Bridgeplates
  Dimensions	3.3 x 3.7 x 1" (85 x 94 x 27 mm)
  Weight	0.5 lb (0.25 kg)

  Box Dimensions (LxWxH)	6.1 x 3.7 x 1.2"

• Rosette Bracket

  Dimensions	3.9 x 1.2 x 1.2" (99.5 x 32.5 x 32.5 mm)
  Weight	0.2 lb (0.1 kg)

  Box Dimensions (LxWxH)	4.4 x 2.5 x 0.1"

• Universal LWS Dovetail Plate

  Compatibility	Arri BP8 and Arri BP9 Bridgeplates
  Dimensions	10.0 x 2.6 x 0.5" (256 x 68 x 14 mm)
  Weight	0.5 lb (0.25 kg)

  Box Dimensions (LxWxH)	10.6 x 4.1 x 1.0"

• 15mm Aluminum Rod - 8" Long

  Material	Aluminum
  Rod Diameter	15 mm
  Rod Length	8" (203.2 mm)

  Box Dimensions (LxWxH)	9.0 x 1.0 x 1.0"
