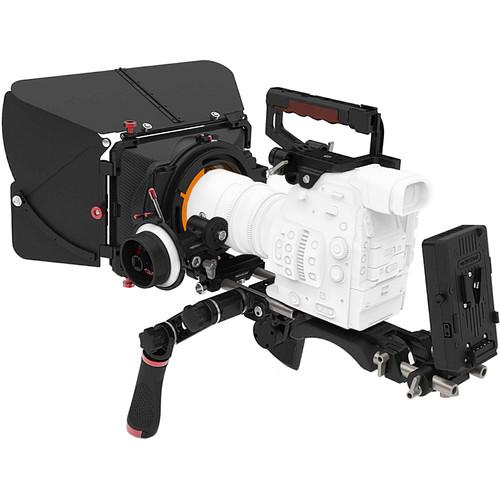

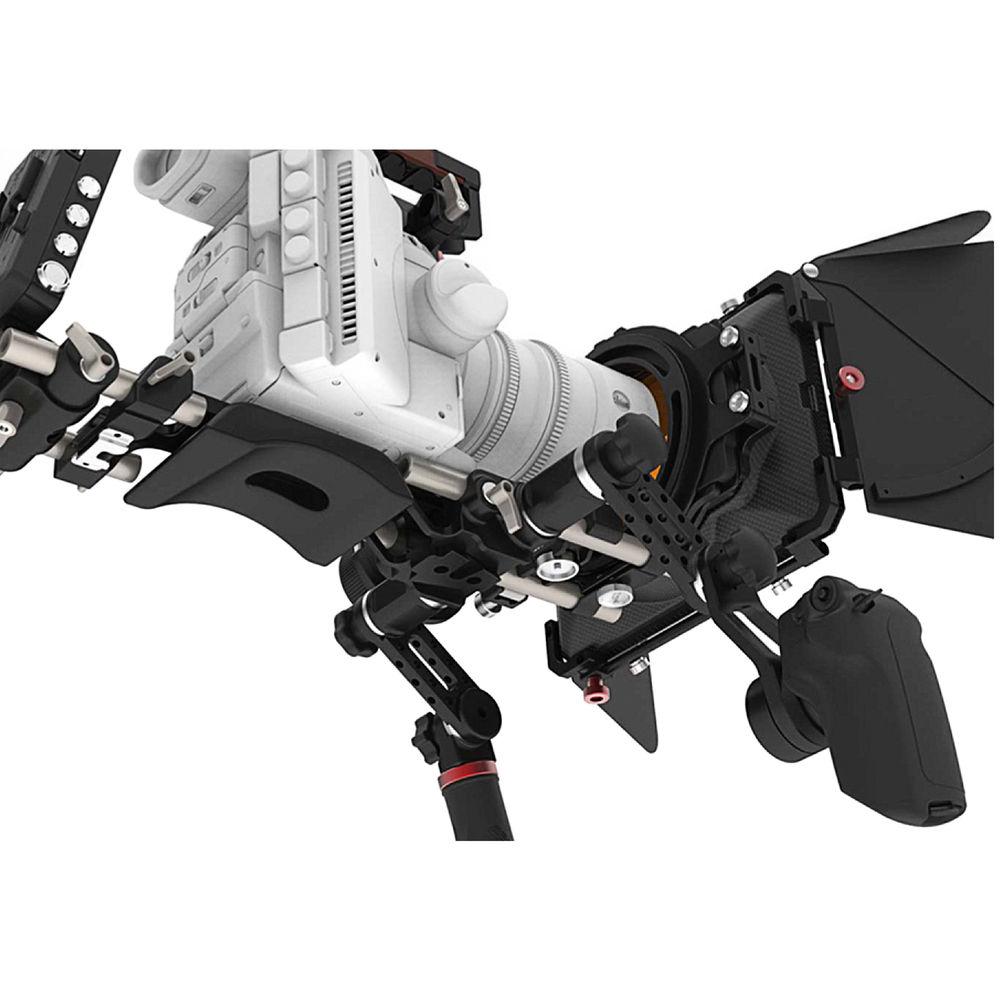

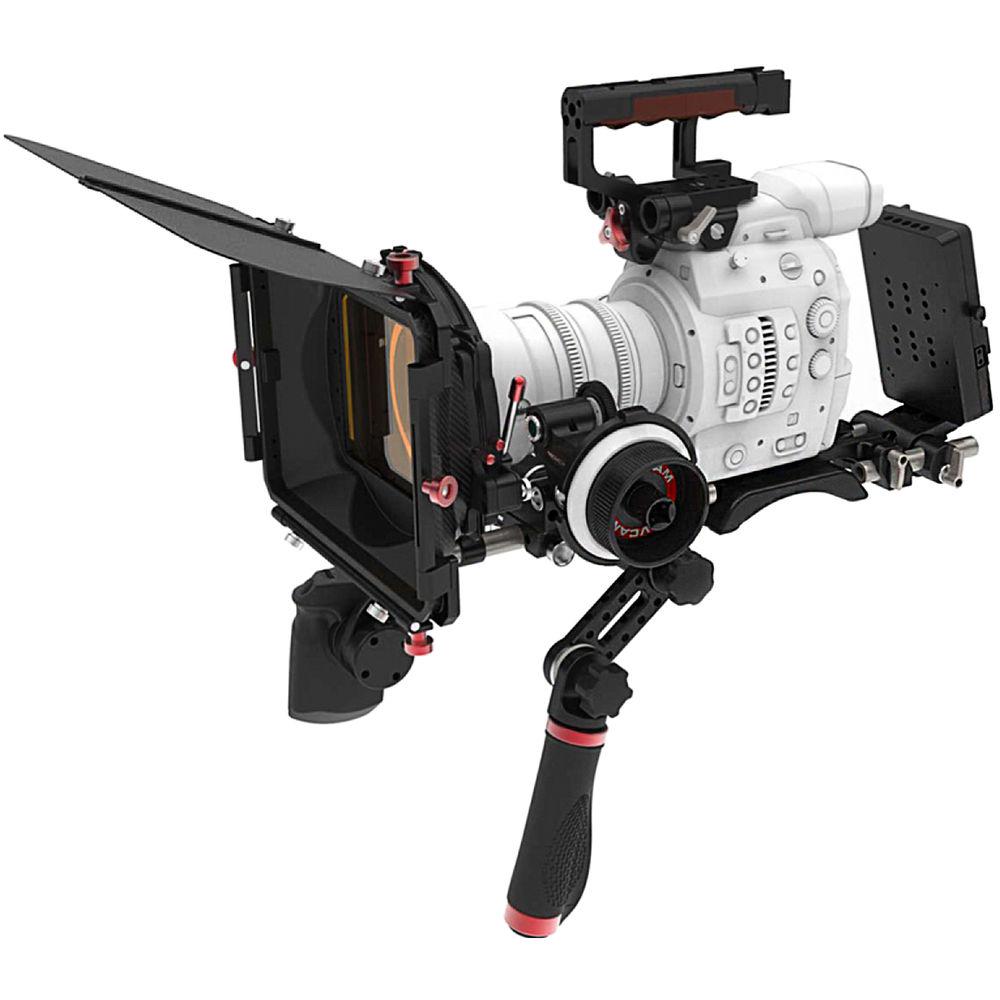

Product description The Movcam Canon C300 MKII Broadcast LWS Kit includes the MM102 Matte Box, 144:114mm Clamp Adapter Ring, VCT-14 Plate for C300 Camera Rig, C300 MKII Top Handle, MF2 Mini Follow Focus, V-Mount Battery Distribution Box, 15mm Rod Clamp, D-Tap to 4 pin LEMO Power Cable, Canon OEM Grip Relocator Adapter, two Rosette Spacer Adapters, two 4" Rosette Extensions, an Anti-Skid Hand Grip, two 8" Aluminum Rods, and two 4" Aluminum Rods.
The MM102 Clamp-On Matte Box features a robust, 16:9 carbon fiber hood with a top flag, two side flags, and two 4x5.65" filter holders. The matte box can be attached directly to the lens by way of the rear clamp, or to 15mm rods with the mini bracket. The 144 to 114mm Step-Down Ring is an adapter ring for the MM-1, MM-2, and MM-3 matte boxes. The VCT-14 Plate is designed for use with the C300 Camera Rig. The Top Handle for Canon C300 Mark II is a one-piece helmet and handle assembly that mounts to the top of the Canon C300 Mark II.
The MF-2 Mini Follow Focus is a single-sided follow focus with a sliding base that accommodates different lens constructions. The MF-2 quickly and securely mounts 15mm rods via a tightening mechanism controlled by a silver underside knob. A standard flexi-ring comes included for lenses that don't have ring teeth.
Featuring a male V-Mount adapter on one side and female on the other, the Distribution Box is designed to sandwich in between a camera's V-Mount plate and a V-Mount battery, providing several output ports for powering devices and accessories. The 15mm Rod Clamp Adapter for MOV-306-0212 and MOV-306-0213 Power Converters attaches to your Movcam Gold Mount or V-Mount Power Converter and allows you to mount it onto LWS 15mm rods.
The Handgrip Adapter allows you to use the original Canon EOS C-series handgrip with your existing rig. Get a sure grip on your rig with the Anti-Skid Handgrip, with its contoured, dimpled rubber surface for comfortable holding, and featuring a rosette mount for locking onto your rig. - 144 to 114mm Step Down Ring The Movcam 144 to 114mm Step Down Ring is a step down adapter ring for the MM-1, MM-2 & MM-3 matte boxes made by Movecam. This adapter allows the 144mm opening to be adapted to lenses with a 114mm filter thread.

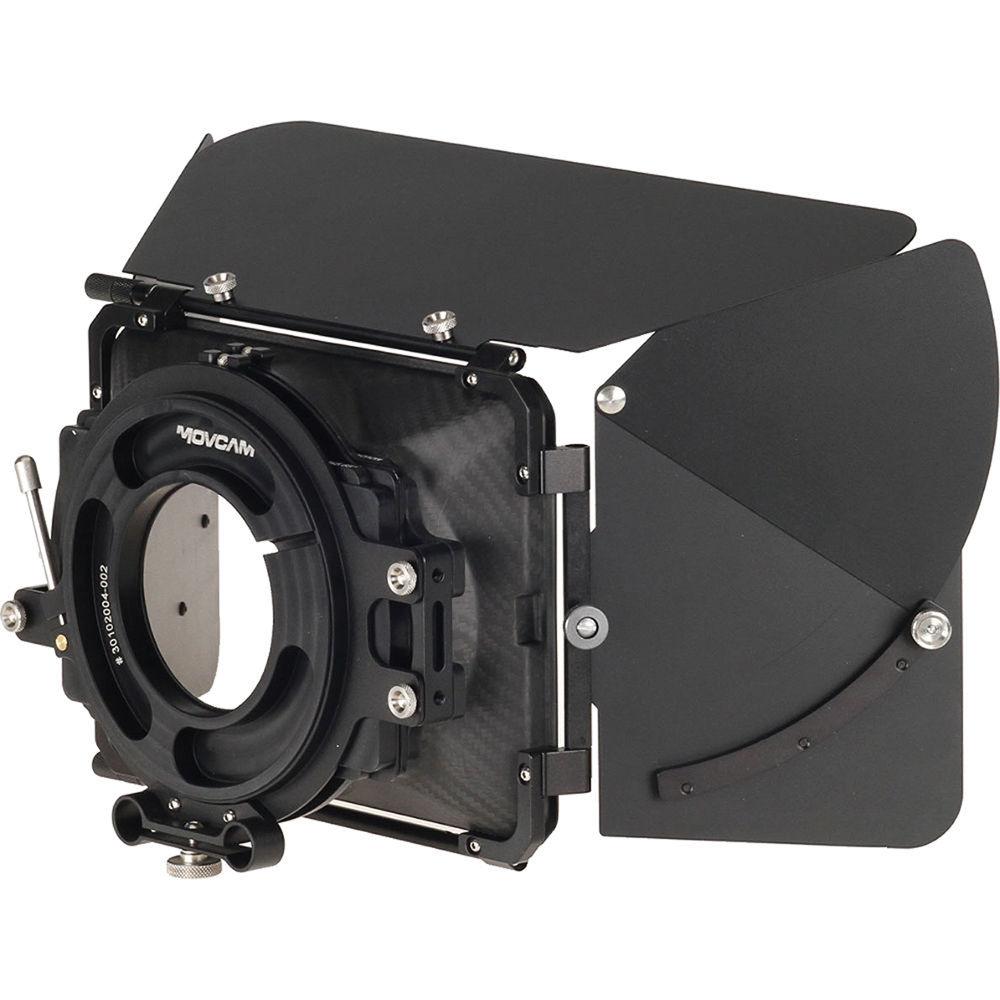

- Clamp-on Mattebox MM102 Movcam's Clamp-on Mattebox MM102 features a robust, 16:9 carbon fiber hood with a top flag, two side flags, and two 4x5.65" filter holders. The Mattebox can be attached directly to the lens by way of the rear clamp or to 15mm rods with the mini bracket. One filter holder is fixed and the second rotates 360°, facilitating adjustment of polarizers and other types of filters. A 144mm clamp adapter is included, and step-down rings are separately available.
- Clamp-on design, attaches directly to the lens with 144mm adapter or step-down adapters
- French flag and adjustable side wings for superb light control
- One fixed and one rotating 4x5.65" filter holder
- Robust, carbon fiber and metal construction
- Mini Follow Focus MF-2 The Movcam Mini Follow Focus MF-2 is a single-sided follow focus with a sliding base that accommodates different lens constructions.
The MF-2 quickly and securely mounts 15mm rods via a tightening mechanism controlled by a silver underside knob. A standard flexi-ring comes included for lenses that don't have ring teeth.

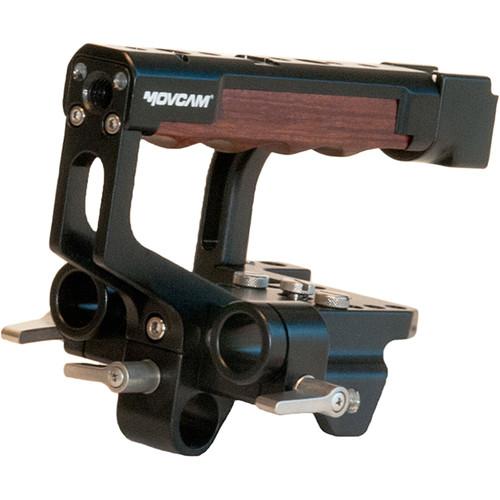

The gear drive is .8, and focus is achieved by constant damping that ensures precise focus. A focus scale helps measure focusing distances. - Top Handle for Canon C300 Mark II The Top Handle for Canon C300 Mark II is a one-piece helmet and handle assembly that mounts to the top of the Canon C300 Mark II. In addition to a top handle with wooden grip, the assembly also adds rod ports for attaching a pair of 15mm rods to the top of the camera, as well as a single, perpendicular rod port useful for attaching an optional EVF mount. For mounting additional accessories, there are threaded mounting holes on the helmet plate and top handle, and two shoe mounts located at the back of the handle.
- VCT-14 Plate for C300 Camera Rig The VCT-14 Plate from Movcam is designed for use with the C300 Camera Rig. It comes with two 4-inch long 15mm rods and two 12-inch long 15mm rods.
- Handgrip Adapter for C100/C300/C500 Use the original Canon EOS C-series handgrip with your existing rig with this Handgrip Adapter from Movcam. The Canon handgrip is secured to one end, and a rosette is on the other end for attaching to your rig. A cable extension allows you to connect the handgrip to your EOS C-series camera and control settings without interrupting your shooting. The cable leading back to the camera is coiled to remove unnecessary slack.

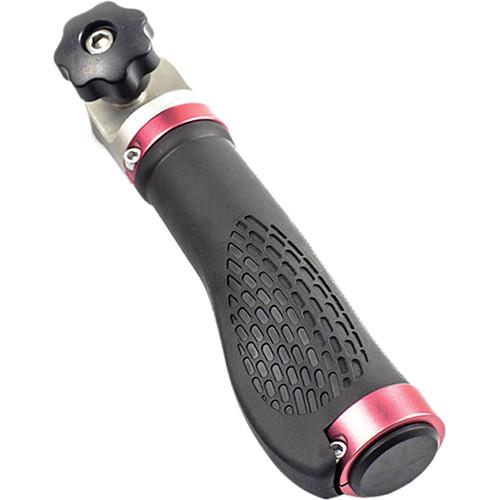

- Anti-Skid Handgrip Get a sure grip on your rig with this Movcam Anti-Skid Handgrip. The grip area on this handgrip has a contoured, dimpled rubber surface for comfortable holding, and features a rosette mount for locking onto your rig.

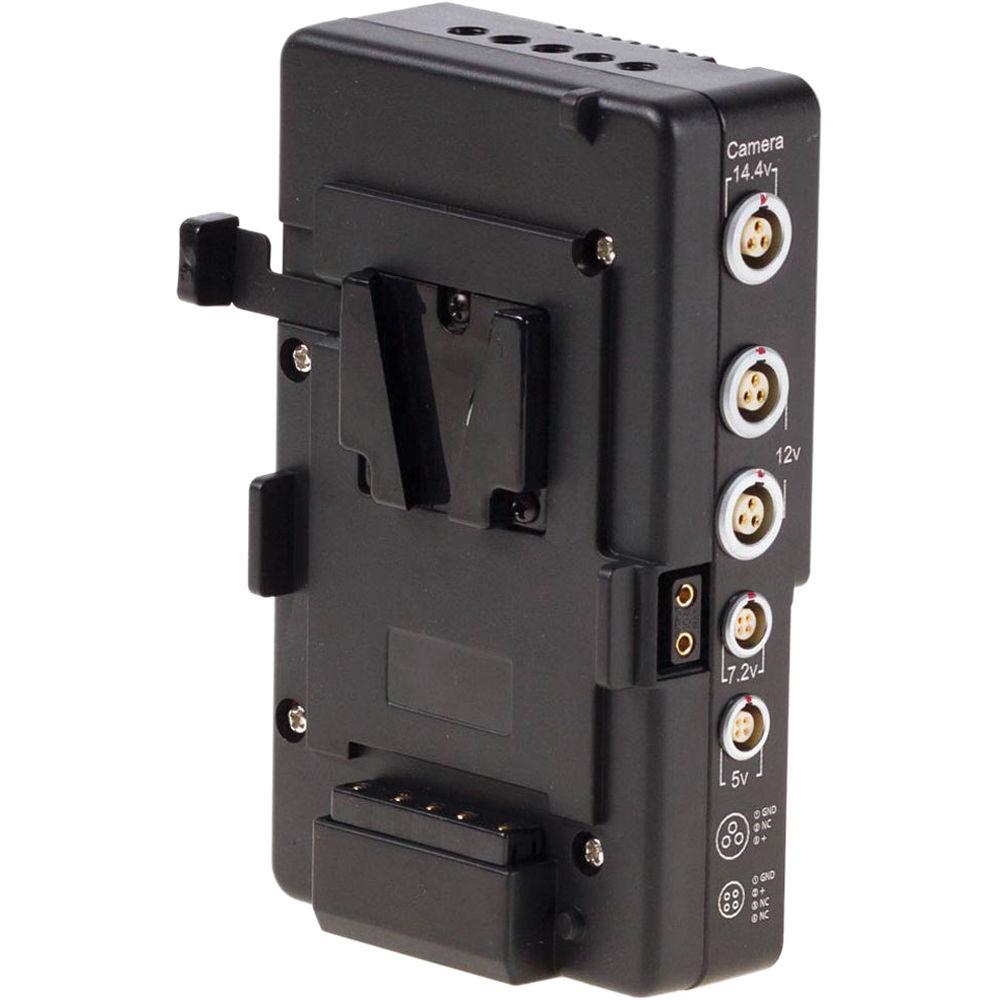

- V-Mount Battery Distribution Box Featuring a male V-mount adapter on one side and female on the other, this Movcam Distribution Box is designed to sandwich in between a camera's V-mount and a V-mount battery and to provide several output ports for powering devices and accessories. It can also be used rod-mounted via an optional Movcam 15mm rod bracket (model # MOV-306-0214), which attaches on the bottom and positions the unit upright.
This power station provides two 3-pin LEMO 12V unregulated outputs, one 3-pin LEMO 14V unregulated output, one 4-pin LEMO 8.5V output, one 4-pin LEMO 5V output, two P-Tap 12V outputs, and a USB 5V output. It also features a 4-pin XLR DC input that allows you to run an external 12V power source instead of a battery.
This power station can be used with any camera that features a V-mount but also with other camera via adapter plates. - Connections
-
- 2x 3-pin LEMO 12V regulated outputs
- 3-pin LEMO 14V unregulated output
- 4-pin LEMO 8.5V output
- 4-pin LEMO 5V output
- 2x 12V P-Tap outputs
- USB 5V output
- 4-pin XLR DC input for external power

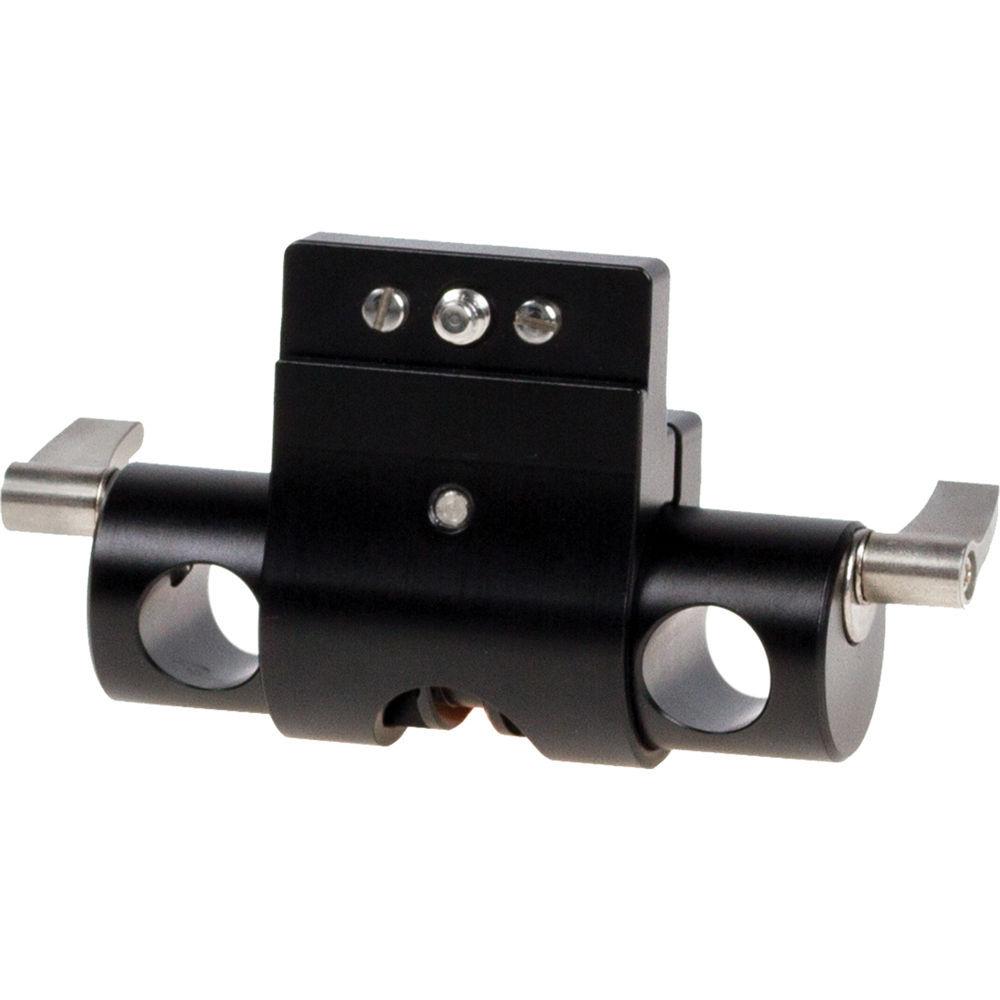

15mm Rod Clamp Adapter for MOV-306-0212 and MOV-306-0213 Power Converters The Movcam 15mm Rod Clamp Adapter for MOV-306-0212 and MOV-306-0213 Power Converters attaches to your Movcam Anton Bauer Gold Mount or V-Mount Power Converter and allows you to mount it onto LWS 15mm rods. 15mm Aluminum Rod - 4" Long The 15mm Aluminum Rod - 4" (101.6mm) Long from Movcam is a single rod made of aluminum and is 4" (101.6mm) in length. 15mm Aluminum Rod - 8" Long The 15mm Aluminum Rod - 8" (203.2mm) Long from Movcam is a single rod made of aluminum and is 8" (203.2mm) in length. - D-Tap to C300 MKII Power Cable
In the Box Bundle Items D-Tap to C300 MKII Power Cable ztfuzdxbxcaqxvutvbxdxvdcxvsxerydducq 144 to 114mm Step Down Ring Clamp-on Mattebox MM102 2 x - 4x5.65 Filter Holder (Horizontal)
Mini Follow Focus MF-2 - Standard Flexible Gear Ring
Top Handle for Canon C300 Mark II ztfuzdxbxcaqxvutvbxdxvdcxvsxerydducq VCT-14 Plate for C300 Camera Rig Handgrip Adapter for C100/C300/C500 Anti-Skid Handgrip V-Mount Battery Distribution Box 15mm Rod Clamp Adapter for MOV-306-0212 and MOV-306-0213 Power Converters 2 x 15mm Aluminum Rod - 4" Long 2 x 15mm Aluminum Rod - 8" Long
Also Includes - 2 x Rosette Spacer Adapter (MOV-303-1107B)
- 2 x 4" Rosette Extension (MOV-303-1108B)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Movcam Canon C300 MKII Broadcast LWS Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - D-Tap to C300 MKII Power Cable
| | | Box Dimensions (LxWxH) | 7.25 x 5.2 x 0.5" | - 144 to 114mm Step Down Ring
| | | Box Dimensions (LxWxH) | 7.5 x 6.4 x 0.4" | - Clamp-on Mattebox MM102
| Mount Type | Rear clamp or Mini Bracket for 15mm rod systems | | Filter Size | 4 x 5.65" (x2) | | Dimension (D x W x H) | 3 x 11 x 7.75" (7.62 x 27.94 x 19.69 cm) | | Weight | Approx. 3 - 4 lb (1.36 - 1.81 kg) | | | | Box Dimensions (LxWxH) | 16.25 x 10.5 x 8.6" | - Mini Follow Focus MF-2
| Compatibility | For DSLRs and camcorders | | Gear Drive | .8 | | Mount | 15 mm rod support by tightening mechanism | | Dimensions | 12 x 9 x 7" (30 x 23 x 18 cm) | | Weight | 3 lbs (1.36 kg) | | | | Box Dimensions (LxWxH) | 7.244 x 5.197 x 3.937" | - Top Handle for Canon C300 Mark II
| | | Box Dimensions (LxWxH) | 9.0 x 6.5 x 3.0" | - VCT-14 Plate for C300 Camera Rig
| Dimensions | 10.0 x 4.6 x 1.6" (255 x 116 x 41 mm) | | Weight | 1.8 lb (0.8 kg) | - Handgrip Adapter for C100/C300/C500
| Compatibility | Canon C100, C300, and C500 cameras | | Dimensions | 4.7 x 1.8 x 1.4" (120 x 46 x 35 mm) | | Weight | 7.05 oz (200 g) | | | | Box Dimensions (LxWxH) | 6.1 x 4.1 x 0.8" | - Anti-Skid Handgrip
| Dimensions | 7.0 x 1.7 x 1.3" (178 x 44 x 34 mm) | | Weight | 0.3 lb (0.15 kg) | | | | Box Dimensions (LxWxH) | 7.0 x 1.8 x 1.5" | - V-Mount Battery Distribution Box
| Connections | 2x 3-pin LEMO 12V regulated outputs
1x 3-pin LEMO 14V unregulated output
1x 4-pin LEMO 8.5V output
1x 4-pin LEMO 5V output
2x 12V P-Tap outputs
1x USB 5V output
1x 4-pin XLR DC input for external power | | Material | Camera Side: Aluminum
Battery Side: Plastic | | | | Box Dimensions (LxWxH) | 5.5 x 3.7 x 1.5" | - 15mm Rod Clamp Adapter for MOV-306-0212 and MOV-306-0213 Power Converters

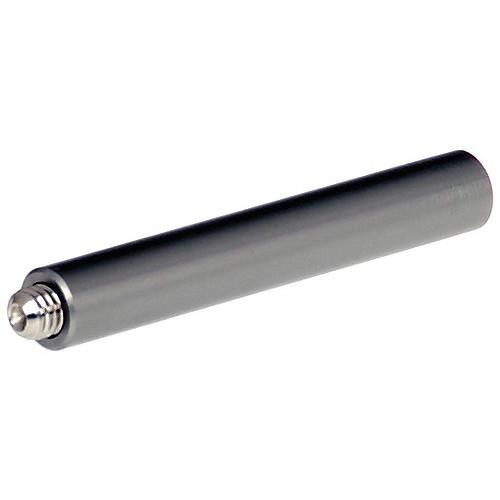

| | | Box Dimensions (LxWxH) | 5.9 x 3.0 x 2.2" | - 15mm Aluminum Rod - 4" Long
| Material | Aluminum | | Rod Diameter | 15 mm | | Rod Length | 4" (101.6 mm) | | | | Box Dimensions (LxWxH) | 4.5 x 0.7 x 0.5" | - 15mm Aluminum Rod - 8" Long
| Material | Aluminum | | Rod Diameter | 15 mm | | Rod Length | 8" (203.2 mm) | | | | Box Dimensions (LxWxH) | 9.0 x 1.0 x 1.0" |
