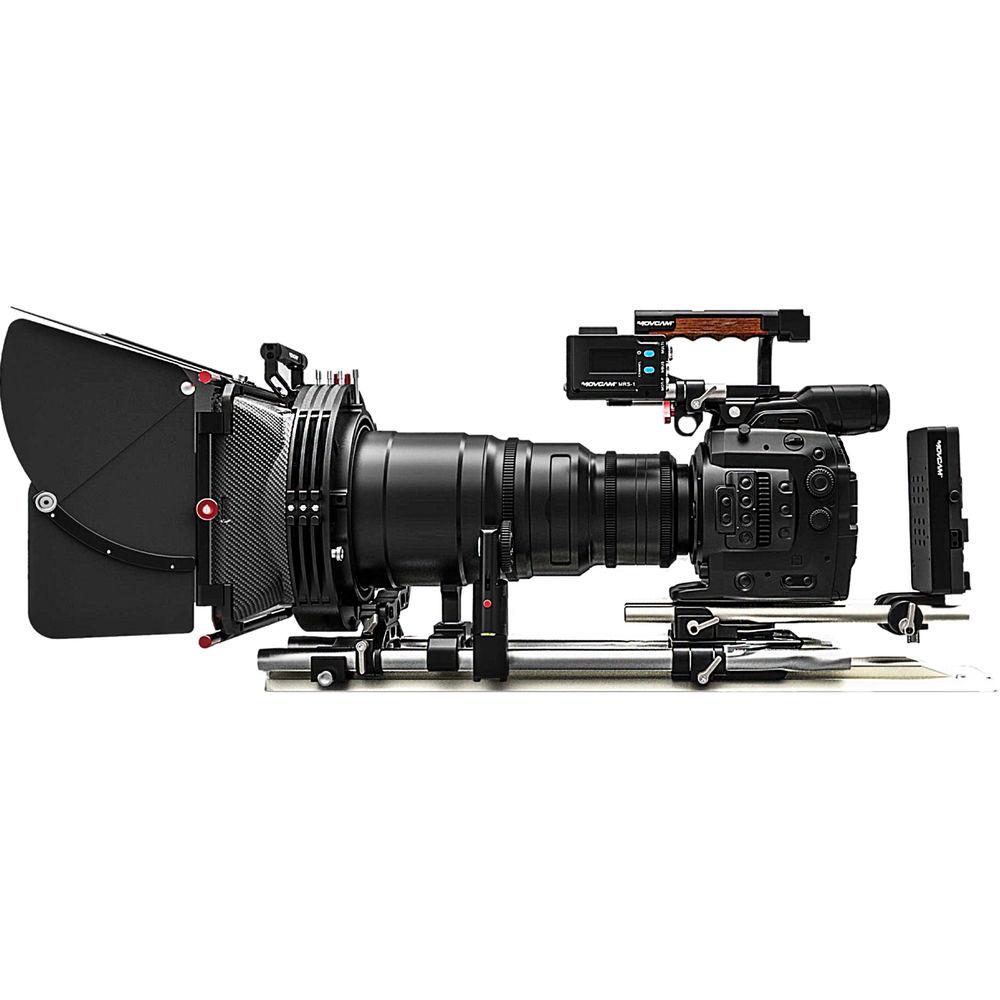

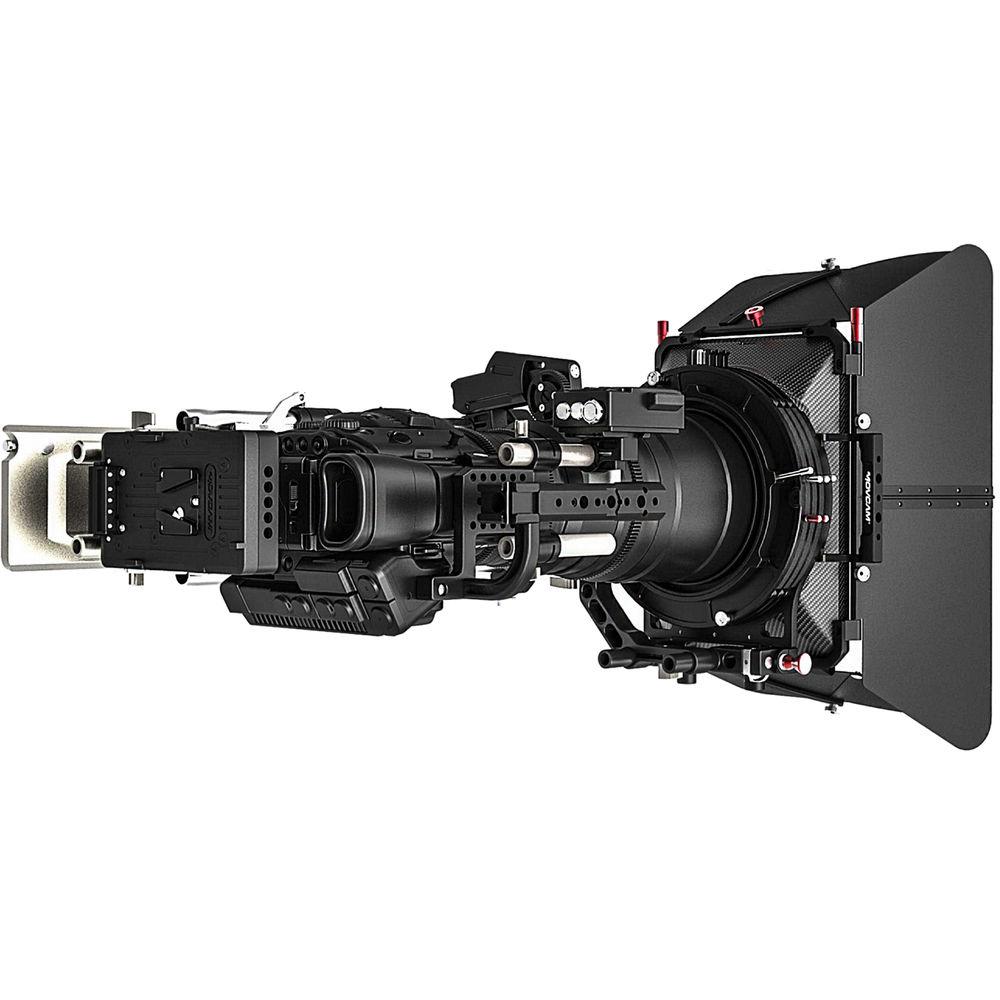

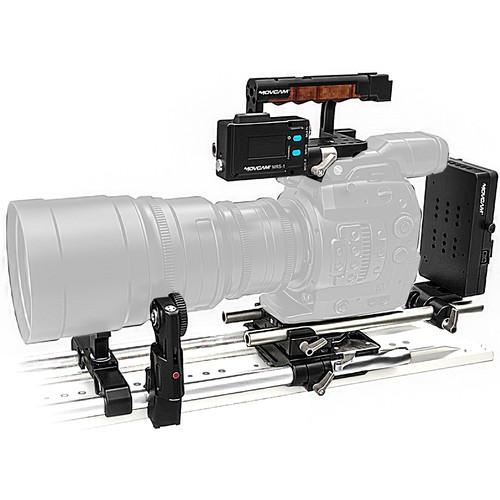

Movcam Canon C300 MKII Cine Kit

User Manual for Movcam Canon C300 MKII Cine Kit

• Product category: Camcorder Supports & Rigs Movcam
• Brand: Movcam
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Movcam Camcorder Supports & Rigs

Product description

• 24" Sliding Dovetail Kit with 19mm Bridgeplate System The 24" Sliding Dovetail Kit with 19mm Bridgeplate System from Movcam includes two 18” 19mm stainless steel rods, 24” 19mm sliding dovetail, 19mm rod support bracket, and 19mm bridgeplate compatible with the Movcam Universal LWS base plate.

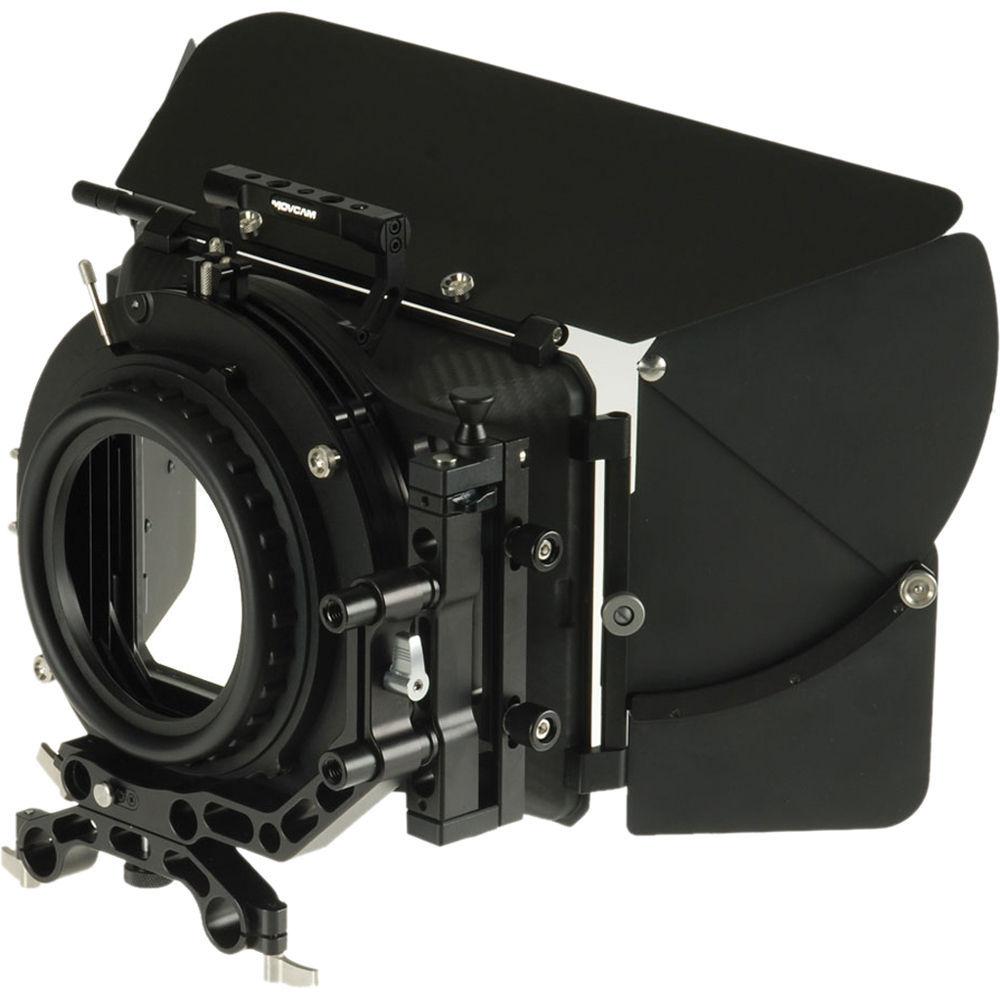

• MOV-301-0205 Mattebox MM5 (2 Rotating Filter Holder) The Movcam MOV-301-0205 Mattebox MM5 features a 156mm rear opening and is compatible with lenses up to 14mm (35mm academy).

  It is equipped with a 16:9 carbon fiber housing, a French flag and side wings for light control, one fixed and two rotating 5.65 x 5.65" filter holders, a 15:19mm bridge plate adapter and a 15mm mini swing-away bracket, and with a 156:114 rubber bellows that can optionally be stepped down.

  The swing-away bracket provides industry-standard 15mm rod support and the bridge plate adapter offers 19mm rod support.

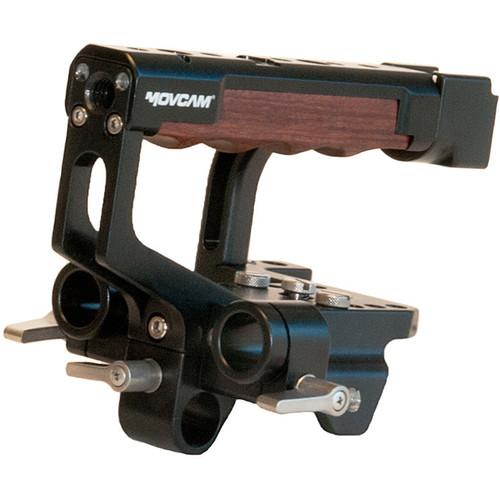

• Top Handle for Canon C300 Mark II The Top Handle for Canon C300 Mark II is a one-piece helmet and handle assembly that mounts to the top of the Canon C300 Mark II. In addition to a top handle with wooden grip, the assembly also adds rod ports for attaching a pair of 15mm rods to the top of the camera, as well as a single, perpendicular rod port useful for attaching an optional EVF mount. For mounting additional accessories, there are threaded mounting holes on the helmet plate and top handle, and two shoe mounts located at the back of the handle.

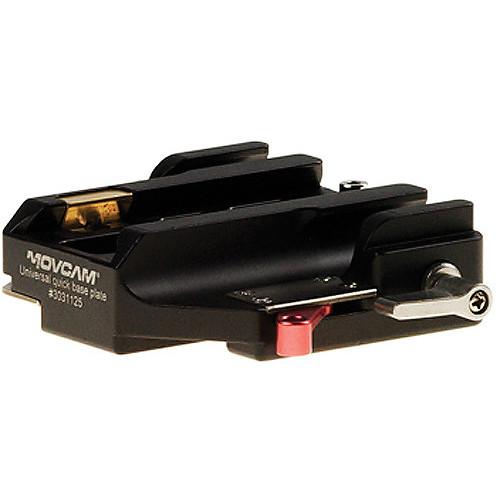

• Universal Quick Release Base Plate The Universal Quick Release Base Plate from Movcam is a baseplate compatible with Arri BP8 and Arri BP9 Bridgeplates.
• Quick Release Spacer for Canon C100/300/500 Cameras This Quick Release Camera Spacer from Movcam is designed for mounting the Canon Cinema EOS C100/C300/C500 cameras to their Universal Lightweight Support Baseplate. It has the correct camera height to align the lens with accessories such as a matte box and follow focus.
• 19mm Lens Bridge The Movcam 19mm Lens Bridge clamps onto 19mm rails to support the weight of a heavy lens. The bridge hooks onto one of the rails and tightens to the other. A 1/4" screw protrudes from the middle of the bridge to support a lens. Many heavy lenses feature a 1/4" thread specifically for this purpose.

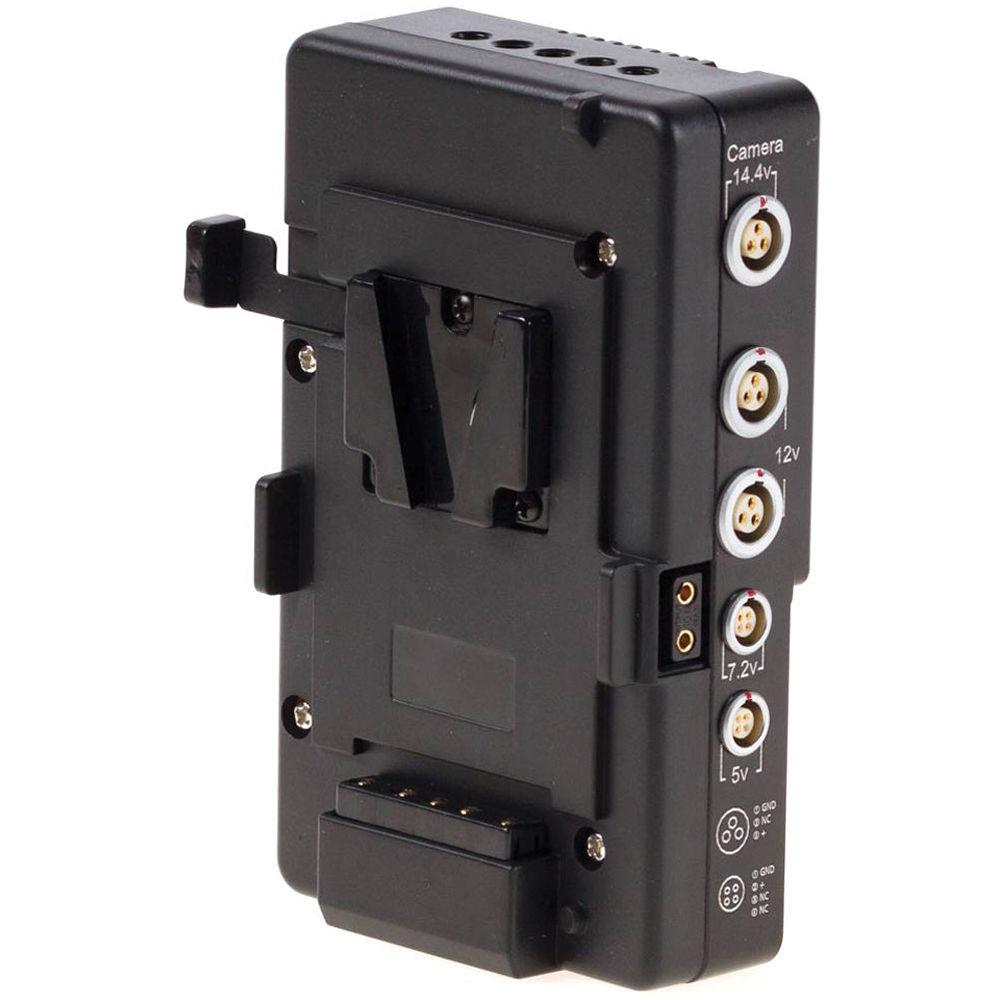

• V-Mount Battery Distribution Box Featuring a male V-mount adapter on one side and female on the other, this Movcam Distribution Box is designed to sandwich in between a camera's V-mount and a V-mount battery and to provide several output ports for powering devices and accessories. It can also be used rod-mounted via an optional Movcam 15mm rod bracket (model # MOV-306-0214), which attaches on the bottom and positions the unit upright.

  This power station provides two 3-pin LEMO 12V unregulated outputs, one 3-pin LEMO 14V unregulated output, one 4-pin LEMO 8.5V output, one 4-pin LEMO 5V output, two P-Tap 12V outputs, and a USB 5V output. It also features a 4-pin XLR DC input that allows you to run an external 12V power source instead of a battery.

  This power station can be used with any camera that features a V-mount but also with other camera via adapter plates.
  Connections
  • • 2x 3-pin LEMO 12V regulated outputs
    • 3-pin LEMO 14V unregulated output
    • 4-pin LEMO 8.5V output
    • 4-pin LEMO 5V output
    • 2x 12V P-Tap outputs
    • USB 5V output
    • 4-pin XLR DC input for external power
• 15mm Rod Clamp Adapter for MOV-306-0212 and MOV-306-0213 Power Converters The Movcam 15mm Rod Clamp Adapter for MOV-306-0212 and MOV-306-0213 Power Converters attaches to your Movcam Anton Bauer Gold Mount or V-Mount Power Converter and allows you to mount it onto LWS 15mm rods.

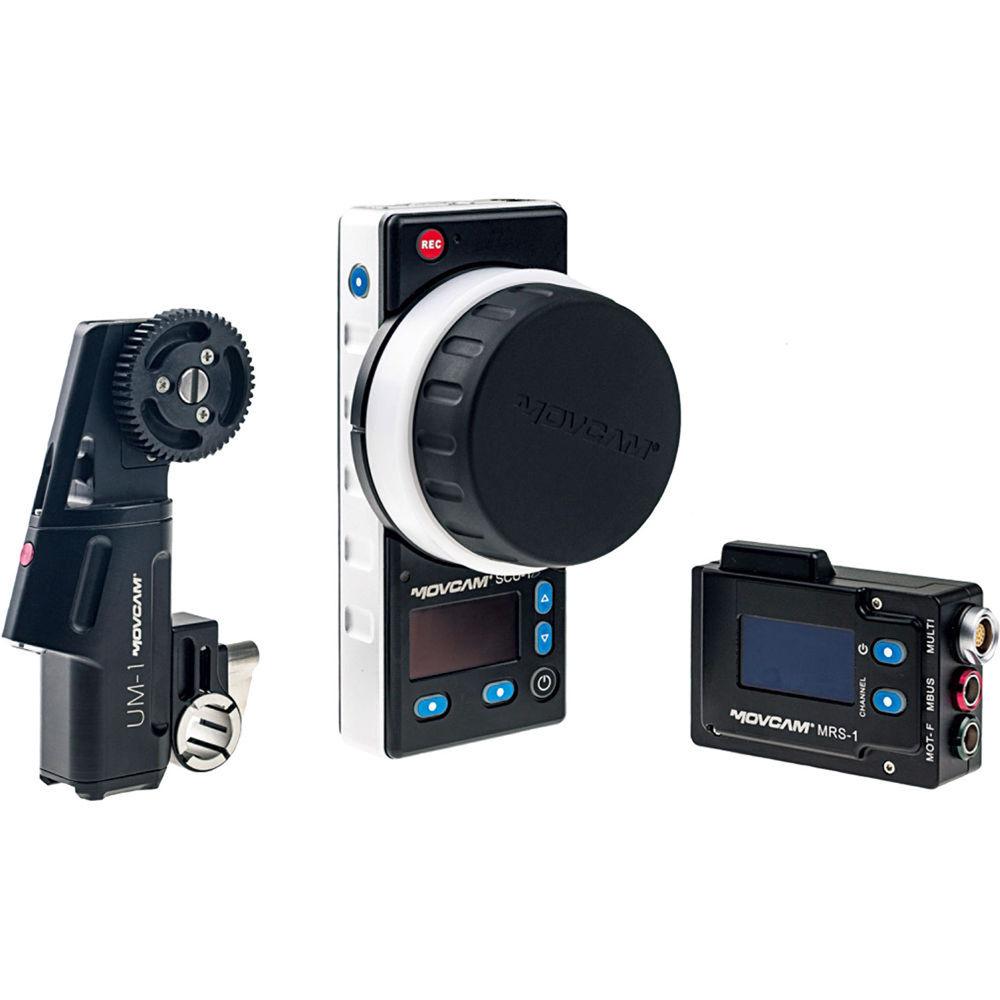

• Single-Axis Wireless Lens Control System For remote focus control Movcam's Single-Axis Wireless Lens Control System provides wireless or wired control of your lens. Designed as a modular system, it is available as either a single or dual axis system, with the single axis system upgradeable by purchasing additional modules. The system features OLED information screens that are visible both indoors and out, and automatic lens calibration.

  The focus controller/transmitter incorporates a slot that accepts NP-F550 and F570 type batteries internally (batteries not included.) Although the system has a wireless range of about 90' indoors and over 650' outdoors, you can connect an included cable to hardwire the focus controller to the motors. The motor is powered via an included D-Tap cable and features an integrated 15 to 19mm rod clamp. Each motor ships with a replaceable 0.8 MOD cine-style gear. The system can control record stop/stop for select RED, Canon, Sony, Arri, and Blackmagic Design cameras (requires optional cables, not included.)
  • Modular system that can be upgraded from single axis (focus) to dual axis (focus and zoom)
  • The optional zoom module features a cine-style thumb rocker and a rosette for mounting to a tripod panhandle with matching rosette clamp (rosette clamp not included.)
  • The marking disc on the handwheel is compatible with dry and wet erase markers, removable, and backlit.
  • The rod clamps feature spring-loaded locking levers, and can be adjusted along almost the entire length of the motor.
  • The screen of the wireless transmitter with the focus handwheel displays the following:
    Battery Storage
    Record/Stby
    Lim
    Channel selected
    Calibration
    Menu

    The Menu includes: Home Page
    Switch Wireless Module Channel
    Control Set Up
    Motor Setup
    Adjust Torque
    Stick Speed
    Adjust Screen Brightness
    Knob Illumination Switch
    Language
    Restore Factory Defaults
    Software Updates
    System Data
• Handgrip Adapter for C100/C300/C500 Use the original Canon EOS C-series handgrip with your existing rig with this Handgrip Adapter from Movcam. The Canon handgrip is secured to one end, and a rosette is on the other end for attaching to your rig. A cable extension allows you to connect the handgrip to your EOS C-series camera and control settings without interrupting your shooting. The cable leading back to the camera is coiled to remove unnecessary slack.

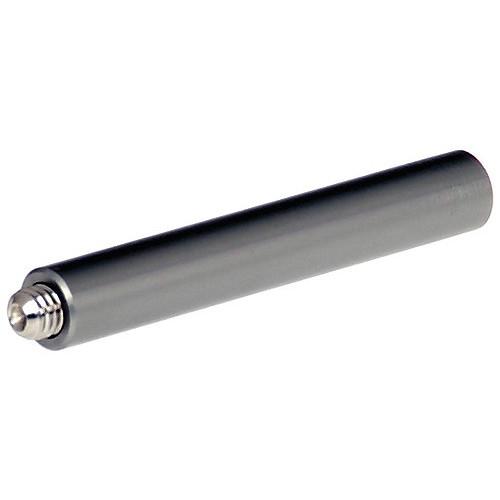

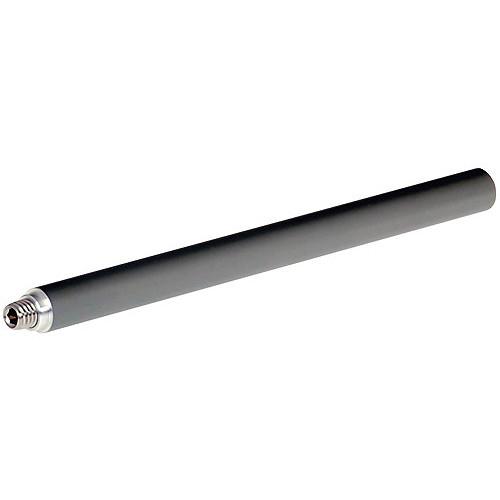

• 15mm Aluminum Rod - 8" Long The 15mm Aluminum Rod - 8" (203.2mm) Long from Movcam is a single rod made of aluminum and is 8" (203.2mm) in length.
• 15mm Aluminum Rod - 4" Long The 15mm Aluminum Rod - 4" (101.6mm) Long from Movcam is a single rod made of aluminum and is 4" (101.6mm) in length.

• D-Tap to C300 MKII Power Cable

• 2 x 18" 19mm Stainless Steel Rod

• 24" 19mm Sliding Dovetail

• 19mm Rod Support Bracket

• 19mm Bridgeplate

• Limited 1-Year Warranty

• French Flag

• Side Wings

• 15mm Mini Swing-Away Bracket

• 15:19mm Bridge Plate Adapter

• 156:114 Rubber Bellows

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 2-Year Limited Warranty

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• Hand Control Unit

• Receiver Module

• Motor Module

• Motor Cable

• D-Tap Power Cable

• Remote Cable

• Carrying Case

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Also Includes

• 156:136 Lens Adapter Ring [MOV-301-0205-14]

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 24" Sliding Dovetail Kit with 19mm Bridgeplate System

  Dimensions	24 x 6 x 5" (61 x 15 x 13 cm)
  Weight	13 lb (5.9 kg)

• MOV-301-0205 Mattebox MM5 (2 Rotating Filter Holder)

  Compatibility	For lenses up to 14mm (35mm Academy)
  Mount	15mm mini swing-away bracket for 15mm rod support 15:19mm bridge plate adapter for 19mm rod support
  Filter Tray	One fixed and two rotating 5.65 x 5.65" filter holders (14.35 x 14.35 cm)
  Material	16:9 carbon fiber housing
  Dimensions	14 x 14 x 6" (35.5 x 35.5 x 15.2 cm)
  Weight	7 lbs (3.17 kg)

  Box Dimensions (LxWxH)	14.3 x 14.3 x 6.7"

• Top Handle for Canon C300 Mark II

  Box Dimensions (LxWxH)	9.0 x 6.5 x 3.0"

• Universal Quick Release Base Plate

  Compatibility	Arri BP8 and Arri BP9 Bridgeplates
  Dimensions	3.3 x 3.7 x 1" (85 x 94 x 27 mm)
  Weight	0.5 lb (0.25 kg)

  Box Dimensions (LxWxH)	6.1 x 3.7 x 1.2"

• Quick Release Spacer for Canon C100/300/500 Cameras

  Dimensions	3.3 x 1.3 x 0.3" / 85.0 x 34.0 x 7.5 mm
  Weight	0.7 oz / 20 g

  Box Dimensions (LxWxH)	5.4 x 2.0 x 0.2"

• 19mm Lens Bridge

  Box Dimensions (LxWxH)	6.45 x 1.0 x 0.5"

• V-Mount Battery Distribution Box

  Connections	2x 3-pin LEMO 12V regulated outputs 1x 3-pin LEMO 14V unregulated output 1x 4-pin LEMO 8.5V output 1x 4-pin LEMO 5V output 2x 12V P-Tap outputs 1x USB 5V output 1x 4-pin XLR DC input for external power
  Material	Camera Side: Aluminum Battery Side: Plastic

  Box Dimensions (LxWxH)	5.5 x 3.7 x 1.5"

• 15mm Rod Clamp Adapter for MOV-306-0212 and MOV-306-0213 Power Converters

  Box Dimensions (LxWxH)	5.9 x 3.0 x 2.2"

• D-Tap to C300 MKII Power Cable

  Box Dimensions (LxWxH)	7.25 x 5.2 x 0.5"

• Single-Axis Wireless Lens Control System

  Transmission	Delay: <12 ms Indoor: 98.4' / 30.0 m Outdoor: 656.2' / 200.0 m
  Screen	1.56" OLED
  Power	Voltage: 7.2 to 24 VDC Consumption: 150 mA at 7.2 VDC
  Battery Compatibility	NP-F550 NP-F570
  Dimensions	6.1 x 3.3 x 3.0" / 156.0 x 84.0 x 75.5 mm
  Weight	1.0 lb / 0.5 kg (approximately)

  Drive Gear	0.8 Mod
  Dimensions	3.1 x 3.3 x 1.2" / 79.0 x 83.0 x 29.5 mm
  Weight	6.2 oz / 175.0 g
  Rod Clamp Type	15 to 19 mm

  Box Dimensions (LxWxH)	16.7 x 13.1 x 7.2"

• Handgrip Adapter for C100/C300/C500

  Compatibility	Canon C100, C300, and C500 cameras
  Dimensions	4.7 x 1.8 x 1.4" (120 x 46 x 35 mm)
  Weight	7.05 oz (200 g)

  Box Dimensions (LxWxH)	6.1 x 4.1 x 0.8"

• 15mm Aluminum Rod - 8" Long

  Material	Aluminum
  Rod Diameter	15 mm
  Rod Length	8" (203.2 mm)

  Box Dimensions (LxWxH)	9.0 x 1.0 x 1.0"

• 15mm Aluminum Rod - 4" Long

  Material	Aluminum
  Rod Diameter	15 mm
  Rod Length	4" (101.6 mm)

  Box Dimensions (LxWxH)	4.5 x 0.7 x 0.5"
