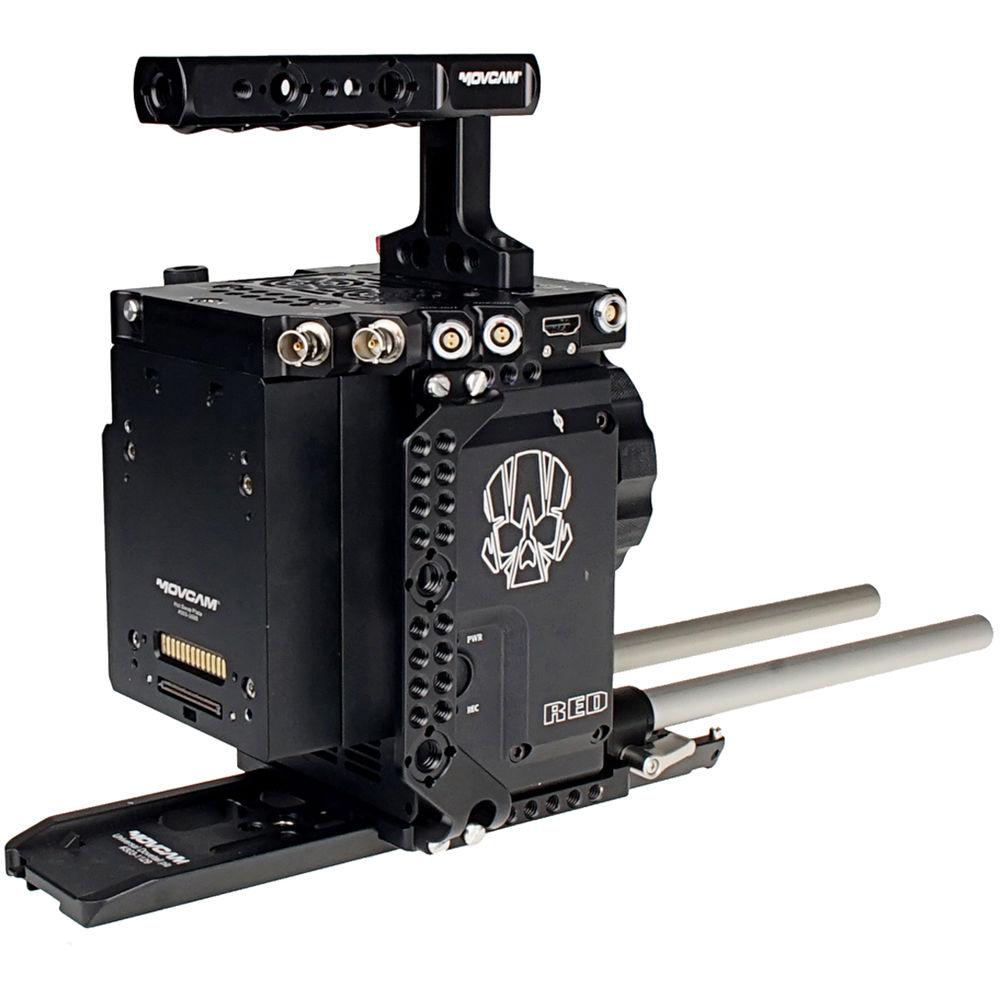

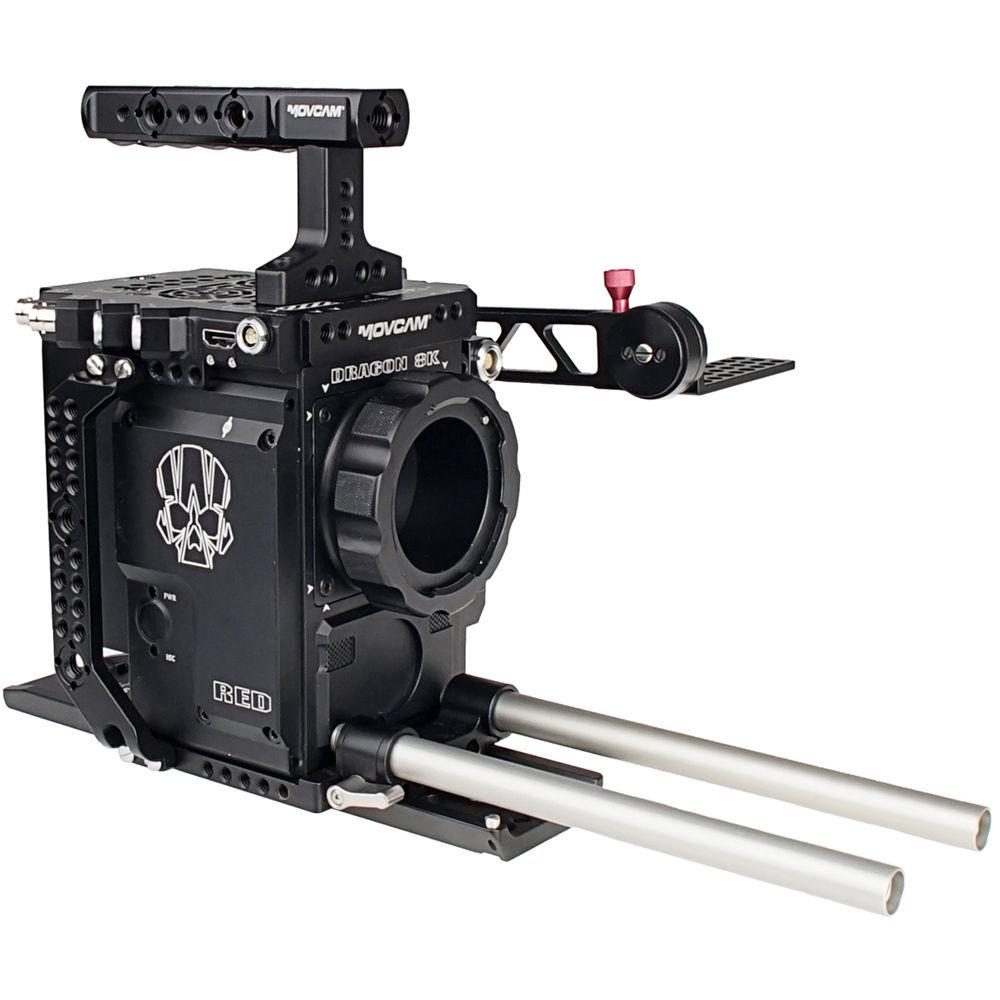

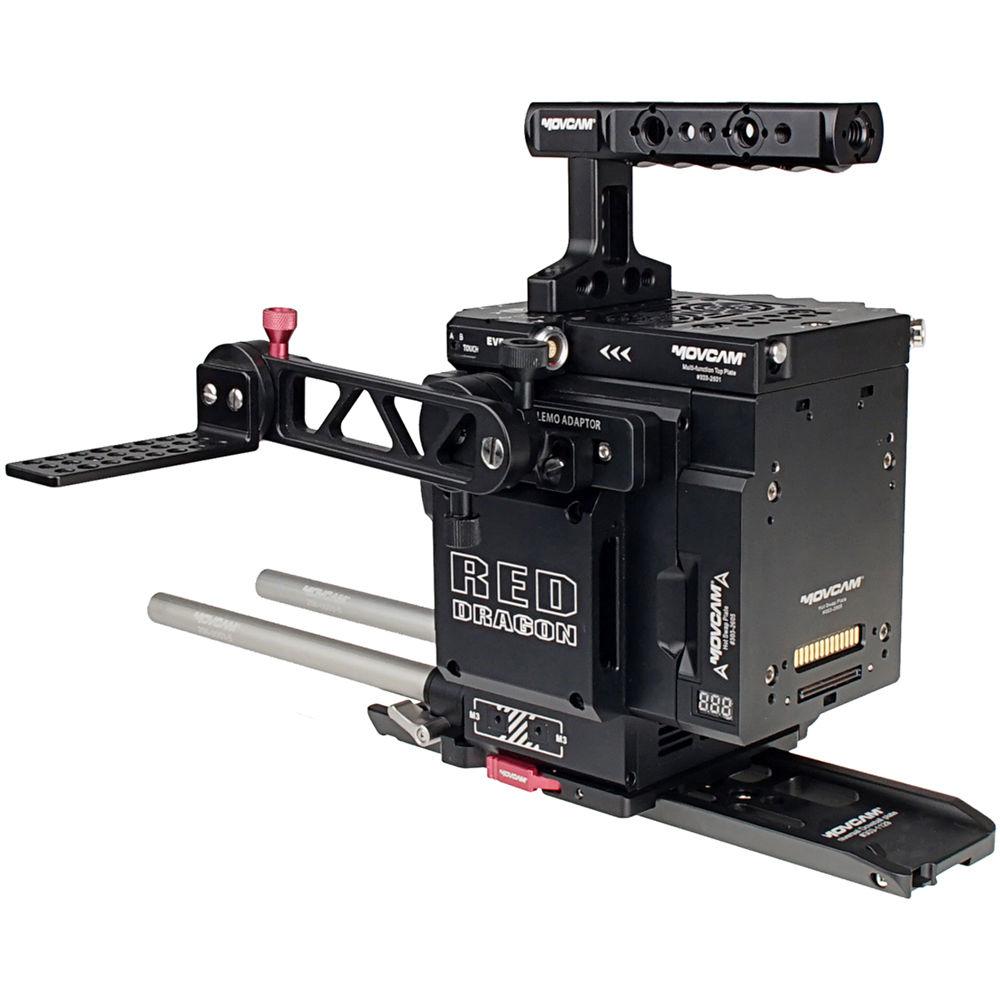

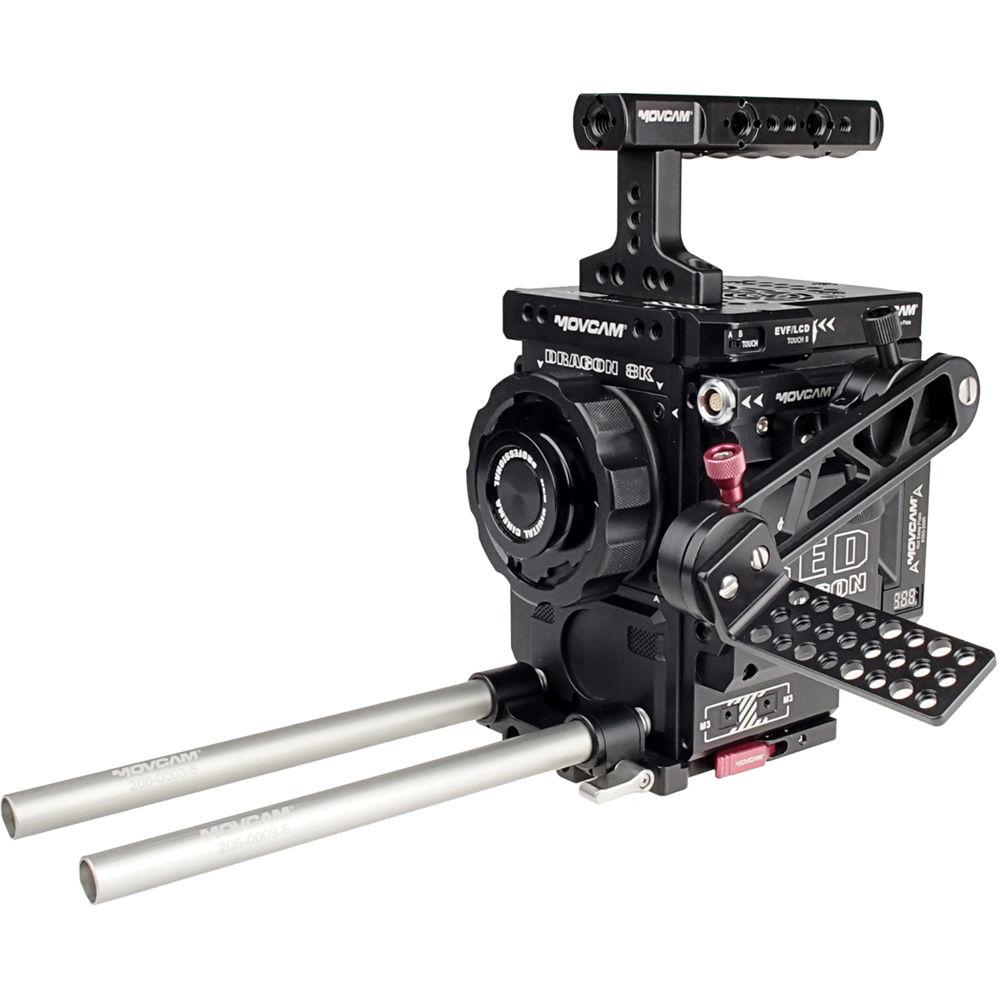

Product description Turn your RED camera BRAIN into a fully functional studio cinema camera with the Movcam DSMC2 Studio Kit. Similar to the DSMC2 Base Kit, the Studio Kit includes the Multi-Function Top Plate, Hot-Swap Adapter, LEMO Adapter, Side Bracket, DSMC2 Baseplate, 9" Dovetail, and a pair of 15mm rods. Additionally, the Studio Kit provides a top handle and an articulated EVF mount.The Multi-Function Top Plate and LEMO Adapter fit seamlessly over the DSMC2 design and offer I/O connections for video output over LEMO, HDMI, and SDI as well as AUX power outputs. The LEMO adapter adds an additional monitor terminal for a touch display. Securing to the rear of the DSMC2 camera body, the Hot-Swap Adapter serves as a mounting platform for separately available battery plates. It also can hold backup batteries for continuously powering the camera during battery swaps. Accessory mounting is handled by the side bracket, which has tapped 1/4"-20 and 3/8"-16 threaded holes, and the LWS Baseplate, which secures the included 15mm rods. For low-mode shooting, grab the top handle. Multiple threaded holes allow for additional accessories to be attached on the handle itself. Studio shooting wouldn't be complete without an EVF, and the articulated EVF mount allows you to attach and position an EVF of your choice right on the camera. The included dovetail allows your setup to be easily balanced on a fluid head. - Multifunction Top Plate for RED Weapon, Scarlet-W, and Raven The Multifunction Top Plate from Movcam is designed for use with RED Weapon, RED Raven, and RED Scarlet digital cinema cameras. Besides having a stock fan opening and many 1/4"-20 threads for accessories, the Multifunction Top Plate offers I/O connections via Touch A and Touch B for video output over LEMO, HDMI, and SDI, as well as AUX power outputs. The Top Plate also offers mounting points for the Movcam top handle as well as the stock top handle.
- 2 x HD-SDI outputs when combined with the Movcam Hot Swap Adapter
- 2 x AUX Power Outputs: 2-pin LEMO for RED I/O Expander or Movcam Hot Swap Adapter
- 1 x HDMI Output for simultaneous operation with top pogo EVF port
- 1 x Start/Stop: 3-pin Fischer in use with OEM RED Trigger Handle
- Touch A for pogo pin mounted EVF/LCD monitors
- Touch B LEMO adapter for legacy viewfinder cable input
- Toggle switch for Touch A or Touch B as only one output can be active with the top plate
- Retractable HD-SDI pins to connect with Movcam Hot Swap Adapter
- Retractable D-Tap to connect with either RED I/O Expander or Movcam Hot Swap Adapter
- DSMC2 Hot Swap Adapter for RED WEAPON, EPIC-W, SCARLET-W and RAVEN The DSMC2 Hot Swap Adapter from Movcam allows for continuous battery operation when using the RED WEAPON, EPIC-W, SCARLET-W, and RAVEN cameras. Securing to the rear of the DSMC2 camera body, the Hot Swap Adapter serves as a mounting platform for separately available battery plates. It can also hold backup batteries for continuously powering the camera during battery swaps. The DSMC2 Hot Swap Adapter requires three 18650 Li-ion batteries (sold separately).
- Top Handle for RED Weapon, Scarlet-W, and Raven Cameras The Top Handle for RED Weapon, Scarlet-W, and Raven Cameras from Movcam mounts onto the Multi-Function Top Plate or onto the RED stock handle mounting points. The top handle offers multiple ARRI-style mounting grooves and 1/4"-20 threading.
- DSMC2 Base Plate The DSMC2 Base Plate from Movcam is designed for use with RED Weapon, RED Raven, and RED Scarlet digital cinema cameras.

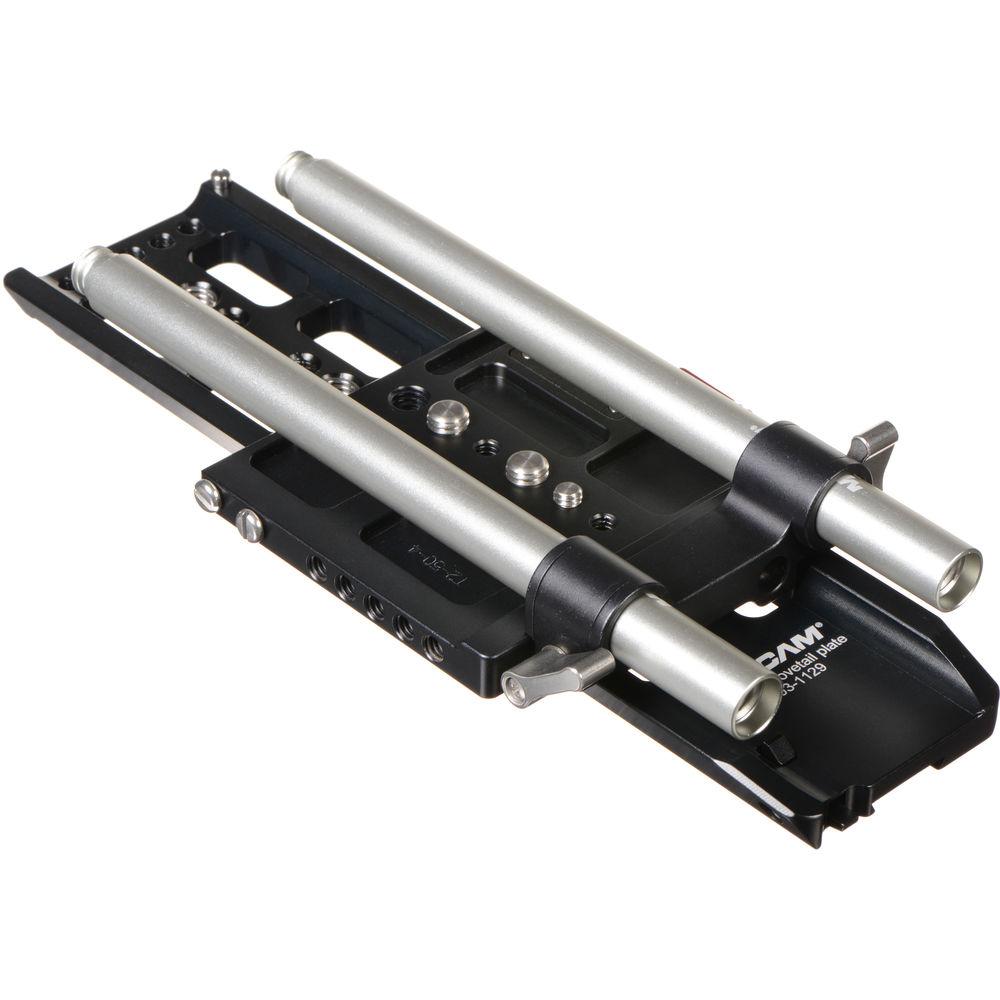

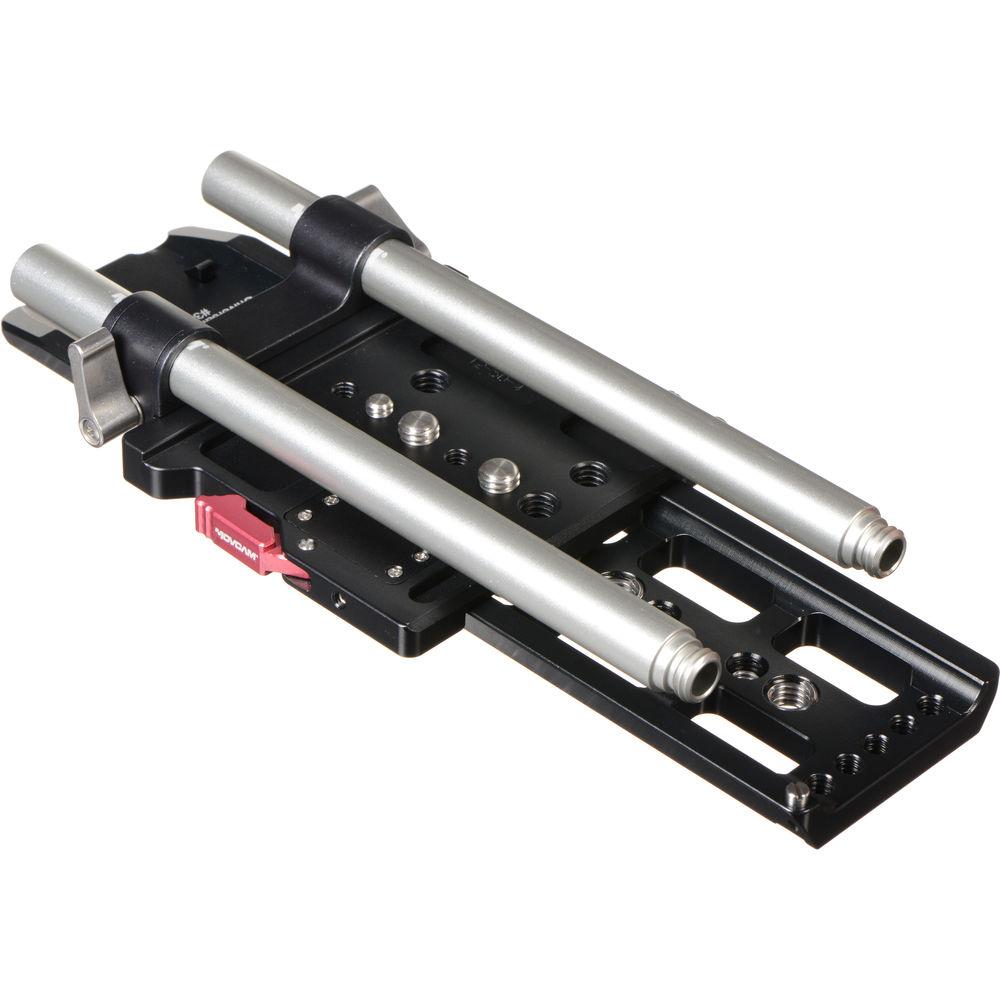

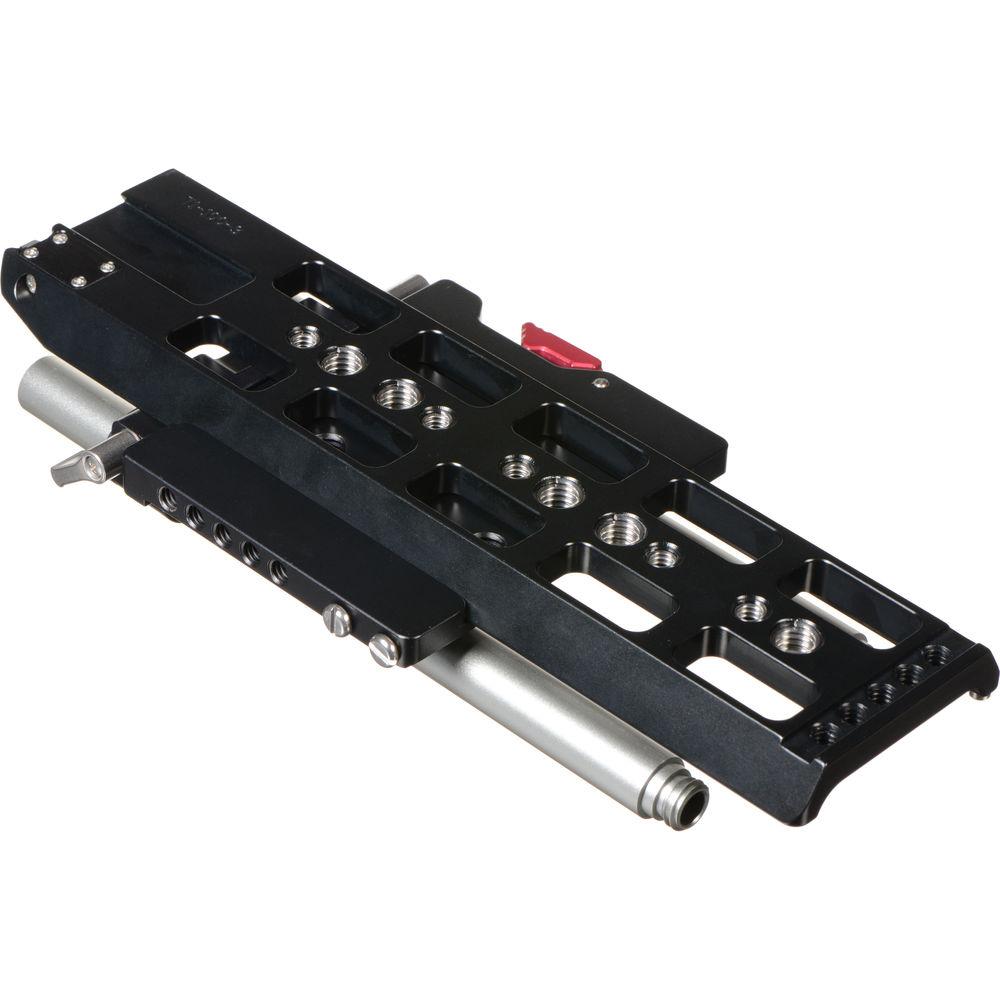

- Universal LWS Dovetail Plate The Movcam Universal LWS Dovetail Plate is a baseplate compatible with Arri BP8 and Arri BP9 Bridgeplates.
- 15mm Aluminum Rod - 8" Long The 15mm Aluminum Rod - 8" (203.2mm) Long from Movcam is a single rod made of aluminum and is 8" (203.2mm) in length.
- DSMC2 LEMO Adapter for RED WEAPON, EPIC-W, SCARLET-W, and RAVEN

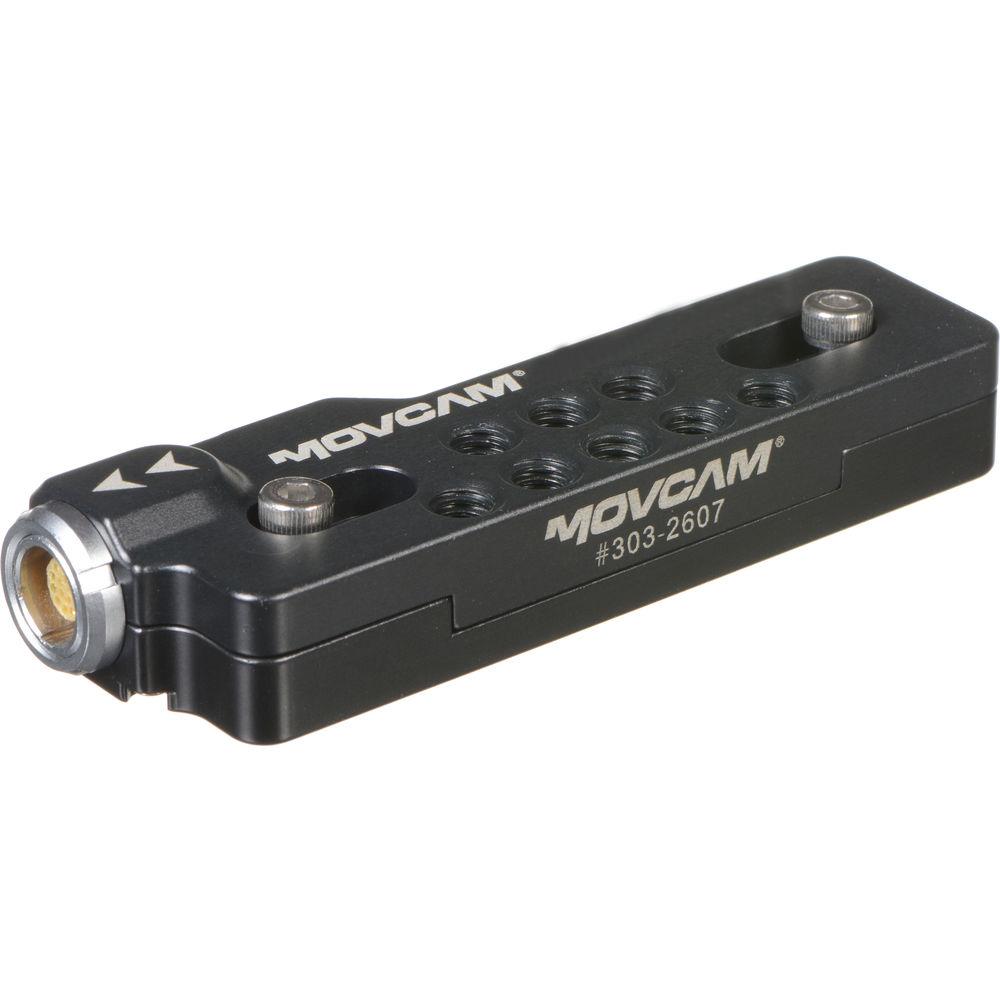

- Side Bracket for RED WEAPON, SCARLET-W, and RAVEN Cameras
- EVF Arm for RED WEAPON, SCARLET-W, and RAVEN

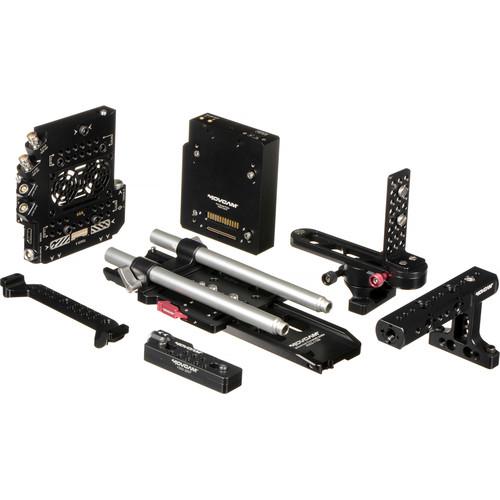

In the Box Bundle Items Multifunction Top Plate for RED Weapon, Scarlet-W, and Raven ucaytcudqwbrbrw DSMC2 Hot Swap Adapter for RED WEAPON, EPIC-W, SCARLET-W and RAVEN DSMC2 LEMO Adapter for RED WEAPON, EPIC-W, SCARLET-W, and RAVEN Side Bracket for RED WEAPON, SCARLET-W, and RAVEN Cameras EVF Arm for RED WEAPON, SCARLET-W, and RAVEN Top Handle for RED Weapon, Scarlet-W, and Raven Cameras DSMC2 Base Plate Universal LWS Dovetail Plate 2 x 15mm Aluminum Rod - 8" Long Table of Contents
|
Upload User Manual
Have you got an user manual for the Movcam DSMC2 Studio Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

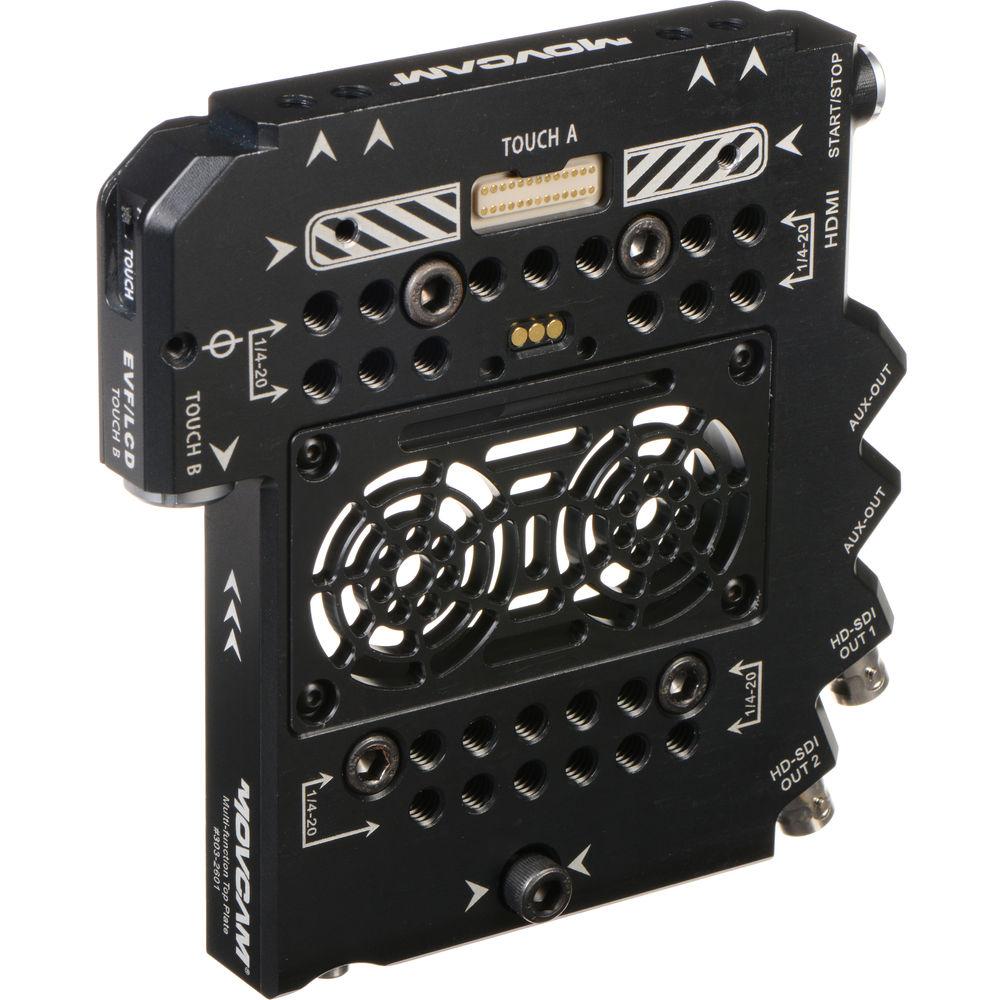

Technical parameters - Multifunction Top Plate for RED Weapon, Scarlet-W, and Raven
| Compatibility | RED Weapon, Scarlet-W, and Raven | | Connectors | 2 x BNC HD-SDI output
2 x 2-pin LEMO AUX output
1 x HDMI video output
1 x 3-pin Fischer start/stop
1 x LEMO EVF/LCD Touch B
1 x Pogo pin EVF/LCD Touch A
1 x D-Tap retractable switch
1 x Toggle switch, Touch A / Touch B | | | | Box Dimensions (LxWxH) | 5.9 x 5.1 x 1.3" | - DSMC2 Hot Swap Adapter for RED WEAPON, EPIC-W, SCARLET-W and RAVEN
| Compatibility | RED WEAPON, EPIC-W, SCARLET-W, and RAVEN cameras | | Power | 3 x 18650 Li-ion batteries | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | - DSMC2 LEMO Adapter for RED WEAPON, EPIC-W, SCARLET-W, and RAVEN
| | | Box Dimensions (LxWxH) | 4.7 x 1.7 x 0.8" | - Side Bracket for RED WEAPON, SCARLET-W, and RAVEN Cameras
| | | Box Dimensions (LxWxH) | 6.0 x 4.0 x 0.5" | - EVF Arm for RED WEAPON, SCARLET-W, and RAVEN
| | | Box Dimensions (LxWxH) | 6.2 x 5.5 x 1.1" | - Top Handle for RED Weapon, Scarlet-W, and Raven Cameras
| Compatibility | RED Weapon, Scarlet-W, and Raven cameras | | Thread | 1/4"-20 | | | | Box Dimensions (LxWxH) | 6.2 x 4.0 x 2.6" | - DSMC2 Base Plate
| | | Box Dimensions (LxWxH) | 5.0 x 4.0 x 1.2" | - Universal LWS Dovetail Plate
| Compatibility | Arri BP8 and Arri BP9 Bridgeplates | | Dimensions | 10.0 x 2.6 x 0.5" (256 x 68 x 14 mm) | | Weight | 0.5 lb (0.25 kg) | | | | Box Dimensions (LxWxH) | 10.6 x 4.1 x 1.0" | - 15mm Aluminum Rod - 8" Long
| Material | Aluminum | | Rod Diameter | 15 mm | | Rod Length | 8" (203.2 mm) | | | | Box Dimensions (LxWxH) | 9.0 x 1.0 x 1.0" |
