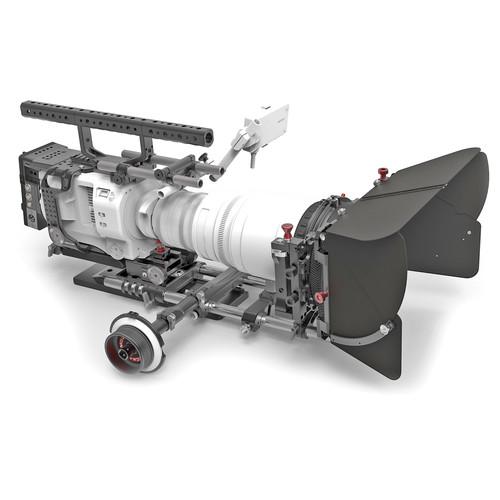

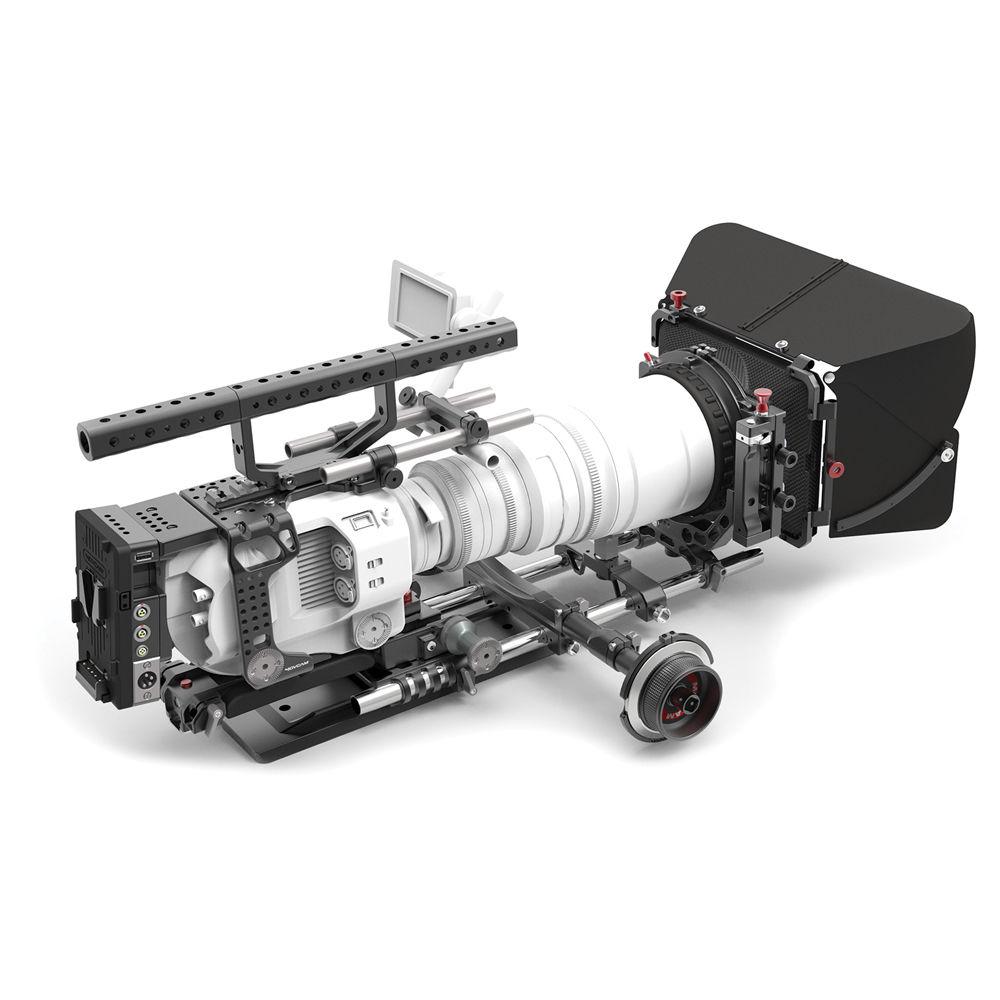

Product description The Movcam FS7 19mm Standard Kit is a custom studio camera rig for the Sony FS7 camera, complete with a dual-sided follow focus, matte box, and V-Mount power distribution box. It features a riser plate tailored to fit the bottom of the camera that docks into a V-lock compatible baseplate. In addition to a V-lock interface for quick release attachment to VCT tripod plates, the baseplate adds front and rear 15mm rod clamps, a pair of ARRI standard rosettes, and an integrated shoulder pad. It can also be mounted onto an included 19mm rod bridge plate, which in turn can be mounted onto a 12" sliding dovetail plate for tripod mounting. Also included in the kit is a form-fitting side bracket that adds 1/4"-20 threaded accessory mounting holes on the top and right side of the camera, and a rosette spacer.
For the top of the camera, a 15mm rod mount is provided along with an adapter with a parallel rod port for attaching and repositioning the camera's EVF/monitor. A top plate screws into the top of the camera, providing a NATO rail for attaching an included long top handle, which adds additional 1/4"-20 threaded holes. Attaching to the rear of the camera is a power distribution box that features a V-Mount battery plate, and fits into the same slot used by Sony's own V-Mount battery pack. The pack provides a means to power your camera using a V-Mount battery, and provides several power outputs in varying voltages for powering optional accessories.
Four 8"-long 15mm rods are included for use with the front, rear, or top rod clamps provided with this kit. A pair of 12" 19mm rods are provided for the bride plate, which support an included lens support, dual-sided studio follow focus with 0.8 pitch gear drive, and two-stage swing-away matte box that features one fixed 4x5.65" filter tray, and one rotating 4x5.65" filter tray.

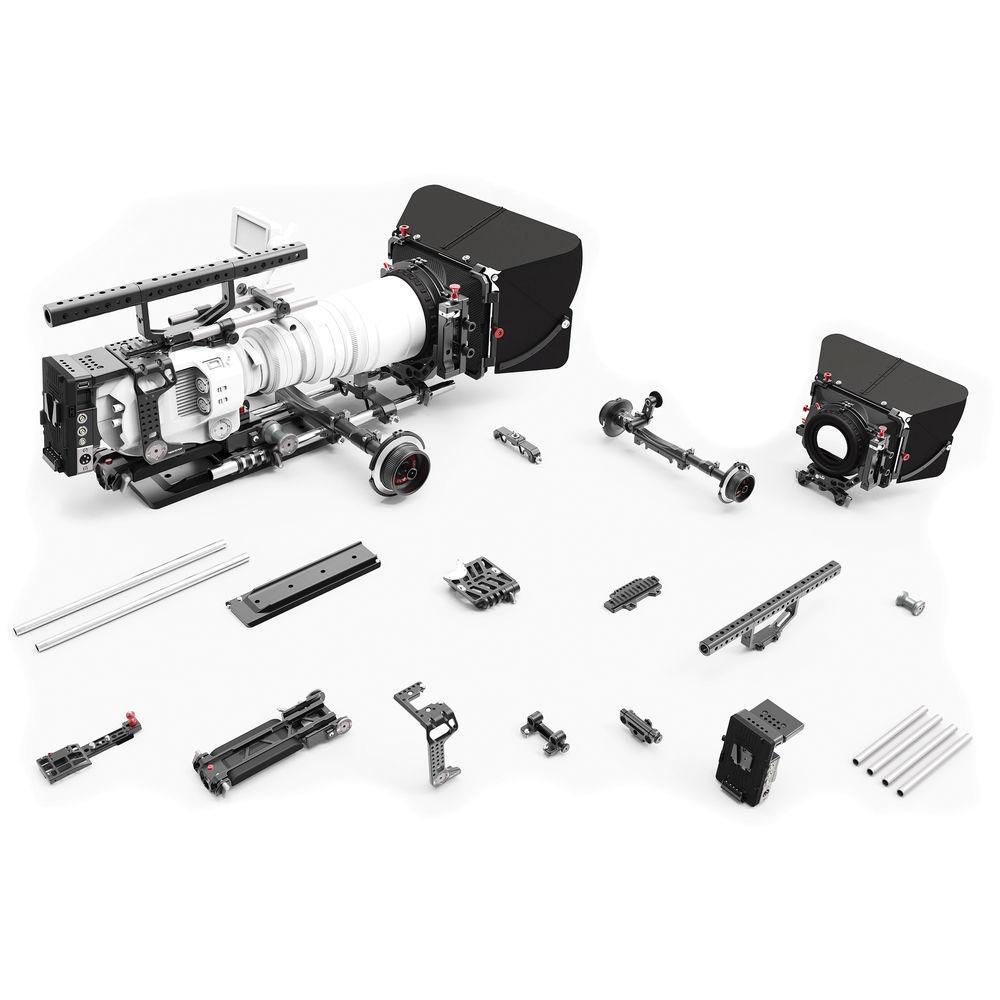

Please see below for more information on the components of this kit. In the Box Movcam FS7 19mm Standard Kit (V-Mount) FS7 Riser Plate Multi-BP Baseplate for FS7 Camera Rig Side Bracket for Sony FS7 Rig Top Clamp for Sony FS7 Camera Rig Rod Clamp for 15mm Systems Power Distribution Box for Sony FS7 Camera Sliding Dovetail Plate for Movcam Bridge Plate 19mm Bridge Plate for Dovetail Plate Top Plate for Movcam Sony FS7 Camera Rig Top Handle with Extensions for Sony PMW-F5/-F55 4K Camcorders H Rosette Spacer Studio Follow Focus 19mm Lens Bridge Mattebox MM1A 4 x 15mm Aluminum Rod - 8" Long 2 x 19mm Steel Rod (18") Table of Contents
|
