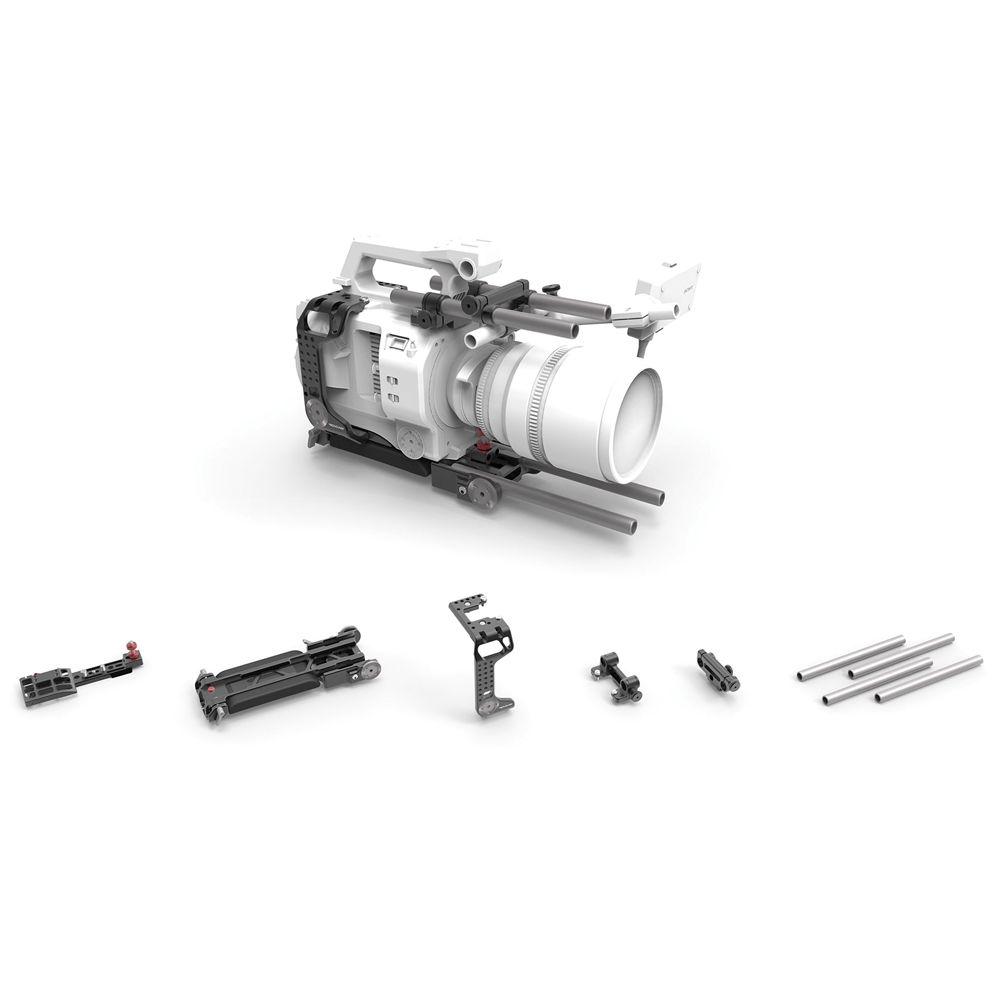

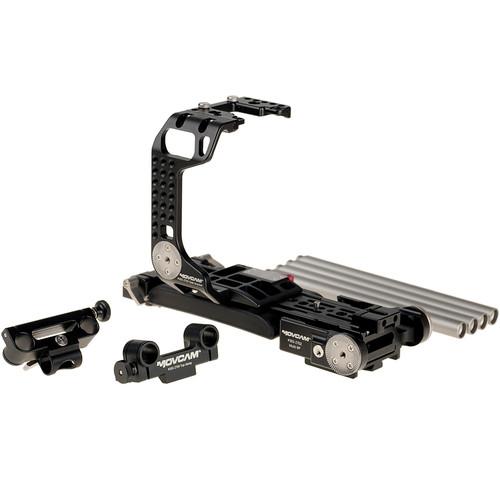

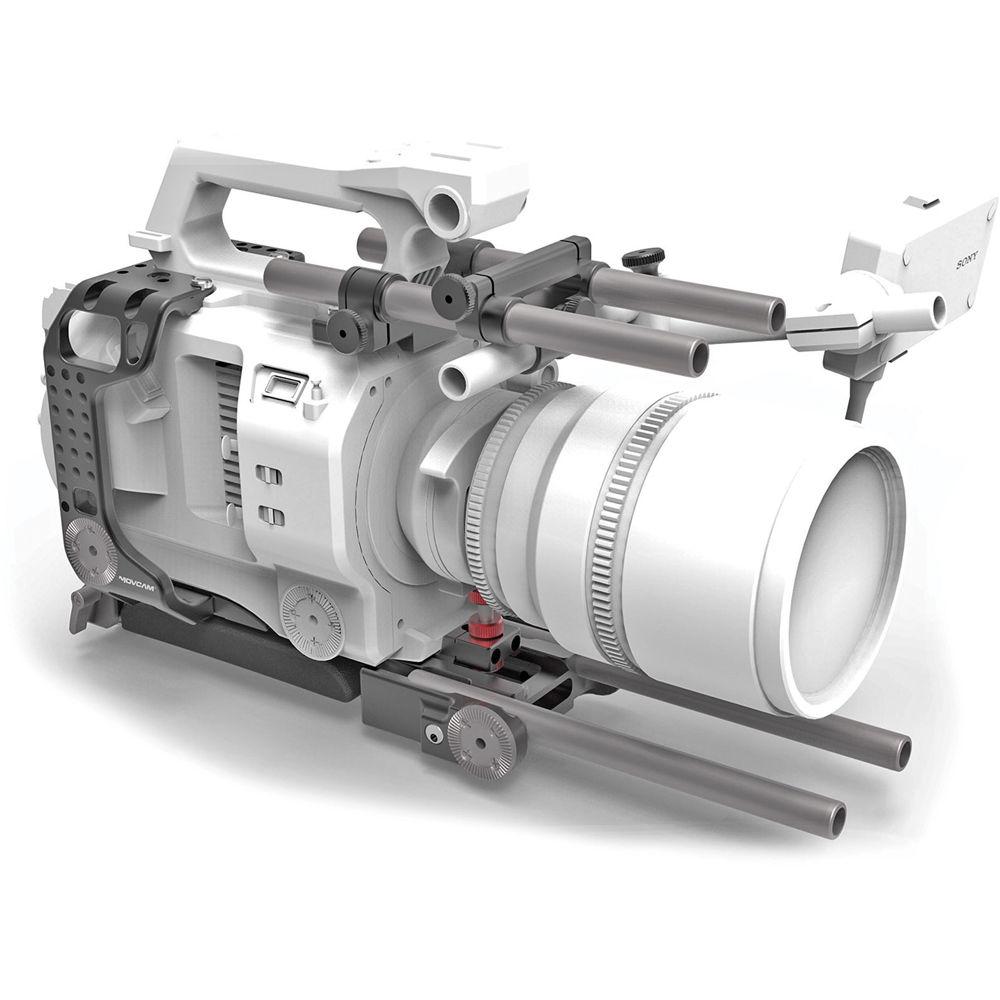

Product description The Movcam FS7 Light Base Kit is a custom camera rig for the Sony FS7 camera. It features a riser plate tailored to fit the bottom of the camera that has a built-in mini lens support and docks into an included V-lock compatible baseplate. In addition to a V-lock interface for quick-release attachment to VCT tripod plates, the baseplate adds front and rear 15mm rod clamps, a pair of ARRI standard rosettes, and an integrated shoulder pad. Also included in the kit is a formfitting side bracket that adds 1/4"-20 threaded accessory mounting holes on the top and right side of the camera, as well as an additional ARRI rosette positioned towards the rear of the camera.
For the top of the camera, a 15mm rod mount is provided along with a adapter with a parallel rod port for attaching and re-positioning the cameras EVF/monitor. Completing the kit are four 8"-long 15mm rods are included for use with the front, rear, or top rod clamps provided with this kit. - FS7 Riser Plate Attaching the Movcam FS7 Riser Plate to the bottom of the Sony FS7 camera increases the mounting surface area and keeps it flat. The top surface is specially shaped to fit exactly with the FS7's contours. With the expanded surface area, a shoulder pad or tripod plate can be placed anywhere along the bottom of the camera for optimal balance with different lenses or rig components. The base of the plate is also Arca-Swiss compatible for securing to Arca-Swiss standard support equipment. Aside from camera support, the front of the plate can house a lens/adapter support to reduce stress on the camera's lens mount.
- Multi-BP Baseplate for FS7 Camera Rig The Multi-BP for FS7 Camera Rig from Movcam is a multi-purpose base plate for the FS7 camera. On one end, there is 15mm rod clamp with locking lever, and on the other end, there are standard rosette on each side. The plate includes a shoulder pad.
- Side Bracket for Sony FS7 Rig The Side Bracket from Movcam is a side bar for their Sony FS7 camera rig. It features a standard rosette at the bottom.
- Top Clamp for Sony FS7 Camera Rig The Top Clamp for FS7 Camera Rig from Movcam is a 15mm rod clamp used on top of the Sony FS7 camera rig.
- Rod Clamp for 15mm Systems The Rod Clamp from Movcam is a rod clamp for 15mm systems. It can take three rods in total: two in parallel and one in vertical.
- 15mm Aluminum Rod - 8" Long The 15mm Aluminum Rod - 8" (203.2mm) Long from Movcam is a single rod made of aluminum and is 8" (203.2mm) in length.
In the Box Bundle Items FS7 Riser Plate czdtuwduzfbuezdxtaqevezscettusae Multi-BP Baseplate for FS7 Camera Rig Side Bracket for Sony FS7 Rig Top Clamp for Sony FS7 Camera Rig Rod Clamp for 15mm Systems czdtuwduzfbuezdxtaqevezscettusae 4 x 15mm Aluminum Rod - 8" Long Table of Contents
|
Upload User Manual
Have you got an user manual for the Movcam FS7 Light Base Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FS7 Riser Plate
| Dimensions | 6.8 x 2.6 x 1.7" (174.5 x 67.7 x 43.7 mm) | | Weight | 0.3 lb (0.15 kg) | | | | Box Dimensions (LxWxH) | 6.8 x 3.1 x 0.6" | - Multi-BP Baseplate for FS7 Camera Rig
| Dimensions | 10.2 x 3.8 x 1.4" (260.0 x 98.0 x 37.5 mm) | | Weight | 1.3 lb (0.6 kg) | | | | Box Dimensions (LxWxH) | 10.4 x 5.6 x 1.6" | - Side Bracket for Sony FS7 Rig
| Dimensions | 4.2 x 5.9 x 2.3" (107.5 x 150.5 x 60.5 mm) | | Weight | 0.3 lb (0.15 kg) | | | | Box Dimensions (LxWxH) | 7.0 x 5.6 x 2.3" | - Top Clamp for Sony FS7 Camera Rig
| Dimensions | 3.1 x 1.5 x 1.4" (80 x 39 x 37.5 mm) | | Weight | 0.1 lb (0.05 kg) | - Rod Clamp for 15mm Systems
| Dimensions | 3.1 x 1.6 x 0.8" (80 x 43 x 22 mm) | | Weight | 0.1 lb (0.05 kg) | | | | Box Dimensions (LxWxH) | 5.0 x 2.0 x 0.4" | - 15mm Aluminum Rod - 8" Long
| Material | Aluminum | | Rod Diameter | 15 mm | | Rod Length | 8" (203.2 mm) | | | | Box Dimensions (LxWxH) | 9.0 x 1.0 x 1.0" |
