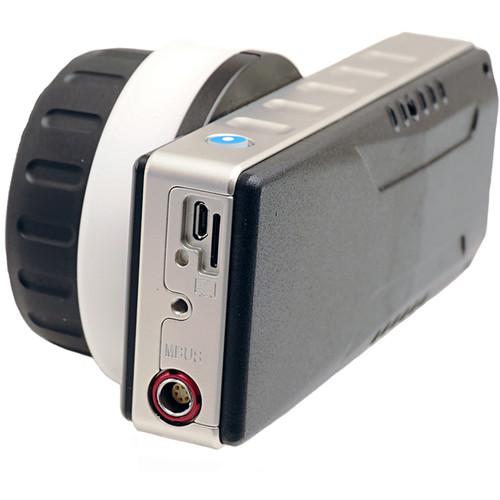

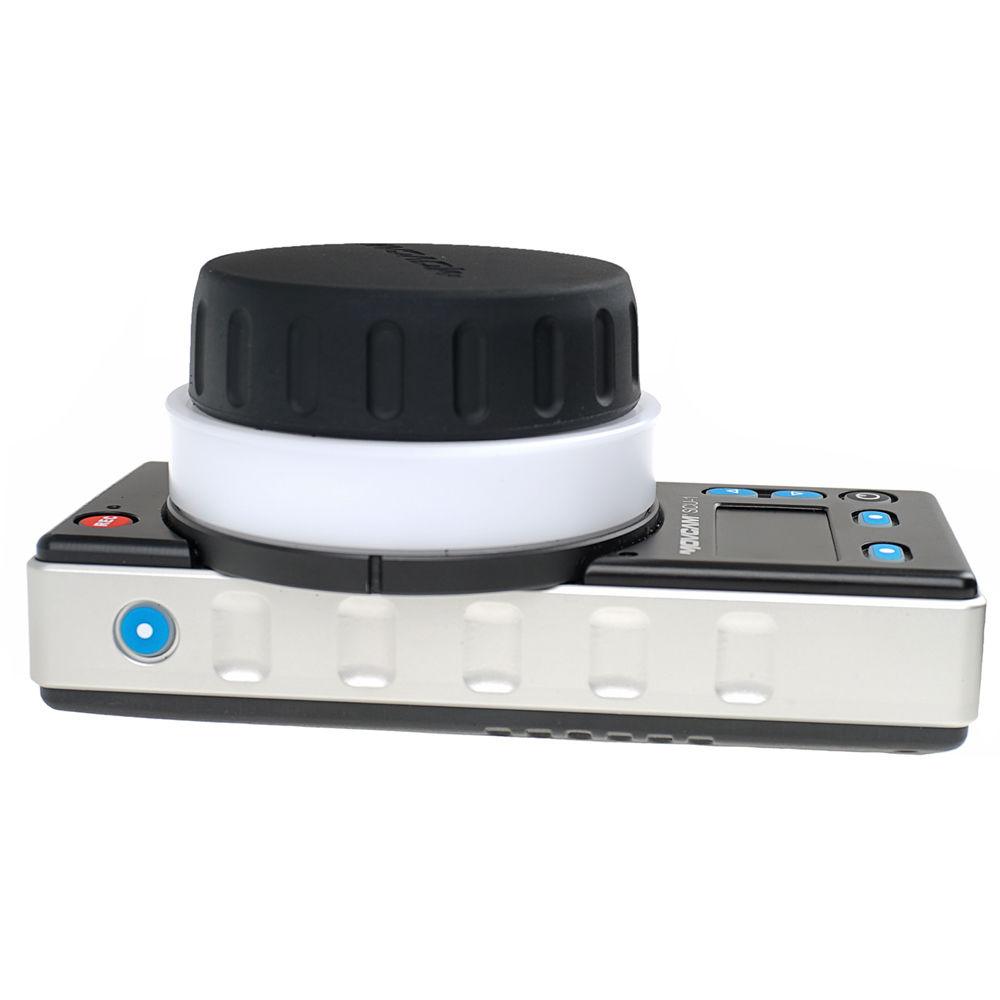

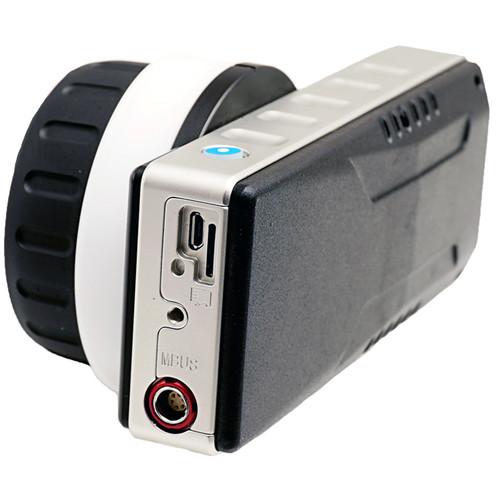

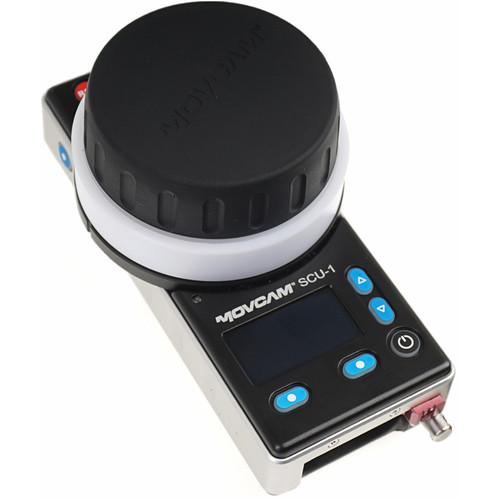

User Manual for Movcam SCU-1 Hand Control Unit for 1-Axis System Click to enlarge the picture
Contents of the user manual for the Movcam SCU-1 Hand Control Unit for
- Product category: Wireless Lens Control Accessories Movcam
- Brand: Movcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Movcam Wireless Lens Control Accessories
 |
User manual for the Movcam SCU-1 Hand Control Unit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Movcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Movcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Movcam product will considerably shorten its lifespan!
|
Product description This SCU-1 Hand Control Unit for 1-Axis System is the hand controller/focus knob for Movcam's Single or Dual-Axis Wireless Lens Control System. This is the wireless controller/focus unit only and requires that you source the motor, receiver, and other necessary components yourself. The controller incorporates an OLED information screen that is visible both indoors and out, and it supports automatic lens calibration.
The focus controller/transmitter incorporates a slot that accepts NP-F550 and F570 type batteries internally (batteries not included). Although the system has a wireless range of about 90' indoors and over 650' outdoors, you can connect an available (not included) cable to hardwire the focus controller to the motors (motors not included). - Modular design that can be upgraded from single axis (focus) to dual axis (focus and zoom)
- The marking disc on the handwheel is compatible with dry and wet erase markers, removable, and backlit
- The screen of the wireless transmitter with the focus handwheel displays the following:
Battery Storage
Record/Stby
Lim
Channel selected
Calibration
Menu
The Menu includes: Home Page
Switch Wireless Module Channel
Control Set Up
Motor Setup
Adjust Torque
Stick Speed
Adjust Screen Brightness
Knob Illumination Switch
Language
Restore Factory Defaults
Software Updates
System Data In the Box Movcam SCU-1 Hand Control Unit for 1-Axis System Carrying Strap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Movcam SCU-1 Hand Control Unit for 1-Axis System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMovcam MOV-501-102-01 Specs | Transmission Distance | Indoor: 98' / 30 m
Outdoor: 656' / 200 m | | Latency | <12 ms | | Frequency | ISM 2.4 M | | OLED Viewscreen | 1.56" / 3.96 cm | | Power | Volts: 12 to 24 VDC
Consumption: 150 mA, 7.2 VDC | | Memory Card Slot | miniSD | | Battery Compatibility | Sony NP-F570 / 550 | | Dimensions | 6.14 x 3.31 x 2.97" / 15.60 x 8.41 x 7.54 cm | | Weight | Approximately: 1.0 lb / 0.5 kg |
