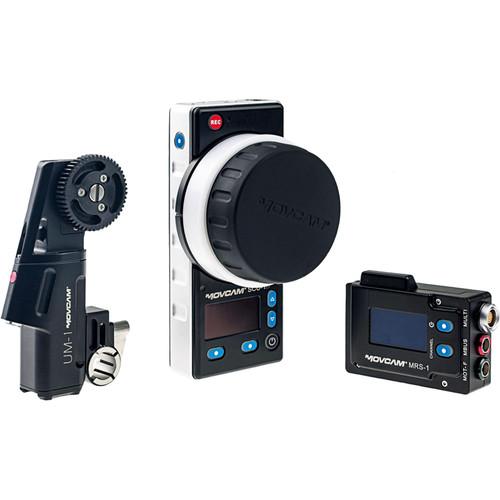

User Manual for Movcam Single-Axis Wireless Lens Control System Click to enlarge the picture
Contents of the user manual for the Movcam Single-Axis Wireless Lens Control System
- Product category: Wireless Lens Control Systems Movcam
- Brand: Movcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Movcam Wireless Lens Control Systems
|
User manual for the Movcam Single-Axis Wireless Lens Control System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Movcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Movcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Movcam product will considerably shorten its lifespan!
|
Product description For remote focus control Movcam's Single-Axis Wireless Lens Control System provides wireless or wired control of your lens. Designed as a modular system, it is available as either a single or dual axis system, with the single axis system upgradeable by purchasing additional modules. The system features OLED information screens that are visible both indoors and out, and automatic lens calibration.
The focus controller/transmitter incorporates a slot that accepts NP-F550 and F570 type batteries internally (batteries not included.) Although the system has a wireless range of about 90' indoors and over 650' outdoors, you can connect an included cable to hardwire the focus controller to the motors. The motor is powered via an included D-Tap cable and features an integrated 15 to 19mm rod clamp. Each motor ships with a replaceable 0.8 MOD cine-style gear. The system can control record stop/stop for select RED, Canon, Sony, Arri, and Blackmagic Design cameras (requires optional cables, not included.) - Modular system that can be upgraded from single axis (focus) to dual axis (focus and zoom)
- The optional zoom module features a cine-style thumb rocker and a rosette for mounting to a tripod panhandle with matching rosette clamp (rosette clamp not included.)
- The marking disc on the handwheel is compatible with dry and wet erase markers, removable, and backlit.
- The rod clamps feature spring-loaded locking levers, and can be adjusted along almost the entire length of the motor.
- The screen of the wireless transmitter with the focus handwheel displays the following:
Battery Storage
Record/Stby
Lim
Channel selected
Calibration
Menu
The Menu includes: Home Page
Switch Wireless Module Channel
Control Set Up
Motor Setup
Adjust Torque
Stick Speed
Adjust Screen Brightness
Knob Illumination Switch
Language
Restore Factory Defaults
Software Updates
System Data In the Box Movcam Single-Axis Wireless Lens Control System Hand Control Unit Receiver Module Motor Module Motor Cable D-Tap Power Cable Remote Cable Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Movcam Single-Axis Wireless Lens Control System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMovcam MOV-501-102 Specs | | | Transmission | Delay: <12 ms
Indoor: 98.4' / 30.0 m
Outdoor: 656.2' / 200.0 m | | Screen | 1.56" OLED | | Power | Voltage: 7.2 to 24 VDC
Consumption: 150 mA at 7.2 VDC | | Battery Compatibility | NP-F550
NP-F570 | | Dimensions | 6.1 x 3.3 x 3.0" / 156.0 x 84.0 x 75.5 mm | | Weight | 1.0 lb / 0.5 kg (approximately) | | | | Drive Gear | 0.8 Mod | | Dimensions | 3.1 x 3.3 x 1.2" / 79.0 x 83.0 x 29.5 mm | | Weight | 6.2 oz / 175.0 g | | Rod Clamp Type | 15 to 19 mm | | | | Package Weight | 14.5 lb | | Box Dimensions (LxWxH) | 16.7 x 13.1 x 7.2" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
