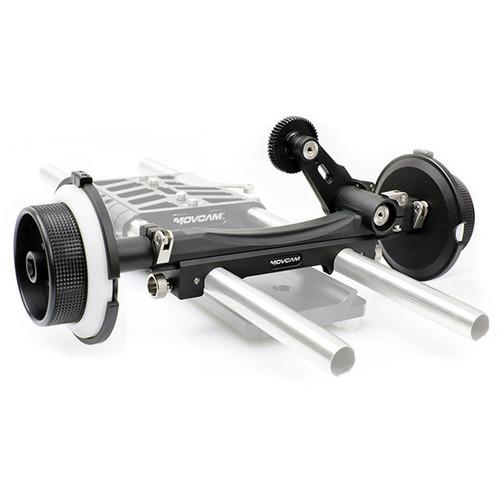

Product description The Movcam Studio Follow Focus is a dual-sided follow focus system for cine cameras such as the RED, Alexa and F65. It comes with many accessories that provide wide flexibility in all areas of pulling focus.
Three Swing Arms and five Pitch Gears are included to accommodate different lens constructions and different gear ratios. Instead of sliding the entire system closer to a lens, you would just attach the appropriate Pitch Gear onto the applicable Arm and drop the Arm onto the focusing ring of the lens, and the teeth of the Gear will connect with the teeth of the lens. The three Arms come at speed ratios of 1x, 1.5x, and 2x, and the five Gears at gear drives of .5, .6 and at three variations of .8. All five Gears are compatible with Canon and Fujinon video lenses.
Two Handwheels are included along with a marking disk for each. Having two wheels provides a few conveniences, such as allowing an assistant to pull focus from the other side of the camera when one side is obstructed. A 12" focus Whip and a mini focus Lever are part of the system and make pulling focus easier for both the assistant and the camera operator. Both the Whip and the Lever can connect into either Handwheel. The Whip allows an assistant to pull focus from 12 inches away, and the Lever lets the camera operator gently use just one finger to pull focus. A removable Wheel Extension that attaches to the Base on one end and to a Handwheel on the other end serves to push the Handwheel out a bit, clearing space between the Handwheel and the Base for lenses that require more space, such as lenses with larger barrels.
The system comes with both a 15mm Rod Bridge and a 19mm Bridge and can thus be mounted onto either standard-size 15mm rods or onto 19mm studio rods. - Cine Camera Follow Focus System
-
- Dual-sided follow focus with two Handwheels and marking disks
- Includes three detachable Swing Arms for different degrees of rotation
- Five Pitch Gears attach onto the Swing Arms for different lens gear ratios
- Comes with 15 and 19mm Rod Bridges for use with standard and studio rods
- A Wheel Extension pushes out a Handwheel to make room for large barrel lenses
- A 12" Whip lets an assistant conveniently pull focus / a small focus lever lets the operator do the same
In the Box Movcam Studio Follow Focus Hard Carrying Case 1x-Speed Swing Arm 1.5x-Speed Swing Arm 2x-Speed Swing Arm 0.5 Cine Pitch Gear with 6mm Face 0.6 Cine Pitch Gear with 6mm Face 0.8 Cine Pitch Gear with 6mm Face 0.8 Cine Pitch Gear with 12mm Face 0.8 Cine Pitch Gear with 25mm Face 2 x Handwheel 2 x Marking Disk Wheel Extension 15mm LWS Quick Clamp Rod Bridge 19mm Studio Quick Clamp Rod Bridge 12" Follow Focus Flexible Whip fzywqbcrceadztwdswfxadqftsxfaxqaqy Mini Focus Lever 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Movcam Studio Follow Focus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMovcam MOV-302-0205 Specs | Application | For cine cameras such as the RED, ARRI Alexa, and Sony F65 | | Gear Rotation | Swing Arms:
1x, 1.5x, and 2x speed ratios
Pitch Gears:
.5 with 6 mm face
.6 with 6 mm face
.8 with 6 mm face
.8 with 12 mm face
.8 with 25 mm face | | Rod Compatibility | Standard-size 15 mm rods
19 mm studio rods | | | | Package Weight | 10.85 lb | | Box Dimensions (LxWxH) | 16.5 x 8.9 x 7.2" |
