User Manual for Movcam Universal LWS and Cage Kit for Sony F5 F55 Camera Click to enlarge the picture
Contents of the user manual for the Movcam Universal LWS and Cage Kit
- Product category: Camcorder Supports & Rigs Movcam
- Brand: Movcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Movcam Camcorder Supports & Rigs
 |
User manual for the Movcam Universal LWS and Cage Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Movcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Movcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Movcam product will considerably shorten its lifespan!
|

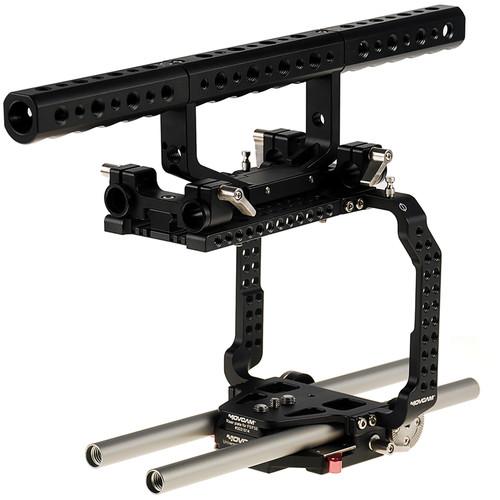

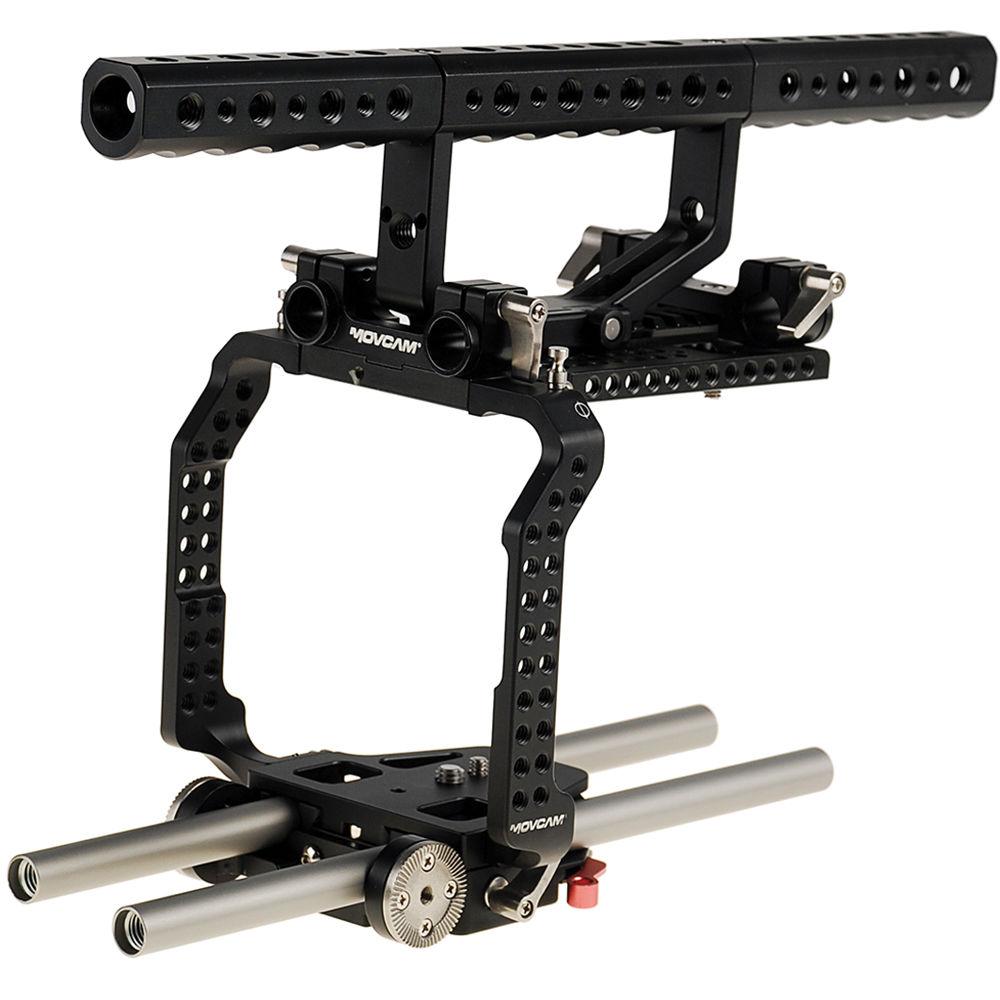

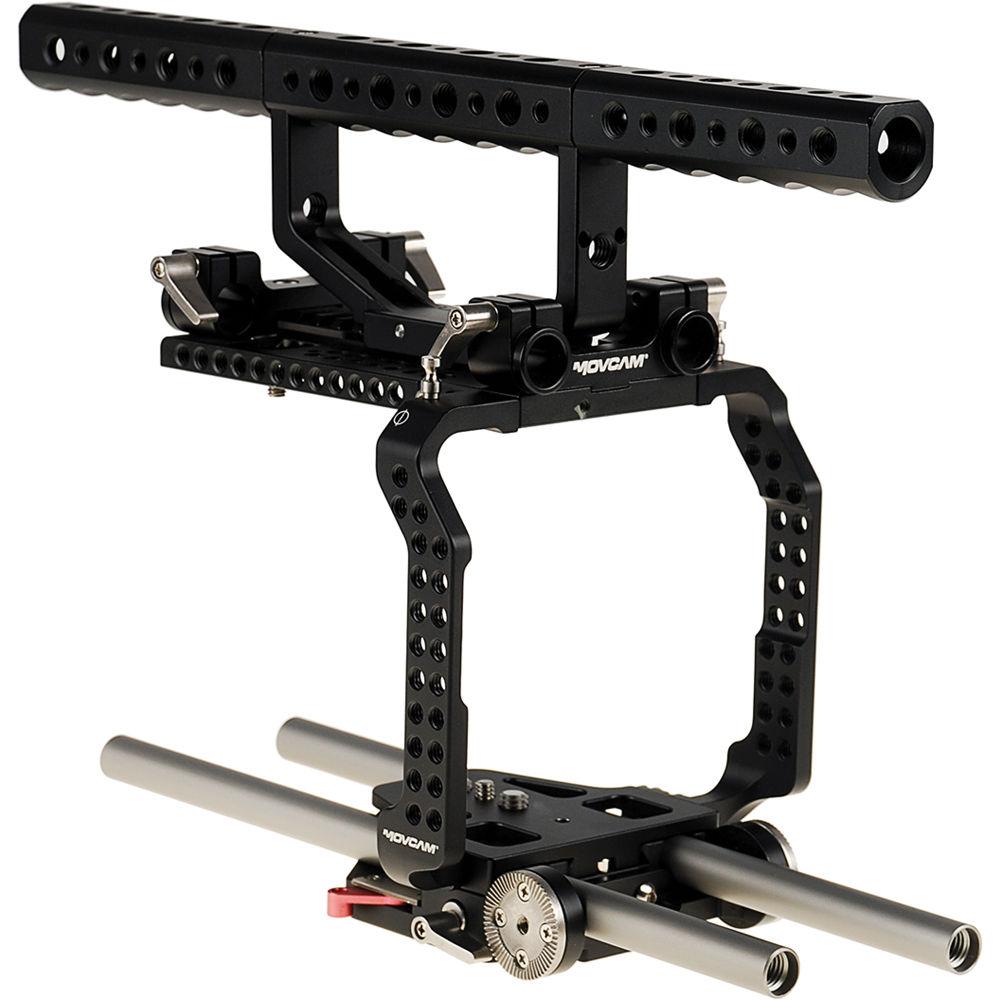

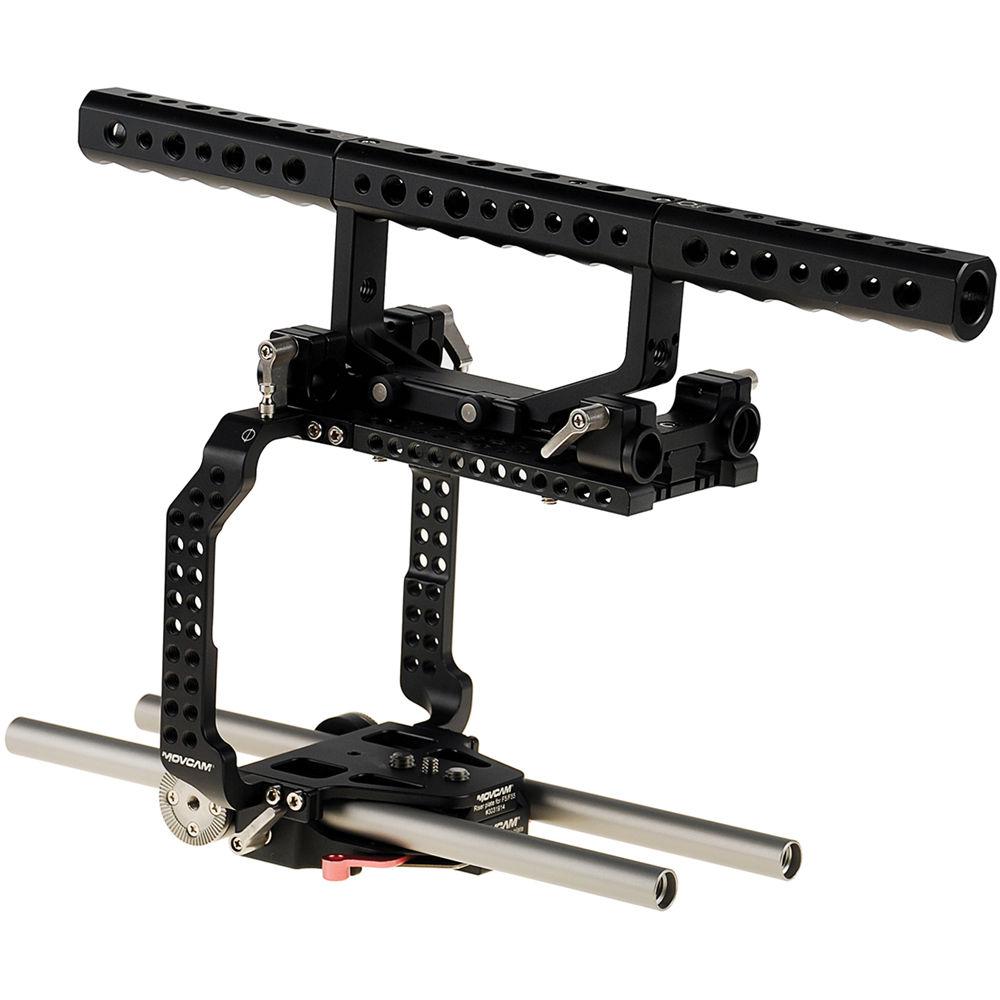

Product description The Universal LWS and Cage Kit for Sony F5/F55 Camera from Movcam is comprised of a Universal LWS Base Plate, Camera Spacer, Rosette Adapter, Top Handle, Top Cheese Plate, Left Side Bracket, Right Side Bracket, and two 12" 15mm Aluminum Rods. - Universal Quick Release Base Plate The Universal Quick Release Base Plate from Movcam is a baseplate compatible with Arri BP8 and Arri BP9 Bridgeplates.
- Camera Spacer for Sony F5/F55 The Camera Spacer from Movcam is designed for mounting the Sony F5/F55 camera. It is installed below the camera body and can also work with the 303-1125 Universal Quick-Release Baseplate (available separately). This spacer allows you to raise the camera's height in order to align the lens with accessories such as a matte box and follow focus. It features a quickly detachable design and comes with 1/4” and 3/8” screws.
- Rosette Bracket Made to attach to the Universal Baseplate, the Movcam Rosette Bracket adds two rosette mounts for handgrips and accessories.
- Top Handle with Extensions for Sony PMW-F5/-F55 4K Camcorders The Top Handle with Extensions from Movcam is designed for use with Sony PMW-F5 and PMW-F55 4K camcorders. The top handle comes with front and rear extensions, and requires the Top Plate (sold separately) for mounting.
- Top Plate for Sony F5/F55 Cameras The Movcam Top Plate directly attaches to the top of the Sony F5/F55 after the camera's original hand grip is removed. The plate features multiple 1/4" and M4 threads to mount various accessories. A Weaver rail mount on top allows mounting of the MOV-303-1306 or MOV-303-1901 top handle (available separately). A pair of 15mm rods (available separately) can be attached to the front and rear rod clamps of the top plate to mount accessories such as a battery bracket, follow focus, or matte box.
- Left Side Bracket for Sony PMW-F5/-F55 4K Camcorders The Left Side Bracket from Movcam is designed for use with Sony PMW-F5 and PMW-F55 4K camcorders.
- Right Side Bracket for Sony PMW-F5/-F55 4K Camcorders The Right Side Bracket from Movcam is designed for use with Sony PMW-F5 and PMW-F55 4K camcorders.
- 15mm Aluminum Rod - 12" Long The 15mm Aluminum Rod - 12" (304.8mm) Long from Movcam is a single rod made of aluminum and is 12" (304.8mm) in length.
In the Box Bundle Items Universal Quick Release Base Plate uuywvrsqfrstftffu Camera Spacer for Sony F5/F55 Rosette Bracket Top Handle with Extensions for Sony PMW-F5/-F55 4K Camcorders Top Plate for Sony F5/F55 Cameras Left Side Bracket for Sony PMW-F5/-F55 4K Camcorders Right Side Bracket for Sony PMW-F5/-F55 4K Camcorders uuywvrsqfrstftffu 2 x 15mm Aluminum Rod - 12" Long Table of Contents
|
Upload User Manual
Have you got an user manual for the Movcam Universal LWS and Cage Kit for Sony F5 F55 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Universal Quick Release Base Plate
| Compatibility | Arri BP8 and Arri BP9 Bridgeplates | | Dimensions | 3.3 x 3.7 x 1" (85 x 94 x 27 mm) | | Weight | 0.5 lb (0.25 kg) | | | | Box Dimensions (LxWxH) | 6.1 x 3.7 x 1.2" | - Camera Spacer for Sony F5/F55
| Dimensions | 3.7 x 3.3 x 0.5" (9.4 x 8.5 x 1.2 cm) | | Weight | 3.5 oz (100 g) | | | | Box Dimensions (LxWxH) | 5.7 x 3.8 x 0.7" | - Rosette Bracket
| Dimensions | 3.9 x 1.2 x 1.2" (99.5 x 32.5 x 32.5 mm) | | Weight | 0.2 lb (0.1 kg) | | | | Box Dimensions (LxWxH) | 4.4 x 2.5 x 0.1" | - Top Handle with Extensions for Sony PMW-F5/-F55 4K Camcorders
| | | Box Dimensions (LxWxH) | 15.2 x 4.4 x 2.2" | - Top Plate for Sony F5/F55 Cameras
| For Use with | Sony F5/F55 camera | | Compatible with | MOV-303-1306 and MOV-303-1901 top handles | | Threads | 1/4" and M4 | | Material | Aluminum alloy | | Dimensions | 6.54 x 4.01 x 1.5" (166 x 103 x 37 mm) | | Weight | 0.77 lb (0.35 kg) | | | | Box Dimensions (LxWxH) | 6.9 x 4.1 x 1.4" | - Left Side Bracket for Sony PMW-F5/-F55 4K Camcorders
| | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 1.0" | - Right Side Bracket for Sony PMW-F5/-F55 4K Camcorders
| | | Box Dimensions (LxWxH) | 7.5 x 3.3 x 0.9" | - 15mm Aluminum Rod - 12" Long
| Material | Aluminum | | Rod Diameter | 15 mm | | Rod Length | 12" (304.8 mm) | | | | Box Dimensions (LxWxH) | 15.0 x 1.1 x 0.6" |
