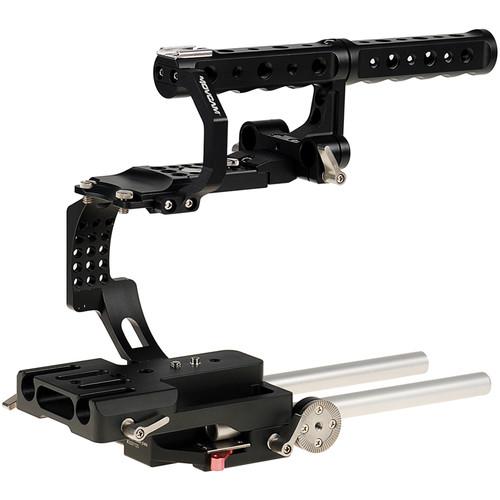

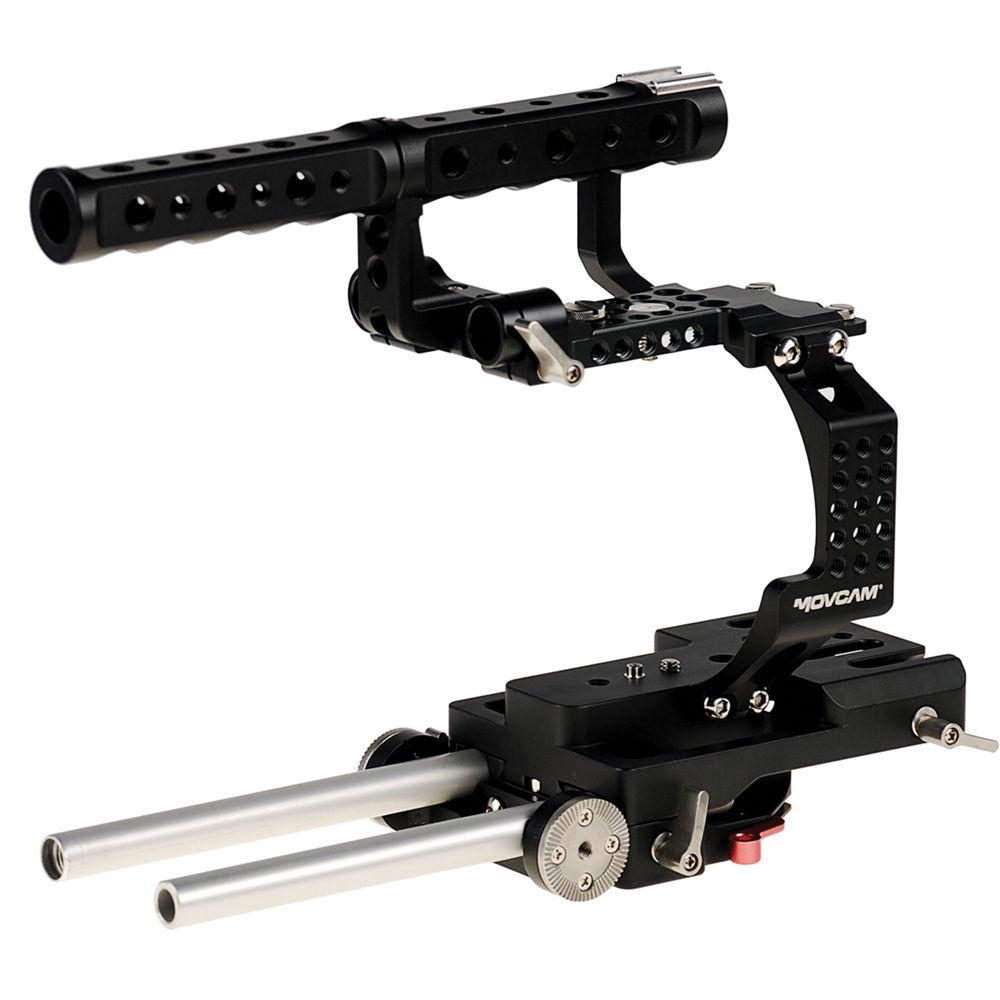

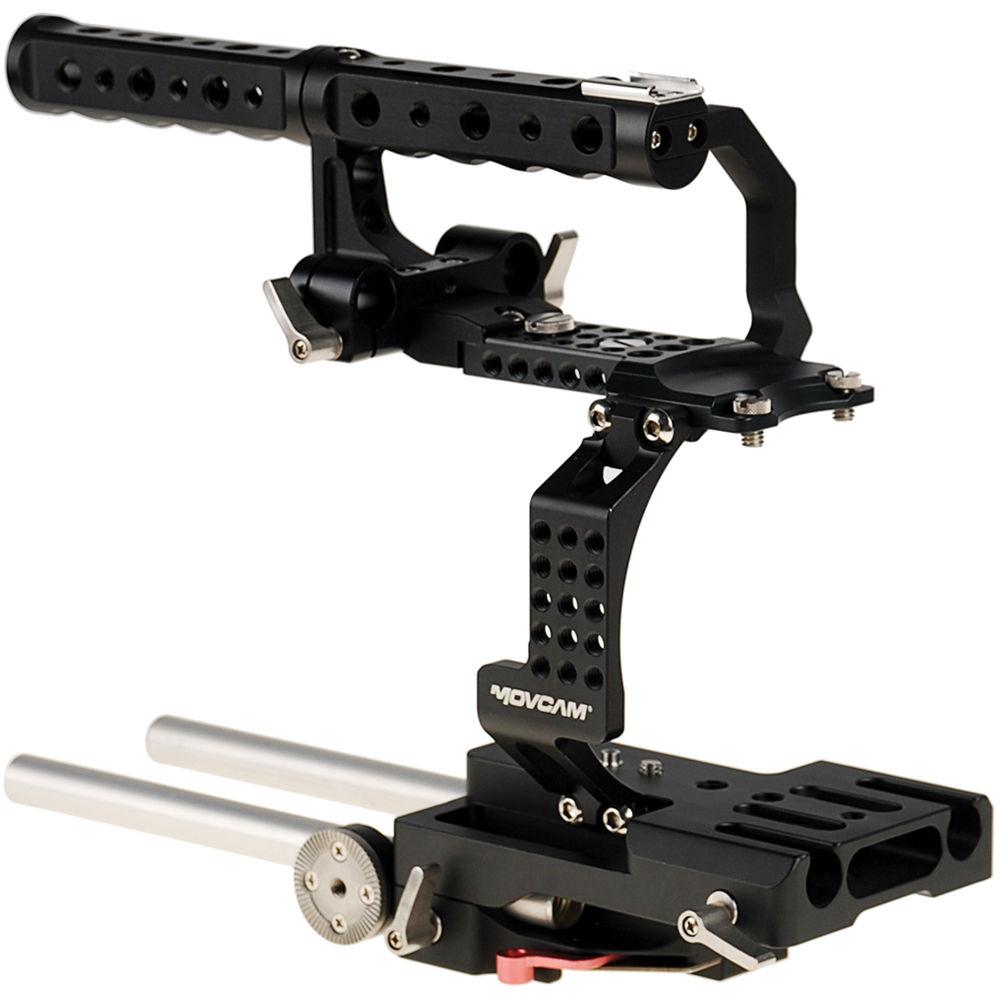

User Manual for Movcam Universal LWS and Cage Kit for Sony FS700 Camera Click to enlarge the picture
Contents of the user manual for the Movcam Universal LWS and Cage Kit
- Product category: Camcorder Supports & Rigs Movcam
- Brand: Movcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Movcam Camcorder Supports & Rigs
 |
User manual for the Movcam Universal LWS and Cage Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Movcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Movcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Movcam product will considerably shorten its lifespan!
|
Product description The Universal LWS and Cage Kit from Movcam is comprised of a Universal Quick Release Base Plate, a Riser Plate, a Rosette Bracket, a Top Handle, a Spare Side Bracket, and two 15mm Aluminum Rods. This kit is designed to use in conjunction with the Sony FS700 camera. - Universal Quick Release Base Plate The Universal Quick Release Base Plate from Movcam is a baseplate compatible with Arri BP8 and Arri BP9 Bridgeplates.
- Riser Plate for Sony FS700 Make your FS700 compatible with Movcam's LWS dovetail with this Riser Plate. Once mounted on a dovetail plate, the camera can be moved back or forward in order to achieve optimal balance.
- Rosette Bracket Made to attach to the Universal Baseplate, the Movcam Rosette Bracket adds two rosette mounts for handgrips and accessories.
- Top Handle for Sony FS700 The Movcam Top Handle for Sony FS700 replaces the stock handle of the FS700 and provides numerous accessory mounting points, consisting of 1/4" and 3/8" threads, a 15mm rod clamp, and a cold shoe at the very top. The Handle secures to the camera by four included 1/4" screws.
- Spare Side Bracket for Sony FS700 The Movcam Spare Side Bracket for Sony FS700 works in unison with a Movcam Top Spacer and Top Handle to wrap around the FS700 and provide it with fifteen 1/4"-20 threads for mounting accessories. The Spacer and Handle are sold separately.
- 15mm Aluminum Rod - 12" Long The 15mm Aluminum Rod - 12" (304.8mm) Long from Movcam is a single rod made of aluminum and is 12" (304.8mm) in length.
In the Box Bundle Items Universal Quick Release Base Plate axqcvrsdswytcwfuvtceaqvbtbstcwxu Riser Plate for Sony FS700 Rosette Bracket Top Handle for Sony FS700 Spare Side Bracket for Sony FS700 2 x 15mm Aluminum Rod - 12" Long Table of Contents
|
Upload User Manual
Have you got an user manual for the Movcam Universal LWS and Cage Kit for Sony FS700 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Universal Quick Release Base Plate
| Compatibility | Arri BP8 and Arri BP9 Bridgeplates | | Dimensions | 3.3 x 3.7 x 1" (85 x 94 x 27 mm) | | Weight | 0.5 lb (0.25 kg) | | | | Box Dimensions (LxWxH) | 6.1 x 3.7 x 1.2" | - Riser Plate for Sony FS700
| Compatibility | Sony FS700 camera | | Dimensions | 5.3 x 4.7 x 1.2" (137 x 121 x 31 mm) | | Weight | 1.1 lb (0.5 kg) | | | | Box Dimensions (LxWxH) | 5.3 x 3.9 x 1.2" | - Rosette Bracket
| Dimensions | 3.9 x 1.2 x 1.2" (99.5 x 32.5 x 32.5 mm) | | Weight | 0.2 lb (0.1 kg) | | | | Box Dimensions (LxWxH) | 4.4 x 2.5 x 0.1" | - Top Handle for Sony FS700
| | | Box Dimensions (LxWxH) | 12.0 x 4.0 x 3.0" | - Spare Side Bracket for Sony FS700
| Mounts | 15x 1/4"-20 threads | | Material | High grade aluminum | | | | Box Dimensions (LxWxH) | 4.8 x 2.7 x 1.5" | - 15mm Aluminum Rod - 12" Long
| Material | Aluminum | | Rod Diameter | 15 mm | | Rod Length | 12" (304.8 mm) | | | | Box Dimensions (LxWxH) | 15.0 x 1.1 x 0.6" |
