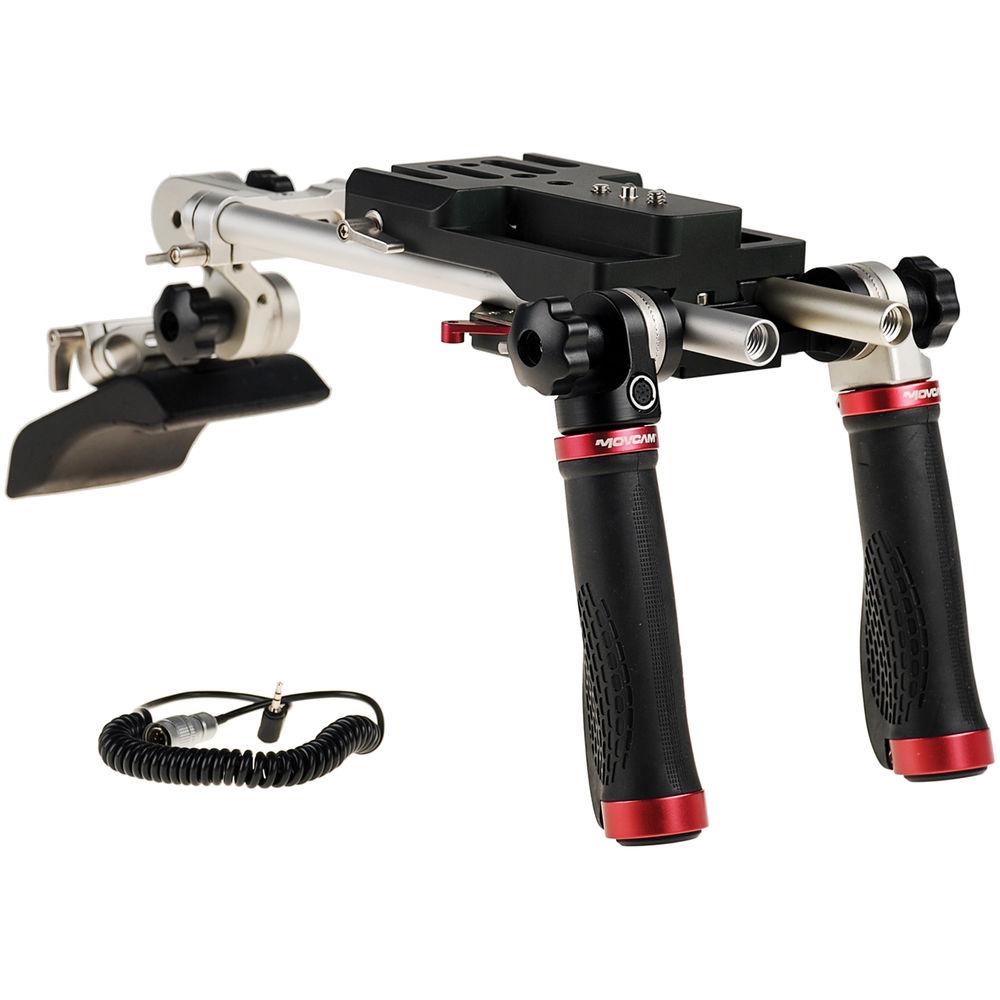

User Manual for Movcam Universal LWS and Shoulder Support Kit for Sony FS700 Camera Click to enlarge the picture
Contents of the user manual for the Movcam Universal LWS and Shoulder Support
- Product category: Camcorder Supports & Rigs Movcam
- Brand: Movcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Movcam Camcorder Supports & Rigs
 |
User manual for the Movcam Universal LWS and Shoulder Support contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Movcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Movcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Movcam product will considerably shorten its lifespan!
|

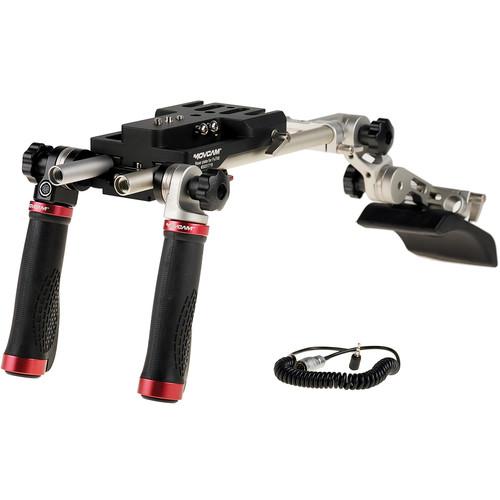

Product description The Universal LWS and Shoulder Support Kit from Movcam is comprised of a Universal Quick Release Baseplate, a Riser Plate, a Rosette Bracket, an Anti-Skid Single Handgrip, an Anti-Skid Control Handgrip, a Control Cable for Universal Handgrip, a Rosette-Articulating Shoulder Pad Assembly with 15mm Clamps, and two 15mm Aluminum Rods. This kit is designed to use in conjunction with the Sony FS700 camera. - Universal Quick Release Base Plate The Universal Quick Release Base Plate from Movcam is a baseplate compatible with Arri BP8 and Arri BP9 Bridgeplates.
- Riser Plate for Sony FS700 Make your FS700 compatible with Movcam's LWS dovetail with this Riser Plate. Once mounted on a dovetail plate, the camera can be moved back or forward in order to achieve optimal balance.
- Rosette Bracket Made to attach to the Universal Baseplate, the Movcam Rosette Bracket adds two rosette mounts for handgrips and accessories.
- Anti-Skid Handgrip Get a sure grip on your rig with this Movcam Anti-Skid Handgrip. The grip area on this handgrip has a contoured, dimpled rubber surface for comfortable holding, and features a rosette mount for locking onto your rig.
- Anti-Skid Control Handgrip with LANC Start/Stop The Anti-Skid Control Handgrip from Movcam controls your camera start/stop via LANC, making it compatible with the Canon C300/C500, Sony FS700, Blackmagic BMCC/BMPCC cameras, and more. The grip area on this handgrip has a contoured, dimpled rubber surface for comfortable holding, and features a rosette mount for locking onto your rig. A LANC cable is included.
- VTR Control Cable for Universal Wooden Handgrip The VTR Control Cable from Movcam is a connection cable designed to be used with the Universal Wooden Handgrip with Record Button. The cable's coiled design allows it to extend from 1.6' to 3.9'.
- Rosette-Articulating Shoulder Pad Assembly with 15mm Clamps The Movcam Rosette-Articulating Shoulder Pad Assembly with 15mm Clamps mounts 15mm rods at the front, rests on your shoulder at the back, and articulates in between by a locking rosette mechanism.
At the back, right atop the shoulder pad, is a 15mm rod clamp like the one in front but upside down. It lets you attach 15mm rods to the back to support accessories like power adapters, batteries, and recorders. These accessories will also happen to provide counterbalance to the rig in front. - 15mm Aluminum Rod - 12" Long The 15mm Aluminum Rod - 12" (304.8mm) Long from Movcam is a single rod made of aluminum and is 12" (304.8mm) in length.
In the Box Bundle Items Universal Quick Release Base Plate edrbbycradtrcaz Riser Plate for Sony FS700 Rosette Bracket Anti-Skid Handgrip Anti-Skid Control Handgrip with LANC Start/Stop VTR Control Cable for Universal Wooden Handgrip edrbbycradtrcaz Rosette-Articulating Shoulder Pad Assembly with 15mm Clamps 2 x 15mm Aluminum Rod - 12" Long Table of Contents
|
Upload User Manual
Have you got an user manual for the Movcam Universal LWS and Shoulder Support Kit for Sony FS700 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Universal Quick Release Base Plate
| Compatibility | Arri BP8 and Arri BP9 Bridgeplates | | Dimensions | 3.3 x 3.7 x 1" (85 x 94 x 27 mm) | | Weight | 0.5 lb (0.25 kg) | | | | Box Dimensions (LxWxH) | 6.1 x 3.7 x 1.2" | - Riser Plate for Sony FS700
| Compatibility | Sony FS700 camera | | Dimensions | 5.3 x 4.7 x 1.2" (137 x 121 x 31 mm) | | Weight | 1.1 lb (0.5 kg) | | | | Box Dimensions (LxWxH) | 5.3 x 3.9 x 1.2" | - Rosette Bracket
| Dimensions | 3.9 x 1.2 x 1.2" (99.5 x 32.5 x 32.5 mm) | | Weight | 0.2 lb (0.1 kg) | | | | Box Dimensions (LxWxH) | 4.4 x 2.5 x 0.1" | - Anti-Skid Handgrip
| Dimensions | 7.0 x 1.7 x 1.3" (178 x 44 x 34 mm) | | Weight | 0.3 lb (0.15 kg) | | | | Box Dimensions (LxWxH) | 7.0 x 1.8 x 1.5" | - Anti-Skid Control Handgrip with LANC Start/Stop
| Compatibility | C300, C500, FS700, BMCC, and BMPCC cameras | | Dimensions | 7.0 x 1.7 x 1.3" (178 x 44 x 34 mm) | | Weight | 0.4 lb (0.2 kg) | | | | Box Dimensions (LxWxH) | 7.9 x 1.9 x 1.4" | - VTR Control Cable for Universal Wooden Handgrip
| Length | 1.6 - 3.9' (0.5 - 1.2 m) | | Weight | 0.04 lb (0.02 kg) | | | | Box Dimensions (LxWxH) | 5.5 x 3.0 x 1.0" | - Rosette-Articulating Shoulder Pad Assembly with 15mm Clamps
| Material | High-grade aluminum
Non-slip rubber shoulder pad | | | | Box Dimensions (LxWxH) | 8.2 x 4.0 x 2.4" | - 15mm Aluminum Rod - 12" Long
| Material | Aluminum | | Rod Diameter | 15 mm | | Rod Length | 12" (304.8 mm) | | | | Box Dimensions (LxWxH) | 15.0 x 1.1 x 0.6" |
