Movcam Universal LWS and Top Handle

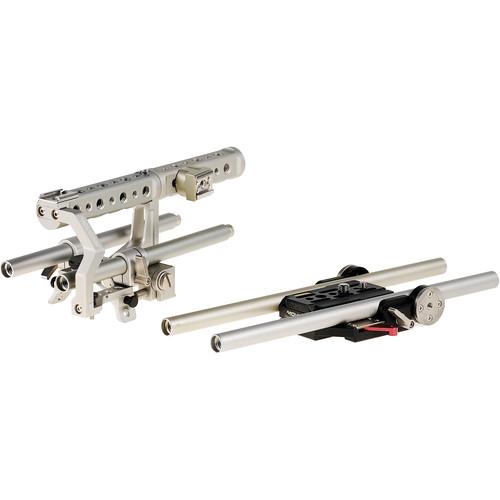

User Manual for Movcam Universal LWS and Top Handle Kit for Canon C500 C300 C100 Camera

• Product category: Camcorder Supports & Rigs Movcam
• Brand: Movcam
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Movcam Camcorder Supports & Rigs

Product description

• Universal Quick Release Base Plate The Universal Quick Release Base Plate from Movcam is a baseplate compatible with Arri BP8 and Arri BP9 Bridgeplates.
• Quick Release Spacer for Canon C100/300/500 Cameras This Quick Release Camera Spacer from Movcam is designed for mounting the Canon Cinema EOS C100/C300/C500 cameras to their Universal Lightweight Support Baseplate. It has the correct camera height to align the lens with accessories such as a matte box and follow focus.
• Rosette Bracket Made to attach to the Universal Baseplate, the Movcam Rosette Bracket adds two rosette mounts for handgrips and accessories.
• Top Handle Kit for Canon C300 (Silver) This Movcam Top Handle Kit, in silver, attaches in place of the C300's stock handle and provides rod mount capability, shoe mounts, and mounting threads.

  1/4"-20 and 3/8"-16 threads run along the top, bottom, and sides of the handle. One cold shoe is integrated on the handle, another is repositionable into any of the 1/4"-20 threads, and a third one is mountable on 15mm rods. Two 8" 15mm rods and a 4" 15mm rod are included for use in an integrated dual rod clamp and sideways rod port. The 4" rod is intended to support the rod-mount cold shoe.

  The handle attaches into the C300's shoe mount and further secures with a 1/4"-20 screw and two extended-length tape hooks. The handle itself consists of two parts which screw into each other, and you can remove one from the other if you'd like your handle to be shorter. Note: Not compatible with the C300 Mark II.
  Key Features
  • • Attaches in place of the C300's stock handle; secures at three points
    • 1/4"-20 and 3/8"-16 threads
    • Integrated cold shoe
    • 1/4"-20 mount cold shoe
    • Rod-mount cold shoe
    • Dual 15mm rod clamp and two 8" rods
    • Sideways rod clamp and 4" rod
• 15mm Aluminum Rod - 12" Long The 15mm Aluminum Rod - 12" (304.8mm) Long from Movcam is a single rod made of aluminum and is 12" (304.8mm) in length.

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Set of Two 15mm Rods (8" / 20 cm)

• Sideways 15mm Rod (4" / 10 cm)

• 1/4"-20 Mount Cold Shoe

• Rod-Mount Cold Shoe

• 2 x 1/4"-20 Screws

• 2 x Tape Hooks

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Universal Quick Release Base Plate

  Compatibility	Arri BP8 and Arri BP9 Bridgeplates
  Dimensions	3.3 x 3.7 x 1" (85 x 94 x 27 mm)
  Weight	0.5 lb (0.25 kg)

  Box Dimensions (LxWxH)	6.1 x 3.7 x 1.2"

• Quick Release Spacer for Canon C100/300/500 Cameras

  Dimensions	3.3 x 1.3 x 0.3" / 85.0 x 34.0 x 7.5 mm
  Weight	0.7 oz / 20 g

  Box Dimensions (LxWxH)	5.4 x 2.0 x 0.2"

• Rosette Bracket

  Dimensions	3.9 x 1.2 x 1.2" (99.5 x 32.5 x 32.5 mm)
  Weight	0.2 lb (0.1 kg)

  Box Dimensions (LxWxH)	4.4 x 2.5 x 0.1"

• Top Handle Kit for Canon C300 (Silver)

  Box Dimensions (LxWxH)	26.4 x 9.0 x 5.3"

• 15mm Aluminum Rod - 12" Long

  Material	Aluminum
  Rod Diameter	15 mm
  Rod Length	12" (304.8 mm)

  Box Dimensions (LxWxH)	15.0 x 1.1 x 0.6"
