User Manual for Movcam Universal LWS Baseplate Cage Kit for Sony FS700 Click to enlarge the picture
Contents of the user manual for the Movcam Universal LWS Baseplate Cage Kit
- Product category: Camcorder Supports & Rigs Movcam
- Brand: Movcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Movcam Camcorder Supports & Rigs
 |
User manual for the Movcam Universal LWS Baseplate Cage Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Movcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Movcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Movcam product will considerably shorten its lifespan!
|

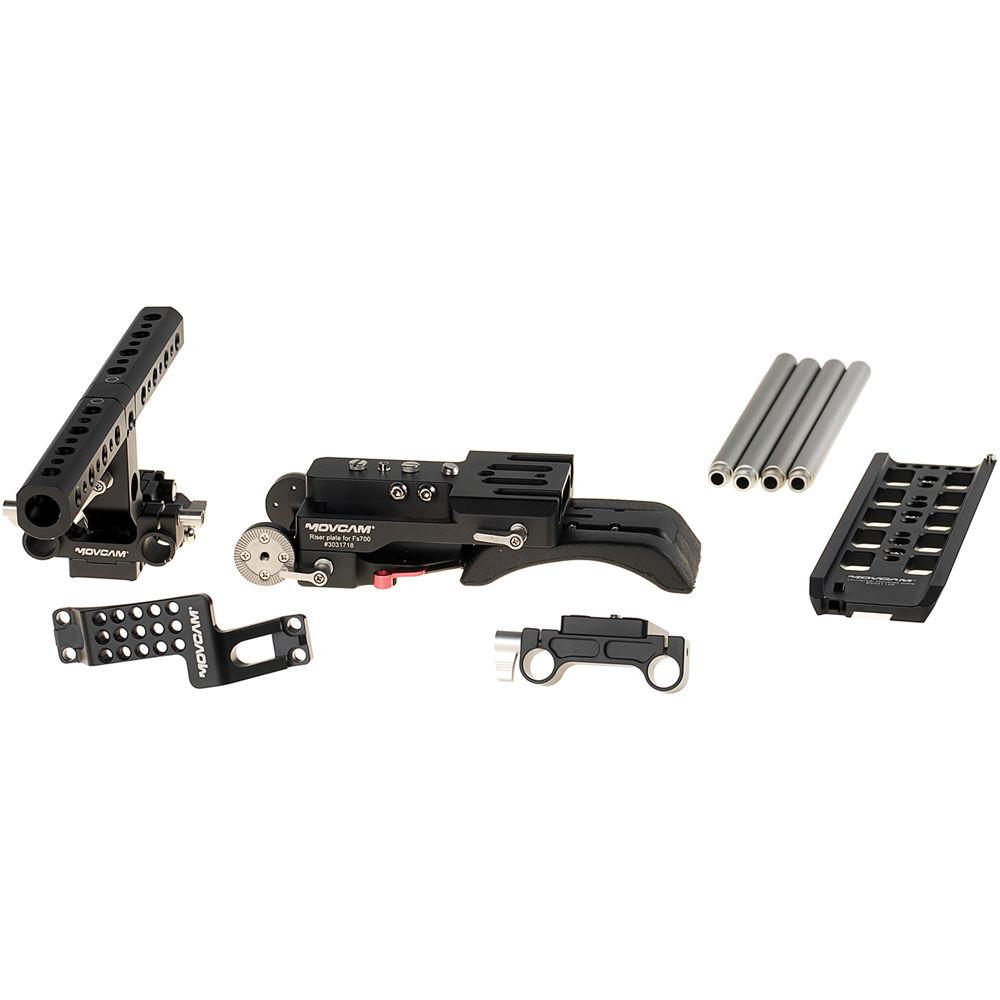

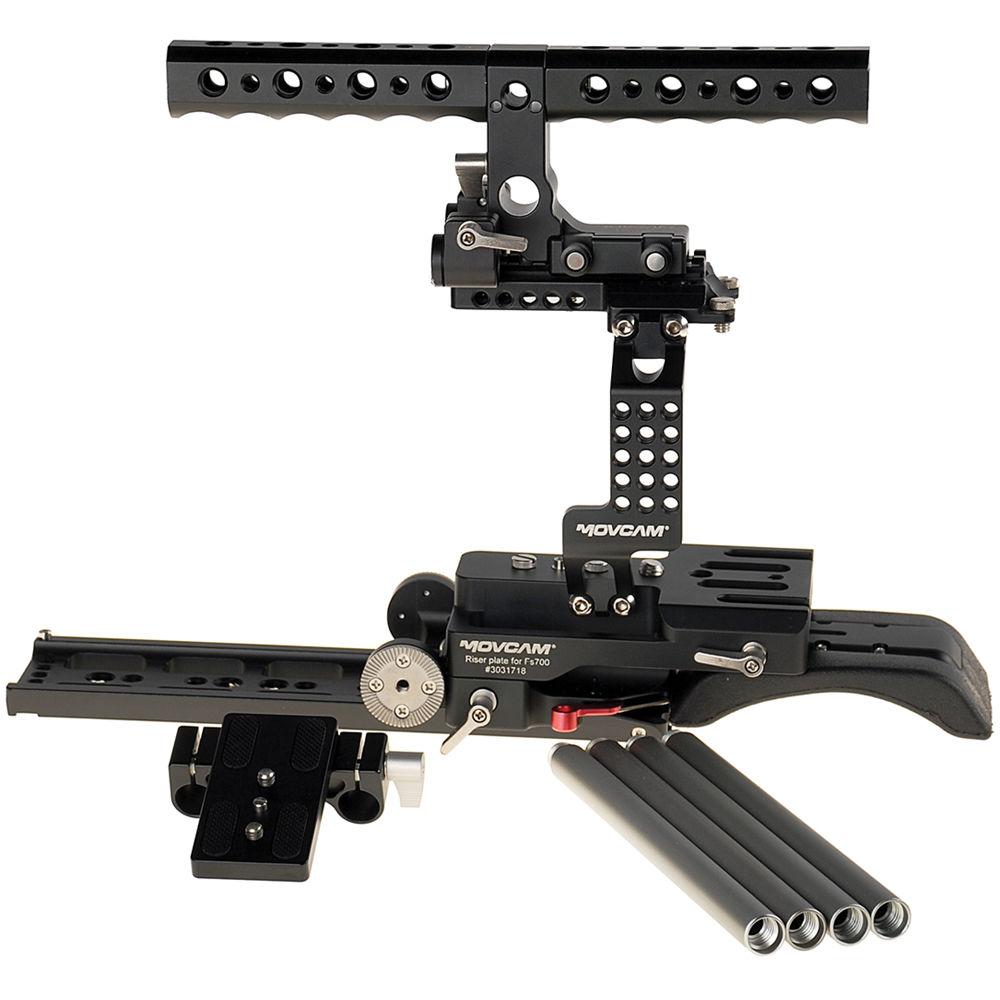

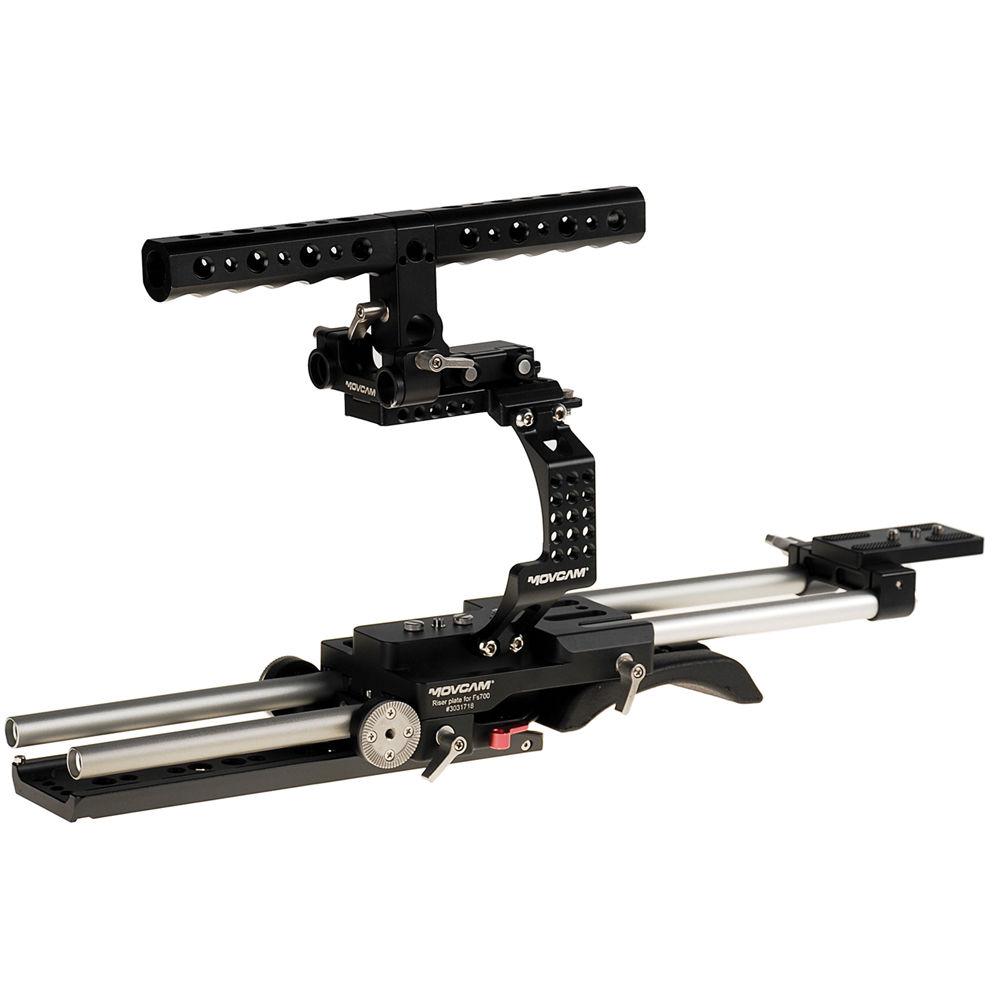

Product description The Movcam Universal LWS Baseplate Cage Kit for Sony FS700 includes a top handle, top plate, side bracket, camera riser plate, universal LWS baseplate, rosette bracket adapter, shoulder pad, 9" mini dovetail plate, IFR5 recorder mount, and four 8" long 15mm rods. When assembled, the kit forms a sturdy support system that allows you to safely carry the Sony FS700 camera via the top handle for ground-level shots.You can also add a pair of handgrips (available separately) for a shoulder-mount assembly. The kit components provide various threaded attachment points for mounting accessories. In addition, accessories such as a matte box, follow focus, or monitor can be mounted on the 15mm rods. - Top Handle for Sony FS700 The Movcam Top Handle attaches to the Sony FS700 camera via the MOV-303-1721 top plate (not included). It provides multiple 1/4" and 3/8" attachment points for various accessories such as a cold shoe, monitor mount, or monitor. The top handle can also be used with Sony F55 and Epic cameras.
- Top Plate for Sony FS700 Cameras The Movcam Top Plate directly attaches to the top of the Sony FS700 after the camera's original hand grip is removed. The plate features multiple 1/4", M6, and M4 threads to mount various accessories. A Weaver rail mount on top allows mounting of the MOV-303-1306 or MOV-303-1901 top handle (available separately). A pair of 15mm rods (available separately) can be attached to the rod clamp on the front of the top plate to mount accessories such as a battery bracket, follow focus, or matte box.
- Spare Side Bracket for Sony FS700 The Movcam Spare Side Bracket for Sony FS700 works in unison with a Movcam Top Spacer and Top Handle to wrap around the FS700 and provide it with fifteen 1/4"-20 threads for mounting accessories. The Spacer and Handle are sold separately.
- MOV-303-1719 Mount for IFR5 Recorder The MOV-303-1719 Mount from Movcam enables you to mount your IFR5 recorder onto your camera rig.
- Riser Plate for Sony FS700 Make your FS700 compatible with Movcam's LWS dovetail with this Riser Plate. Once mounted on a dovetail plate, the camera can be moved back or forward in order to achieve optimal balance.
- Shoulder Pad for Sony FS700 Camera Spacer The Shoulder Pad from Movcam is designed to be used with the Sony FS700 camera spacer.
- Universal Quick Release Base Plate The Universal Quick Release Base Plate from Movcam is a baseplate compatible with Arri BP8 and Arri BP9 Bridgeplates.
- Rosette Bracket Made to attach to the Universal Baseplate, the Movcam Rosette Bracket adds two rosette mounts for handgrips and accessories.
- Universal LWS Dovetail Plate The Movcam Universal LWS Dovetail Plate is a baseplate compatible with Arri BP8 and Arri BP9 Bridgeplates.
- 15mm Aluminum Rod - 8" Long The 15mm Aluminum Rod - 8" (203.2mm) Long from Movcam is a single rod made of aluminum and is 8" (203.2mm) in length.

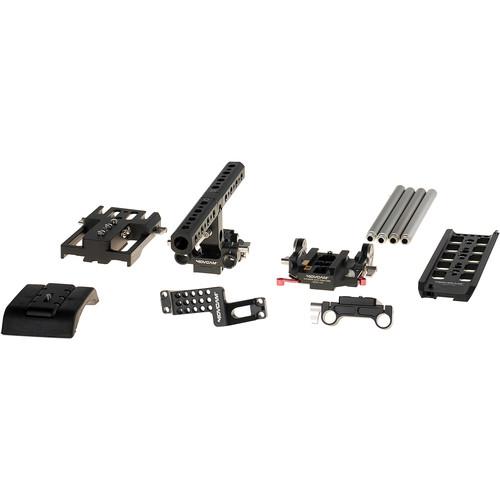

In the Box Bundle Items Top Handle for Sony FS700 cbdrzbf Top Plate for Sony FS700 Cameras Spare Side Bracket for Sony FS700 MOV-303-1719 Mount for IFR5 Recorder - Limited 1-Year Warranty; Extendable to 2 Years with Product Registration
Riser Plate for Sony FS700 Shoulder Pad for Sony FS700 Camera Spacer cbdrzbf Universal Quick Release Base Plate Rosette Bracket cbdrzbf Universal LWS Dovetail Plate 4 x 15mm Aluminum Rod - 8" Long Table of Contents
|
Upload User Manual
Have you got an user manual for the Movcam Universal LWS Baseplate Cage Kit for Sony FS700 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Top Handle for Sony FS700
| For Use with | MOV-303-1721 top plate | | Compatible with | MOV-303-1720 FS700 universal kit (upgraded version) Not compatible with the MOV-303-1704 FS700 kit (old version) | | Compatible Cameras | Sony FS700/F55 and RED Epic | | Accessory Mount Thread Sizes | 1/4" and 3/8" | | Material | Aluminum alloy | | Dimensions | 10.3 x 3.3 x 1.6" (261 x 84 x 40 mm) | | Weight | 0.9 lb (0.4 kg) | | | | Box Dimensions (LxWxH) | 10.0 x 4.1 x 1.1" | - Top Plate for Sony FS700 Cameras
| For Use with | Sony FS700 camera | | Compatible with | MOV-303-1306 and MOV-303-1901 top handles | | Threads | 1/4", M6, and M4 | | Material | Aluminum alloy | | Dimensions | 4.45 x 4.13 x 1.7" (113 x 105 x 43 mm) | | Weight | 0.4 lb (0.2 kg) | | | | Box Dimensions (LxWxH) | 4.5 x 4.1 x 1.3" | - Spare Side Bracket for Sony FS700
| Mounts | 15x 1/4"-20 threads | | Material | High grade aluminum | | | | Box Dimensions (LxWxH) | 4.8 x 2.7 x 1.5" | - Riser Plate for Sony FS700
| Compatibility | Sony FS700 camera | | Dimensions | 5.3 x 4.7 x 1.2" (137 x 121 x 31 mm) | | Weight | 1.1 lb (0.5 kg) | | | | Box Dimensions (LxWxH) | 5.3 x 3.9 x 1.2" | - Shoulder Pad for Sony FS700 Camera Spacer
| Compatibility | Sony FS700 camera spacer | | | | Box Dimensions (LxWxH) | 5.0 x 3.6 x 0.9" | - Universal Quick Release Base Plate
| Compatibility | Arri BP8 and Arri BP9 Bridgeplates | | Dimensions | 3.3 x 3.7 x 1" (85 x 94 x 27 mm) | | Weight | 0.5 lb (0.25 kg) | | | | Box Dimensions (LxWxH) | 6.1 x 3.7 x 1.2" | - Rosette Bracket
| Dimensions | 3.9 x 1.2 x 1.2" (99.5 x 32.5 x 32.5 mm) | | Weight | 0.2 lb (0.1 kg) | | | | Box Dimensions (LxWxH) | 4.4 x 2.5 x 0.1" | - Universal LWS Dovetail Plate
| Compatibility | Arri BP8 and Arri BP9 Bridgeplates | | Dimensions | 10.0 x 2.6 x 0.5" (256 x 68 x 14 mm) | | Weight | 0.5 lb (0.25 kg) | | | | Box Dimensions (LxWxH) | 10.6 x 4.1 x 1.0" | - 15mm Aluminum Rod - 8" Long
| Material | Aluminum | | Rod Diameter | 15 mm | | Rod Length | 8" (203.2 mm) | | | | Box Dimensions (LxWxH) | 9.0 x 1.0 x 1.0" | - MOV-303-1719 Mount for IFR5 Recorder
