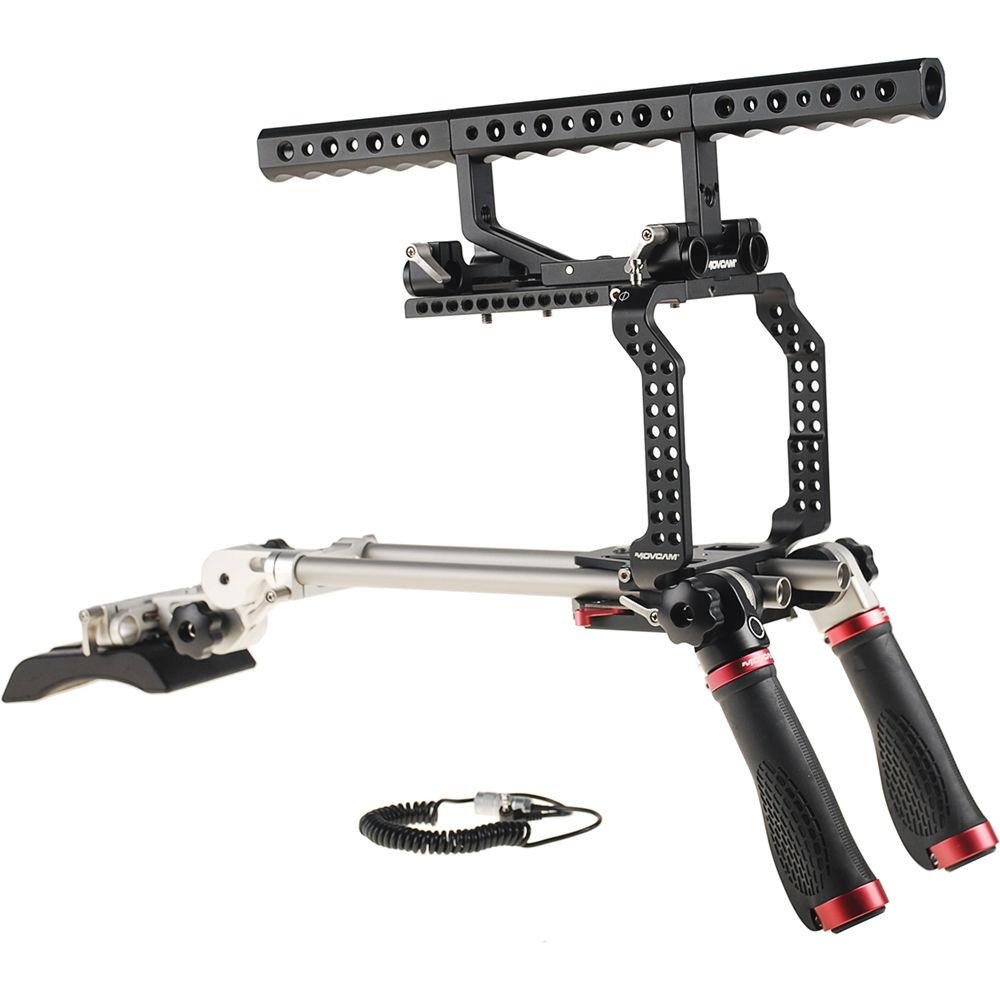

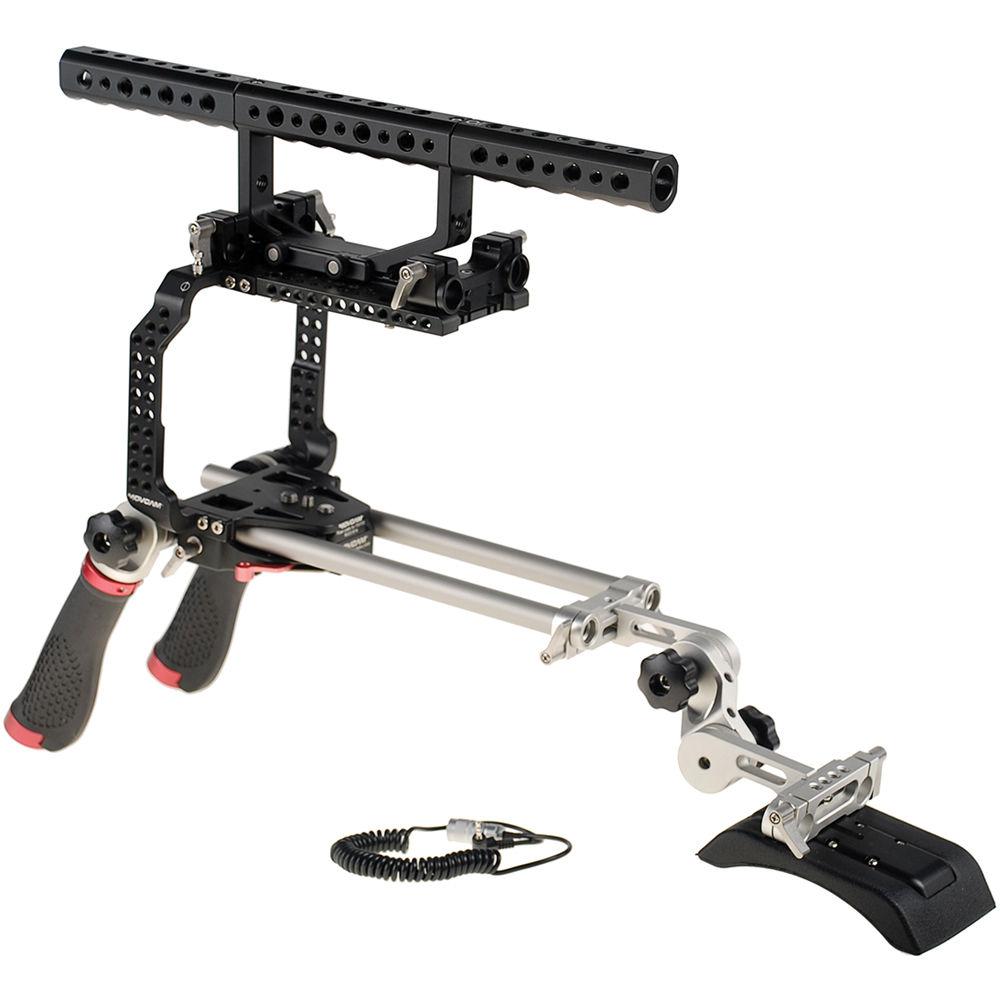

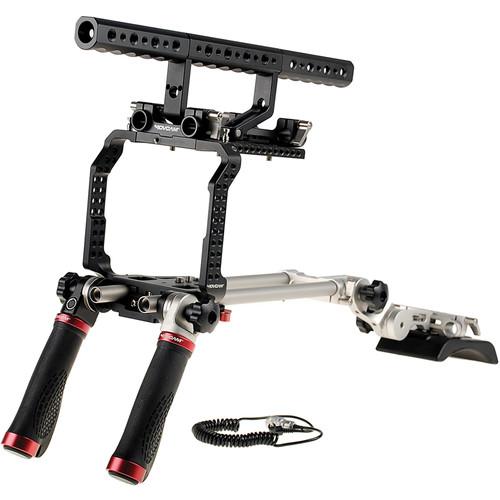

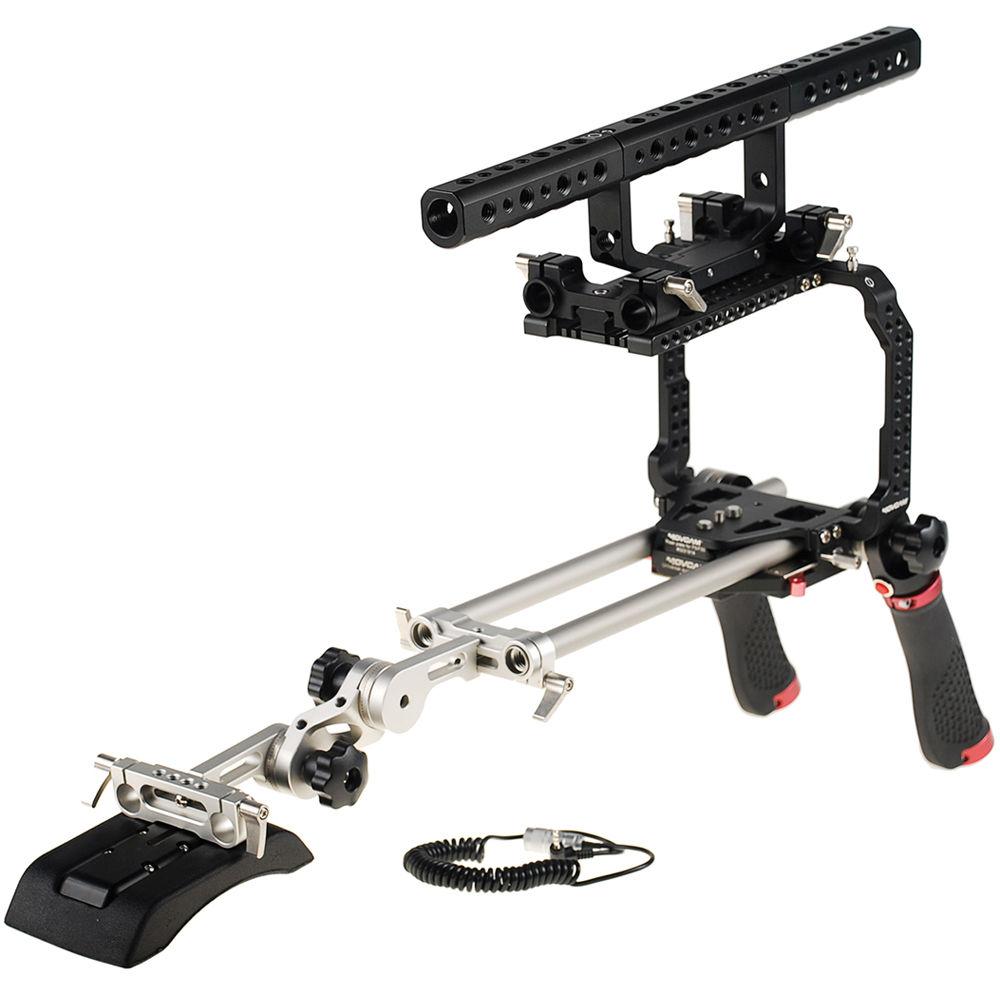

Product description The Universal LWS, Cage and Shoulder Support Kit for Sony F5/F55 from Movcam is comprised of a Universal LWS Baseplate, Camera Spacer, Rosette Adapter, Top Handle, Top Cheese Plate, Left Side Bracket, Right Side Bracket, Skid Handgrip, Anti Skid Handgrip with Start/Stop, VTR Cable, Articulating Shoulder Pad, and Two 12" 15mm Aluminum Rods. - Universal Quick Release Base Plate The Universal Quick Release Base Plate from Movcam is a baseplate compatible with Arri BP8 and Arri BP9 Bridgeplates.
- Camera Spacer for Sony F5/F55 The Camera Spacer from Movcam is designed for mounting the Sony F5/F55 camera. It is installed below the camera body and can also work with the 303-1125 Universal Quick-Release Baseplate (available separately). This spacer allows you to raise the camera's height in order to align the lens with accessories such as a matte box and follow focus. It features a quickly detachable design and comes with 1/4” and 3/8” screws.
- Rosette Bracket Made to attach to the Universal Baseplate, the Movcam Rosette Bracket adds two rosette mounts for handgrips and accessories.
- Top Handle with Extensions for Sony PMW-F5/-F55 4K Camcorders The Top Handle with Extensions from Movcam is designed for use with Sony PMW-F5 and PMW-F55 4K camcorders. The top handle comes with front and rear extensions, and requires the Top Plate (sold separately) for mounting.
- Top Plate for Sony F5/F55 Cameras The Movcam Top Plate directly attaches to the top of the Sony F5/F55 after the camera's original hand grip is removed. The plate features multiple 1/4" and M4 threads to mount various accessories. A Weaver rail mount on top allows mounting of the MOV-303-1306 or MOV-303-1901 top handle (available separately). A pair of 15mm rods (available separately) can be attached to the front and rear rod clamps of the top plate to mount accessories such as a battery bracket, follow focus, or matte box.
- Left Side Bracket for Sony PMW-F5/-F55 4K Camcorders The Left Side Bracket from Movcam is designed for use with Sony PMW-F5 and PMW-F55 4K camcorders.
- Right Side Bracket for Sony PMW-F5/-F55 4K Camcorders The Right Side Bracket from Movcam is designed for use with Sony PMW-F5 and PMW-F55 4K camcorders.
- Anti-Skid Handgrip Get a sure grip on your rig with this Movcam Anti-Skid Handgrip. The grip area on this handgrip has a contoured, dimpled rubber surface for comfortable holding, and features a rosette mount for locking onto your rig.
- Anti-Skid Control Handgrip with LANC Start/Stop The Anti-Skid Control Handgrip from Movcam controls your camera start/stop via LANC, making it compatible with the Canon C300/C500, Sony FS700, Blackmagic BMCC/BMPCC cameras, and more. The grip area on this handgrip has a contoured, dimpled rubber surface for comfortable holding, and features a rosette mount for locking onto your rig. A LANC cable is included.
- VTR Control Cable for Universal Wooden Handgrip The VTR Control Cable from Movcam is a connection cable designed to be used with the Universal Wooden Handgrip with Record Button. The cable's coiled design allows it to extend from 1.6' to 3.9'.
- Rosette-Articulating Shoulder Pad Assembly with 15mm Clamps The Movcam Rosette-Articulating Shoulder Pad Assembly with 15mm Clamps mounts 15mm rods at the front, rests on your shoulder at the back, and articulates in between by a locking rosette mechanism.
At the back, right atop the shoulder pad, is a 15mm rod clamp like the one in front but upside down. It lets you attach 15mm rods to the back to support accessories like power adapters, batteries, and recorders. These accessories will also happen to provide counterbalance to the rig in front. - 15mm Aluminum Rod - 12" Long The 15mm Aluminum Rod - 12" (304.8mm) Long from Movcam is a single rod made of aluminum and is 12" (304.8mm) in length.
In the Box Bundle Items Universal Quick Release Base Plate tsbqzzzvxtucfvedaeycyetyzcxedruydu Camera Spacer for Sony F5/F55 tsbqzzzvxtucfvedaeycyetyzcxedruydu Rosette Bracket Top Handle with Extensions for Sony PMW-F5/-F55 4K Camcorders Top Plate for Sony F5/F55 Cameras Left Side Bracket for Sony PMW-F5/-F55 4K Camcorders Right Side Bracket for Sony PMW-F5/-F55 4K Camcorders Anti-Skid Handgrip Anti-Skid Control Handgrip with LANC Start/Stop VTR Control Cable for Universal Wooden Handgrip Rosette-Articulating Shoulder Pad Assembly with 15mm Clamps 2 x 15mm Aluminum Rod - 12" Long Table of Contents
|
Upload User Manual
Have you got an user manual for the Movcam Universal LWS, Cage, and Shoulder Support Kit for Sony F5 F55 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Universal Quick Release Base Plate
| Compatibility | Arri BP8 and Arri BP9 Bridgeplates | | Dimensions | 3.3 x 3.7 x 1" (85 x 94 x 27 mm) | | Weight | 0.5 lb (0.25 kg) | | | | Box Dimensions (LxWxH) | 6.1 x 3.7 x 1.2" | - Camera Spacer for Sony F5/F55
| Dimensions | 3.7 x 3.3 x 0.5" (9.4 x 8.5 x 1.2 cm) | | Weight | 3.5 oz (100 g) | | | | Box Dimensions (LxWxH) | 5.7 x 3.8 x 0.7" | - Rosette Bracket
| Dimensions | 3.9 x 1.2 x 1.2" (99.5 x 32.5 x 32.5 mm) | | Weight | 0.2 lb (0.1 kg) | | | | Box Dimensions (LxWxH) | 4.4 x 2.5 x 0.1" | - Top Handle with Extensions for Sony PMW-F5/-F55 4K Camcorders
| | | Box Dimensions (LxWxH) | 15.2 x 4.4 x 2.2" | - Top Plate for Sony F5/F55 Cameras
| For Use with | Sony F5/F55 camera | | Compatible with | MOV-303-1306 and MOV-303-1901 top handles | | Threads | 1/4" and M4 | | Material | Aluminum alloy | | Dimensions | 6.54 x 4.01 x 1.5" (166 x 103 x 37 mm) | | Weight | 0.77 lb (0.35 kg) | | | | Box Dimensions (LxWxH) | 6.9 x 4.1 x 1.4" | - Left Side Bracket for Sony PMW-F5/-F55 4K Camcorders
| | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 1.0" | - Right Side Bracket for Sony PMW-F5/-F55 4K Camcorders
| | | Box Dimensions (LxWxH) | 7.5 x 3.3 x 0.9" | - Anti-Skid Handgrip
| Dimensions | 7.0 x 1.7 x 1.3" (178 x 44 x 34 mm) | | Weight | 0.3 lb (0.15 kg) | | | | Box Dimensions (LxWxH) | 7.0 x 1.8 x 1.5" | - Anti-Skid Control Handgrip with LANC Start/Stop
| Compatibility | C300, C500, FS700, BMCC, and BMPCC cameras | | Dimensions | 7.0 x 1.7 x 1.3" (178 x 44 x 34 mm) | | Weight | 0.4 lb (0.2 kg) | | | | Box Dimensions (LxWxH) | 7.9 x 1.9 x 1.4" | - VTR Control Cable for Universal Wooden Handgrip
| Length | 1.6 - 3.9' (0.5 - 1.2 m) | | Weight | 0.04 lb (0.02 kg) | | | | Box Dimensions (LxWxH) | 5.5 x 3.0 x 1.0" | - Rosette-Articulating Shoulder Pad Assembly with 15mm Clamps
| Material | High-grade aluminum
Non-slip rubber shoulder pad | | | | Box Dimensions (LxWxH) | 8.2 x 4.0 x 2.4" | - 15mm Aluminum Rod - 12" Long
| Material | Aluminum | | Rod Diameter | 15 mm | | Rod Length | 12" (304.8 mm) | | | | Box Dimensions (LxWxH) | 15.0 x 1.1 x 0.6" |
