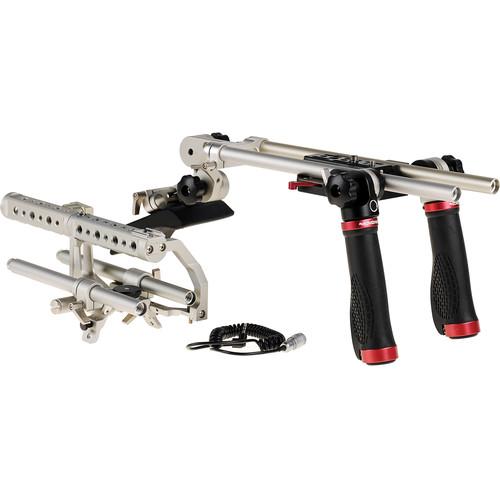

User Manual for Movcam Universal LWS, Top Handle and Shoulder Support Kit for Canon C500 C300 C100 Camera

• Product category: Camcorder Supports & Rigs Movcam
• Brand: Movcam
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Movcam Camcorder Supports & Rigs

Product description

• Universal Quick Release Base Plate The Universal Quick Release Base Plate from Movcam is a baseplate compatible with Arri BP8 and Arri BP9 Bridgeplates.
• Quick Release Spacer for Canon C100/300/500 Cameras This Quick Release Camera Spacer from Movcam is designed for mounting the Canon Cinema EOS C100/C300/C500 cameras to their Universal Lightweight Support Baseplate. It has the correct camera height to align the lens with accessories such as a matte box and follow focus.
• Rosette Bracket Made to attach to the Universal Baseplate, the Movcam Rosette Bracket adds two rosette mounts for handgrips and accessories.
• Top Handle Kit for Canon C300 (Silver) This Movcam Top Handle Kit, in silver, attaches in place of the C300's stock handle and provides rod mount capability, shoe mounts, and mounting threads.

  1/4"-20 and 3/8"-16 threads run along the top, bottom, and sides of the handle. One cold shoe is integrated on the handle, another is repositionable into any of the 1/4"-20 threads, and a third one is mountable on 15mm rods. Two 8" 15mm rods and a 4" 15mm rod are included for use in an integrated dual rod clamp and sideways rod port. The 4" rod is intended to support the rod-mount cold shoe.

  The handle attaches into the C300's shoe mount and further secures with a 1/4"-20 screw and two extended-length tape hooks. The handle itself consists of two parts which screw into each other, and you can remove one from the other if you'd like your handle to be shorter. Note: Not compatible with the C300 Mark II.
  Key Features
  • • Attaches in place of the C300's stock handle; secures at three points
    • 1/4"-20 and 3/8"-16 threads
    • Integrated cold shoe
    • 1/4"-20 mount cold shoe
    • Rod-mount cold shoe
    • Dual 15mm rod clamp and two 8" rods
    • Sideways rod clamp and 4" rod
• Anti-Skid Handgrip Get a sure grip on your rig with this Movcam Anti-Skid Handgrip. The grip area on this handgrip has a contoured, dimpled rubber surface for comfortable holding, and features a rosette mount for locking onto your rig.
• Anti-Skid Control Handgrip with LANC Start/Stop The Anti-Skid Control Handgrip from Movcam controls your camera start/stop via LANC, making it compatible with the Canon C300/C500, Sony FS700, Blackmagic BMCC/BMPCC cameras, and more. The grip area on this handgrip has a contoured, dimpled rubber surface for comfortable holding, and features a rosette mount for locking onto your rig. A LANC cable is included.
• VTR Control Cable for Universal Wooden Handgrip The VTR Control Cable from Movcam is a connection cable designed to be used with the Universal Wooden Handgrip with Record Button. The cable's coiled design allows it to extend from 1.6' to 3.9'.
• Rosette-Articulating Shoulder Pad Assembly with 15mm Clamps The Movcam Rosette-Articulating Shoulder Pad Assembly with 15mm Clamps mounts 15mm rods at the front, rests on your shoulder at the back, and articulates in between by a locking rosette mechanism.

  At the back, right atop the shoulder pad, is a 15mm rod clamp like the one in front but upside down. It lets you attach 15mm rods to the back to support accessories like power adapters, batteries, and recorders. These accessories will also happen to provide counterbalance to the rig in front.
• 15mm Aluminum Rod - 12" Long The 15mm Aluminum Rod - 12" (304.8mm) Long from Movcam is a single rod made of aluminum and is 12" (304.8mm) in length.

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Set of Two 15mm Rods (8" / 20 cm)

• Sideways 15mm Rod (4" / 10 cm)

• 1/4"-20 Mount Cold Shoe

• Rod-Mount Cold Shoe

• 2 x 1/4"-20 Screws

• 2 x Tape Hooks

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• LANC Cable

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 2-Year Limited Warranty

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Universal Quick Release Base Plate

  Compatibility	Arri BP8 and Arri BP9 Bridgeplates
  Dimensions	3.3 x 3.7 x 1" (85 x 94 x 27 mm)
  Weight	0.5 lb (0.25 kg)

  Box Dimensions (LxWxH)	6.1 x 3.7 x 1.2"

• Quick Release Spacer for Canon C100/300/500 Cameras

  Dimensions	3.3 x 1.3 x 0.3" / 85.0 x 34.0 x 7.5 mm
  Weight	0.7 oz / 20 g

  Box Dimensions (LxWxH)	5.4 x 2.0 x 0.2"

• Rosette Bracket

  Dimensions	3.9 x 1.2 x 1.2" (99.5 x 32.5 x 32.5 mm)
  Weight	0.2 lb (0.1 kg)

  Box Dimensions (LxWxH)	4.4 x 2.5 x 0.1"

• Top Handle Kit for Canon C300 (Silver)

  Box Dimensions (LxWxH)	26.4 x 9.0 x 5.3"

• Anti-Skid Handgrip

  Dimensions	7.0 x 1.7 x 1.3" (178 x 44 x 34 mm)
  Weight	0.3 lb (0.15 kg)

  Box Dimensions (LxWxH)	7.0 x 1.8 x 1.5"

• Anti-Skid Control Handgrip with LANC Start/Stop

  Compatibility	C300, C500, FS700, BMCC, and BMPCC cameras
  Dimensions	7.0 x 1.7 x 1.3" (178 x 44 x 34 mm)
  Weight	0.4 lb (0.2 kg)

  Box Dimensions (LxWxH)	7.9 x 1.9 x 1.4"

• VTR Control Cable for Universal Wooden Handgrip

  Length	1.6 - 3.9' (0.5 - 1.2 m)
  Weight	0.04 lb (0.02 kg)

  Box Dimensions (LxWxH)	5.5 x 3.0 x 1.0"

• Rosette-Articulating Shoulder Pad Assembly with 15mm Clamps

  Material

  High-grade aluminum Non-slip rubber shoulder pad

  Box Dimensions (LxWxH)	8.2 x 4.0 x 2.4"

• 15mm Aluminum Rod - 12" Long

  Material	Aluminum
  Rod Diameter	15 mm
  Rod Length	12" (304.8 mm)

  Box Dimensions (LxWxH)	15.0 x 1.1 x 0.6"
