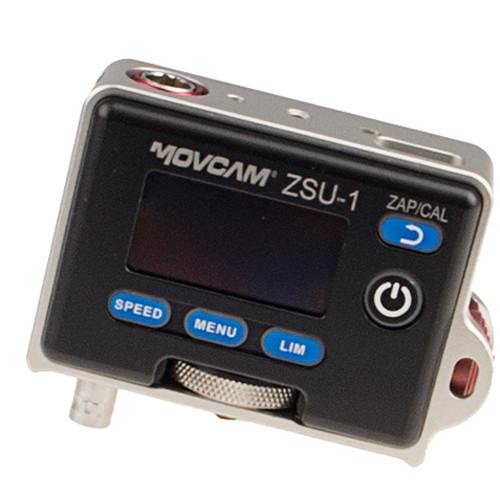

User Manual for Movcam ZSU-1 Zoom Control Module Click to enlarge the picture
Contents of the user manual for the Movcam ZSU-1 Zoom Control Module
- Product category: Wireless Lens Control Accessories Movcam
- Brand: Movcam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Movcam Wireless Lens Control Accessories
 |
User manual for the Movcam ZSU-1 Zoom Control Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Movcam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Movcam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Movcam product will considerably shorten its lifespan!
|

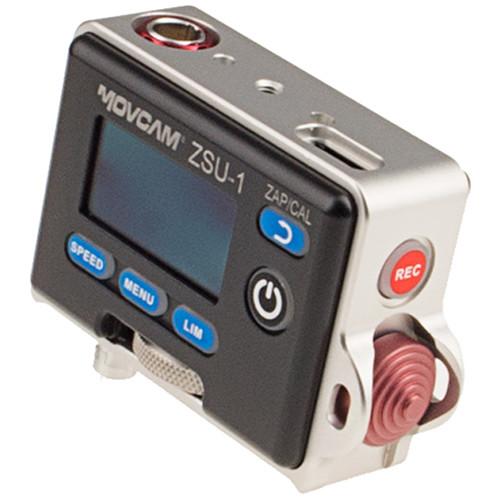

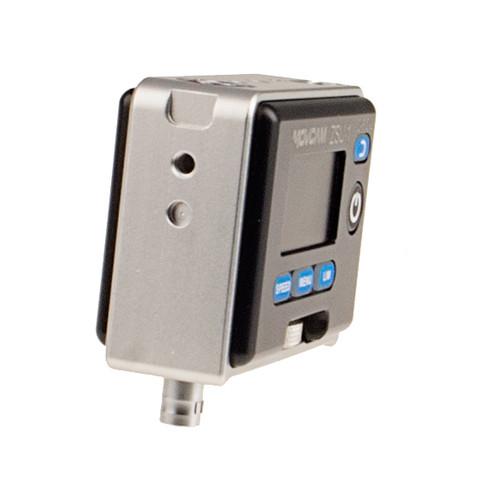

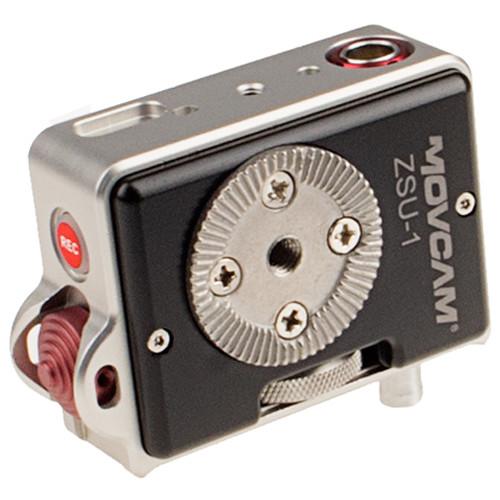

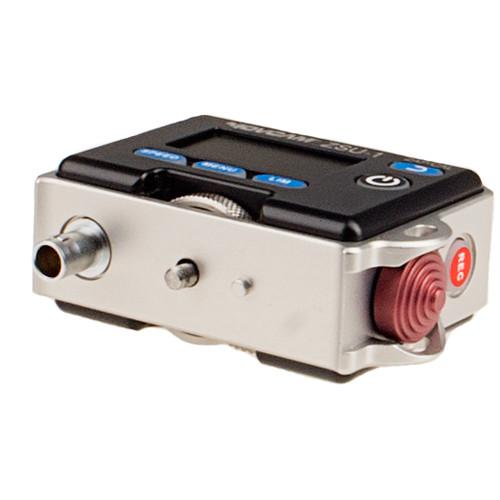

Product description The Movcam ZSU-1 Zoom Control Module provides zoom control when used with the Movcam SCU-1 Hand Control Unit (not included). Made from machined aluminum, it features a standard rosette and LEMO connectors, and it is well suited to handle the rigors of daily production. It has a conical stepped zoom lever with raised rails to prevent accidentally nudging the zoom. The ZSU-1 is compatible with the SCU-1 and single-channel wireless lens control system, and turns either system into a dual-channel system.
The ZSU-1 can also connect directly to the MRS-1 (Motor Control Module) that comes with the single- and dual-channel systems via cable. It enables automatic and manual lens calibration. The unit's OLED screen displays useful information including motor position, lens position, controller speed sensitivity, record status of camera and a menu entry button. This item only includes the ZSU-1 and does not include any cables. - Functions
-
- Automatic lens calibration
- Manual lens calibration
- Torque calibration
- Motor direction control
- 3D setup control
- OLED Screen Display
-
- Motor position
- Percentage value of motor position
- Lens position of motor/lens
- Controller speed sensitivity (from 1-slow to 100-fast)
- Record status of camera
- Menu entry button
- Backlight control
- Firmware Upgrade
- Via SD card slot
In the Box Movcam ZSU-1 Zoom Control Module - Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Movcam ZSU-1 Zoom Control Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

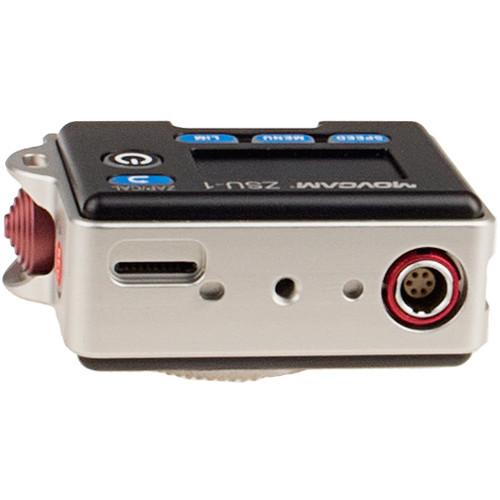

Technical parametersMovcam MOV-501-102-02 Specs | Material of Construction | Machined aluminum | | Mounting | Standard rosette | | Interface | Media Card Slot
1 x SD card slot (for firmware upgrade)
LEMO
1 x female 6-pin OB series
1 x male 6-pin OB series | | Dimensions | 2.75 x 2.25 x 1.13" / 69.85 x 57.15 x 28.58 mm | | Weight | 0.3 lb / 0.14 kg |
