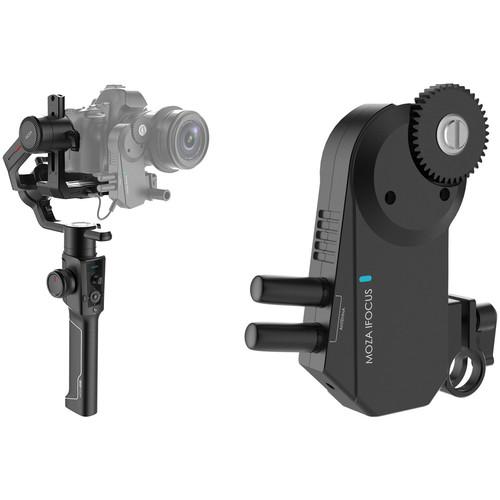

Moza Air 2 Kit with iFocus

User Manual for Moza Air 2 Kit with iFocus Wireless Follow Focus Motor

• Product category: See All Gimbal Stabilizers Moza
• Brand: Moza
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Moza See All Gimbal Stabilizers

Product description

• Moza Air 2 3-Axis Handheld Gimbal Stabilizer
  • MOZA Air 2 - For DSLR, Mirrorless and Pocket Cinema Cameras
  The Moza Air 2 3-Axis Handheld Gimbal Stabilizer has been upgraded over previous versions with newly optimized high-torque motors, a 9.25 lb weight capacity, and many other features. The high weight capacity allows for a much wider range of cameras to be used, as well as wider combinations of cameras and lenses. The Air 2 also supports the optional Moza iFOCUS Intelligent Wireless Lens Control System, which comes in different versions to offer standard and automatic (with preset start/end points) focus and zoom control directly from the Air 2.

  Another standout aspect of the Air 2 is that it clears and provides an unobstructed view of the camera LCD thanks to an angled motor arm. There is a total of 12 physical buttons for controlling the gimbal and camera, as well as adjusting settings such as shutter, aperture, and exposure compensation (where applicable). The joystick, smart wheel, and smart trigger controls are customizable in multiple combinations for different shooting styles. Most of the settings and customizations, as well as the gimbal status, are confirmed on an OLED display that provides intuitive information feedback.

  The Air 2 features eight different operational modes, including single-axis and dual-axis modes such as pan follow and pan tilt follow (please see the Features section below for the full list). These modes allow for different shooting styles that Moza calls Sport Gear, FPV, Panorama, Tracking, and Inception styles. Inception, for example, allows you to rotate the camera as you push in on a subject.

  The gimbal runs on four included lithium-ion 18650 batteries which provide up to 16 hours of runtime. The batteries are replaceable for continued operation. Designed with Moza's SPARK power supply system, the Air 2 has an input port that provides an alternate way of powering the gimbal, and three output ports for powering the camera and accessories using optional Moza adapter cables.

  The Air 2 also offers various time-lapse functions including motion-lapse, tracking time-lapse, and zoom time-lapse, each allowing you to achieve a different look. Other features include an efficient auto-tuning system that selects optimal parameters based on your total load.

  The Air 2 is easy to balance thanks to visual markers and other identifiable information. It also has a mechanical memory quick release system that helps readjust the camera without having to rebalance the gimbal. For tripod mounting and attaching accessories, the Moza Air 2 provides a 1/4"-20 threaded hole on the bottom of the handle and one on the side.
  Key Features
  • • 9.25 lb weight capacity
    • Support for optional Moza iFOCUS Intelligent Wireless Lens Control System
    • Provides unobstructed view of your camera's LCD
    • 12 physical buttons for controlling the gimbal, camera, and settings
    • Joystick, smart wheel, and smart trigger controls are customizable for different shooting styles
    • OLED information feedback display
    • 16-hour runtime off four included 18650 Li-Po batteries
    • Input/output ports for powering the gimbal, camera, and accessories via optional Moza adapter cables
    • Various time-lapse functions including motion-lapse, tracking time-lapse, and zoom time-lapse
    • Intelligent auto-tuning system
    • Visual markers/identifiable information for balancing
    • Mechanical memory quick release system
    • 1/4"-20 threaded hole on the bottom of the handle and one on the side
  8 Operational Modes
  • • Pan follow / tilt follow / roll follow
    • All follow / all locked
    • Roll tilt follow / roll pan follow / pan tilt follow
  I/O Ports for Moza Adapter Cables
  • • 5.5mm 16 VDC input
    • 2.0mm 7.8 VDC output
    • 5.5mm 12 VDC output
    • Multi CAN 7.8 VDC output
  UPC: 712424355122
• Moza iFocus Wireless Follow Focus Motor
  • MOZA Air 2 - For DSLR, Mirrorless and Pocket Cinema Cameras
  Use the Moza iFocus Wireless Follow Focus Motor to perform precise focus pulls when using your Moza Air 2, Air, or AirCross gimbal. The motor needs no calibration, and it can be attached to any rod or handle with a 15mm diameter such as a rod system, gimbal arm, or tripod handle.

  The Follow Focus Motor connects to the separately available Moza Follow Focus Hand Unit via 2.4 GHz Wi-Fi from up to 328' away. It can also be controlled by the Moza smartphone app via Bluetooth for manual focus and to set automated parameters. You can also connect to the Moza Air 2 which provides CAN communication for power and control using the gimbal's interface. The motor also allows you to preset start and stop endpoints for accurate rack focus shots, which can be controlled by the Hand Unit or by the smartphone app.

  The 600mAh lithium-ion battery provides approximately twenty-four hours of operation and takes approximately three hours to fully charge. A USB-C cable is included for charging. UPC: 791256443030

• Air 2 3-Axis Handheld Gimbal Stabilizer uesruauquuabwwcstrvcecds
• 4 x 18650 Battery
• Intelligent Charger
• 2 x Riser Plate
• 2 x Moza Quick Release Plate
• 2 x 1/4"-20 Camera Screw
• 2 x 3/8"-16 Camera Screw
• Lens Support
• Lens Support Screw
• USB Type-C Cable
• Panasonic Control Cable
• Micro-USB Control Cable
• Mini-USB Control Cable
• Multi-Port Control Cable
• Mini Tripod
• Warning Card
• Cable Storage Bag
• 1/4"-20 to 3/8"-16 Screw Adapter
• Limited 1-Year Warranty

• iFocus Wireless Follow Focus Motor
