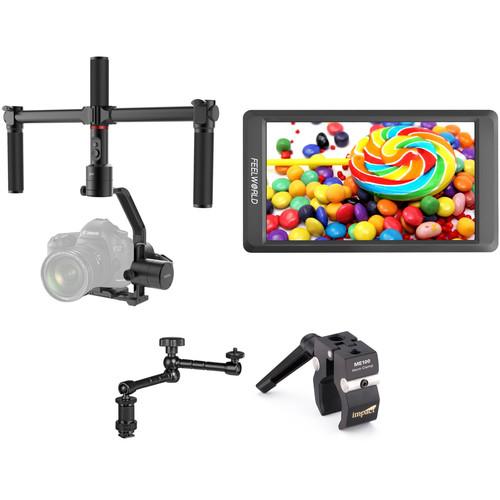

User Manual for Moza Air 3-Axis Gimbal Stabilizer Kit with 5.5" Monitor & Articulating Arm

• Product category: See All Gimbal Stabilizers Moza
• Brand: Moza
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Moza See All Gimbal Stabilizers

Product description

• Moza Air 3-Axis Motorized Gimbal Stabilizer
  • Introducing MOZA Air: 3-Axis Handheld Gimbal Stabilizer for Mirrorless Cameras and DSLRs
  Compact and configurable, the MOZA Air 3-Axis Motorized Gimbal Stabilizer can stabilize your mirrorless or DSLR camera for smooth, professional-looking footage. Since the Air can be used in either one or two-handed configurations, supporting setups that approach the 7.1-pound payload capacity won't sacrifice usability. The built-in handgrip control offers directional control and mode selection at your fingertips. Other control options include using the free smartphone app or the separately available Wireless Thumb Controller. The Thumb Controller is especially useful in the two-handed configuration. Auto-tuning can be done through the app to ensure optimal performance. The MOZA Air itself and the included batteries, charger, cables, and accessories all fit in the included hard carry case for convenient storage and transport.
  • • Aircraft-grade aluminum construction
    • Dual handle for capturing stable handheld shots
    • MOZA Assistant app allows you to create smooth, dynamic time-lapse video on your smartphone or tablet
    • Humanized interval and duration settings
    • Can adapt to your specific shooting scenario with two handheld modes
    • Can be mounted onto a tripod, slider, jib, crane, or anything else via the 1/4"-20 screw hole at the bottom
    • Slip-ring technology employed in the motors allows the gimbal to rotate 360° on yaw, tilt, and roll axis settings, allowing for better camera movement
    • "Inception" mode lets you use the full 360° of the roll axis for creative camera moves
    • Sport Gear mode tunes the motors for following faster-moving subjects
    • Handgrip houses three lithium batteries with 2000mAh capacity that offers a standby time of 12 hours
    • Yaw-follow, pitch-follow, yaw-pitch follow, roll-follow, and all-lock operation modes
    • Auto-center shooting mode minimizes the need for frequent adjustments
  UPC: 611982477812
• FeelWorld F550 5.5" IPS 1920 x 1080 Full HD 4K HDMI On-Camera LCD Monitor
  • Introducing MOZA Air: 3-Axis Handheld Gimbal Stabilizer for Mirrorless Cameras and DSLRs
  Supporting resolutions up to DCI and UHD 4K, the FeelWorld F550 5.5" IPS 1920 x 1080 Full HD 4K HDMI On-Camera LCD Monitor features a native display resolution of 1920 x 1080. It can display 1080p signals without scaling, while it scales higher and lower resolution content to fit the screen. The IPS screen allows for off-axis viewing of 80° up/down/left/right, and it features a brightness of 450 cd/m² with a contrast ratio of 1000:1. The monitor incorporates a dedicated HDMI input and dedicated HDMI output.

  The F550 packs many useful functions into its small size, including peaking, zoom, and 1:1-pixel mapping, anamorphic de-squeeze, frame lines, markers, and image flip. Rounding out the internal feature set are the exposure functions which include histogram, false color, and zebras. Included with the monitor are a Mini HDMI to HDMI cable, sunshade, shoe mount, and L-Series battery plate.
  Monitoring Tools
  • • Histogram
    • Audio level meters
    • Focus peaking
    • False color
    • Zebras (0-100 IRE selectable)
    • R/G/B-only and luma-only modes
    • Over/underscan
    • 4, 9 and 16x zoom
    • Anamorphic de-squeeze
    • Image flip
    • Nine-grid zoom-in
    • 1:1-pixel mapping
    • Frame markers
  UPC: 815206022783
• Pearstone 11" Articulating Arm
  • Introducing MOZA Air: 3-Axis Handheld Gimbal Stabilizer for Mirrorless Cameras and DSLRs
  The Pearstone 11" Articulating Arm is an arm used to mount small displays on prosumer and professional camcorders. The arm's unique design features a single-point locking mechanism, which gives the user maximum flexibility. Moving the display on multiple axes is quick and easy, allowing users to find the best possible viewing angle. In addition, the bottom verticle spacer piece is removeable to reveal a 1/4"-20 male screw, and the bottom shoe mount is removeable to reveal a 1/4"-20 female thread. The full length of this arm (tip-to-tip) measures 11", and the usable extension range (end-joint to end-joint) measures 8.3".
  • Maximum mounting flexibility
  • Single point locking mechanism
  • Fits on any standard shoe mount
  UPC: 847628015005
• Impact Atom Clamp with Ratchet Handle
  • Introducing MOZA Air: 3-Axis Handheld Gimbal Stabilizer for Mirrorless Cameras and DSLRs
  The Impact Atom Clamp is a smaller version of the popular Impact Super Clamp. Weighing in at a mere 4.0 oz, the Atom Clamp can support a payload of over 15 lb. This, and the fact that it comes with 1/4"-20 and 3/8" female sockets, makes it ideal for use with most standard camera and grip accessories. It's ideal for small sets or tabletop photography. The Atom Clamp is made of lightweight aluminum and features a textured, non-slip jaw grip that is optimized to work with poles or flat objects.
  • Light and compact enough to carry around in your jacket pocket or camera bag
  UPC: 847628540248

• Air 3-Axis Motorized Gimbal Stabilizer dyrauytx
• Handgrip
• 3 x 26350 Battery
• Charger
• Dual Handle Set
• Lens Support
• 1/4"-20 Screw
• USB Cable
• 3 x Camera Control Cable (Sony a7, Canon DSLR, GH4)
• ARCA-SWISS Converter
• Quick Release Plate
• Carry Case
• Limited 1-Year Warranty

• FeelWorld - F550 5.5" IPS 1920 x 1080 Full HD 4K HDMI On-Camera LCD Monitor

• Pearstone - 11" Articulating Arm

• Impact - Atom Clamp with Ratchet Handle

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Moza Air 3-Axis Motorized Gimbal Stabilizer

  Number of Axes	3-Axis (Pitch, Roll, Yaw)
  Rotation Range	Yaw (Pan): 360 Rating 90% users recommend this product to others. And what about you? This product has already been rated by 23 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
