User Manual for Moza iFocus Wireless Lens Follow Focus System Click to enlarge the picture
Contents of the user manual for the Moza iFocus Wireless Lens Follow Focus
- Product category: Stabilizers & Gimbals Moza
- Brand: Moza
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Moza Stabilizers & Gimbals
|
User manual for the Moza iFocus Wireless Lens Follow Focus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Moza product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Moza user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Moza product will considerably shorten its lifespan!
|

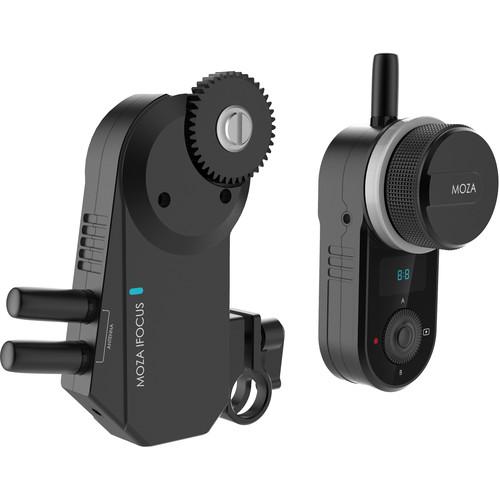

Product description Use the Moza iFocus Wireless Lens Follow Focus System to perform precise focus pulls over a wireless connection when using your Moza Air 2, Air, or AirCross gimbal. The system includes a Follow Focus Hand Unit and a Follow Focus Motor.
The Follow Focus Motor connects to the Follow Focus Hand Unit via 2.4 GHz Wi-Fi from up to 328' away. You can also use the Moza smartphone app via Bluetooth or a CAN connection to the Moza Air 2 to control the motor. Each of the units has a long battery life and can connect to a variety of rods or mounts.
An adjustable focus gear ring, a CAN communication cable, a carry case, and two USB-C cables for charging are included. - iFocus Wireless Follow Focus Hand Unit Use the Moza iFocus Wireless Follow Focus Hand Unit to perform precise focus pulls when using your Moza Air 2, Air, or AirCross gimbal.
The Hand Unit connects to the separately available Moza Follow Focus Motor via 2.4 GHz Wi-Fi from up to 328' away, and its digital display allows you to clearly see your focus measurements. The button wheel allows start and stop of preset endpoints for accurate rack focus shots. The 750mAh lithium-ion battery provides approximately ten hours of operation and takes approximately three hours to fully charge.
The large focus wheel has ridges on the side for a solid grip, and it comes with a removable marking disk for to swap out when you need quick focus changes. The Hand Unit can be attached to any rod or handle with a 15 to 33mm diameter such as a rod system, gimbal arm, or tripod handle. A USB-C cable is included for charging. UPC: 791256443047 - iFocus Wireless Follow Focus Motor Use the Moza iFocus Wireless Follow Focus Motor to perform precise focus pulls when using your Moza Air 2, Air, or AirCross gimbal. The motor needs no calibration, and it can be attached to any rod or handle with a 15mm diameter such as a rod system, gimbal arm, or tripod handle.
The Follow Focus Motor connects to the separately available Moza Follow Focus Hand Unit via 2.4 GHz Wi-Fi from up to 328' away. It can also be controlled by the Moza smartphone app via Bluetooth for manual focus and to set automated parameters. You can also connect to the Moza Air 2 which provides CAN communication for power and control using the gimbal's interface. The motor also allows you to preset start and stop endpoints for accurate rack focus shots, which can be controlled by the Hand Unit or by the smartphone app.
The 600mAh lithium-ion battery provides approximately twenty-four hours of operation and takes approximately three hours to fully charge. A USB-C cable is included for charging. UPC: 791256443030 In the Box Bundle Items iFocus Wireless Follow Focus Hand Unit ddsvwbuw iFocus Wireless Follow Focus Motor
Also Includes - CAN Communication Cable
- Adjustable Focus Gear Ring
- Carry Case
- Limited 3-Month Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Moza iFocus Wireless Lens Follow Focus System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - iFocus Wireless Follow Focus Hand Unit
| Compatibility | Moza iFocus Wireless Follow Focus Motor
Moza Air 2, Air, AirCross gimbals | | Battery | 750 mAh Li-ion | | Battery Life | 10 hours (approx.) | | Battery Charge Time | 3 hours | | Ports | USB-C (power) | | Rod Clamp Type | 24 to 32 mm | | Dimensions | 1.5 x 3.6 x 1.9" / 3.8 x 9.2 x 4.8 cm | | Weight | 5.8 oz / 165 g | | | | Box Dimensions (LxWxH) | 5.9 x 4.4 x 2.7" | - iFocus Wireless Follow Focus Motor
| Compatibility | Moza iFocus Wireless Follow Focus Hand Unit
Moza Air 2, Air, AirCross gimbals | | Ports | USB-C | | Battery | 600 mAh | | Battery Life | 24 hours (approx.) | | Rod Clamp Type | 15 mm | | Dimensions | 4.5 x 2.6 x 1.2" / 11.5 x 6.5 x 3 cm | | Weight | 7 oz / 198 g | | | | Box Dimensions (LxWxH) | 5.6 x 5.1 x 2.0" |
