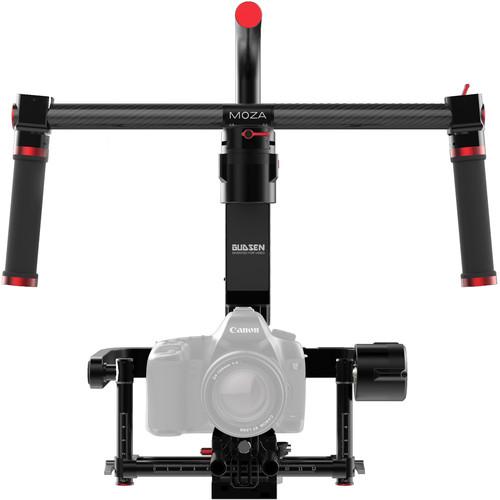

User Manual for Moza Lite 2 3-Axis Motorized Gimbal Stabilizer Click to enlarge the picture
Contents of the user manual for the Moza Lite 2 3-Axis Motorized Gimbal
- Product category: Gimbal Stabilizers Moza
- Brand: Moza
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Moza Gimbal Stabilizers
|
User manual for the Moza Lite 2 3-Axis Motorized Gimbal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Moza product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Moza user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Moza product will considerably shorten its lifespan!
|
Product description Moza Lite 2 Gimbals Stabilize Cameras up to 8.8 Pounds Read More Using advanced FOC algorithms and powerful motor with encoders for improved precision control, the MOZA Lite 2 makes it easy to capture smooth, stabilized handheld footage. Featuring a magnesium alloy frame, the motorized 3-axis gimbal weighs in at 4.8 lb and supports loads up to 8.8 lb, making it suitable for a wide range of mirrorless, DLSR, and compact cinema cameras. Three distinct operating modes lets users choose the mode the best suits the situation, with each mode offering follow and locked gimbal stabilization options. Adding to the stabilizer's versatility is a detachable handlebar that functions as a quick release system for easy assembly and disassembly, while facilitating attachment to a variety of platforms, such as tripods, cranes, rigs, and drones.
The MOZA Lite 2 can be setup in a matter of minutes, with advanced calibration and tuning done using the MOZA Assistant app on a Bluetooth-connected iOS or Android mobile device. For full control as you operate, an optional wireless thumb controller is available, which features a OLED menu display for intuitive configuration and gimbal movement control. The controller can also be used to start/stop video recording and adjust focus with select cameras and lenses. Included in this Basic package are a 2800mAh battery, battery charger, and camera mounting plate. - Features
-
- 3-axis motorized gimbal stabilizer
- 8.8 lb load capacity
- Tool-less balancing and quick setup
- Modular designed with detachable handlebar
- Advanced FOC algorithm technology
- Powerful PMSM Motors with high-resolution digital positioning motors
- Lightweight magnesium alloy construction
- Bluetooth 4.0 connectivity for remote calibration and tuning on iOS or Android device running MOZA Assistant app
- Optional multi-functional wireless thumb controller
- Intelligent 2800mAh battery provides 4 to 8 hours of use
- Operating Modes
- Upright Mode - As known as inverted mode, this flips the gimbal upside down, letting you position the camera at or above eye level. This mode is also best when mounting the stabilizer to the top of a vehicle or other support device
Briefcase Mode - Ideal low-angle shots and narrow spaces, this mode turns the vertically to hold your camera at leg level
Underslung Mode - The default operating mode, where the gimbal is positioned underneath the handlebars, placing your camera at chest level. This mode is also ideal when mounting the gimbal to a drone - Follow Modes
- Pan - Camera follows pan axis movement, tilt axis and roll axis locked
Tilt - Camera follows tilt axis movement, pan axis and roll axis locked
Pan & Tilt - Camera follows both pan and tilt axes movement, roll axis locked
All-Lock - Locks camera in place along pan, tilt, and roll axes - Compatible Cameras
- The MOZA Lite 2 is compatible with a variety of camera and lens combinations weighing up to 8.8 lb. The following cameras are compatible:
Canon 5D Mark II, 5D Mark III, 6D, 60D, 7D, 70D
Sony a7, a7S, a7R, a7 II, a7R II, a7S II
Panasonic GH3, GH4
Nikon D800
Blackmagic Pocket Cinema Camera, Cinema Camera, Production Camera 4K UPC: 732330590110 In the Box Moza Lite 2 3-Axis Motorized Gimbal Stabilizer (Basic) MOZA Intelligent Battery Battery Charger Camera Mounting Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Moza Lite 2 3-Axis Motorized Gimbal Stabilizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMoza LG11 Specs | | | Load Capacity | 8.8 lb (4 kg) | | Rotation Range | Pan: 360°
Tilt: -175° to +135°
Roll: -75° to +235° | | Controlled Angle Accuracy | ±0.02° | | | | Inputs and Outputs | 1 x Mini-USB control port
1 x Micro-USB port
1 x PPM output (standard PPM protocol)
1 x CAN output (standard CAN protocol)
| | Bluetooth | Bluetooth 4.0
Max. Distance: 16.4' (5 m) | | Remote | 2.4 GHz
Max. Distance: 164' (50 m) | | | | Working Voltage | 14.8 VDC | | Current | Resting: 20 mA
Quiescent: 100 mA
Dynamic: 300 mA | | Maximum Motor Speed | 3 rotations per second | | | | Supported Camera Dimensions | 7.1 x 5.9 x 9.8" (18 x 15 x 25 cm) | | Dimensions | Unfolded: 19.7 x 9.8 x 13.8" (50 x 25 x 35 cm)
Waterproof Case: 23.6 x 15.4 x 9" (60 x 39.2 x 23 cm) | | Weight | 4.85 lb (2.2 kg) | | | | Capacity | 2800 mAh | | Battery Life | 4 hours | | Output Voltage | 14.8 VDC | | Cut-Off Voltage | 12 VDC | | Output Current | 2 A | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 21.5 x 14.5 x 8.0" |
