Product description

Moza Lite 2 Gimbals Stabilize Cameras up to 8.8 Pounds Read More
  • MOZA Lite 2 Tutorial

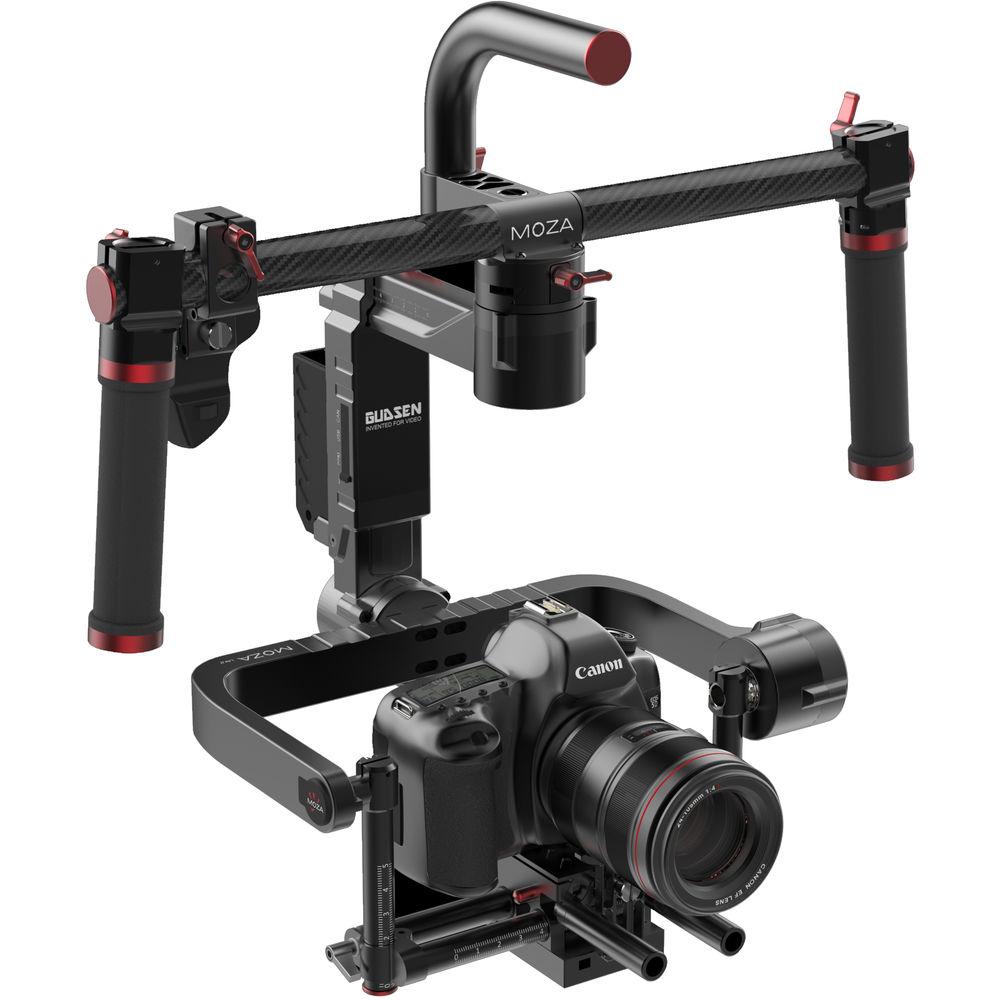

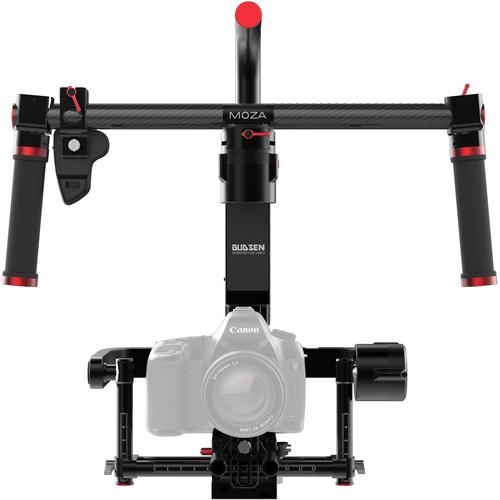

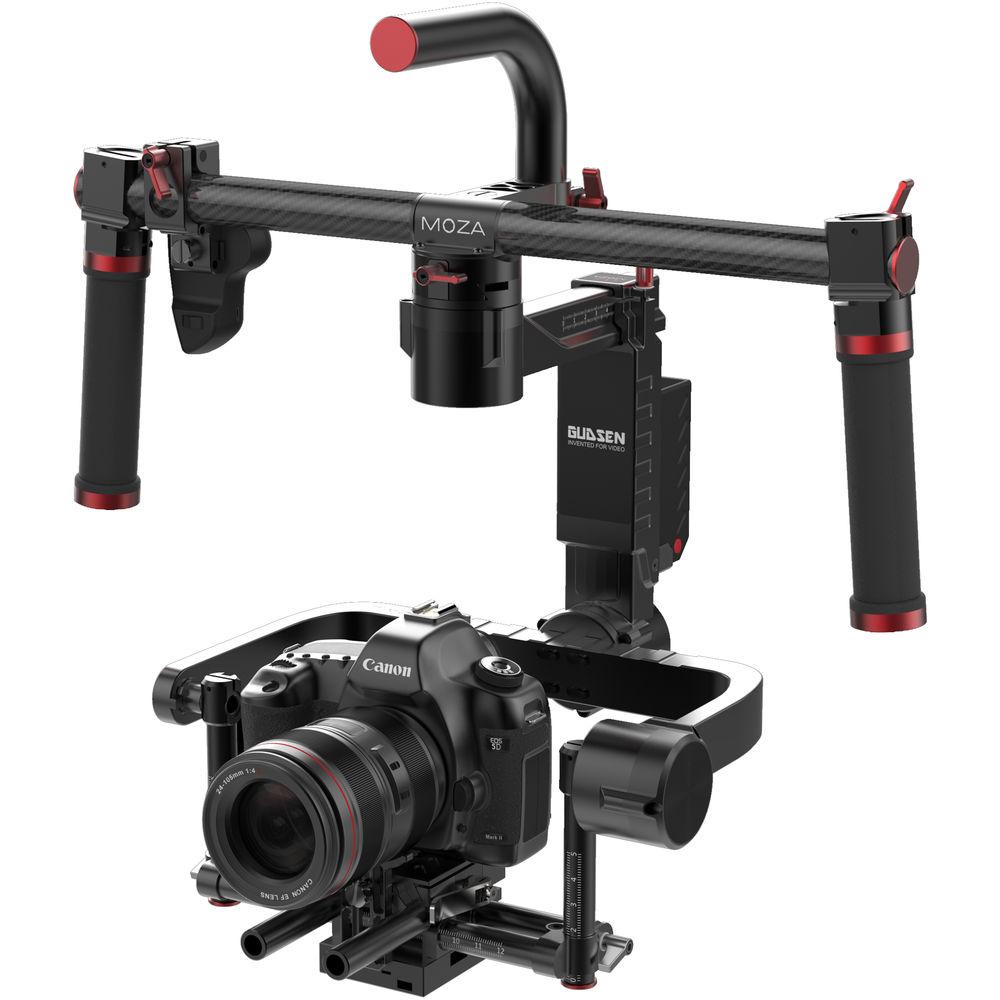

Using advanced FOC algorithms and powerful motor with encoders for improved precision control, the MOZA Lite 2 Premium package makes it easy to capture smooth, stabilized handheld footage. Featuring a magnesium alloy frame, the motorized 3-axis gimbal weighs in at 4.8 lb and supports loads up to 11 lb, making it suitable for a wide range of mirrorless, DSLR, and compact cinema cameras. Three distinct operating modes allow users to choose the mode that best suits the situation, with each mode offering follow and locked gimbal stabilization options. Adding to the stabilizer's versatility is a detachable handlebar that functions as a quick release system for easy assembly and disassembly, while facilitating attachment to a variety of platforms, such as tripods, cranes, rigs, and drones.

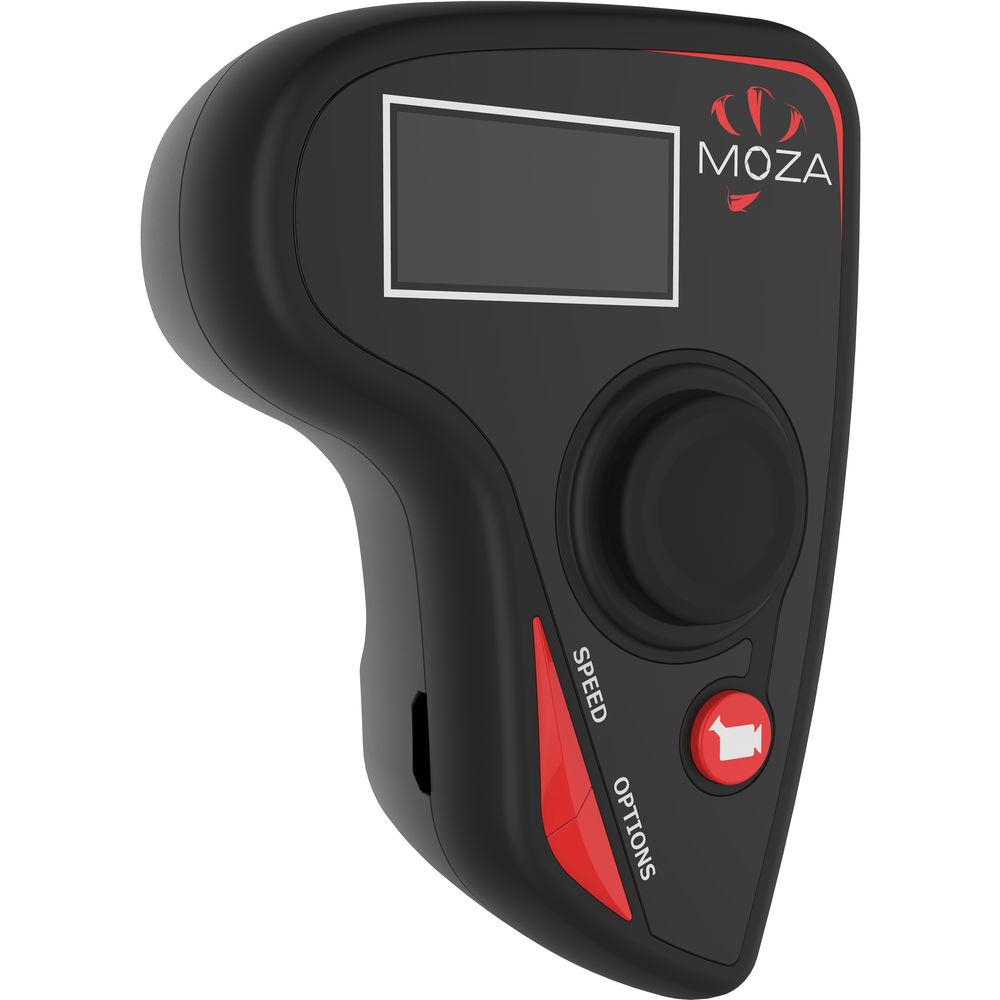

The MOZA Lite 2 can be set up in a matter of minutes, with advanced calibration and tuning done using the MOZA Assistant app on a Bluetooth-connected iOS or Android mobile device. For full control as you operate, use the included wireless thumb controller, which features a OLED menu display for intuitive configuration and gimbal movement control. The controller can also be used to start/stop video recording and adjust focus with select cameras and lenses.

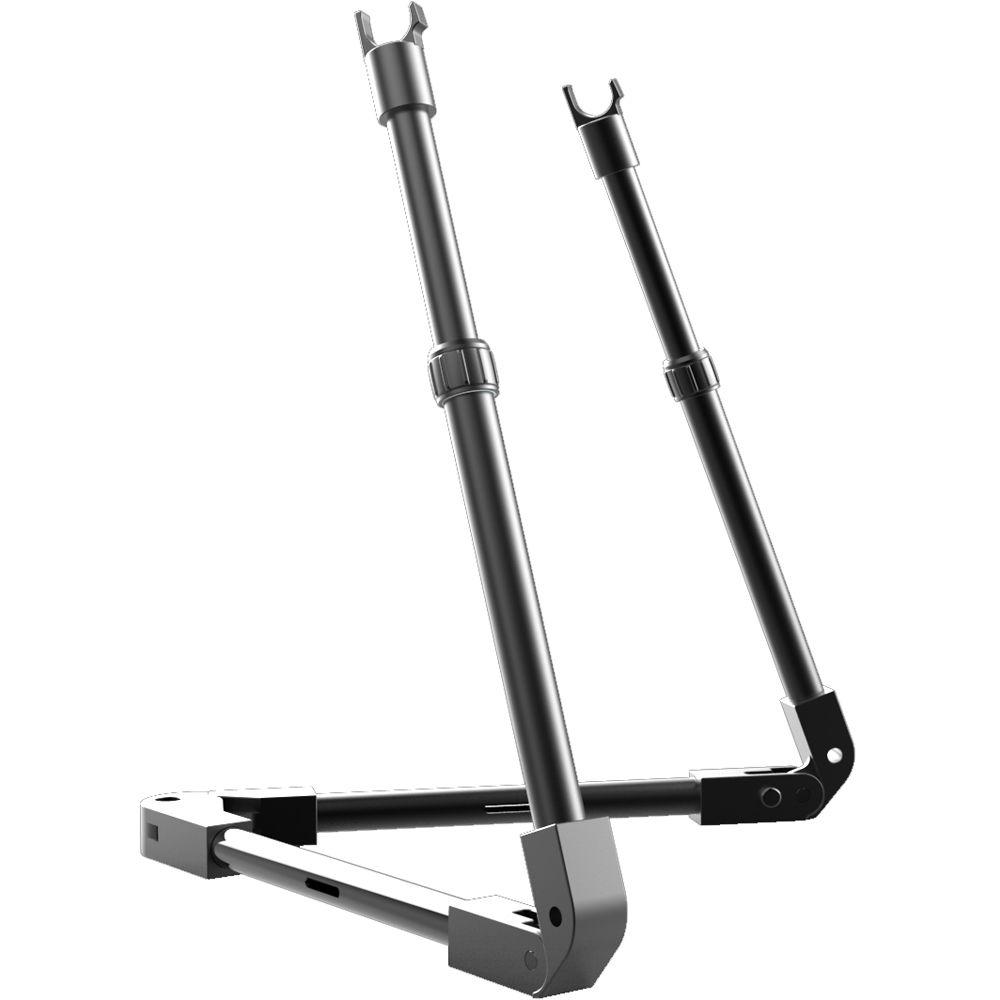

The stabilizer is powered using an intelligent 2800mAh battery that provides 4 to 8 hours of use and features built-in overcharge and over-depletion protection. A battery charger comes included. Also included in this Premium package is a power distribution box that attaches beneath the camera mounting plate and conveniently places a regulated 5V, 1A USB power output that can be used to power an optional accessory, such as a wireless transmitter or follow focus. Also included is a tuning stand for setup and balancing.
    Features
    • 3-axis motorized gimbal stabilizer
    • 11 lb load capacity
    • Tool-less balancing and quick setup
    • Modular design with detachable handlebar
    • Advanced FOC algorithm technology
    • Powerful PMSM motors with high-resolution digital positioning motors
    • Lightweight magnesium alloy construction
    • Bluetooth 4.0 connectivity for remote calibration and tuning on iOS or Android device running MOZA Assistant app
    • Power distribution box with USB power output (5V, 1A)
    • Intelligent 2800mAh battery provides 4 to 8 hours of use
    Operating Modes
    • Upright - Also known as inverted mode, this flips the gimbal upside down, letting you position the camera at or above eye level. This mode is also best when mounting the stabilizer to the top of a vehicle or other support device
    • Briefcase - Ideal low-angle shots and narrow spaces, this mode turns the gimbal vertically to hold your camera at leg level
    • Underslung - The default operating mode, positioning the gimbal underneath the handlebars and placing your camera at chest level. This mode is also ideal when mounting the gimbal to a drone
    Follow Modes
    • Pan - Camera follows pan axis movement; tilt axis and roll axis locked
    • Tilt - Camera follows tilt axis movement; pan axis and roll axis locked
    • Pan & Tilt - Camera follows both pan and tilt axes movement; roll axis locked
    • All-Lock - Locks camera in place along pan, tilt, and roll axes
    Compatible Cameras
  • The MOZA Lite 2 is compatible with a variety of camera and lens combinations weighing up to 11 lb. The following cameras are compatible:
    • Canon 5D Mark II, 5D Mark III, 6D, 60D, 7D, 70D
    • Sony a7, a7S, a7R, a7 II, a7R II, a7S II
    • Panasonic GH3, GH4
    • Nikon D800
    • Blackmagic Pocket Cinema Camera, Cinema Camera, Production Camera 4K
    Wireless Thumb Controller
  • Start/Stop Recording Control (Supported Cameras):
    • Canon 5D Mark II, 5D Mark III, 6D, 60D, 7D, 70D
    • Sony a7, a7S, a7R, a7 II, a7R II, a7S II
    • Panasonic GH3, GH4
    • Blackmagic Pocket Cinema Camera, Cinema Camera, Production Camera 4K
    Focus Control (Supported Cameras and Lenses):
    • Canon 5D Mark II, 5D Mark III, 6D, 60D, 7D, 70D
    • Canon EF IS USM: 24mm f/1.4, 16-35mm f/2.8, 17-40mm f/4, 24-70mm f/2.8, 50mm f/1.4, 50mm f/1.2
UPC: 732330590134 In the Box Moza Lite 2 3-Axis Motorized Gimbal Stabilizer (Premium)
  • MOZA Intelligent Battery
  • Battery Charger
  • Camera Mounting Plate
  • Wireless Thumb Controller
  • Power Distribution Unit
  • Tuning Stand
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Moza Lite 2 3-Axis Motorized Gimbal Stabilizer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Moza LG12 Specs

    Number of Axes 3-Axis
    Rotation Range Yaw (Pan): 360

    Rating

    72% users recommend this product to others. And what about you?
    Rating: 3.6 of 5

    This product has already been rated by 66 owners. Add your rating and experience with the product.
