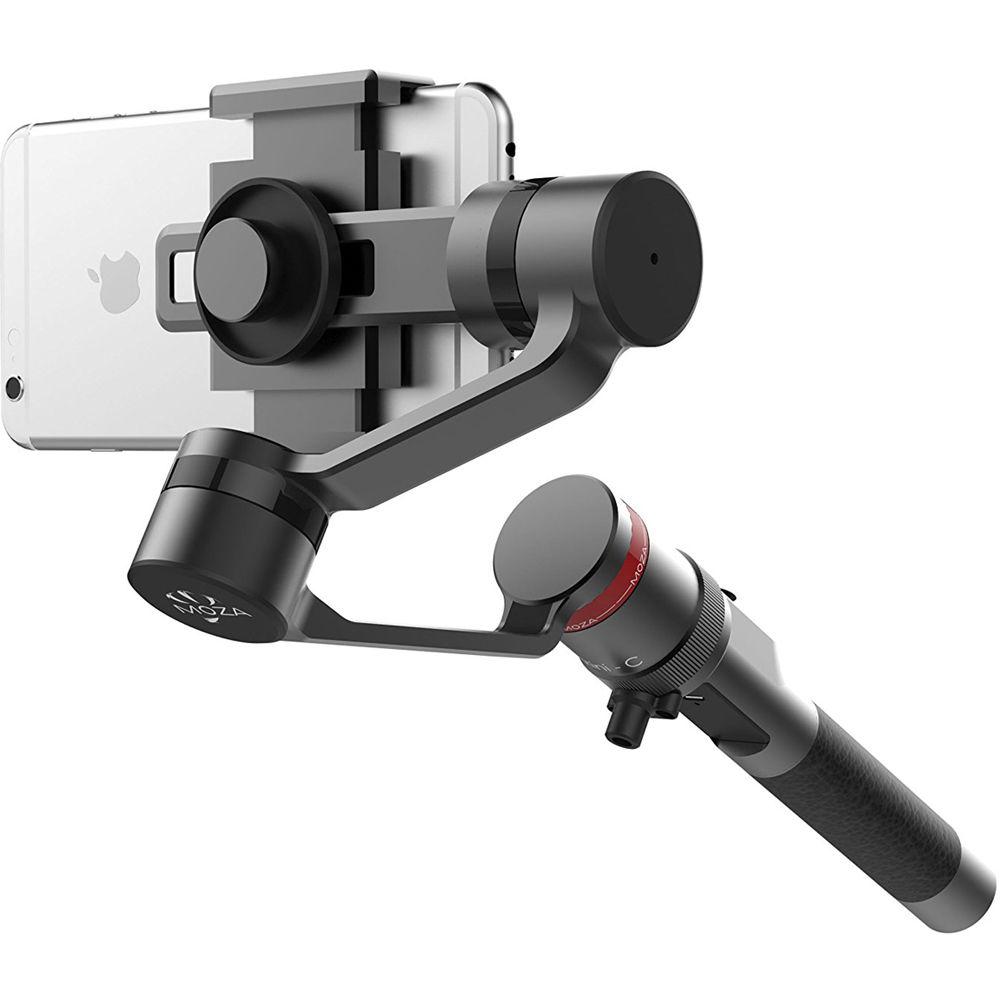

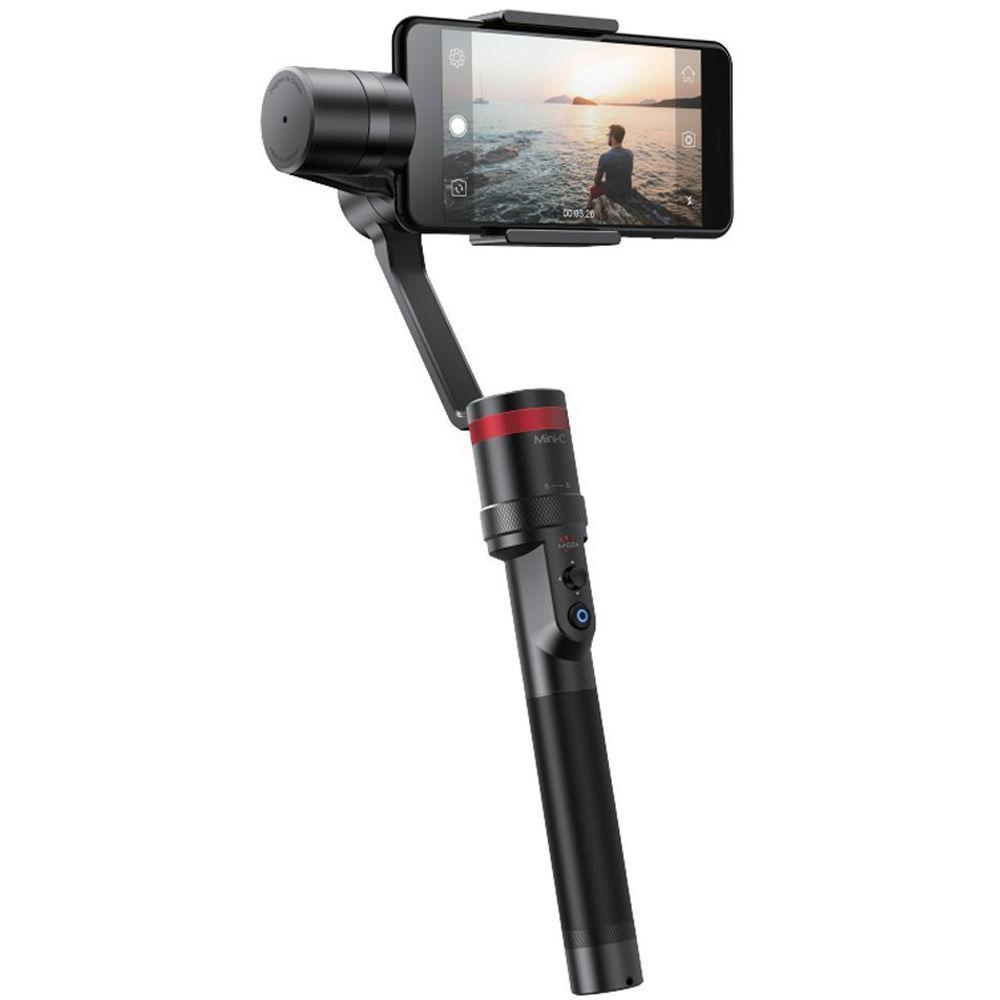

Product description The Mini-C 3-Axis Gimbal from Moza features a camera clamp design for accommodating a variety of different phones. It is compatible with all iPhones and most Androids, including the iPhone 7/7 Plus, iPhone 6S/6S Plus, Samsung S7, Huawei P9, and Sony Z5. With a removable handgrip and wearable kit, you can easily switch from handheld to wearable mode. The gimbal offers a maximum payload of 5.2 oz. The built-in tracking technology in the MOZA Assistant App allows the Mini-C stabilizer to automatically keep the camera lens centered in human face at all times. No matter how fast the object moves, it will follow alongside with accuracy. Smart Control with Handgrip - Built-in motors with embedded encoders provide precision control combined with technology and built-in software that enables you to smartly control your phone camera and the gimbal with the handgrip or MOZA App.
Vertical Shooting Mode for Live Stream - 360° of rotation on a yaw axis gives your phone a variety of shooting options. Hold the gimbal horizontally to let it automatically rotate to the vertical shooting mode. Now you can capture steady, smooth videos in cinema-grade quality for live streaming.
Modes - The gimbal features underslung, upright, and horizontal handheld modes for capturing footage from any angle. With the help of the handgrip, you can switch between yaw-follow, tilt-yaw follow, and all-lock operation modes. For taking a selfie, triple press on the joystick button to start motion selfie.
Power - The Mini-C's handgrip houses a rechargeable battery with a 3400mAh capacity. Despite its compact design, the Mini-C has an 8-hour battery life. Also, there is a standard 5V USB port on the gimbal so you can connect it to a power bank for external power as per your requirements.
Wireless Control on Your Phone - Wirelessly connect the Mini-C to your phone or tablet via Bluetooth to launch the MOZA App. Tune and adjust the gimbal's parameters, choose among the operation modes, and control the gimbal movement via this mobile app. From accessing the configuration setting to creating time-lapse or panoramic videos, the MOZA Assistant App enables quickly and easily shoot professional-grade videos.
Design to Protect Your Phone - The Mini-C's design allows your phone to power down slowly after it begins shut-down, protecting your phone from any damage.
UPC: 611982477799 In the Box Moza Mini-C 3-Axis Gimbal for Smartphones 18650 Lithium-Ion Battery 18650 Battery Charger Battery Box Micro-USB Cable Limited 1-Year Warranty Quick start Guide PDF 537kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Moza Mini-C 3-Axis Gimbal for Smartphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMoza MG11 Specs | Compatibility | Smartphone: iPhone7/7 Plus, 6s/6 Plus, 5s/5, Samsung S7, Huawei P9, Sony Z5
Similar phones up to 3.1" (7.8 cm) wide and weighing up to 6.6 oz (187.1 g) | | Payload | 6.6 oz (187.1 g) | | Rotation Range | Yaw Axis: 360°
Pitch Axis: 270°
Roll Axis: 270° | | Bluetooth Module | Bluetooth 4.0 | | USB Connection | Micro-USB | | USB Output Power | Micro-USB 5 V/500 mA | | USB Input Power | Micro-USB 5 V/1 A | | Battery Capacity | 3400 mAh | | Battery Life | Up to 8 hours | | Battery Weight | 1.5 oz (45 g) | | Voltage | 4.2 V | | Working Current | 300 mA | | Working Temperature | 32 to 104°F (0 to 40°C) | | Dimensions (L x W x H) | 11.1 x 4.6 x 4.29" (284 x 117 x 109 mm) | | Weight | 11.6 oz (329 g) | | | | Package Weight | 1.76 lb | | Box Dimensions (LxWxH) | 14.5 x 6.45 x 2.2" |
