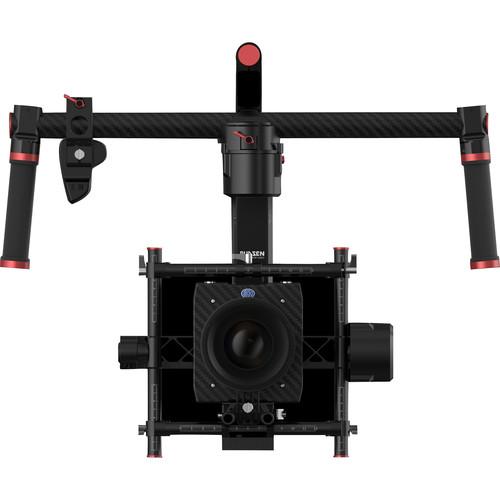

User Manual for MOZA Pro 3-Axis Gimbal Click to enlarge the picture
Contents of the user manual for the MOZA Pro 3-Axis Gimbal
- Product category: See All Gimbal Stabilizers Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others See All Gimbal Stabilizers
|
User manual for the MOZA Pro 3-Axis Gimbal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description The MOZA Pro 3-Axis Gimbal is designed for full-size cine cameras weighing up to 22 lb, and supports small- and mid-sized DSLRs and mirrorless cameras.
The MOZA Pro features three brushless motors with responsive sensors and high-resolution position encoders integrated into each one for precision adjustment of the camera's motion. Upon detecting any movement, the sensors measure and pass the movement information to the processor for transferring signals. The MOZA Pro then uses advanced algorithms to apply these measurements and direct the motors to accurately control the pan, tilt, and roll directions.
The MOZA Pro offers three operation modes that you can switch between for optimal comfort in varying conditions. Underslung is the standard mode in which you hold the MOZA right in front of you at chest level. Upright, also known as Inverted mode, is the ideal choice when the subject is at or above eye level. Upright mode allows you to flip the MOZA upside down to achieve the best shooting angle possible in such cases. In Briefcase mode, you can carry the gimbal close to the side of your leg (like a briefcase) to capture movement near the ground or in narrow spaces.
The MOZA Pro is machined from solid magnesium aluminum and finished with a sleek and environmentally friendly coating. It's robust yet lightweight at only 7.3 lb, and is designed to set up quickly and easily. The MOZA Pro has tool-less assembly and takes just three minutes to set up and adjust the balance.
Included with the gimbal is a MOZA Wireless Thumb Controller that provides you with numerous controls right at your fingertips. You can use it first-hand attached to the gimbal, or a second operator can control it from up to 328 ft away. The controller allows you to trigger camera recording and gimbal movement, change speed, adjust focus, and more.
The MOZA Pro runs for up to four hours using the included 2800 mAh battery. In addition, it houses a compact Power Distribution Unit on the bottom that can be used to supply power to accessories via a regulated USB connector and 12V DC port. You can power transmitters, follow focus units, and similar accessories. The Power Distribution Unit also offers a variety of expansion options.
The MOZA Pro also comes with the MOZA Assistant app (iOS/Android), which allows you to configure the gimbal over Bluetooth. It lets you tune parameters, view device information, perform sensor calibration, and control the keyboard. The MOZA Assistant software (Mac/Windows) is also included for upgrading firmware. The MOZA Pro is supplied with everything else you need to get started right out of the box. - Key Features
-
- Designed for full-sized cine cameras up to 22 lb
- Also supports small- and mid-size cameras
- Three brushless motors with responsive sensors and high-resolution encoders
- 360° continuous yaw axis
- Underslung, Upright, and Briefcase modes
- Includes MOZA Wireless Thumb Controller (328 ft range)
- Solid magnesium aluminum construction
- Four-hour operation with included 2800 mAh battery
- Integrated Power Distribution Unit for powering accessories and expansion
- MOZA Assistant app included (iOS/Android)
- Supported Cameras
- Virtually any camera from small- to full-sized weighing up to 22 lb is compatible, including:
- Sony F55, FS5, FS7, FS100, FS700
- Canon EOS 1D, C100, C300, C500, T5i
- RED RAVEN, EPIC, DRAGON, SCARLET, WEAPON
- ARRI ALEXA Mini, ALEXA M
- Blackmagic Cinema Camera, URSA Mini
- Wireless Thumb Controller
- Supported cameras with Start/Stop recording control:
- Canon 5D II, 5D III, 6D, 60D, 7D, 70D
- Sony a7S, a7S II, a7R, a7R II
- Panasonic GH4, GH3
- Blackmagic Production Camera, Cinema Camera, Pocket Camera
Supported cameras with Focus control:- Canon 5D II, 5D III, 6D, 60D, 7D, 70D
UPC: 611982477775 In the Box MOZA Pro 3-Axis Gimbal Pro Carry Case Tuning Stand Handle Bar Top Handle 2 x Accessory Mount Intelligent Battery Battery Charger Wireless Thumb Controller with Accessory Mount & 1/4"-20 Screw Quick Install Assembly with Camera Mounting Plate, 1/4"-20 & 3/8"-16 Screws 2 x Follow Focus Assembly Rod with 1/4"-20 Screw, Lens Support & Allen Wrenches Micro-USB Cable Mini-USB Cable Mini- to Micro-USB Cable 2.5mm Control Cable 3.5mm DC to D-Tap Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOZA Pro 3-Axis Gimbal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMoza MP3AG Specs | Payload | 22 lb / 10 kg | | Angular Vibration Range | 0.02° | | Mechanical Endpoint Range | Yaw Axis: 360° continuously
Tilt Axis: Up 135° to down 175°
Roll Axis: Left 75° to right 235° | | Static Current | 200 mAh | | Dynamic Current | 2000 mAh | | Lock Rotor Current | 10000 mAh | | Bluetooth | Bluetooth 4.0
16.4' / 5 m control range | | Control Interface | 2.4 G
164' / 50 m remote control range | | USB Connection | 1 x Micro-USB input
1 x Mini 10-pin output | | PPM | Generic PPM protocol | | CAN | Generic CAN protocol | | Power Output | Mini-USB, 5 V, 1 A 5-pin | | DC Output | 3.5 mm, 14.8 V, 0.8 A | | Battery | Capacity: 2800 mAh
Battery Life: > 2 hrs
Working Voltage: 14. 8 V
Working Temperature: 32 to 122°F / 0 to 50°C
Charger Output Voltage: 16.8 V | | Material of Construction | Solid magnesium aluminum | | Controller | Wireless Frequency: 2.4 G
Range: 328' / 100 m
Battery: 3.8 V, 600 mAh
Working Current: 50 mAh
Locked Current: 10 mAh
Standby Time: Approx. 24 hours
Charging Voltage: 5 V
Charging Time: Approx. 2 hours
Weight: 3.5 oz / 100 g | | Dimensions | 22.5 x 15.7 x 18.9" / 57 x 40 x 48 cm (with Extension Arm)
22.5 x 11.8 x 18.9" / 57 x 30 x 48 cm (without Extension Arm)
Camera Tray Dimensions:
10.4 x 9 x 7" / 26.5 x 23 x 17.8 cm (with Extension Arm)
10.4 x 7.2 x 7" / 26.5 x 18.3 x 17.8 cm (without Extension Arm) | | Weight | 7.9 lb / 3.6 kg (with handle bar and battery included) | | | | Package Weight | 40.5 lb | | Box Dimensions (LxWxH) | 30.0 x 21.5 x 10.6" |
