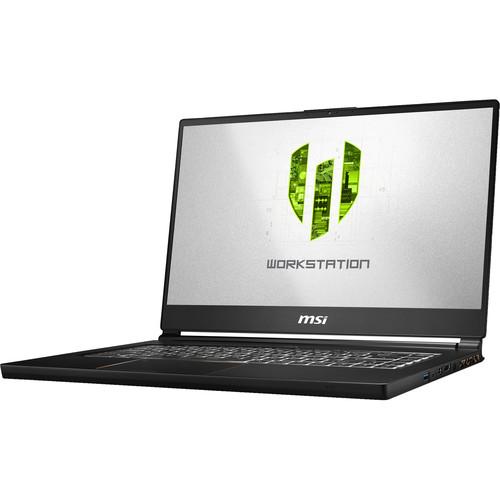

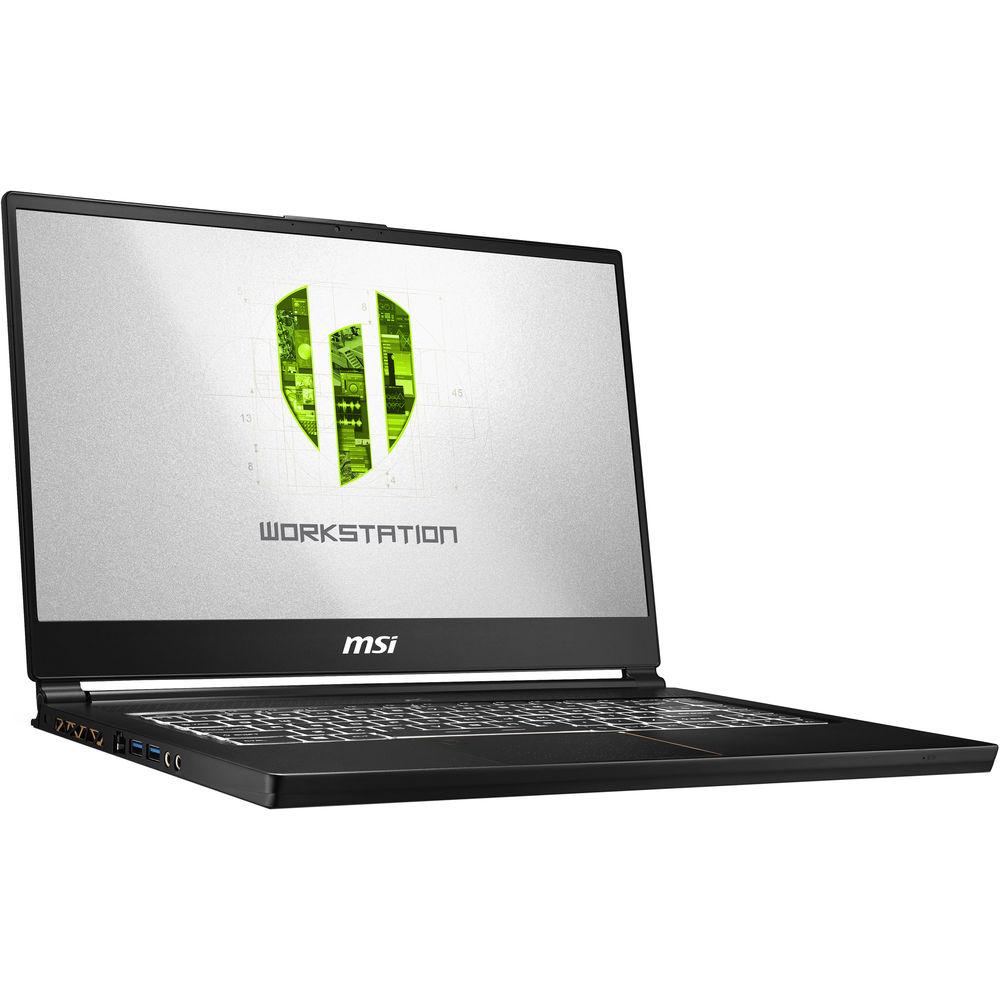

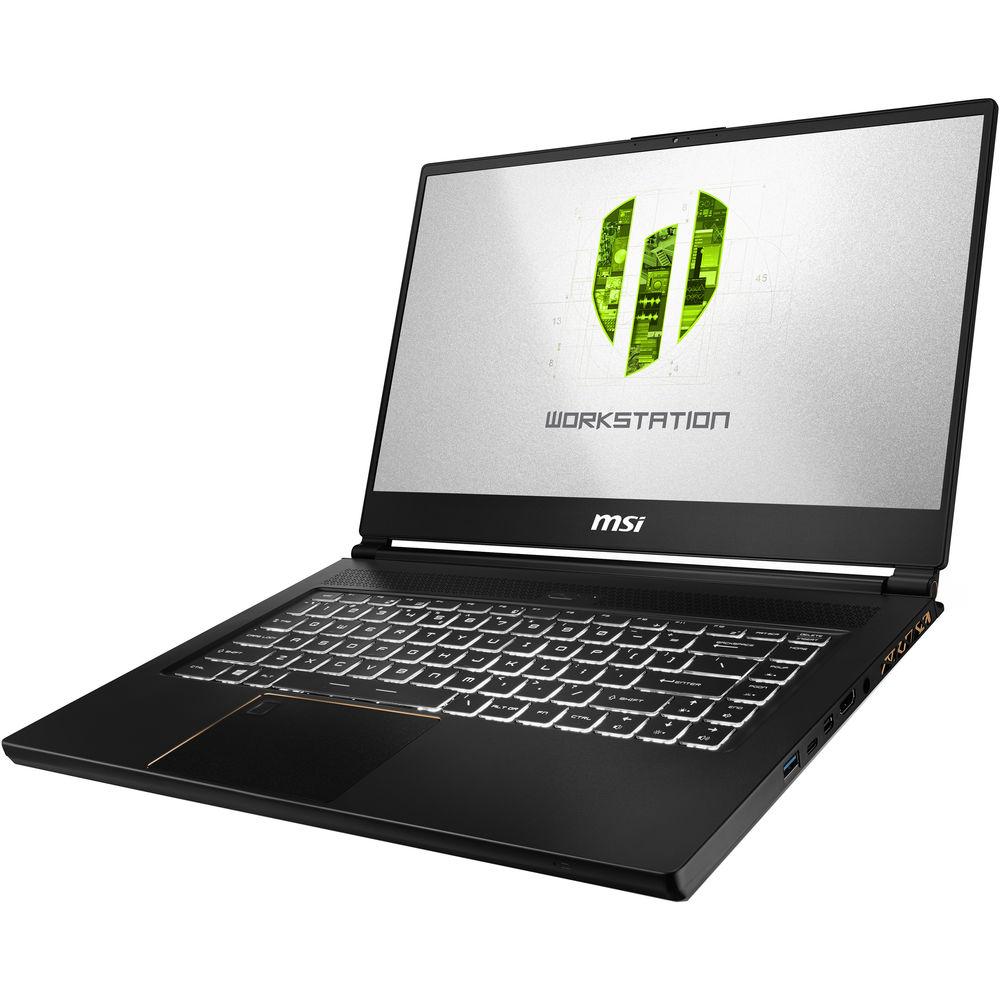

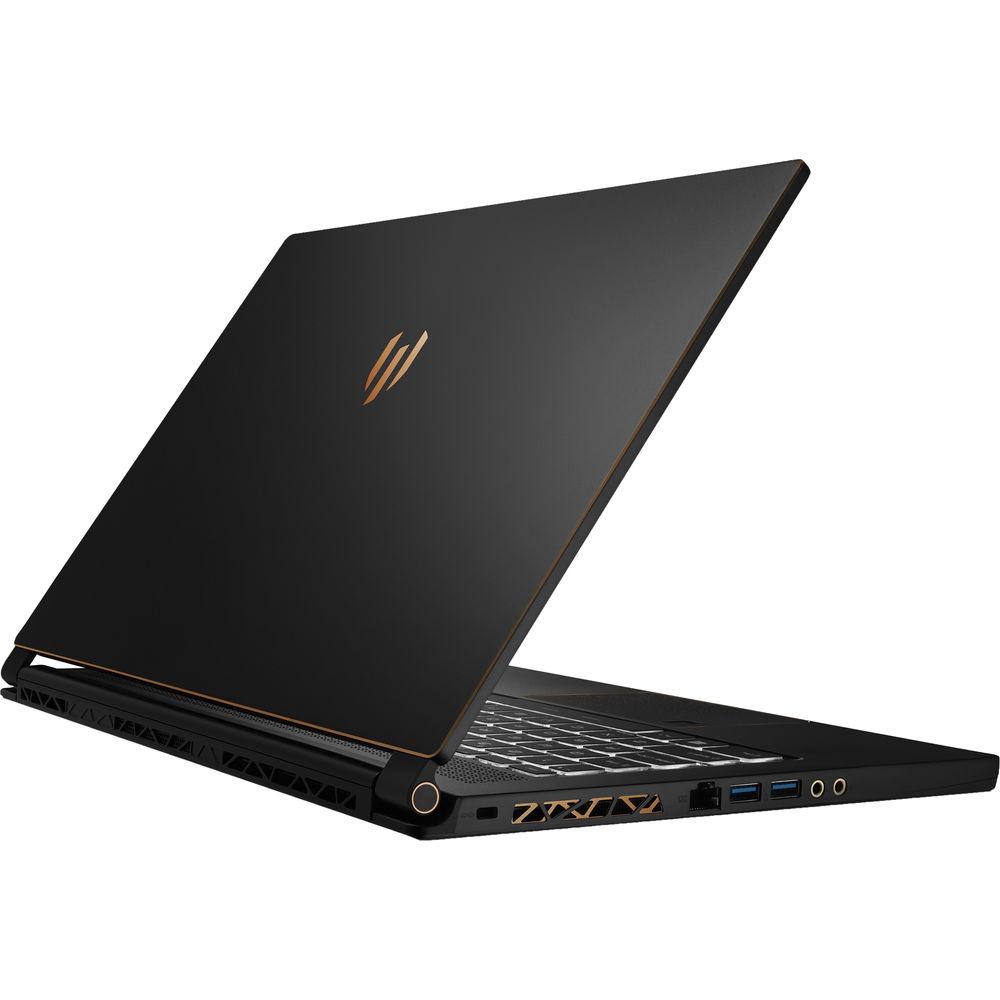

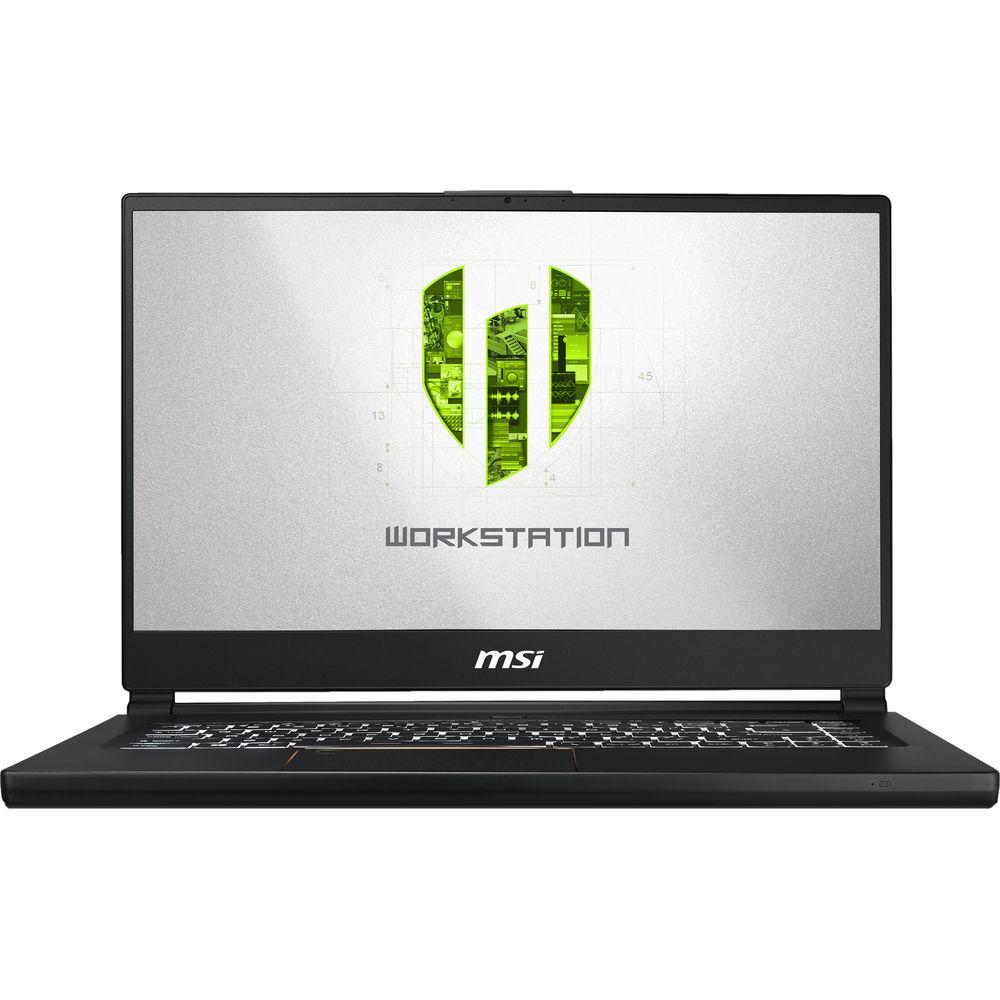

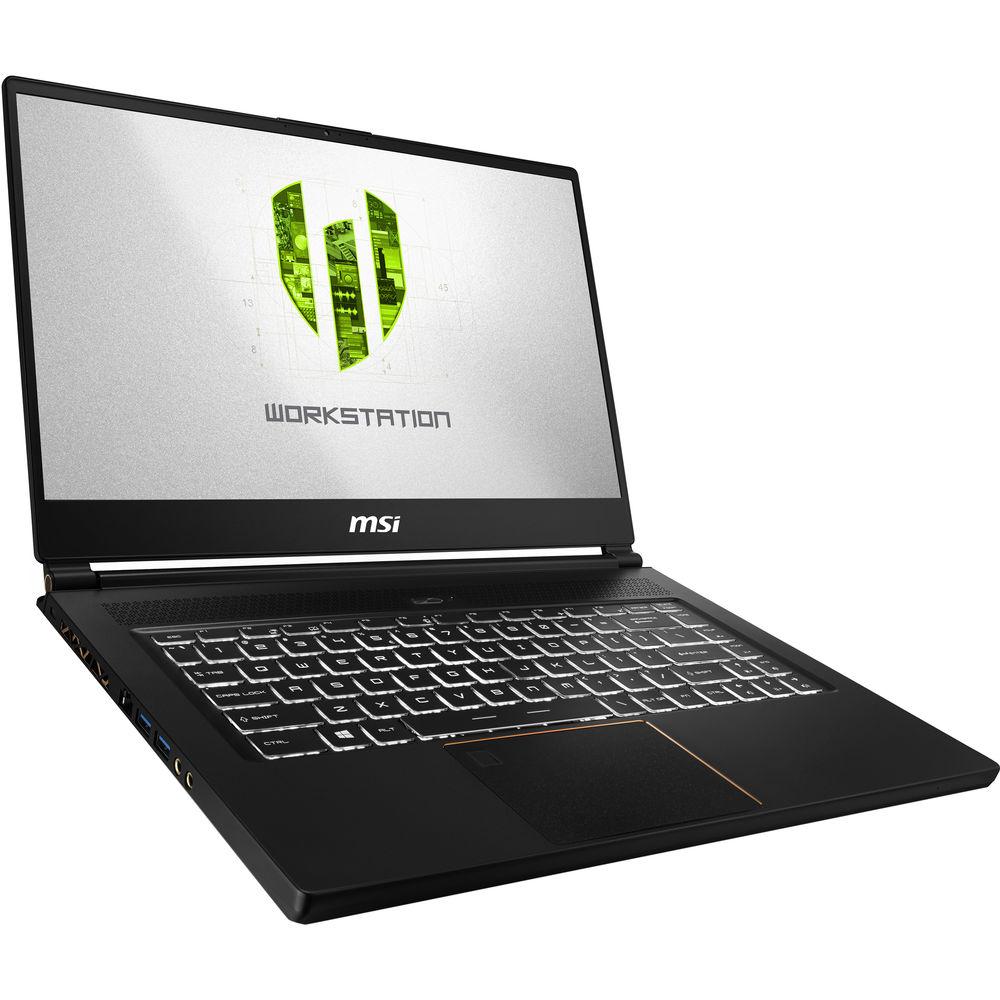

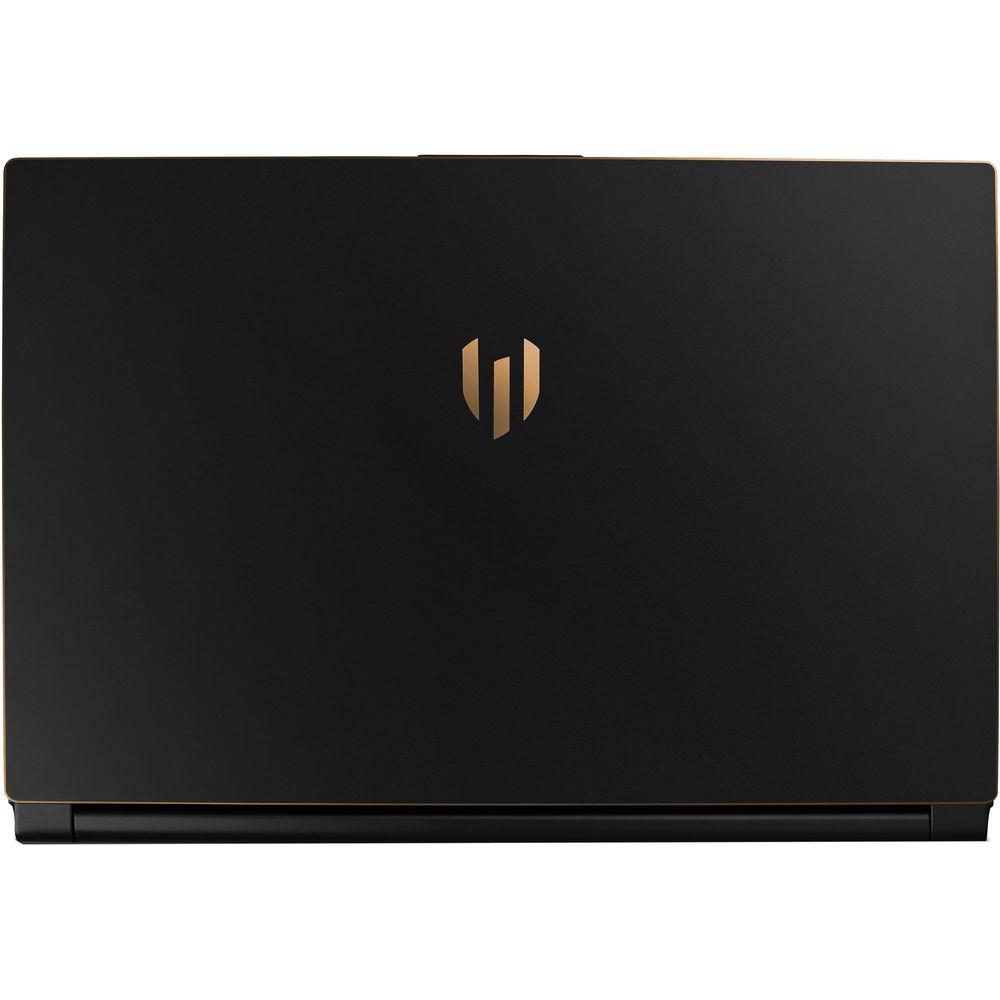

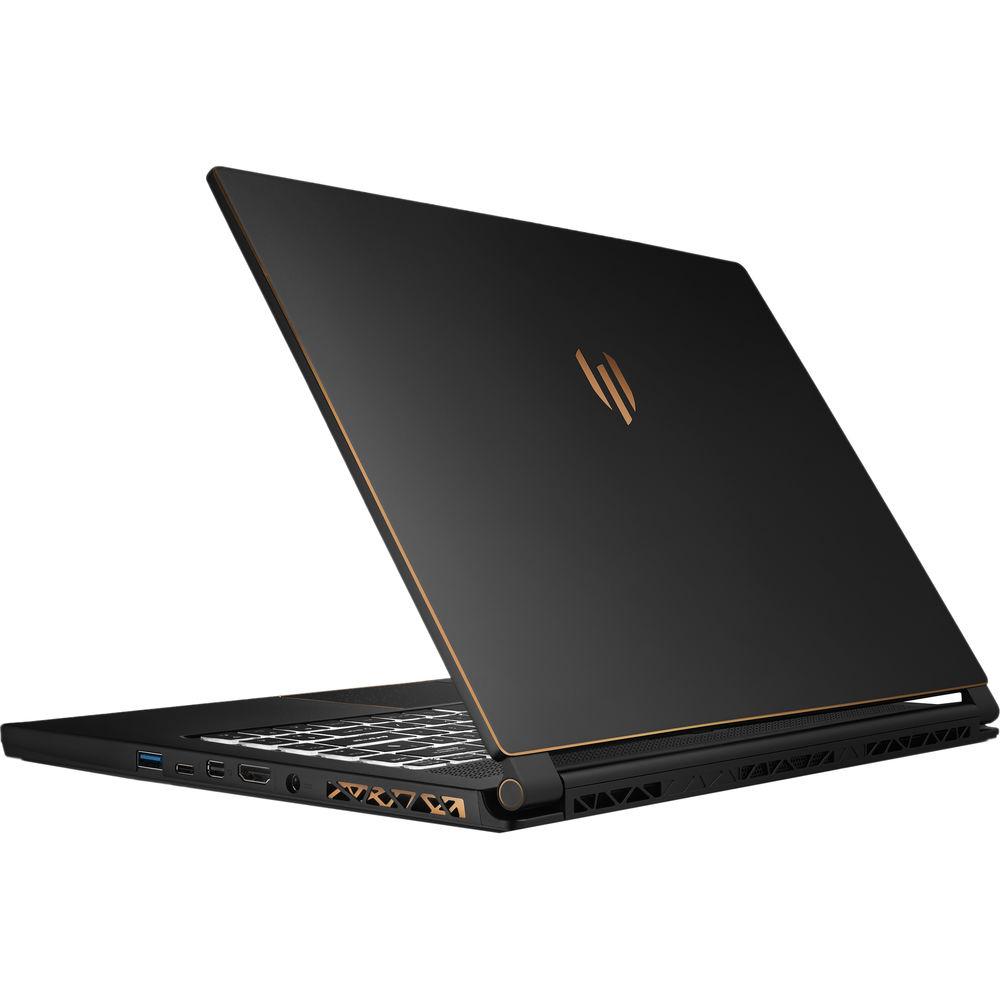

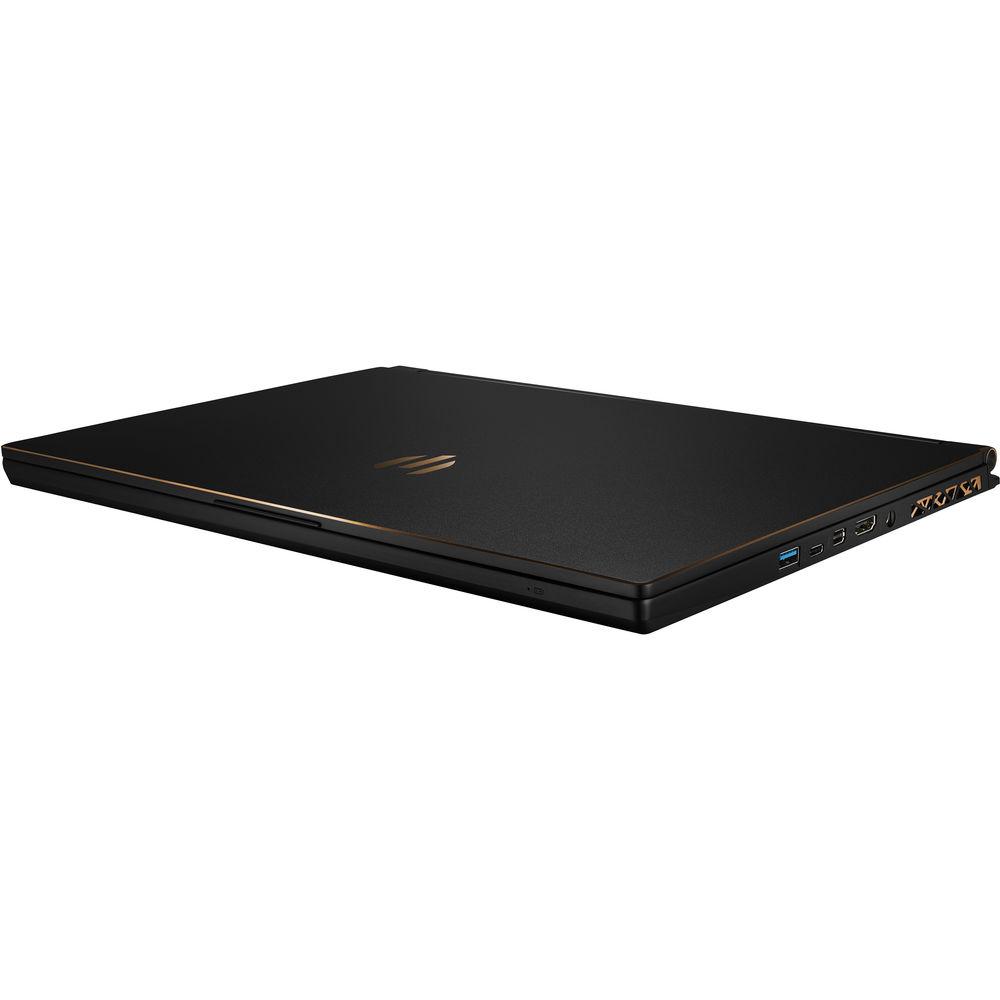

User Manual for MSI 15.6" WS65 8SK-476 Mobile Workstation Click to enlarge the picture
Contents of the user manual for the MSI 15.6" WS65 8SK-476 Mobile Workstation
- Product category: Notebooks MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Notebooks
 |
User manual for the MSI 15.6" WS65 8SK-476 Mobile Workstation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|
Product description Work Laptops Built with NVIDIA Quadro Pascal series graphics and VR-ready performance for professionals who need a portable system to take their work on the go, the 15.6" WS65 8SK-476 Mobile Workstation from MSI is powered by a 2.9 GHz Intel Core i7-8950HK Six-Core processor, which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 4.8 GHz using Intel Turbo Boost 2.0 technology. The 32GB of 2666 MHz DDR4 RAM, which comes in a 2 x 16GB configuration, helps to ensure smooth multitasking and allows the computer to quickly access frequently used files and programs.
The 15.6" IPS display features a Full HD 1920 x 1080 resolution, a 16:9 aspect ratio, MSI's True Color technology with 72% NTSC coverage, and a thin bezel. The dedicated NVIDIA Quadro P3200 graphics card has 6GB of discrete GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to output video to a maximum of three external displays at resolutions up to 4K @ 60 Hz using the system's HDMI port, mini DisplayPort, and DisplayPort via Thunderbolt 3.
For long-term storage of your files, the WS65 8SK is equipped with a 512GB NVMe PCIe Gen 3.0 x4 M.2 SSD. If you want to add external storage, optical drives, memory card readers, and more, the system is equipped with one 40 Gb/s Thunderbolt 3 port that also supports 10 Gb/s USB 3.1 Gen 2, as well as three 10 Gb/s USB 3.1 Gen 2 Type-A ports. Gigabit Ethernet and Wi-Fi 5 (802.11ac) are built-in for wired and wireless networking, and Bluetooth 5.0 technology will also allow you to connect additional compatible peripherals. There is also a 720p webcam, an integrated mic, and dual 2W speakers.
The 15.6" WS65 8SK-476 Mobile Workstation includes a 180W AC adapter and 4-cell / 82Wh lithium-ion polymer battery that lasts for up to 8 hours before recharging is required. The installed operating system is Windows 10 Professional (64-bit). General Features - Professional VR Ready
- The WS65 is equipped with an NVIDIA Quadro P3200, making it ready for all aspects of VR. Whether you're creating virtual reality content or walking through it yourself, this mobile workstation is prepared to handle a wide range of content and tasks.
- True Color Technology
- With MSI's True Color Technology, you're getting a display that is calibrated to deliver vibrant colors, stunning details, and sharp images. Use multiple viewing modes that provide a setting for reviewing your designs, editing your timeline, or watching a movie. Also, with MSI's Matrix Display, you can expand your work setup to 3 additional screens.
- Screen Space, Workspace
- Enjoy content to the fullest extent in a near bezel-less experience. With an 82% screen to body ratio, this design maximizes the viewing space and brings a 15.6" display into a nearly 14" laptop.
- Safe & Secure
- With the fingerprint sensor, your data is only accessible by you. Biometric security adds an extra layer to your workstation to protect your valuable work. Utilizing Windows Hello, you'll sign in with just a just touch of a finger and be on your way to getting work done.
- Thunderbolt 3
- Transfer massive files quickly with speeds up to 40 Gb/s. Get more pixel power and extend your view. Charge your mobile phone, tablet, and other capable devices faster with support of up 5V / 3A.
- ISV Certified
- MSI workstations are ISV-certified systems, officially recognized and certified by major ISVs in engineering, 3D modeling, designing, and more. They're guaranteed to offer a professional experience with applications from Adobe, AutoDesk, SolidWorks, and others.
- Limited 3-Year Warranty
- MSI Workstations come with a limited 3-year warranty, which includes a 1-year global warranty. This means you can get your system repaired anywhere that offers service, regardless of where you bought it.
UPC: 824142172308 In the Box MSI 15.6" WS65 8SK-476 Mobile Workstation 180W Slim AC Adapter Limited 1-Year Warranty User Manual PDF 5mbyyzbawquwqyfcfdfrvtqwdsqcqbc Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI 15.6" WS65 8SK-476 Mobile Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI WS65 8SK-476 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | Chipset | Intel CM246 | | CPU Socket | BGA 1440 | | CPU | 2.9 GHz Intel Core i9-8950HK 6-Core | | Maximum Boost Speed | 4.8 GHz | | L3 Cache | 12 MB | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 32 GB | | Memory Configuration | 2 x 16 GB (User-Replaceable) | | Maximum Memory Capacity | 64 GB | | Available Memory Slots | None | | Graphics Type | Dedicated | | GPU | NVIDIA Quadro P3200 with 6 GB GDDR5 VRAM | | | | Panel Type | IPS | | Size | 15.6" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Touchscreen | No | | Color Gamut | 72% NTSC | | | | SSD Slots | 1 x M.2 PCIe x4
1 x M.2 SATA / PCIe | | Total Installed Capacity | 512 GB | | Solid State Storage | 1 x 512 GB M.2 NVMe PCIe | | Optical Drive | None | | | | Ports | 3 x USB Type-A (USB 3.1 Gen 2) | | USB Type-C Ports | 1 x Thunderbolt 3 (Supports DisplayPort and 15 WPower Delivery) | | Display | 1 x Mini DisplayPort Output
1 x HDMI Output | | Audio | 1 x 1/8" / 3.5 mm Microphone Input
1 x 1/8" / 3.5 mm Headphone Output | | Built-In Speakers | 2 x 2 W | | Built-In Microphones | Yes | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | MU-MIMO Support | 2 x 2 | | Bluetooth | 5.0 | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 82 Wh | | Cells | 4 | | Maximum Runtime | 8 Hours | | | | Keyboard | Notebook Keyboard with Backlight | | Pointing Device | TouchPad | | | | Security | Kensington Lock Slot | | Power Supply | 180 W | | Dimensions | 14.1 x 7.8 x 0.7" / 35.81 x 19.81 x 1.78 cm | | Weight | 4.2 lb / 1.9 kg | | | | Package Weight | 8.245 lb | | Box Dimensions (LxWxH) | 20.5 x 13.3 x 3.2" |
