User Manual for MSI 23.8" Pro 24X 7M All-In-One Desktop Computer Click to enlarge the picture
Contents of the user manual for the MSI 23.8" Pro 24X 7M All-In-One
- Product category: All-In-One Desktop Computers MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI All-In-One Desktop Computers
 |
User manual for the MSI 23.8" Pro 24X 7M All-In-One contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|

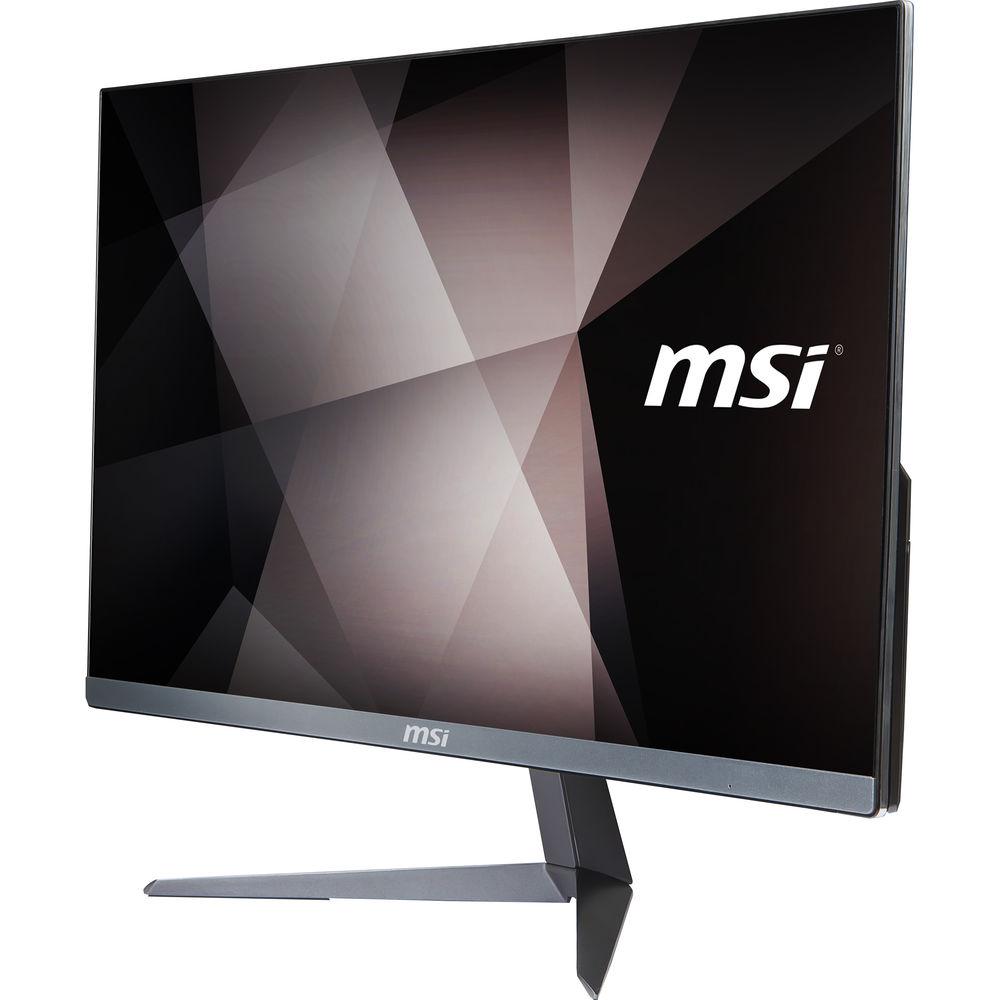

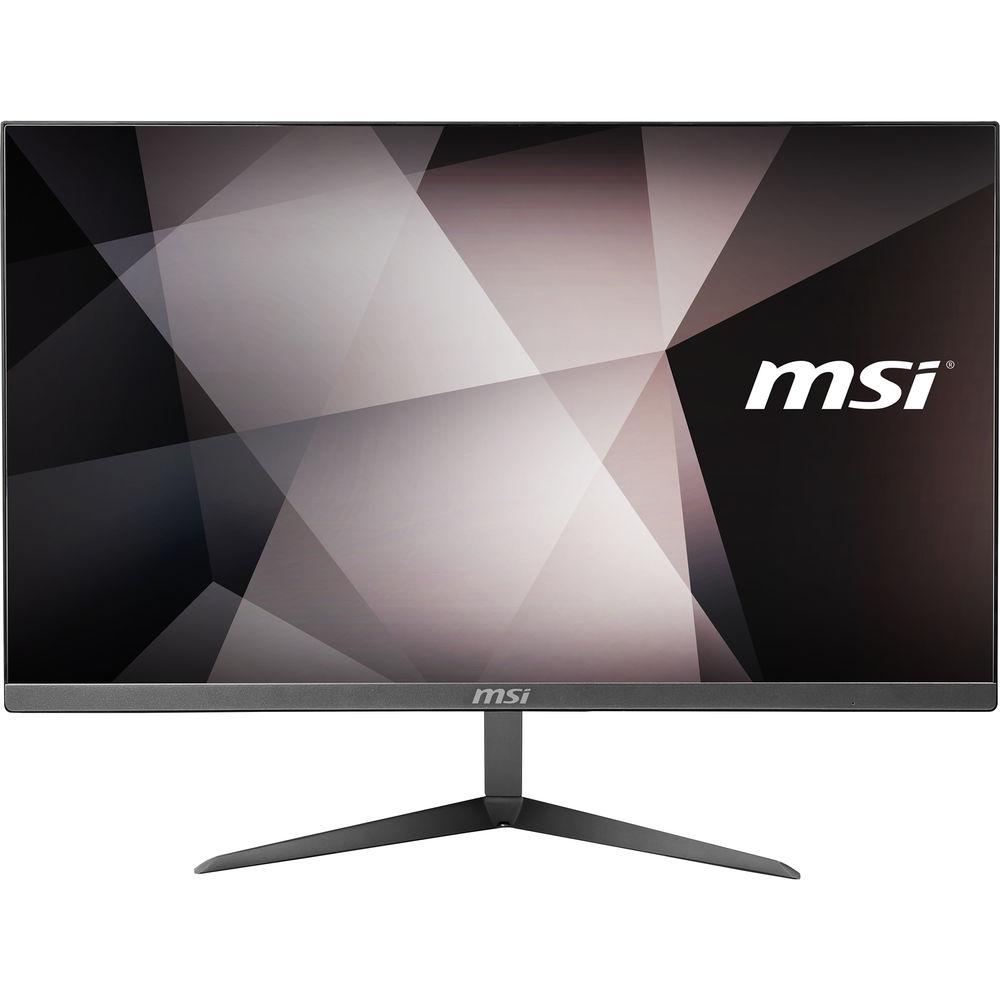

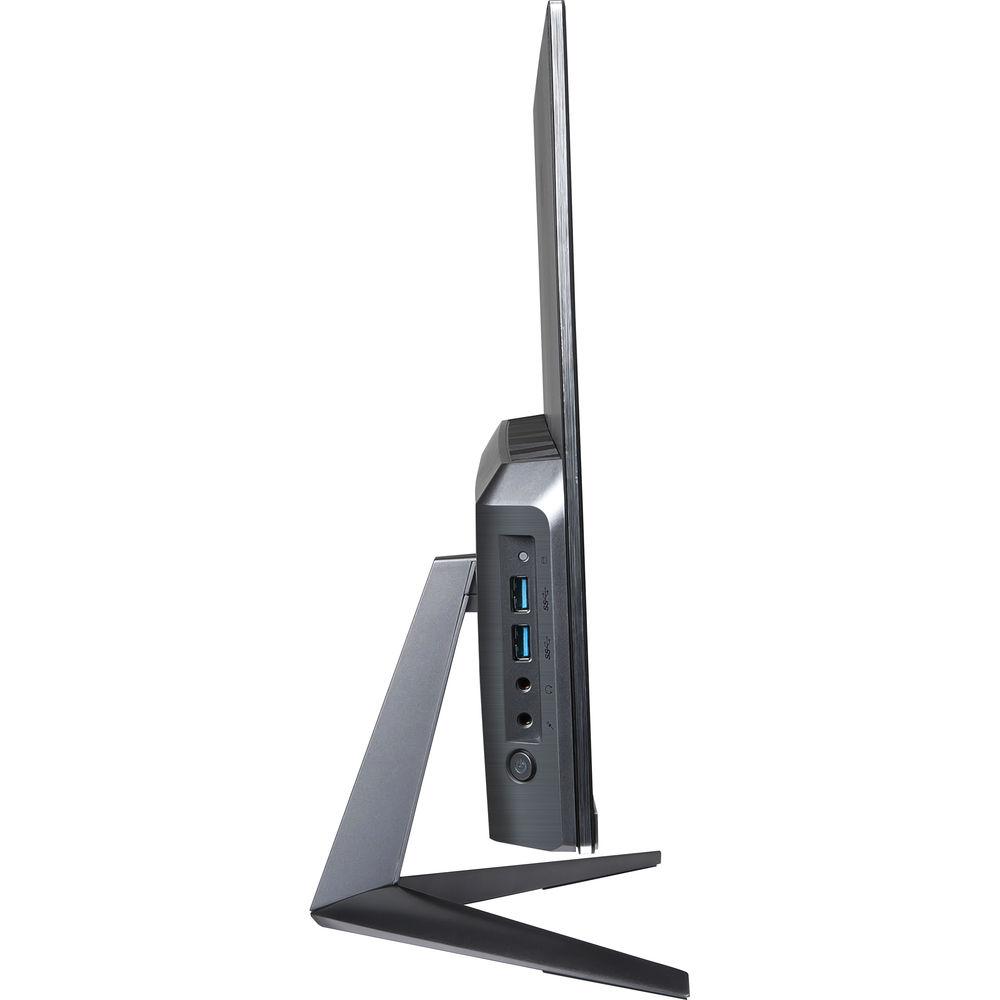

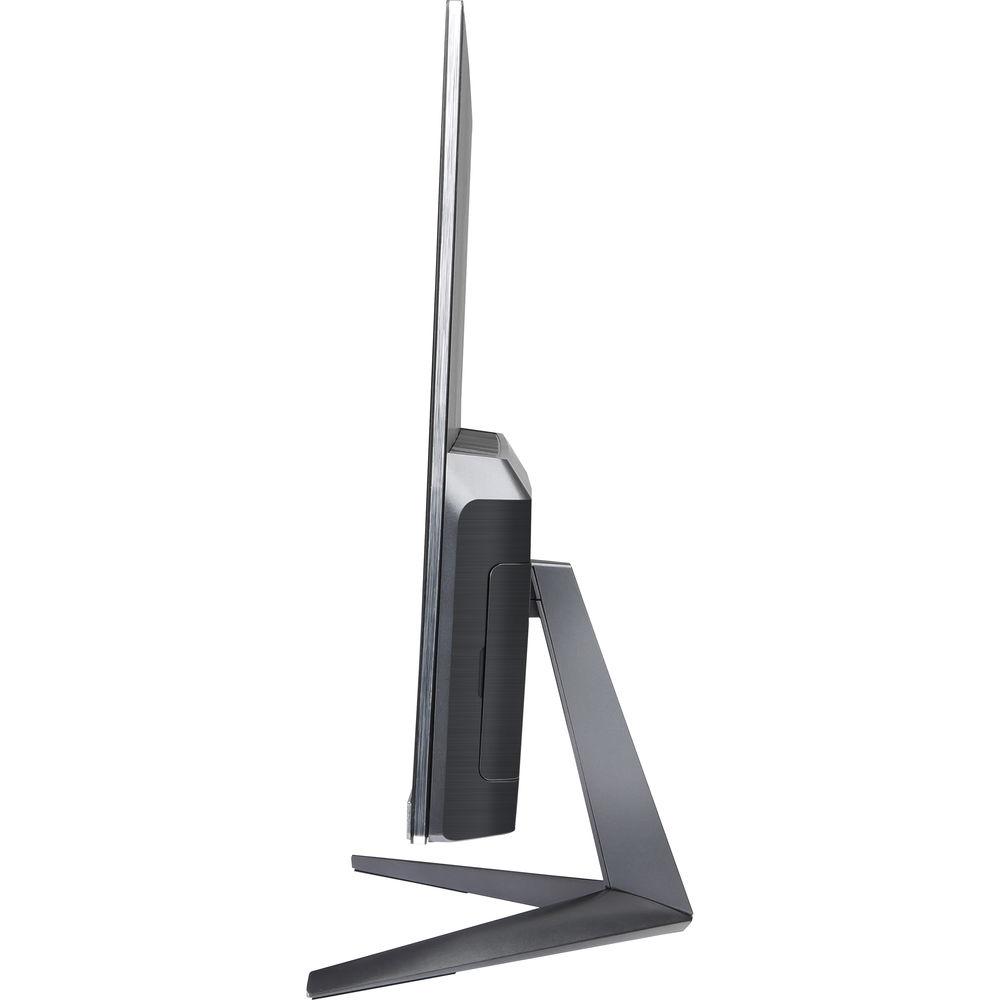

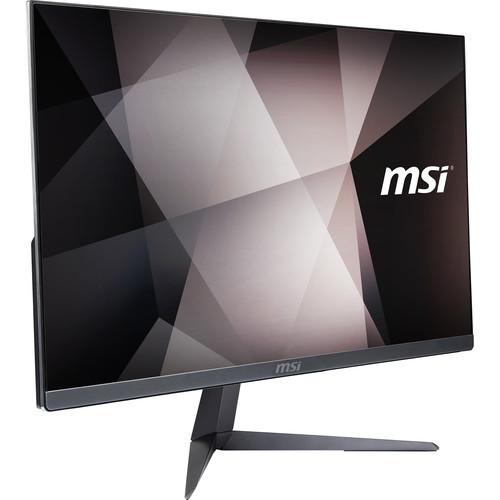

Product description 5 Essential Tips for Cleaning Your Gadgets Read More The 23.8" Pro 24X 7M All-In-One Desktop Computer from MSI is a compact all-in-one system with a small footprint designed for users who want a minimal setup with as little clutter as possible. It features a 23.8" 1920 x 1080 Full HD display, built on an IPS-grade panel for crisp and clear content reproduction and vivid colors. Specs-wise, it's powered by a 1.8 GHz Intel Celeron 3865U dual-core processor, 4GB of 2400 MHz RAM, a 32GB M.2 SSD with a 2.5" 500GB 7200 rpm hard drive, and integrated Intel HD graphics. Other integrated features include USB 3.0 and USB 2.0 ports, an HDMI port, 802.11ac dual-band Wi-Fi, Bluetooth 4.2, speakers, microphones, and a combo audio jack. The operating system installed is Windows 10 Pro (64-Bit). This system also comes with a USB keyboard and mouse to help you get started as soon as possible. - Display
- The Pro 24X series are equipped with an IPS-grade panel and a narrow bezel design measuring only 2.2 mm thin for a more immersive viewing experience.
- Easy Maintenance Design
- The HDD Rapid Upgrade Design lets you upgrade the 2.5" storage drive without much trouble. Simply remove the cover to slide out and replace the drive.
- Silent Pro Cooling
- The Silent Pro Cooling system features separate air flow for key components for a better balance of noise and cooling.
- Anti-Flicker & Anti-Glare Display
- With anti-flicker technology, the display on this system can help to reduce eyestrain that happens over long viewing periods. It also has an anti-glare coating for more comfortable viewing.
- VESA Mount Support

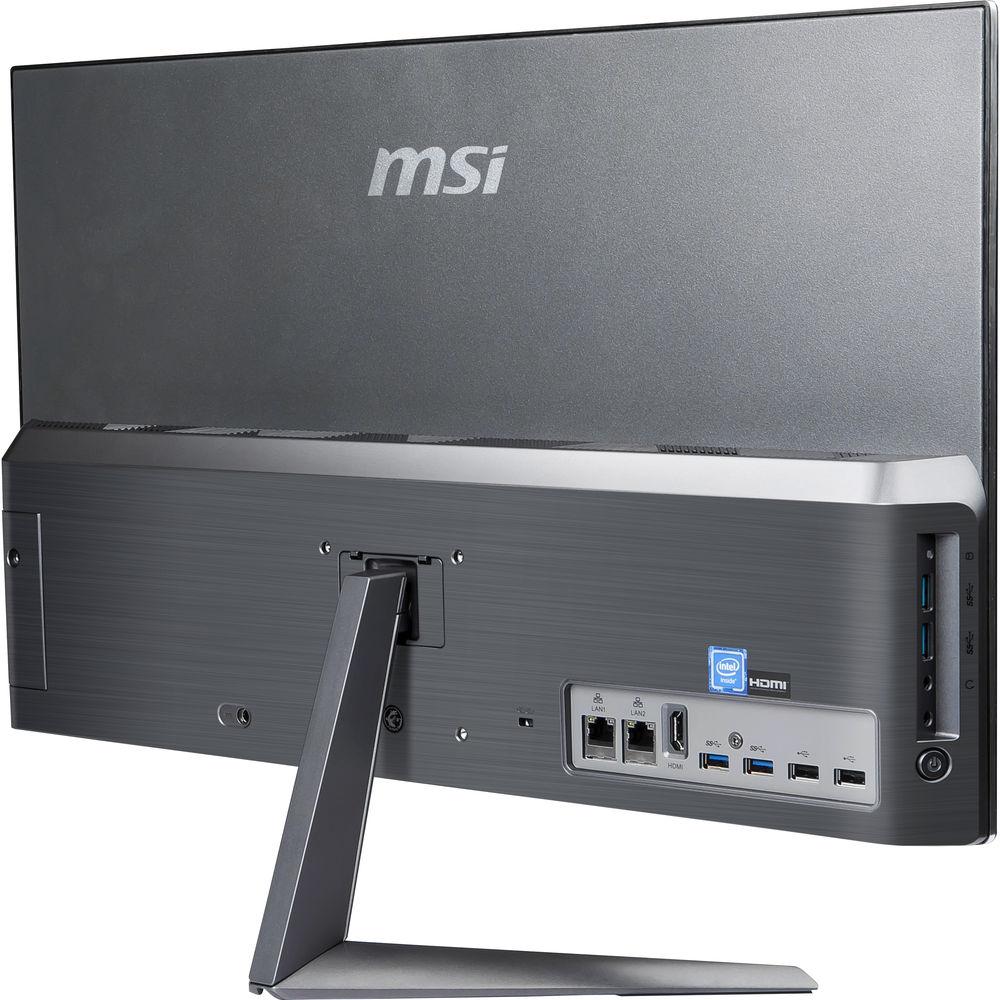

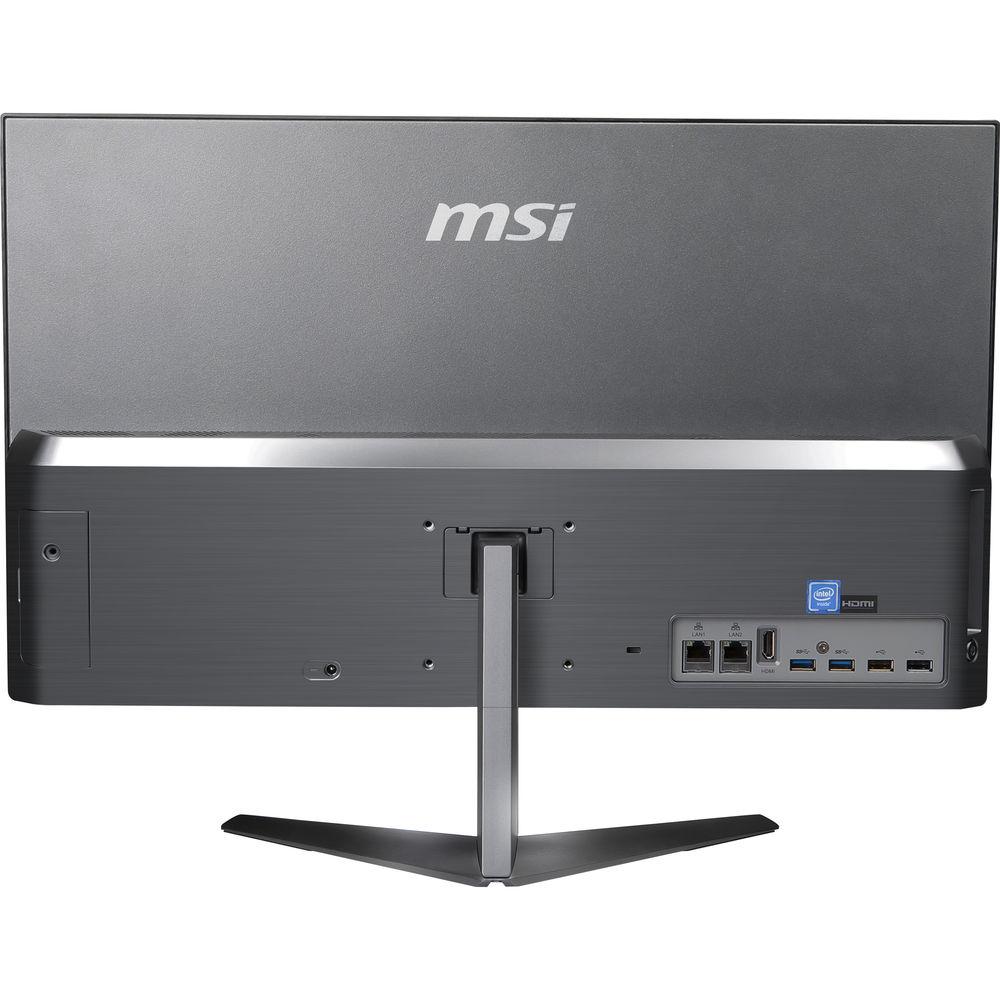

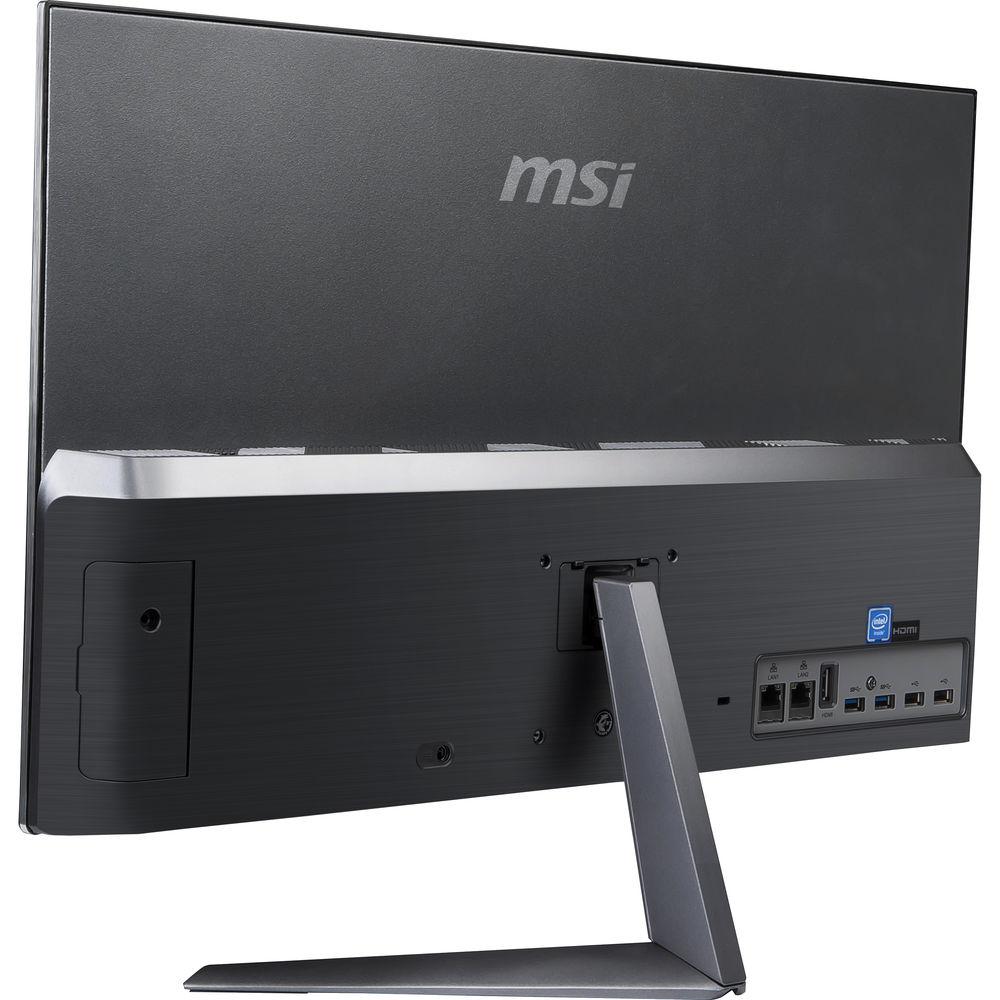

- The Pro 24X 7M can be mounted to a wall or stand for a cleaner setup using the VESA mounting holes on the back.
Windows 10 Pro - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 824142164327 In the Box MSI 23.8" Pro 24X 7M All-In-One Desktop Computer Power Cable & Adapter USB Keyboard & Mouse Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI 23.8" Pro 24X 7M All-In-One Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI PRO 24X 7M-025US Specs | Operating System | Windows 10 Pro (64-Bit) | | | | CPU | 1.8 GHz Intel Celeron 3865U Dual-Core | | L3 Cache | 2 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 4 GB | | Memory Configuration | 1 x 4 GB (User-Replaceable) | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 1 | | Graphics Type | Integrated | | GPU | Intel HD Graphics 610 | | | | Panel Type | IPS | | Size | 23.8" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Touchscreen | No | | Finish | Matte | | Viewing Angle (H x V) | 178 x 178° | | | | Solid State Storage | 1 x 32 GB M.2 SATA | | Hard Disk Storage | 1 x 500 GB 2.5" SATA (7200 rpm) | | Optical Drive | None | | | | Ports | 2 x USB Type-A (USB 2.0)
4 x USB Type-A (USB 3.1 Gen 1) | | Display | 1 x HDMI Output | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | Yes | | Built-In Microphones | Yes | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | | | Keyboard | 104-Key Full-Size Keyboard | | Pointing Device | USB Mouse | | | | Power Supply | 90 W | | Dimensions | 21.2 x 15.8 x 6.7" / 538.5 x 401.3 x 170.2 mm | | Weight | 8.7 lb / 4 kg | | | | Package Weight | 15.5 lb | | Box Dimensions (LxWxH) | 25.5 x 19.3 x 8.6" |
