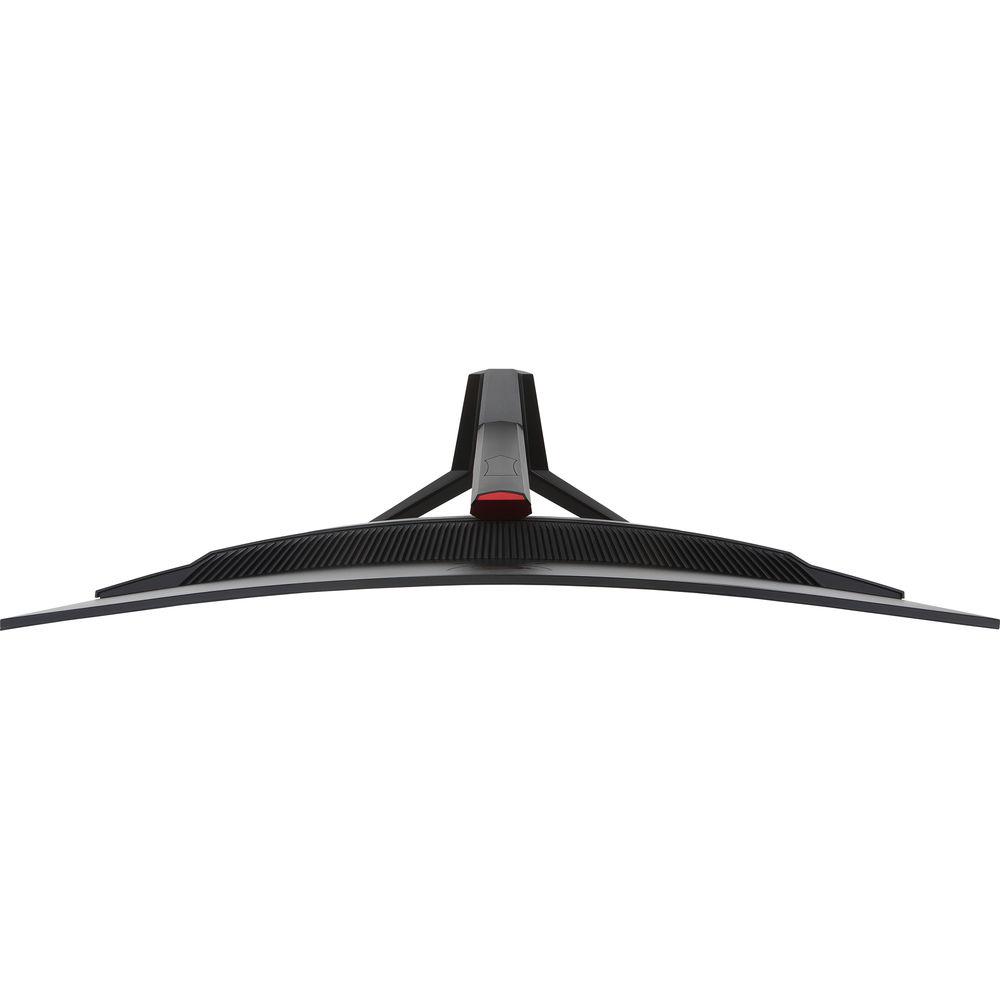

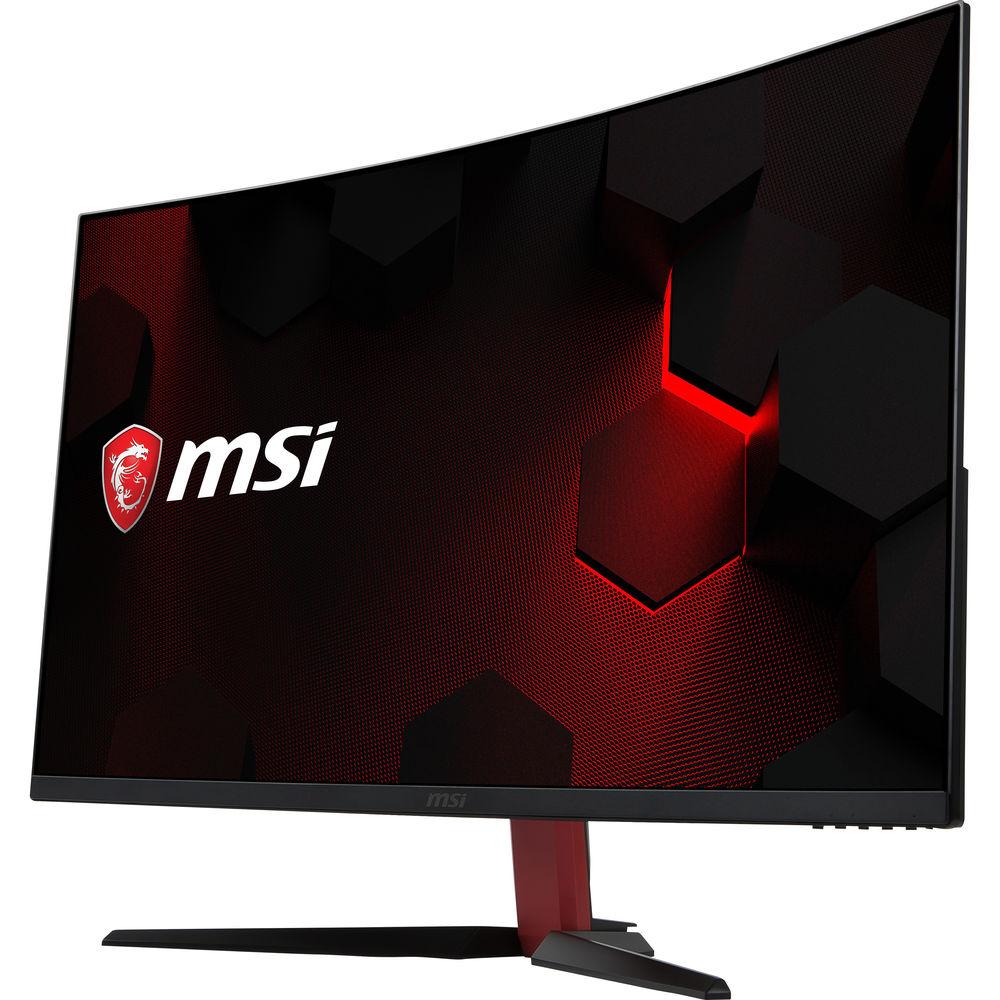

User Manual for MSI 31.5" Optix AG32CQ 16:9 144 Hz Curved FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the MSI 31.5" Optix AG32CQ 16:9 144
- Product category: Computer Monitors MSI
- Brand: MSI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MSI Computer Monitors
 |
User manual for the MSI 31.5" Optix AG32CQ 16:9 144 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MSI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MSI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MSI product will considerably shorten its lifespan!
|

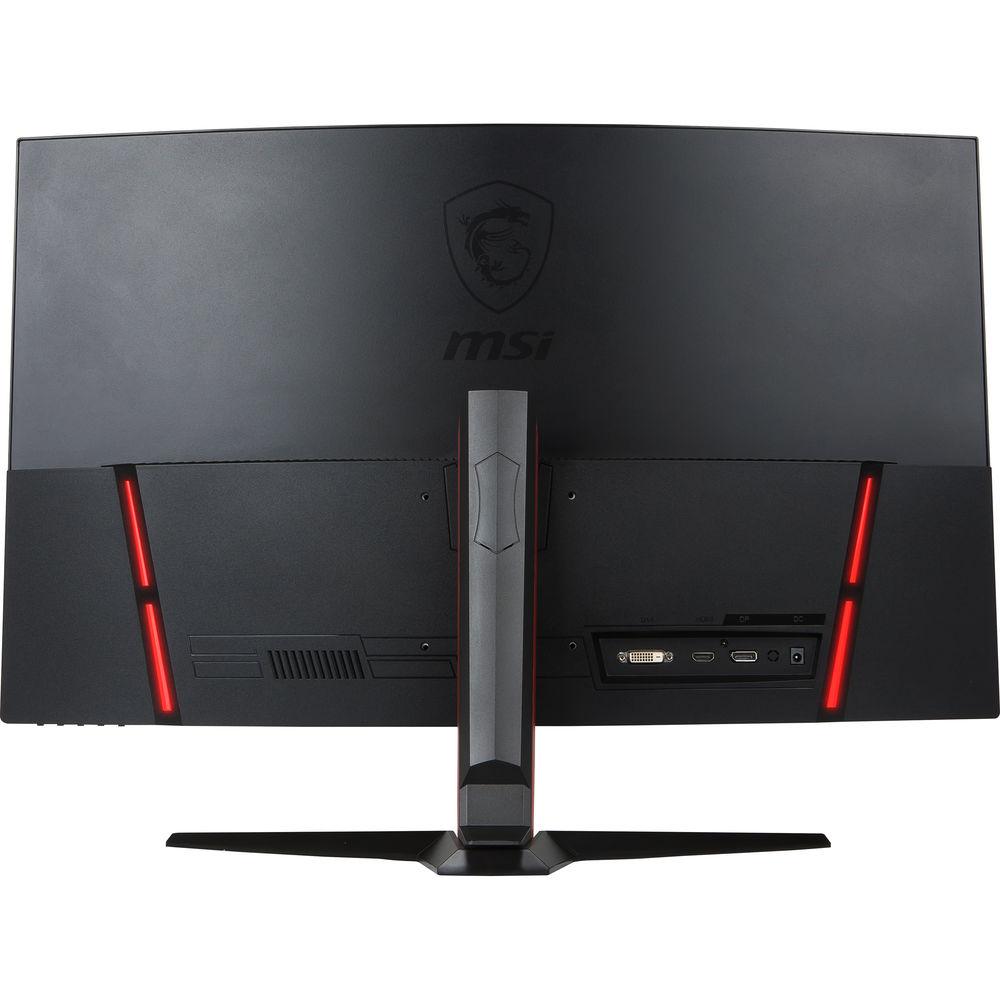

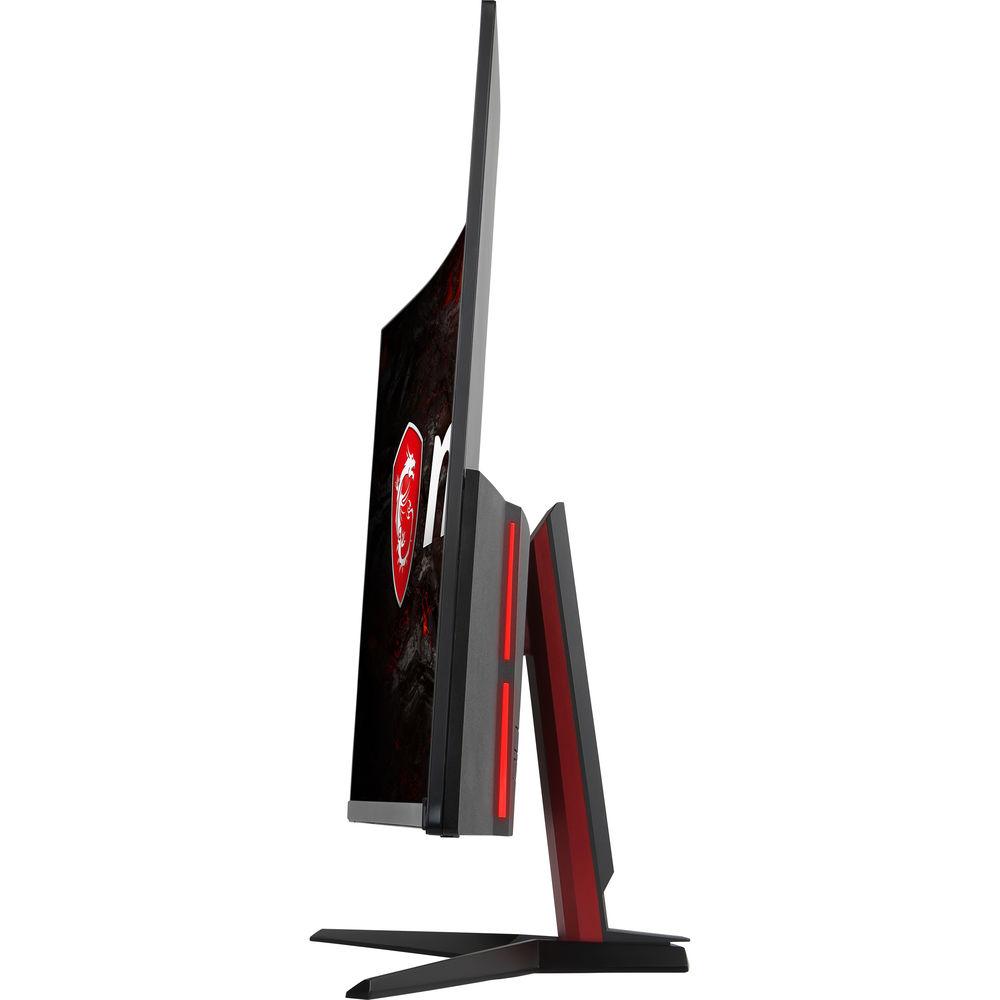

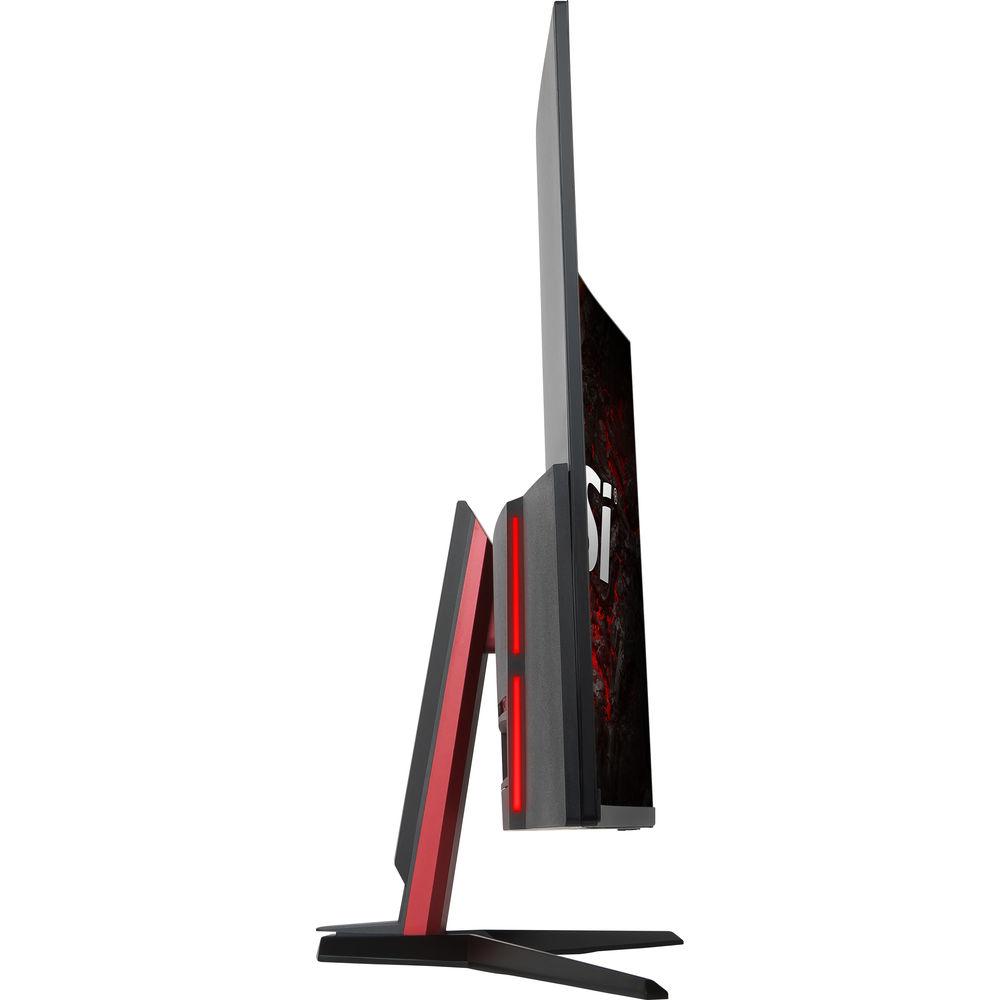

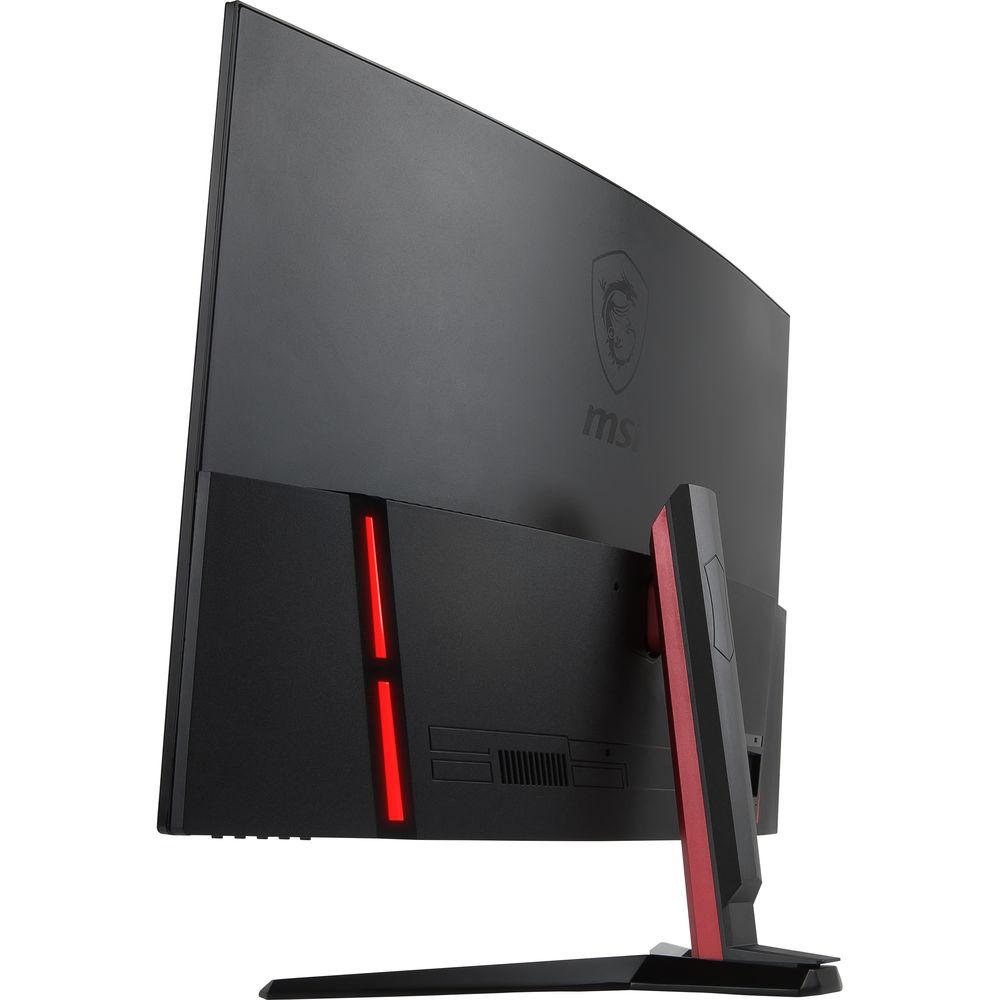

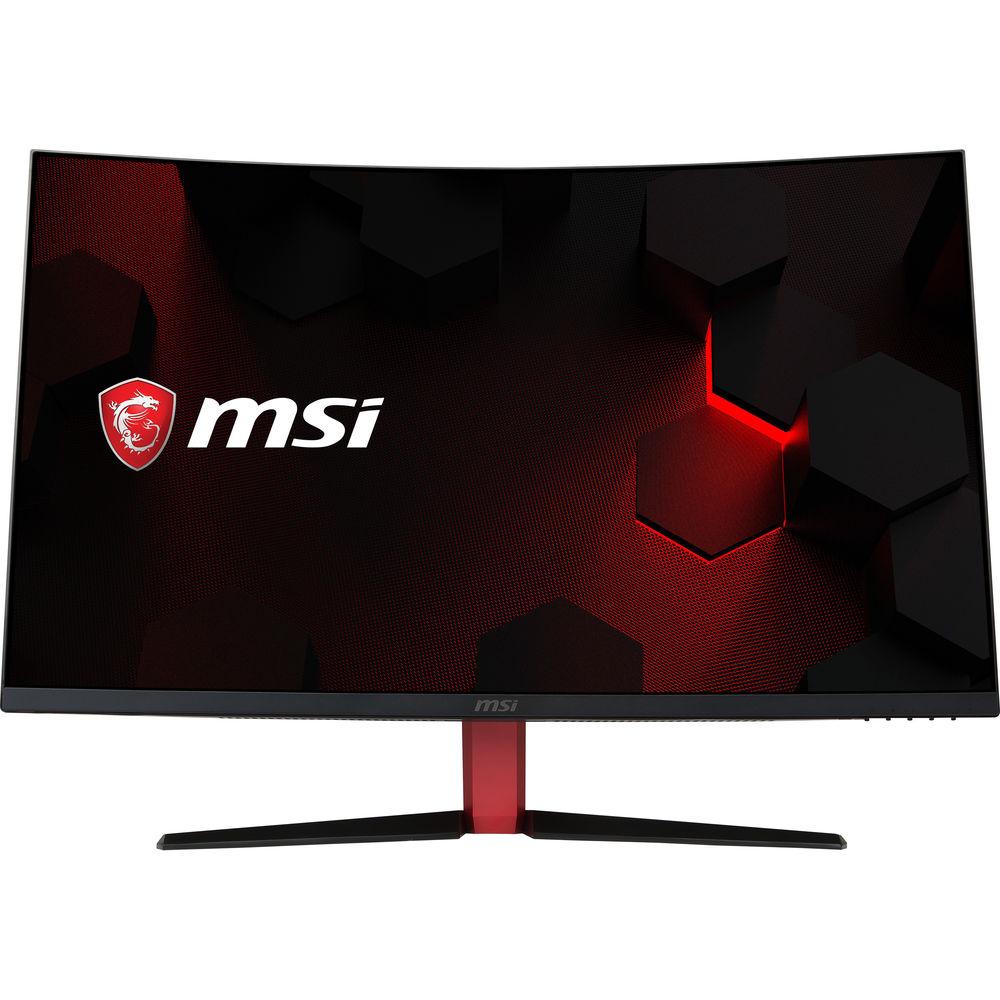

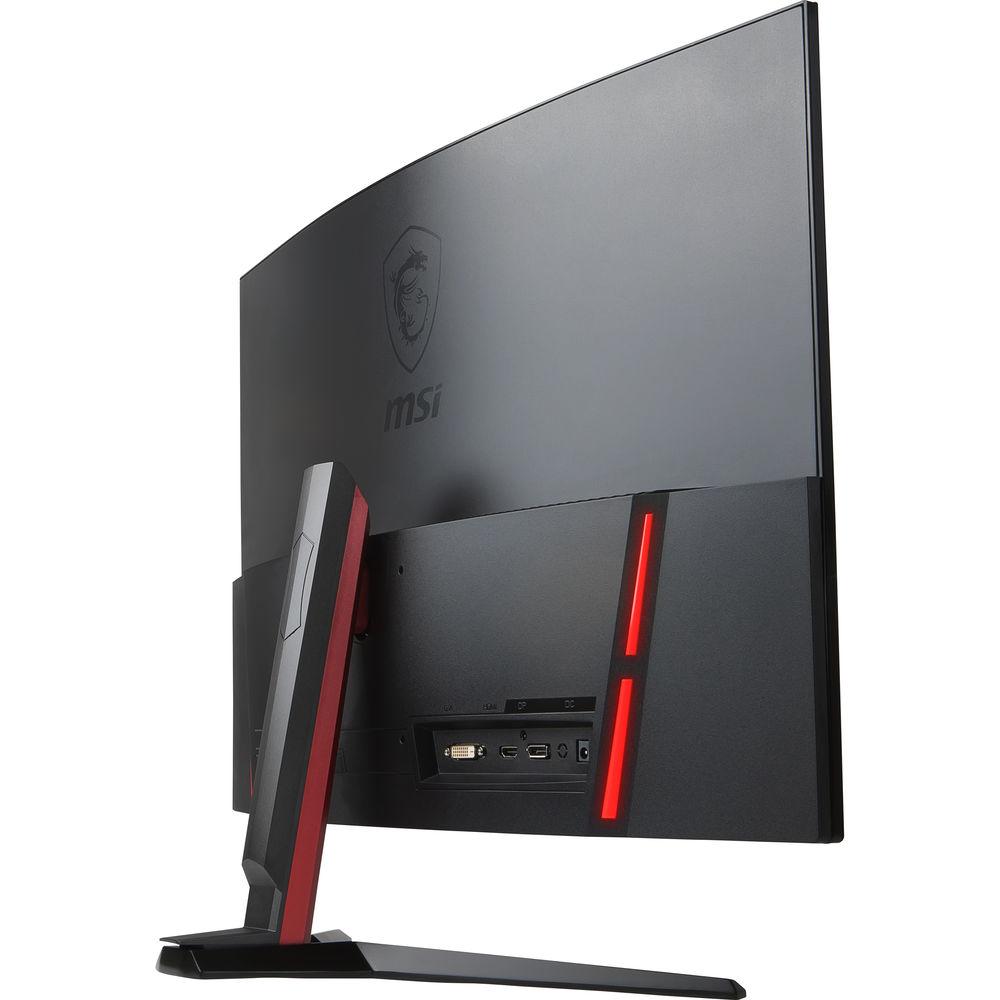

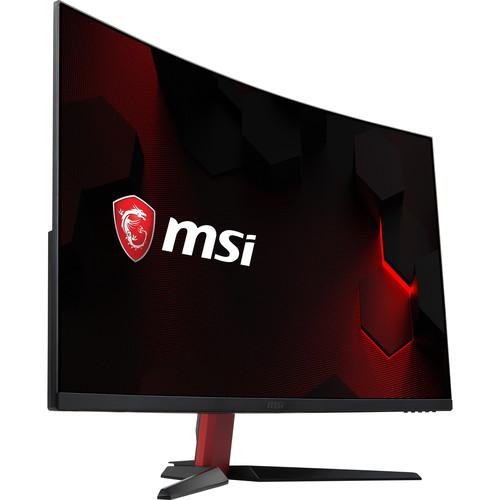

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 31.5" Optix AG32CQ 16:9 144 Hz Curved FreeSync LCD Monitor from MSI is designed for gamers looking for a responsive, high-resolution display. It features gaming-focused specs such as a 144 Hz refresh rate, a 1 ms response time, and AMD FreeSync support. Other specs include a 2560 x 1440 resolution for crisp and clear details, a 250 cd/m² brightness rating, and a 3000:1 static contrast ratio. Moreover, it's built on a curved VA panel, which wraps around your field of view for a more immersive viewing experience. Connect it to your system via DisplayPort, HDMI, or DVI and then tilt it to your preferred viewing angle. You can also install your own mount, arm, or stand using the VESA mounting holes on the back. - AMD FreeSync Technology
- AMD's FreeSync technology syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing and stuttering for a smoother gaming experience.
- Less Blue Light
- The Optix AG32CQ is optimized to reduce blue light emissions, which can cause eye fatigue and strain over extended viewing sessions.
- Anti-Flicker Technology
- Anti-Flicker technology helps to reduce screen flickering and prevent eye strain and fatigue.
- FPS Front Sight Toggle
- Using the onscreen menu, you can enable the FPS Front Sight Toggle, which displays a crosshair at the center of your screen for an easier time aiming in shooting games.
UPC: 824142156827 In the Box MSI 31.5" Optix AG32CQ 16:9 144 Hz Curved FreeSync LCD Monitor Power Cable & Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI 31.5" Optix AG32CQ 16:9 144 Hz Curved FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMSI Optix AG32CQ Specs | | | Size | 31.5" | | Screen Area | 27.45 x 15.50" / 697.34 x 393.7 mm | | Panel Type | VA LCD | | Curvature | 1800R | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 100,000,000:1 | | Refresh Rate | 144 Hz | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 56 to 215 kHz | | Vertical Frequency | 48 to 144 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 85% NTSC

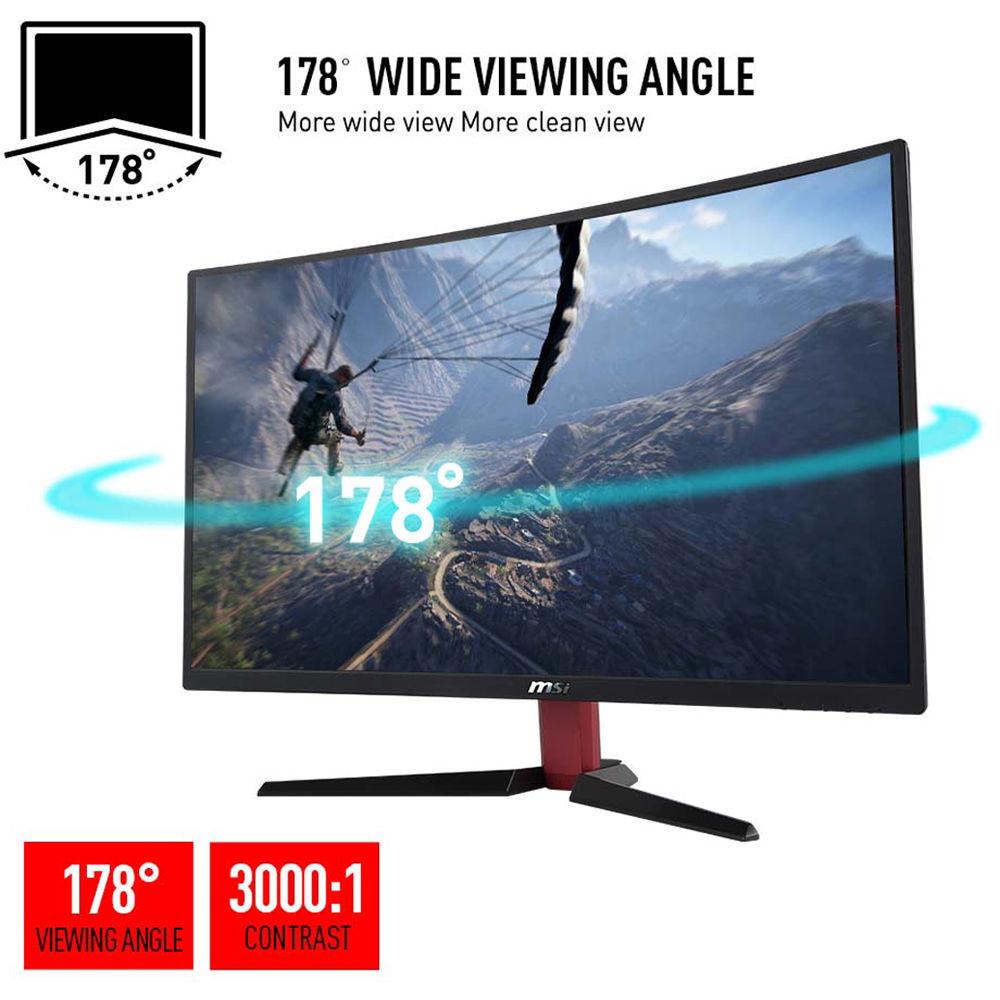

110% sRGB | | Response Time | 1 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2724 x 0.2724 mm | | | | Connectivity | 1 x DisplayPort 1.2
1 x HDMI 2.0
1 x DVI | | Built-In Speakers | None | | | | Power Consumption | 60 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 5 A | | Power Adapter Type | External | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 15° | | Mounting-Hole Pattern | 75 x 75 mm | | Lock Slot | No | | Dimensions (W x H x D) | 28.5 x 20.2 x 8.2" / 723.0 x 512.0 x 209.0 mm | | Weight | 19.7 lb / 8.94 kg | | | | Package Weight | 21.1 lb | | Box Dimensions (LxWxH) | 32.0 x 21.3 x 6.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
